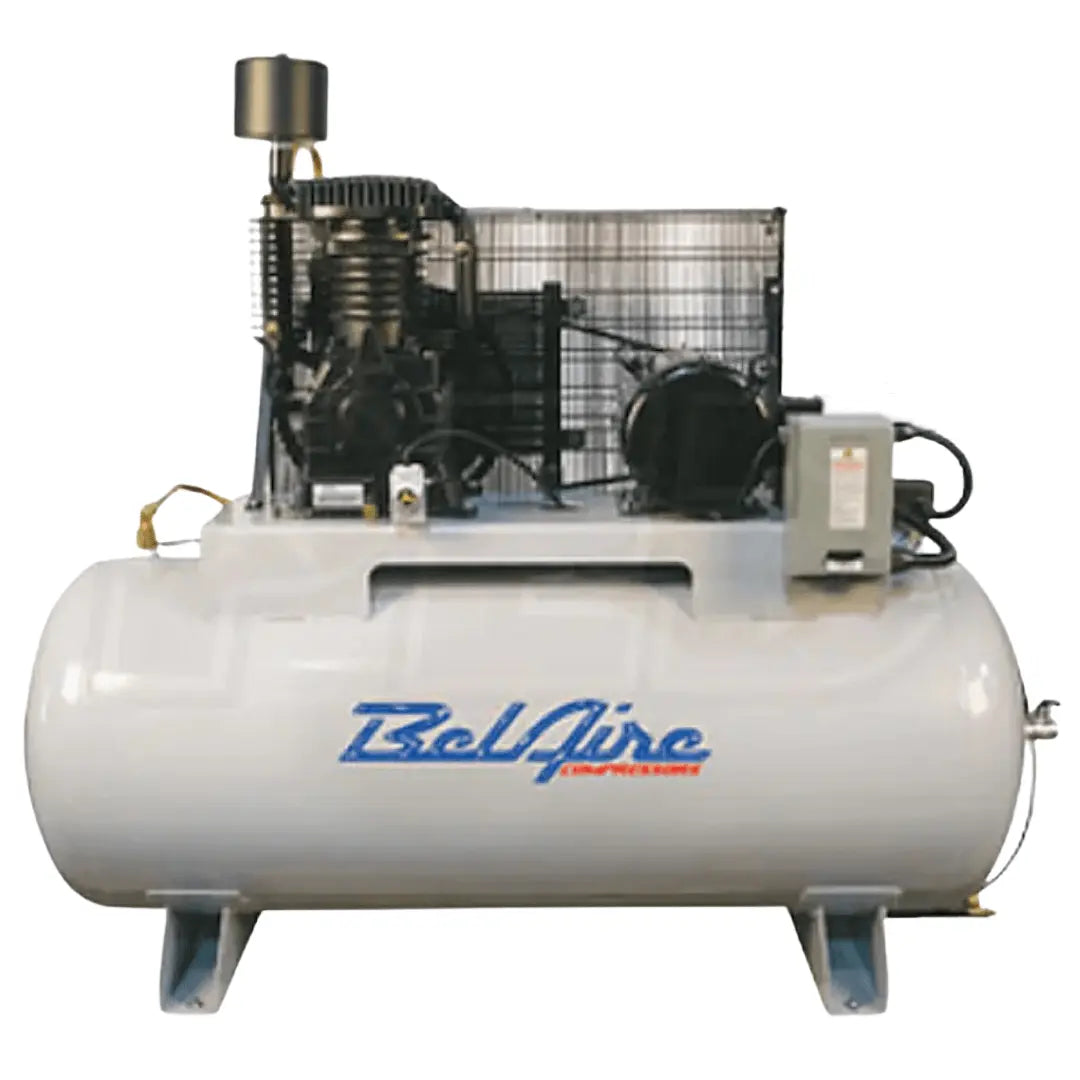

BelAire 338HE Elite Series 5-HP 80-Gallon Two-Stage Air Compressor
BelAire 338HE Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)
The BelAire 338HE Elite Series is a heavy-duty two-stage air compressor engineered for demanding industrial and workshop environments. Featuring a 5 horsepower motor operating on 208-230 volt three-phase power, it delivers 18.5 cubic feet per minute at 100 PSI and 16.6 CFM at 175 PSI, with a maximum pressure of 175 PSI. This performance ensures consistent, reliable airflow for powering multiple pneumatic tools and high-demand shop equipment.
The unit’s belt-driven two-stage pump is constructed with a durable cast-iron cylinder sleeve, stainless steel valves, and aluminum heads to improve heat dissipation and ensure long-lasting operation. A standout feature of the Elite Series is its triple-pass pump-mounted aftercooler, which lowers discharge air temperature, enhances efficiency, and extends component life.
For enhanced safety and convenience, the BelAire 338HE includes a magnetic starter for smooth motor operation, a low oil protection switch to prevent damage, and an automatic tank drain to simplify maintenance. Its start-stop pressure switch allows for reliable automatic operation, while the oil sight glass provides quick and easy monitoring of oil levels. The compressor is also equipped with a fully enclosed high-flow belt guard to protect moving parts during use.
Air is stored in an 80-gallon horizontal ASME-certified tank that reduces motor cycling and maintains stable compressed air delivery during heavy use. Measuring approximately 71 inches in length, 24 inches in width, and 49 inches in height, and weighing around 481 pounds, the BelAire 338HE balances a compact footprint with robust construction suitable for industrial shop floors. It is factory-tested at full pressure for reliability and comes backed by a two-year bumper-to-bumper warranty covering all components, providing peace of mind for your compressed air needs.
Product Features
- Solid Cast Iron Cylinder Sleeve 2-Stage Pump
- Delivers 18.5 CFM at 100 PSI
- CPXHT25 dryer recommended (not included)
- Elite Series Triple Pass Pump-Mounted Aftercooler
- Cooler air helps your equipment last longer
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- Elite Series Automatic Tank Drain (Not Electronic)
- Pressurized auto draining makes tank maintenance effortless
- Elite Series Low Oil Switch
- Protects the pump; sight glass for easy maintenance
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
- 208 Volt Or 230 Volt Three Phase Power
- Easily wires into either your 208V-3 or 230V-3 system
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Three-Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 30 Amp Breaker |
Engine
| HP | 5 |
Pump
| CFM | 18.5 |
| CFM Rated @ | 100 PSI |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 481 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Commercial Warranty | 2 Year |
| Product Length | 71 Inches |
| Product Width | 24 Inches |
| Product Height | 49 Inches |
| Power Type | Electric |
