Product Description

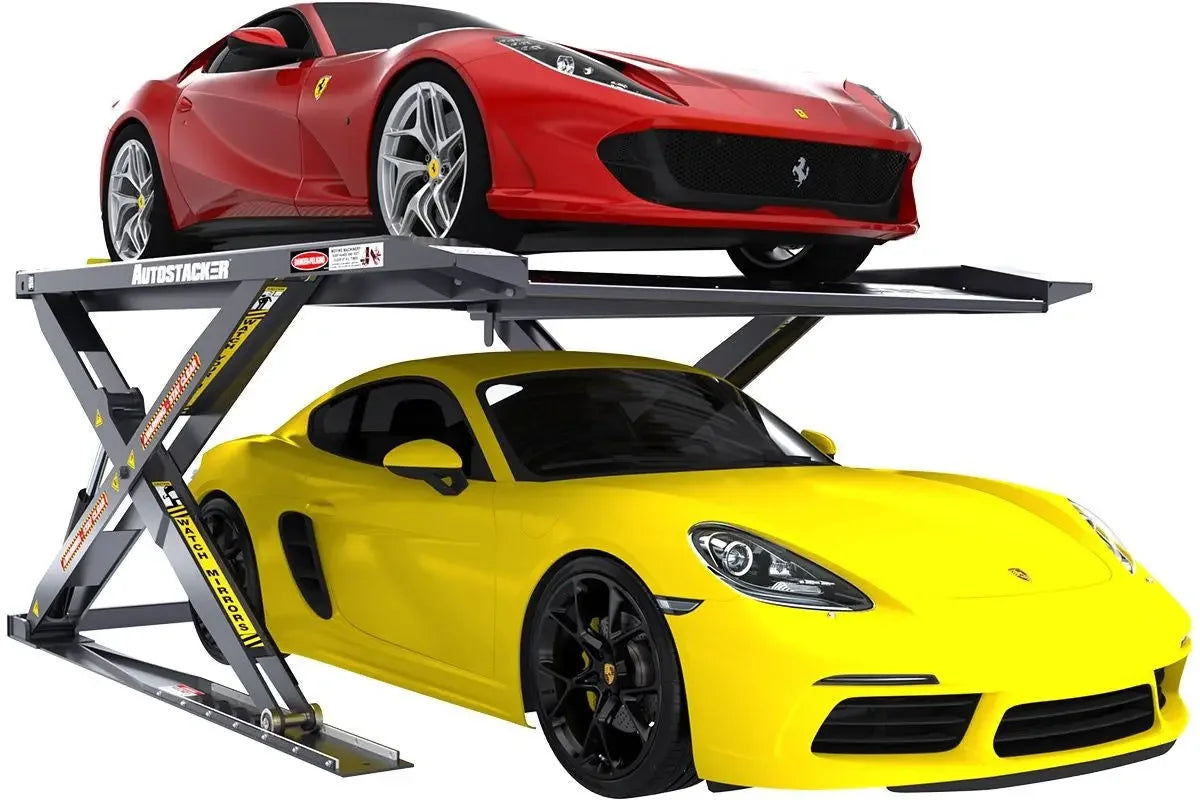

Autostacker A6W 6,000-lbs. Capacity Extra-Wide Parking Lift
Discover unparalleled parking solutions with the Autostaker A6W Extra Wide Parking Lift, a standout product available at Mechanic Superstore. This robust parking lift is designed to cater to the needs of both residential and commercial spaces, offering a hefty lifting capacity of 6,000 lbs (2,722 kg). With dimensions crafted for extra-wide vehicles, the Autostaker A6W ensures that space optimization and vehicle safety are no longer concerns for vehicle owners and parking space managers.
The lift’s overall dimensions, boasting an overall width of 111 inches (2,815 mm) and an overall length of 143 inches (3,630 mm), are complemented by a spacious platform designed to accommodate a wide range of vehicles. With a platform length of 124 inches (3,150 mm) and width of 91.75 inches (2,331 mm), the Autostaker A6W makes parking and retrieving your vehicle a breeze. The unit’s thoughtful design includes a minimal ramp height for easy entry and maximizes underclearance, offering up to 80 inches (2,032 mm) of space beneath the parked vehicle.
Speed and efficiency are at the heart of the Autostaker A6W, with a standard power unit console enabling a rise time of just 35 seconds. For those requiring even faster operation, an optional multi-unit power unit console cuts this time nearly in half, to an impressive 20 seconds. Additionally, the lift operates at a whisper-quiet decibel level of 52 db, ensuring that its operation is as unobtrusive as it is efficient.
The Autostaker A6W is not just about speed and size; it also offers versatility with five adjustable locking heights, ranging from 52.5 inches (1,331 mm) to an impressive 81.25 inches (2,064 mm). This feature ensures that vehicles of various sizes can be securely stored at the optimal height for the space available. Furthermore, the lift is designed with safety and convenience in mind, from its robust lifting capacity to its quiet and efficient operation.
In conclusion, the Autostaker A6W Extra Wide Parking Lift, offered by Mechanic Superstore, is a solution that addresses the pressing needs of modern parking spaces. Whether for commercial use or personal garage enhancement, this 6000lb lift combines strength, efficiency, and versatility, making it an essential investment for anyone looking to maximize space and protect their vehicles. Experience the next level of parking convenience with the Autostaker A6W, where space optimization meets cutting-edge design.

Product Features
- Commercial Application of a Wider Lift
- Residential Application of a Wider Lift
- Low Maintenance
- Extra-Wide Autostacker Still Saves Space

Product Specifications
Lifting Capacity
Lifting Capacity | 6,000 lbs. (2,722 kg) |
Dimensions
Overall Width | 111" (2,815 mm) |
Overall Length | 143" (3,630 mm) |
Platform Length | 124" (3,150 mm) |
Platform Width | 91.75" (2,331 mm) |
Platform Height (forward) | 13" (330 mm) |
Ramp Height (entry) | 2" (51 mm) |
Maximum Underclearance | 80" (2,032 mm) |
Five Locking Heights
First (Lowest) | 52.5" (1,331 mm) |
Second | 60.75" (1,543 mm) |
Third | 68.5" (1,736 mm) |
Fourth | 75" (1,909 mm) |
Fifth (Highest) | 81.25" (2,064 mm) |
Speed of Rise
Standard power unit console | 35 seconds |
Optional multi-unit power unit console | 20 seconds |
Decibels
Decibels | 52 db |
Power
Standard - Power Unit Console
Power Unit Console | Single unit operation |
Motor horsepower | 2HP |
Power consumption | 1,500 Watts |
Motor voltage | 208-240V, 50/60Hz / 1Ph |
Starting amps | 25A |
Normal running amps | 12-18A |
Optional - Multi-Unit Power Unit Console
Multi-Unit Power Unit Console | Operates up to 12 lifts |
Motor horsepower | 7.5HP |
Power consumption | 5,600 Watts |
Motor voltage | 208-230V/460 VAC, 50/60Hz / 3Ph |
Starting amps 208-230V | 25A |
Normal running amps 208-230V | 12-18A |
Starting amps 460V | 10A |
Normal running amps 460V | 6-9A |
Shipping
Shipping Weight | 3,650 lbs. (1,656 kg.) |

Downloads

Brochure

Manual
