Description

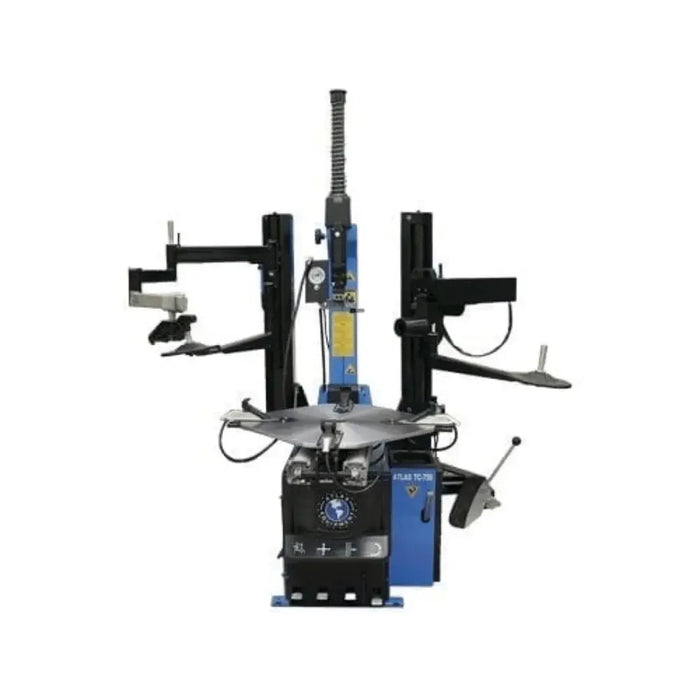

-Atlas TC755 Tire Changer with Dual Arms

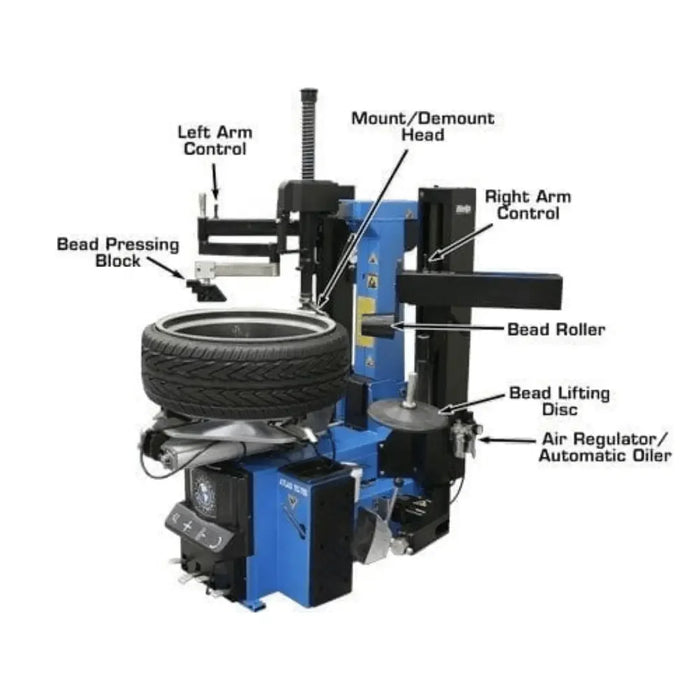

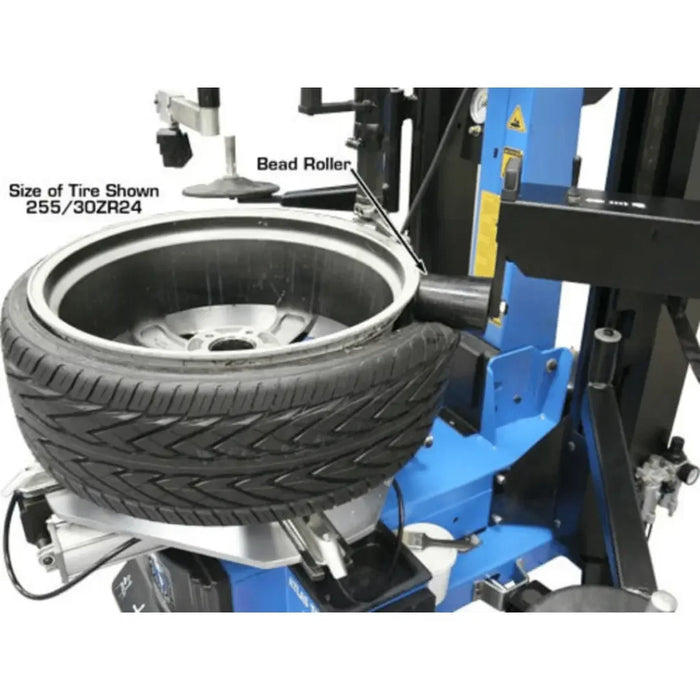

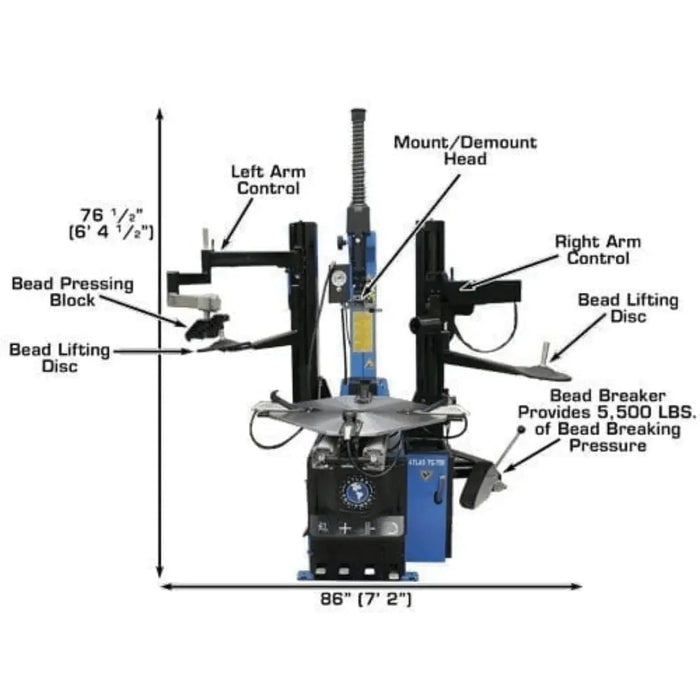

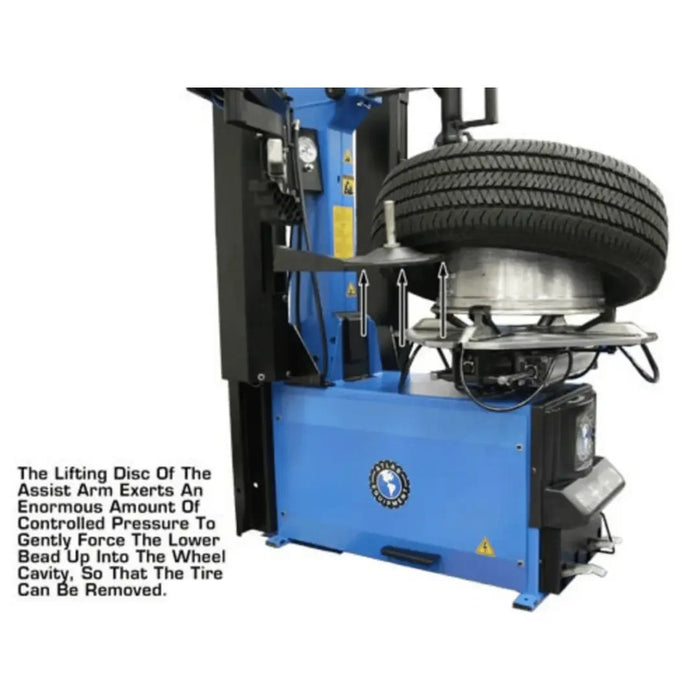

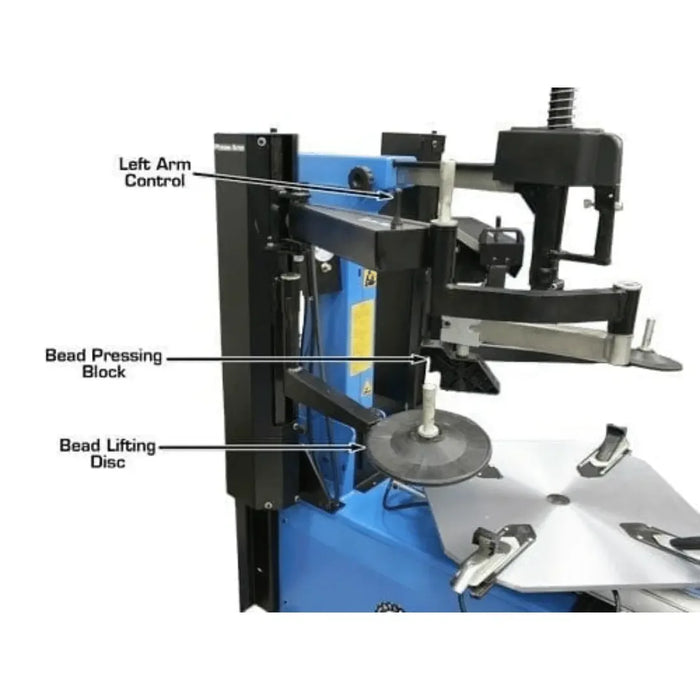

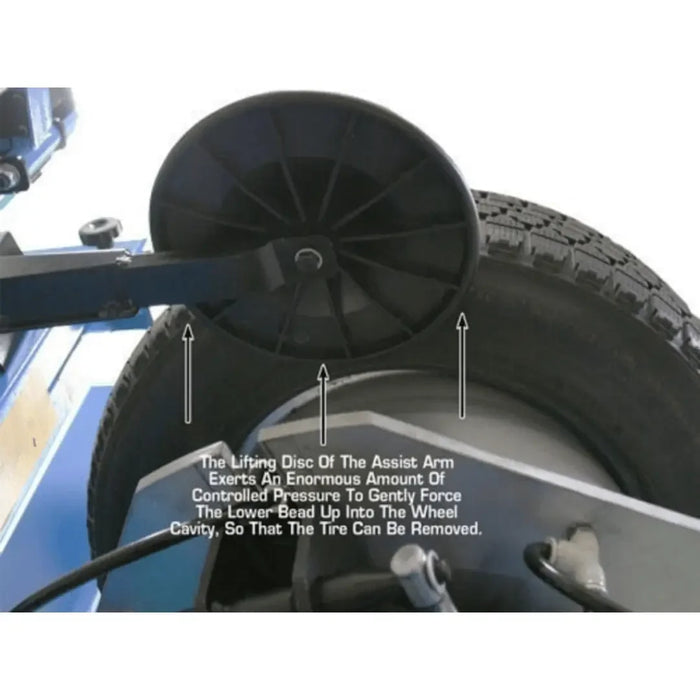

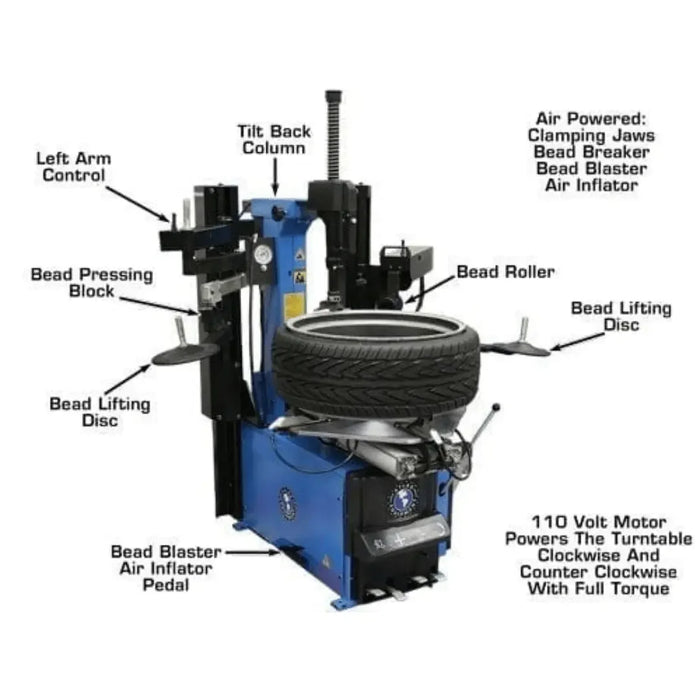

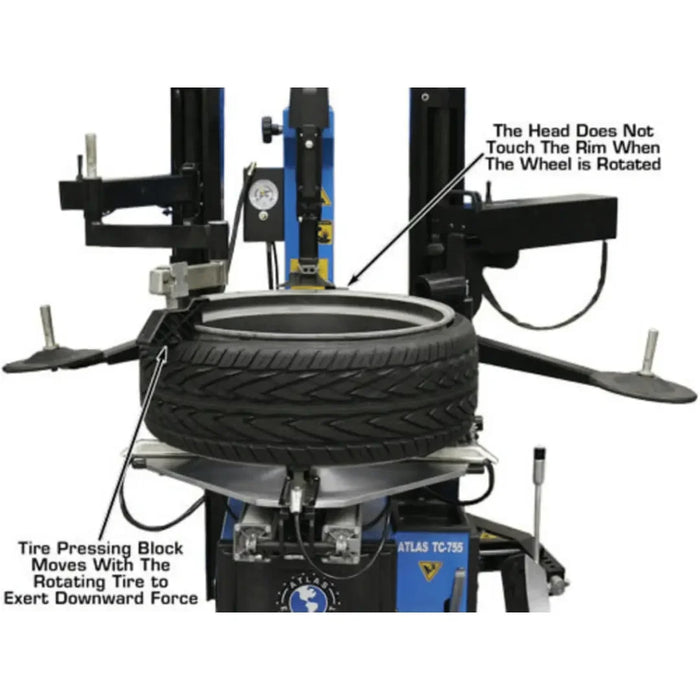

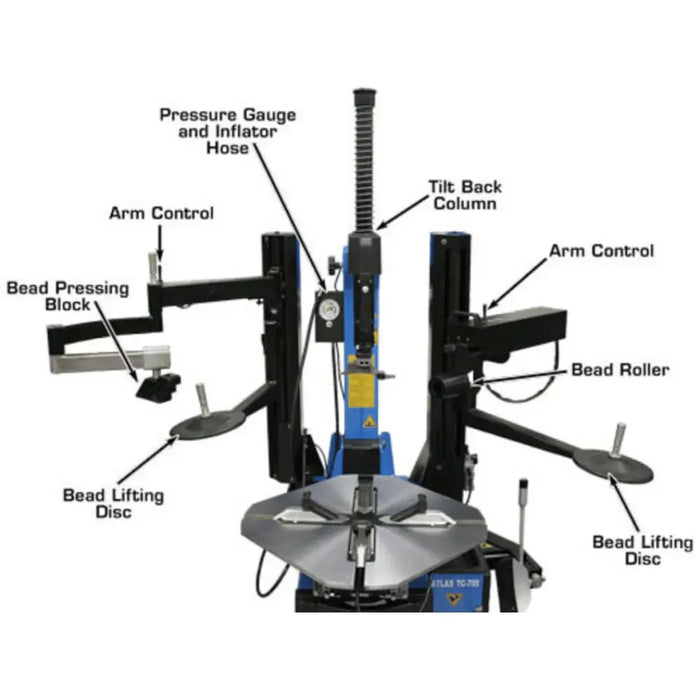

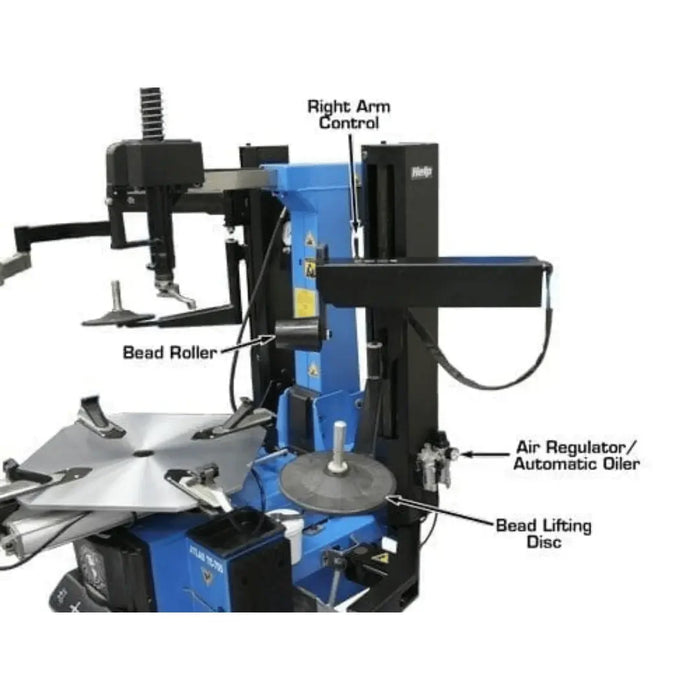

The Atlas® TC755DAA is a "professional tire dealer" or "large car dealership" tilt-back style rim clamp tire changer. This version of the Atlas® TC755 tire changer comes with the Atlas® DAA-T dual assist arm package, made up of a left hand mounted arm with a pressing block and pressing/lifting disk and a right hand mounted arm with a pressing/lifting disk and bead roller. The dual assist arms are a necessary tool if you will be changing a high number of stiff sidewall, low profile, runflat style tires. The DAA acts as an extra set of hands saving a single user time and effort.

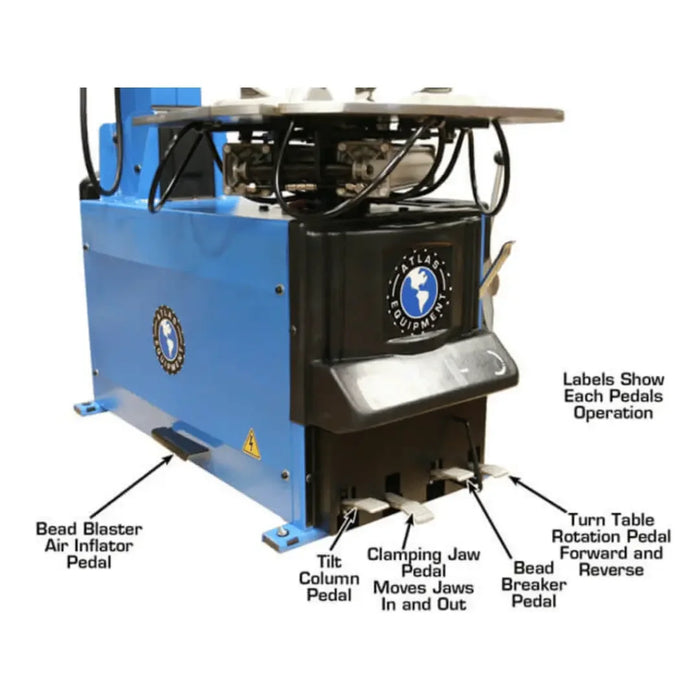

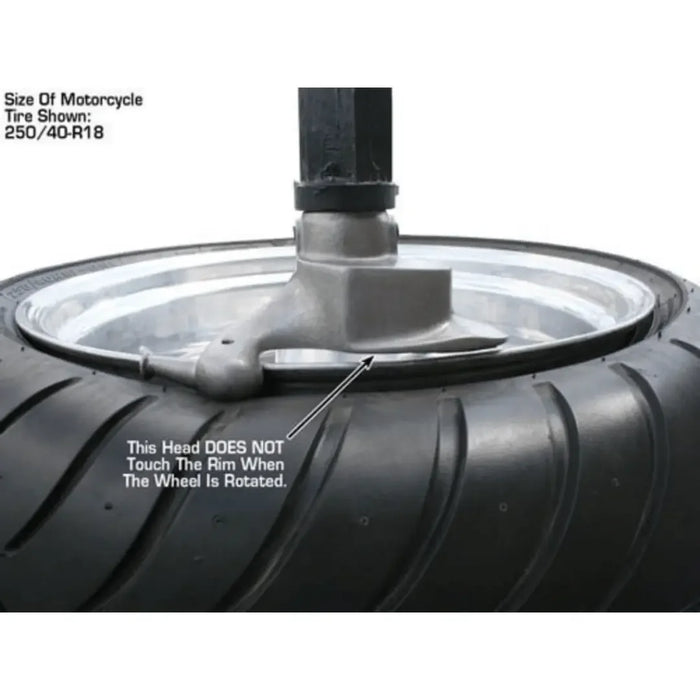

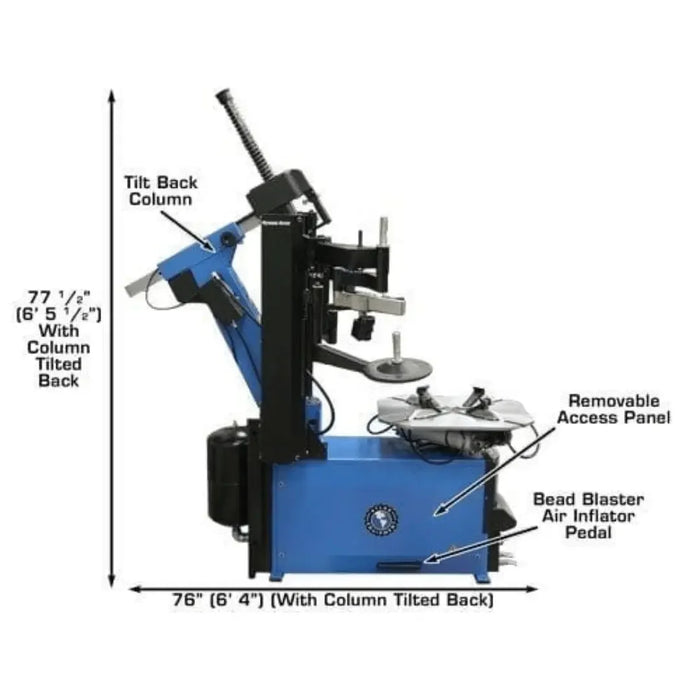

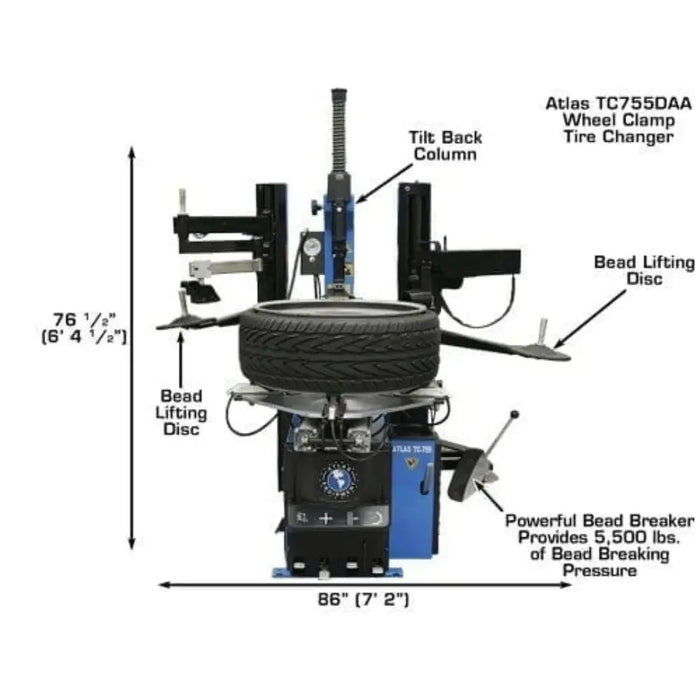

The Atlas® TC755 tire changer features a foot operated Tilt-Back column allowing the user to quickly and easily mount and un-mount tires from the table without worrying about moving an arm or hitting the column. With the tilt back feature the TC755 also has a pneumatic locking mount/demount head which greatly lowers the risk of the head moving during use and possibly damaging the rim or tire. The TC755 comes standard with an extra large turntable which means it can "clamp" most 26 inch chrome rims without the need for adapters.

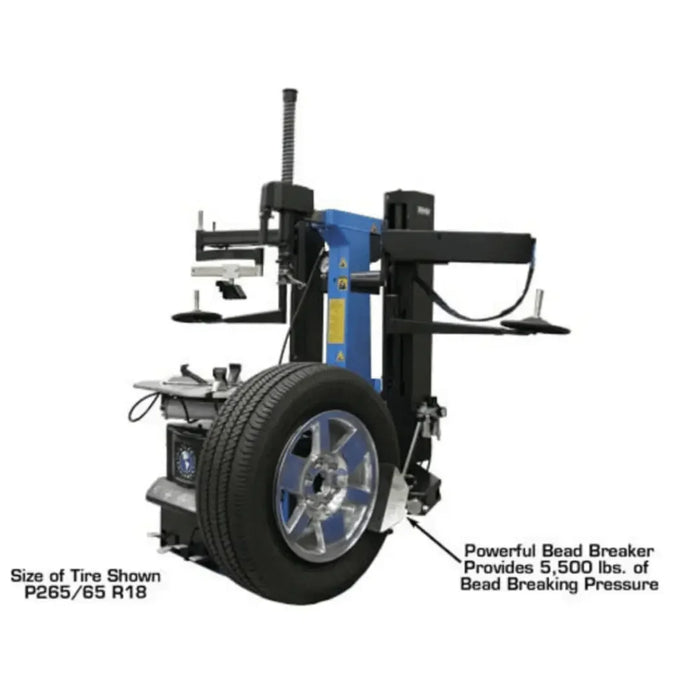

Atlas® TC755DAA features a built in "Beadblaster" system. The "Beadblaster" system helps inflate stiff sidewall or other "hard to inflate" tires. The Atlas TC755 tire changer also has a powerful hand controlled bead breaker located on the side of the machine which is designed to break even the most stubborn and rusted beads without damage to the rim. The turntable jaws (which can be covered with plastic covers) hold the rim securely without damaging the surface of the rim. These jaws can be moved to three different positions along the slide of the turntable to either increase or decrease the clamping range, and to handle the widest variety of tires.
The Atlas® TC755DAA requires some assembly after purchase.
Product Features
- Tilt-Back Column Tire Changer
- Dual Assist Arms Included
- Rim-Clamp Style
- Extra-Large turntable, more clearance
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Button-Controlled Bead Breaker (operated at blade)

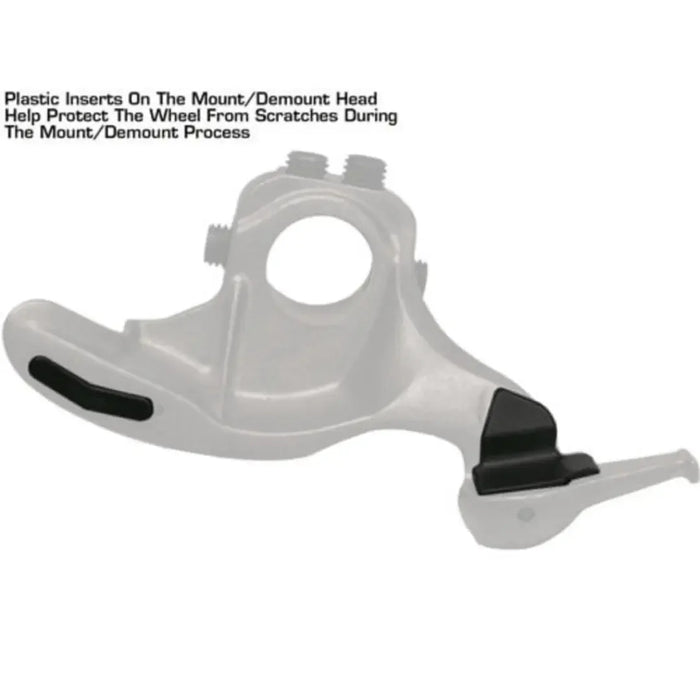

- Metal mount/demount head w/ metal roller or replaceable plastic inserts
- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included

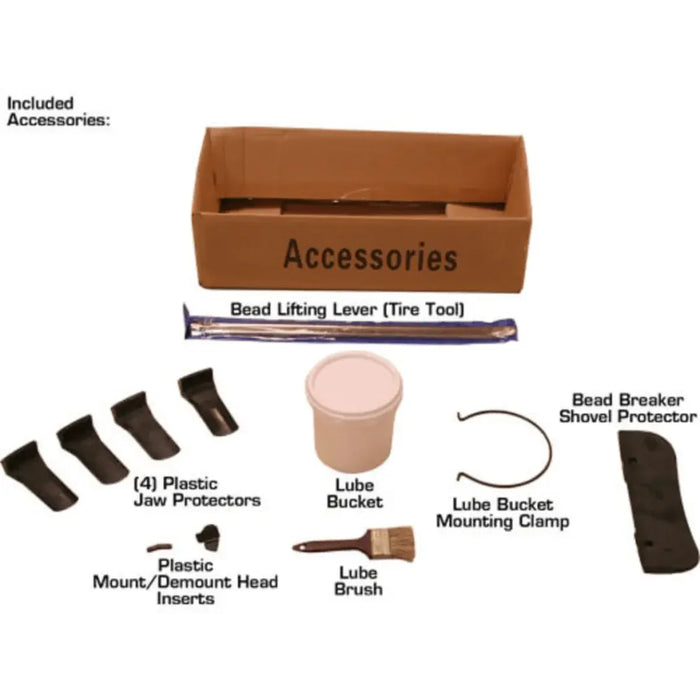

- 20" Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in "Beadblaster"

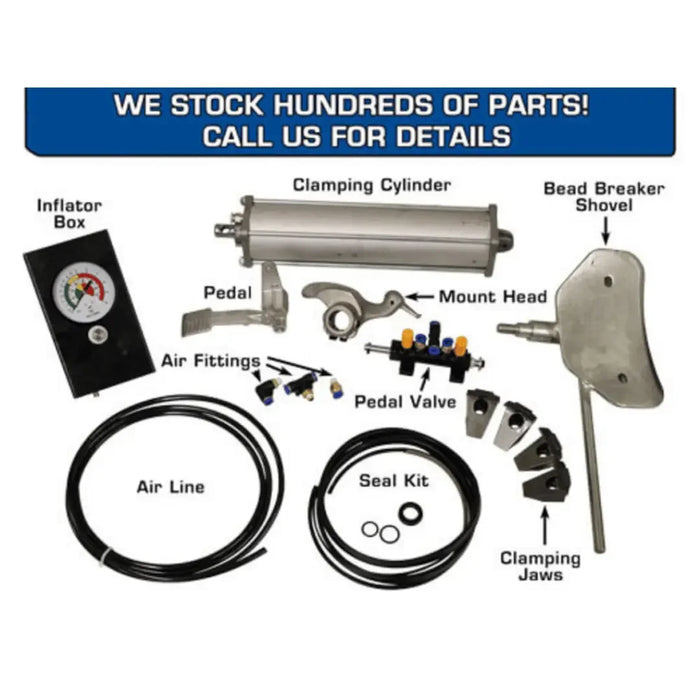

- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
Product Specifications
| Model | TC755DAA |

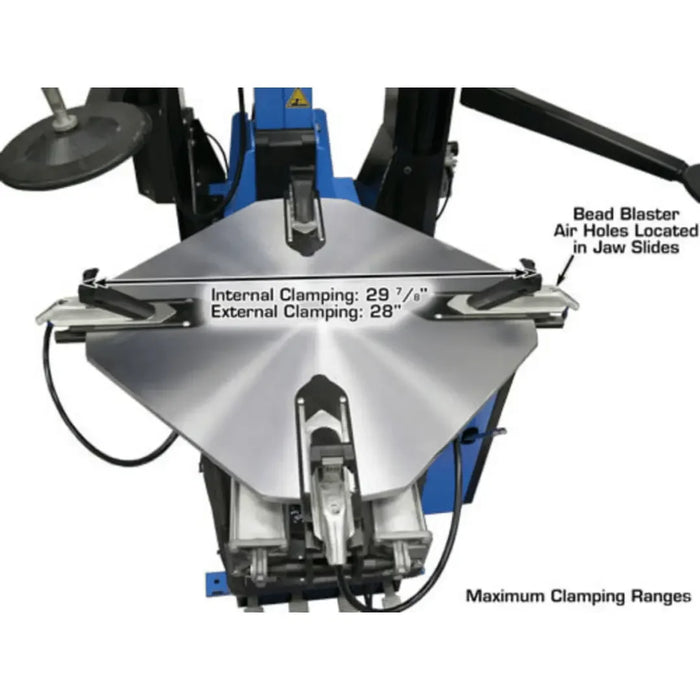

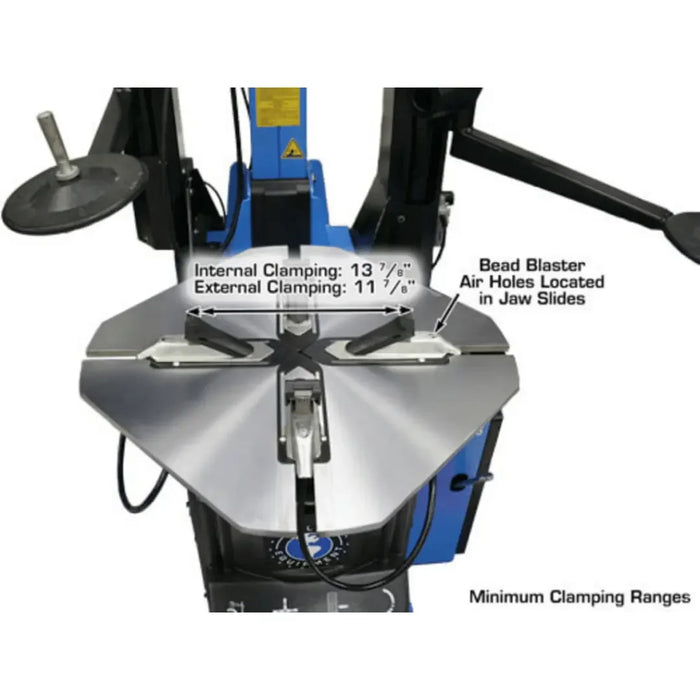

| External Locking Rim Dimensions | 11 7/8" to 27 7/8" |
| Internal Locking Rim Dimensions | 13 7/8" to 29 7/8" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width (Bead Breaker) | 18" |
| Table Motor | 1 HP |
| Turntable Rotating Torque | 885 ft/lbs. |
| Bead Breaker | 5,500 LB. Force |
| Air Requirement | 90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage | 110volt |

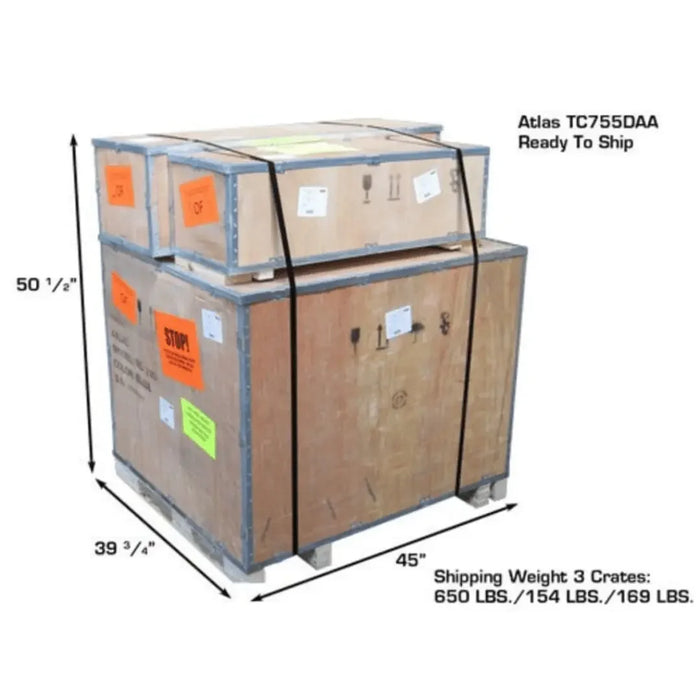

| Shipping Weight | 1000 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
Specifications
-| Upc | 810524025478 |
|---|
