Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package

Name: Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package
Brand: Atlas
Price: 4699.0 USD
Availability: InStock

Part #:ATETCWB-COMBO6

Brand: Atlas

$0.00 - $0.00

$0.00

$4,699.00

$4,699.00 - $4,699.00

$4,699.00

Call/Text Us: 866-774-7743 Call Us

Description

-

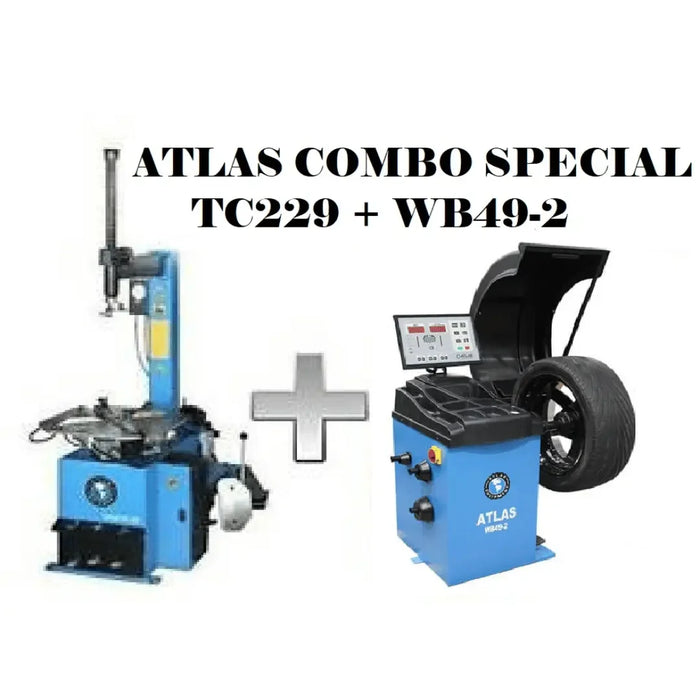

Atlas TC229 Tire Changer + WB49-2 Wheel Balancer Combo Package

This combination package includes the Atlas® TC229 rim-clamp swing arm tire changer & the Atlas® WB49-2 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and both carry the Atlas® 1 year parts only warranty.

Product Features

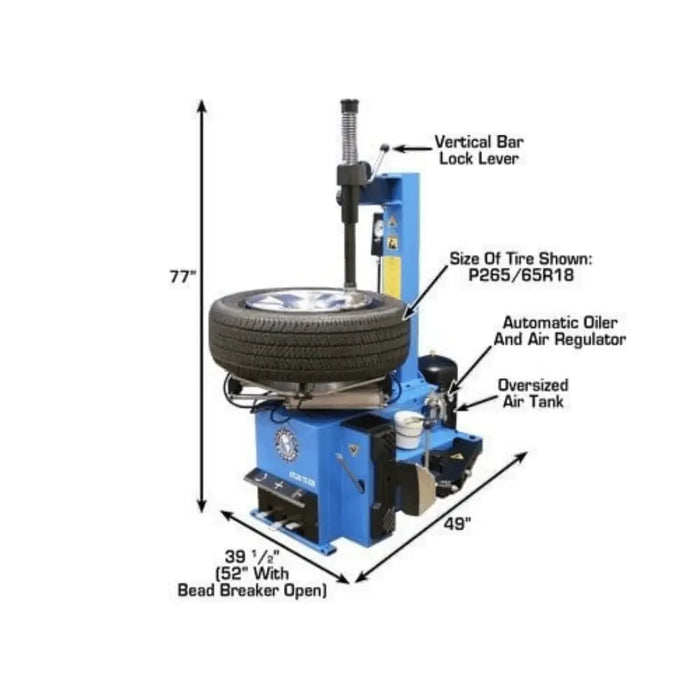

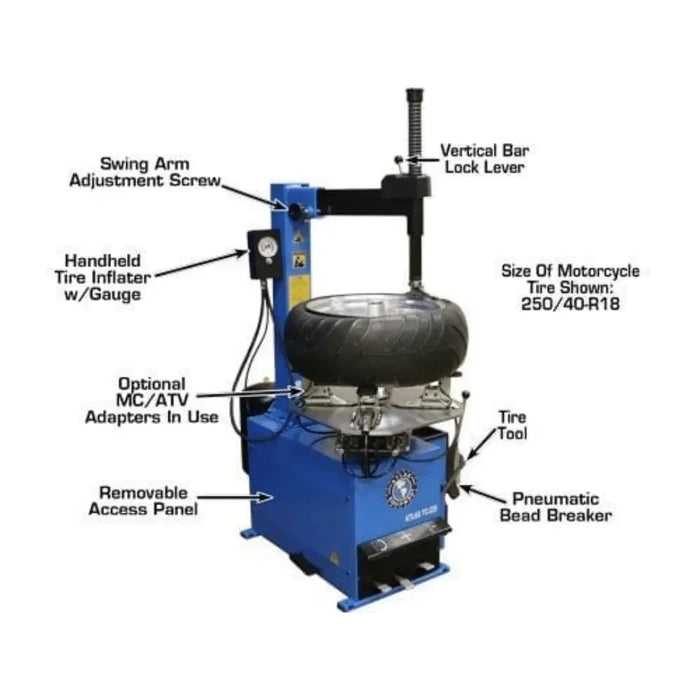

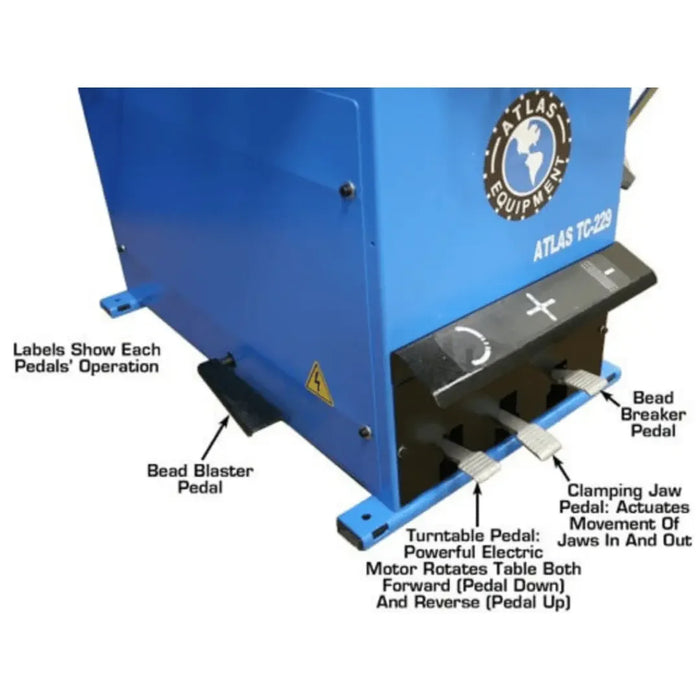

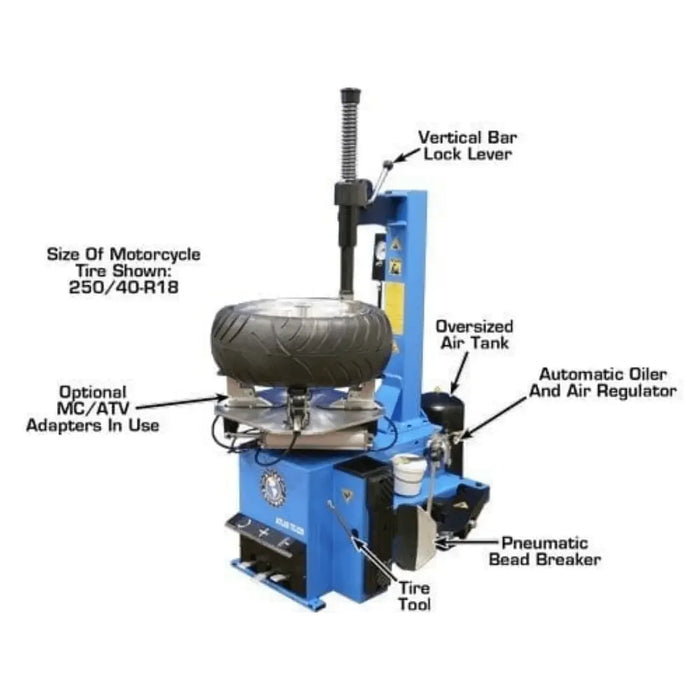

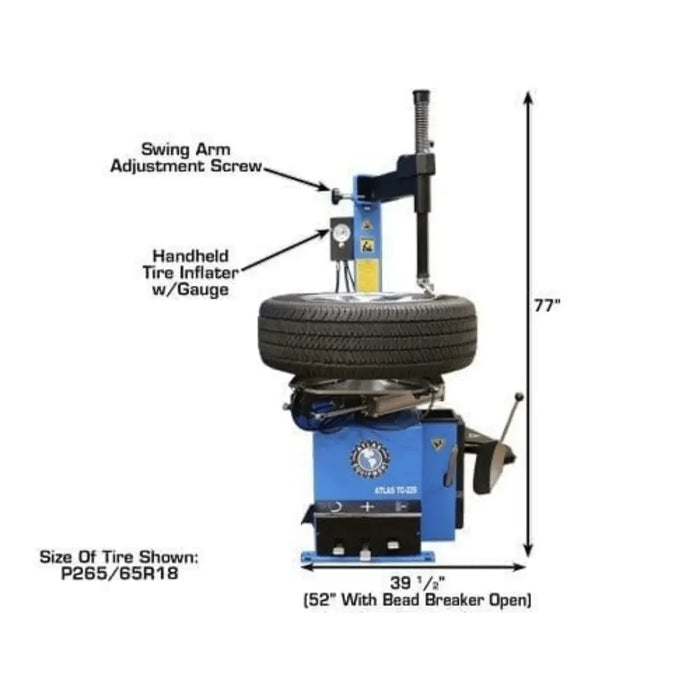

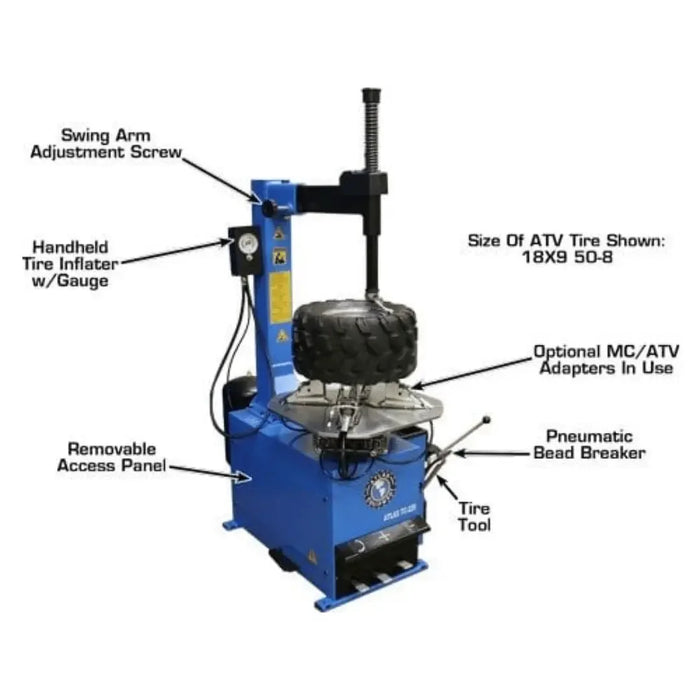

TC229 Tire Changer

Rim Clamp/Swing Arm Tire Changer

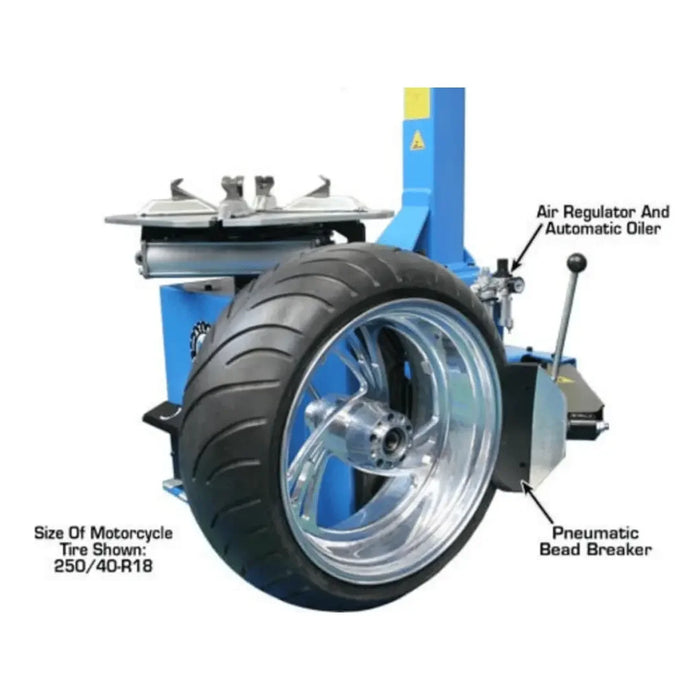

Air operated jaws & bead breaker (external air supply required)
Electric turntable

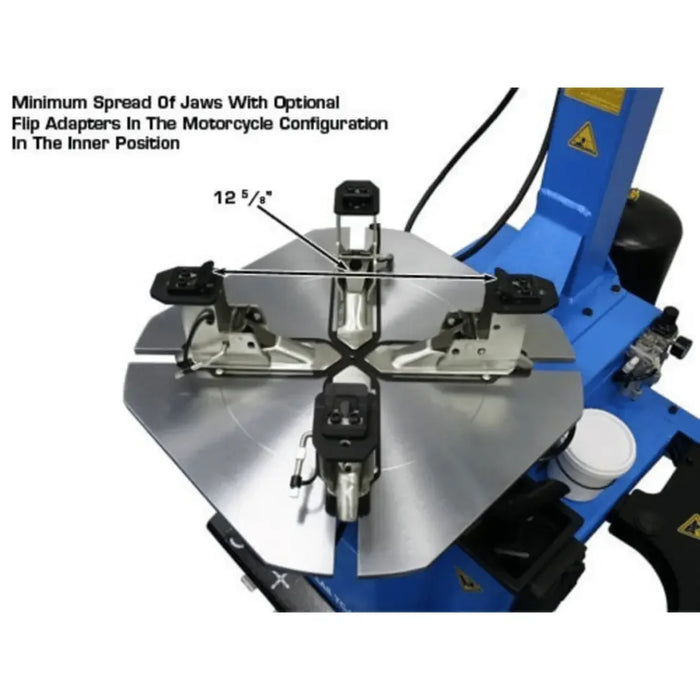

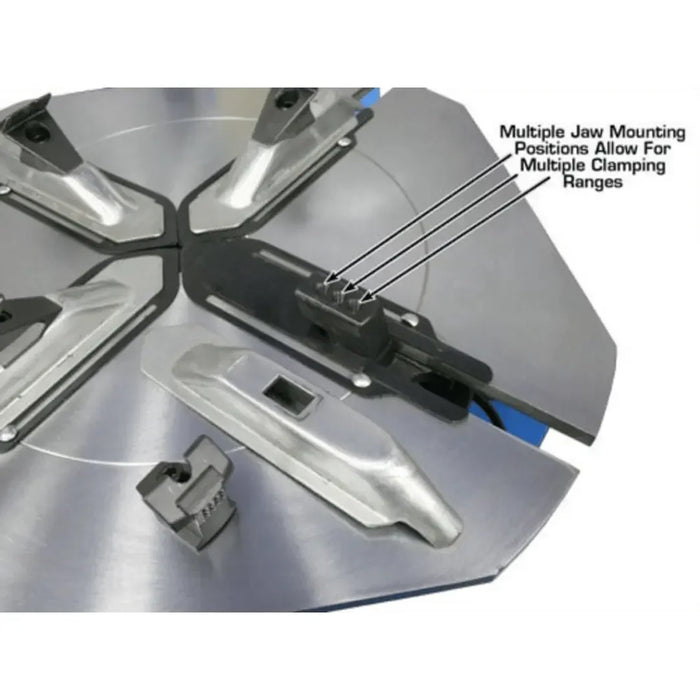

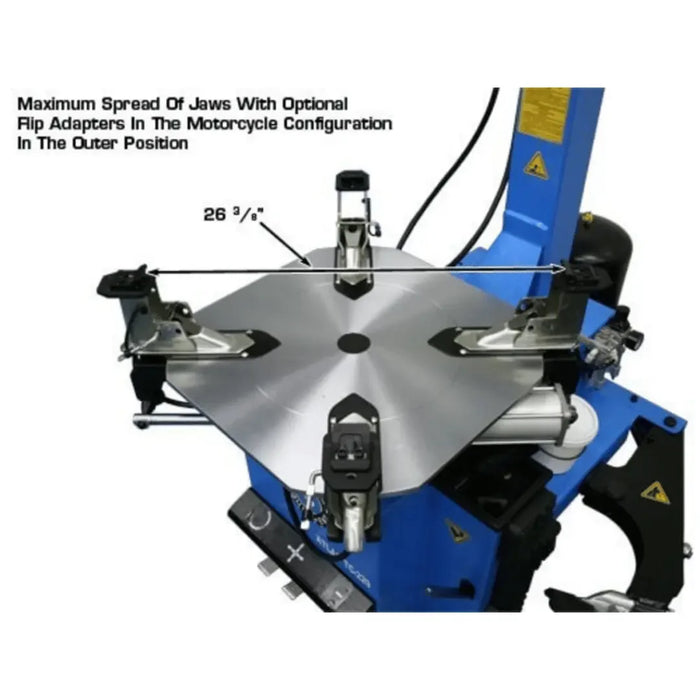

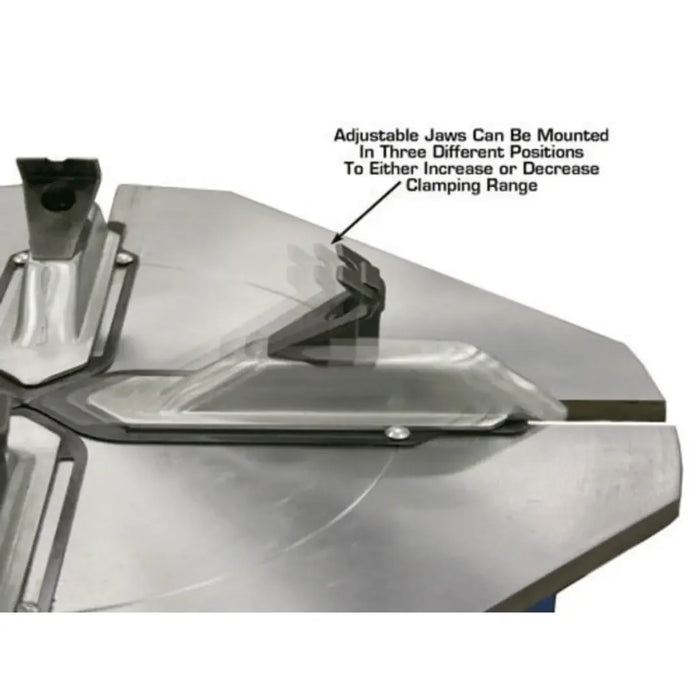

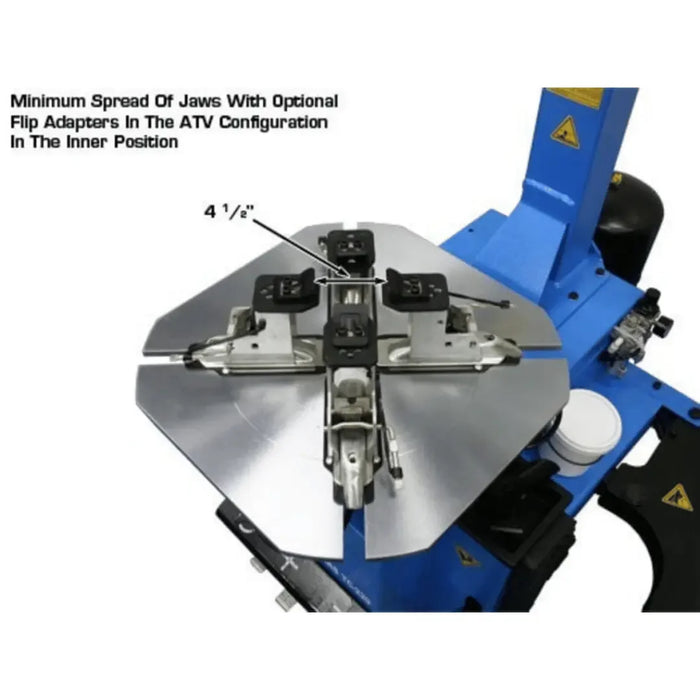

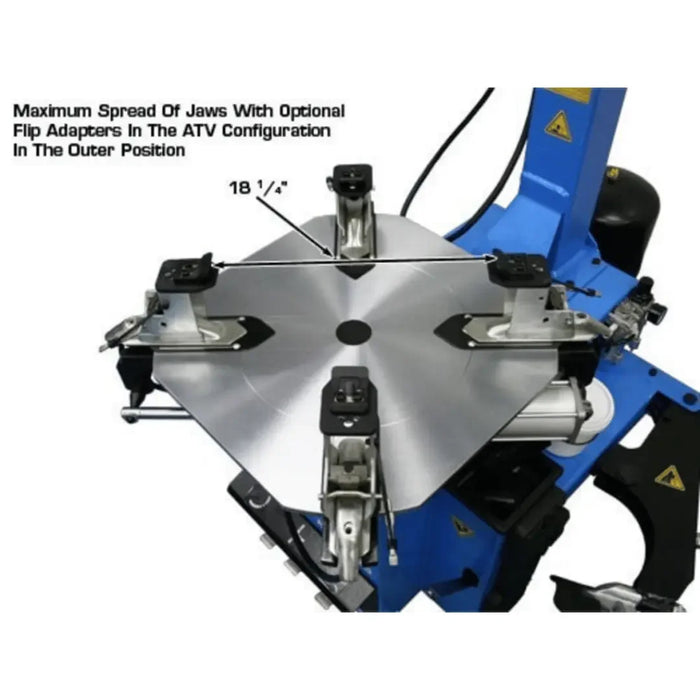

Adjustable jaws, three mounting positions

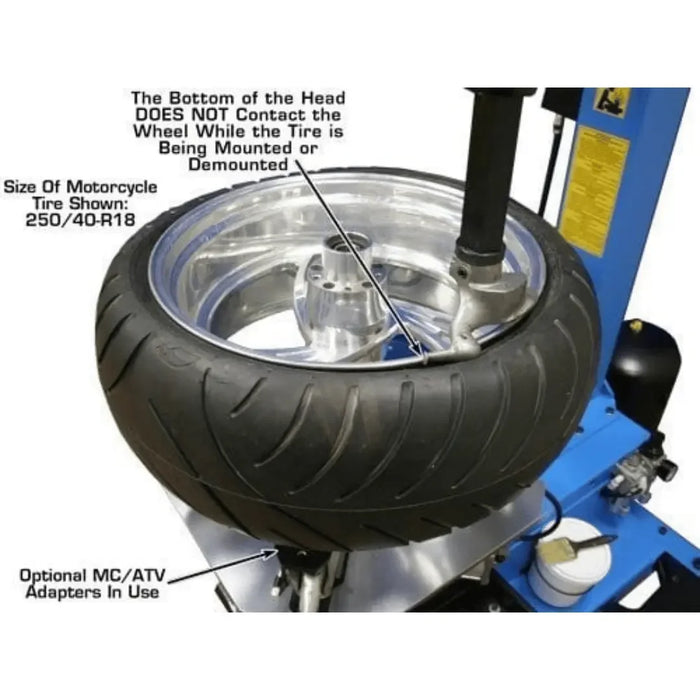

Metal mount/demount head w/ metal roller or replaceable plastic inserts
Column mounted inflator box w/ gauge Included

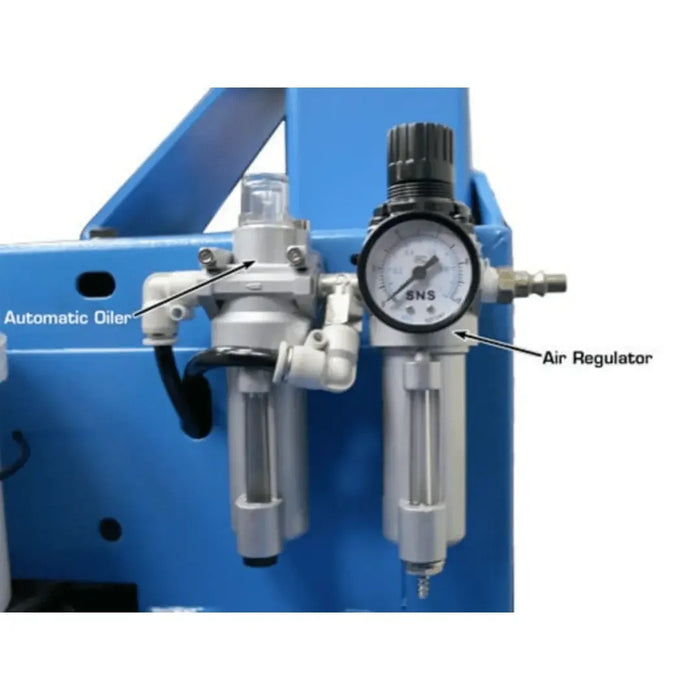

Filter/Regulator/Lubricator Included
20″ Tire Tool Included
Lube Bucket with Brush Included
Set of Large Plastic Jaw Covers Included
Plastic Cover for Bead Breaker Shovel Included
Multiple Replacement Plastic Inserts for M/D Head Included

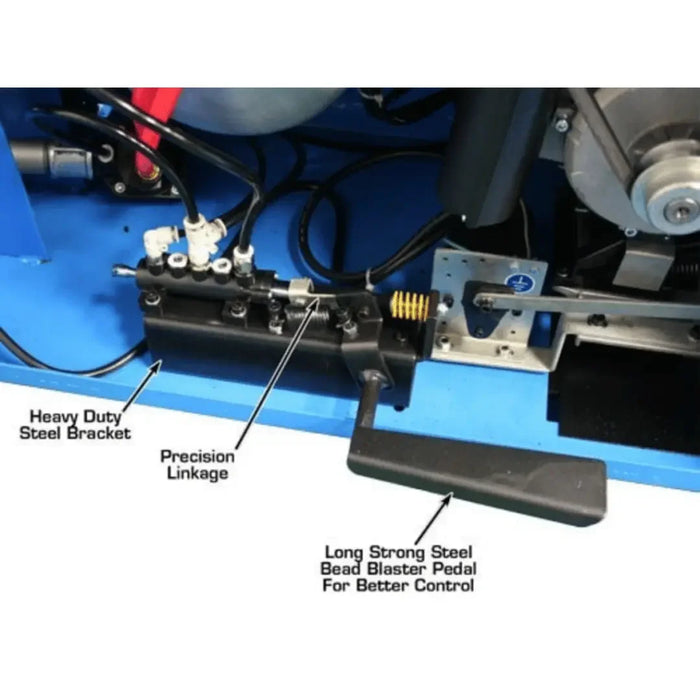

Built in “Beadblaster”

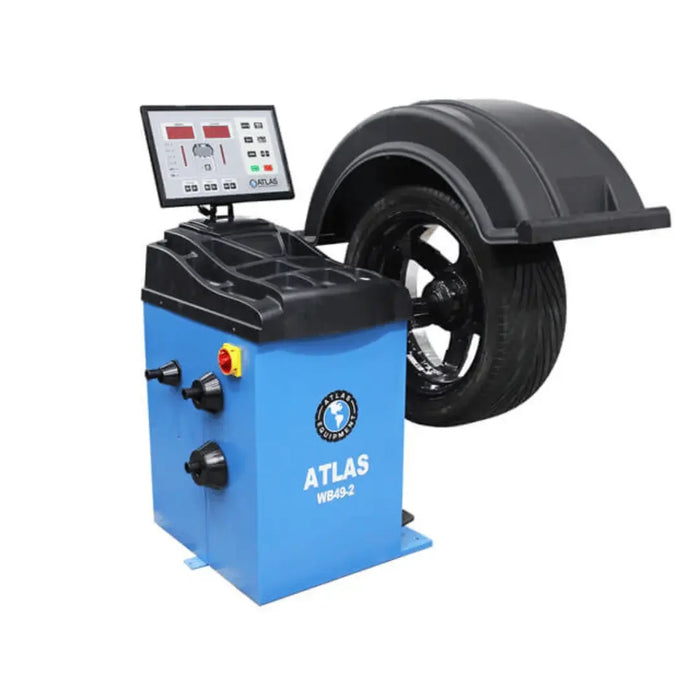

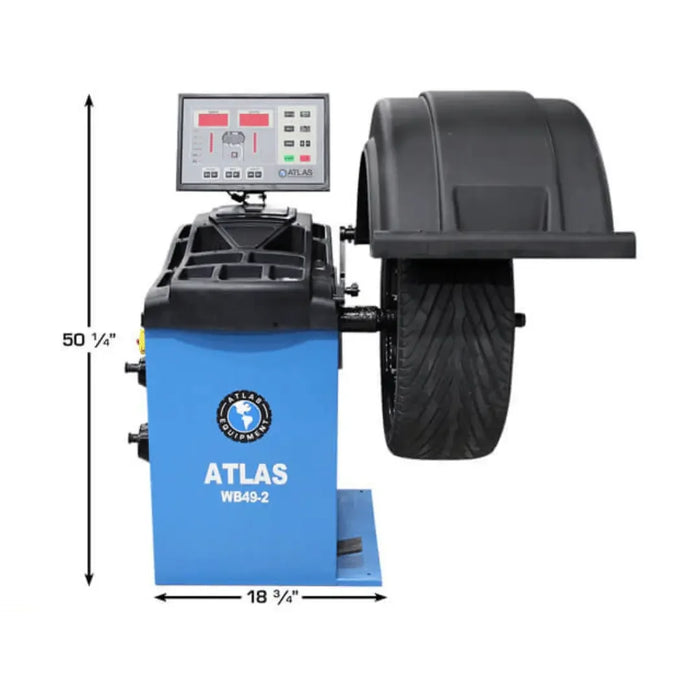

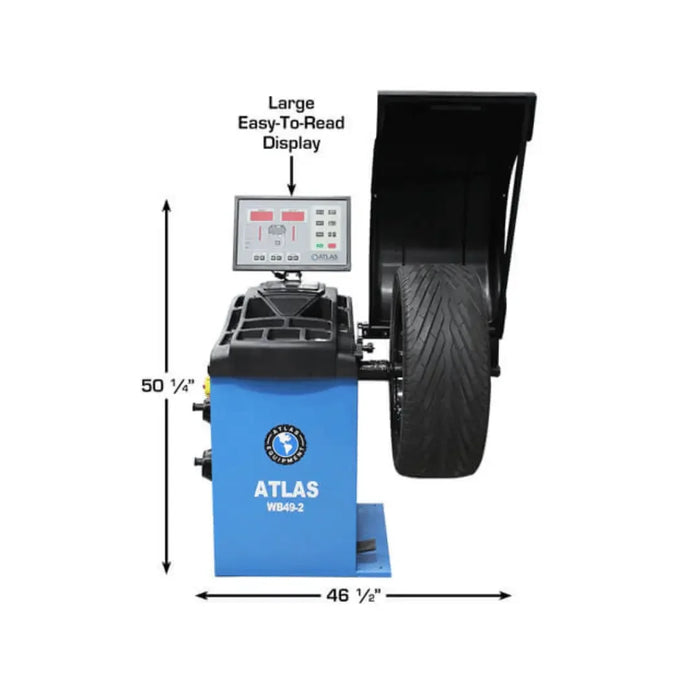

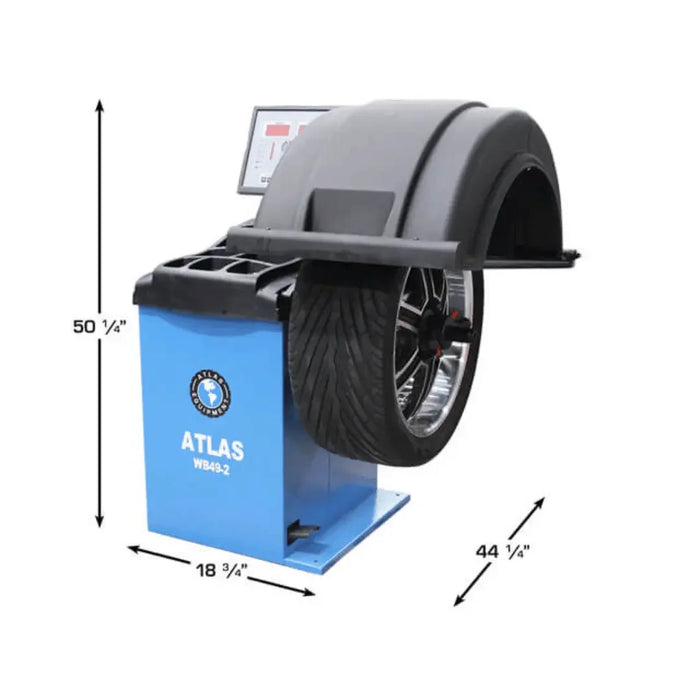

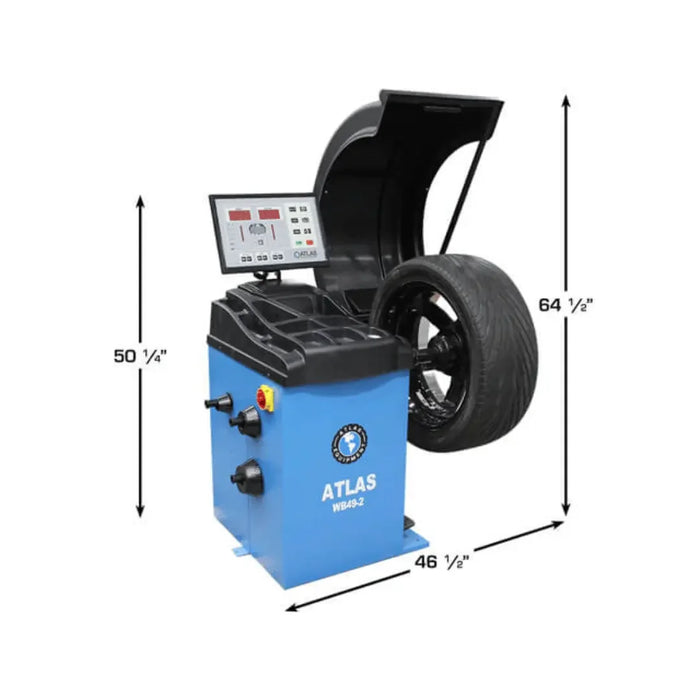

WB49-2 Wheel Balancer

Computer Controlled Motorized Spin Balancer

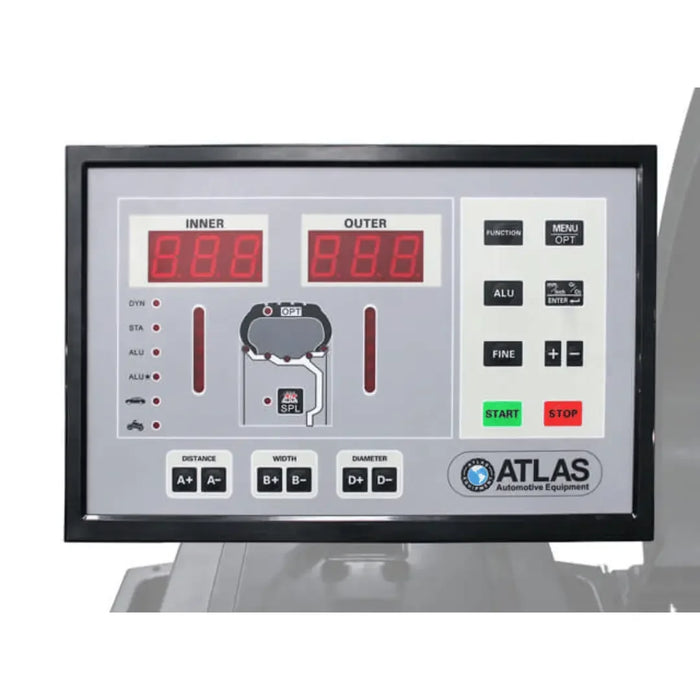

Raised, Easy to Read Display
Large Wheel Weight Tray

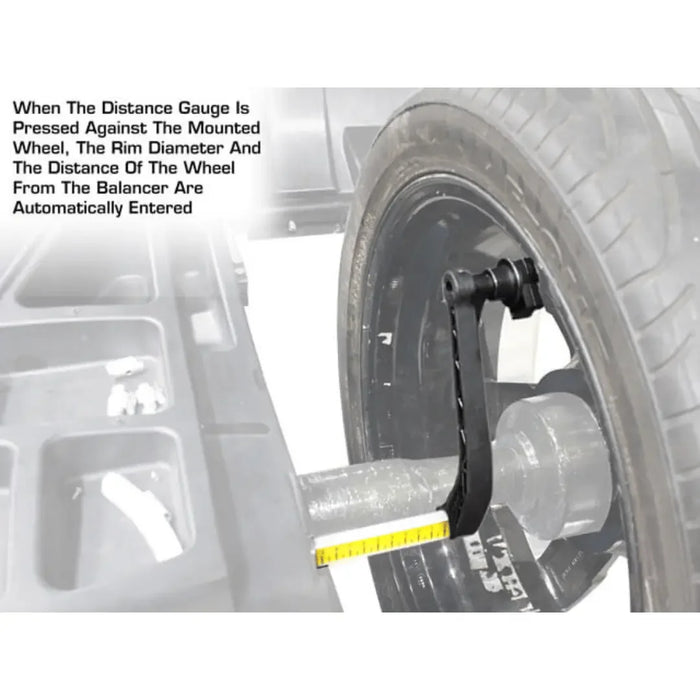

Automatic 2D Data Entry
Width Measuring Gauge for Automatic 3D Data Entry Available (SOLD SEPARATELY)
Split-Weight Function for hiding weights behind spokes
Automatic LED Light
Auto-Positioning
Automatic and pedal operated brake.
Automatic start/stop when hood is lowered/raised.
Static and dynamic balancing modes.
Rapid optimization (OPT)
Self-Diagnosing and Self-calibrating
Exceptional stability in reading the unbalance between planes.
Display in grams or ounces, and in mm or inches.
No anchor-down installation needed

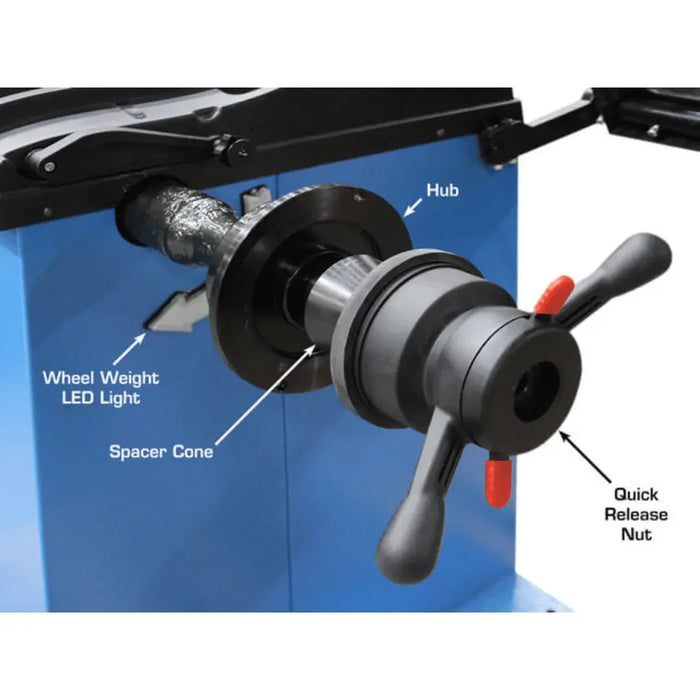

Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers

Product Specifications

Atlas® TC229 Specifications

Rims	Steel, Aluminum, Alloy

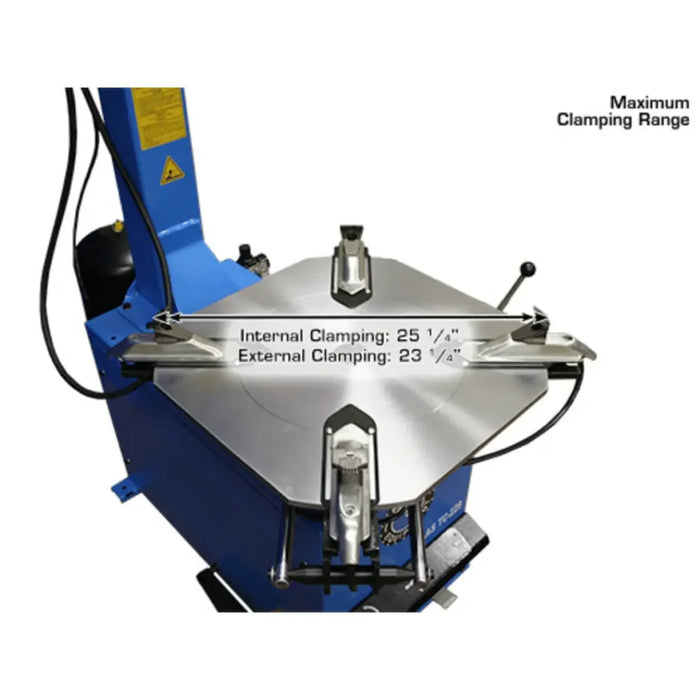

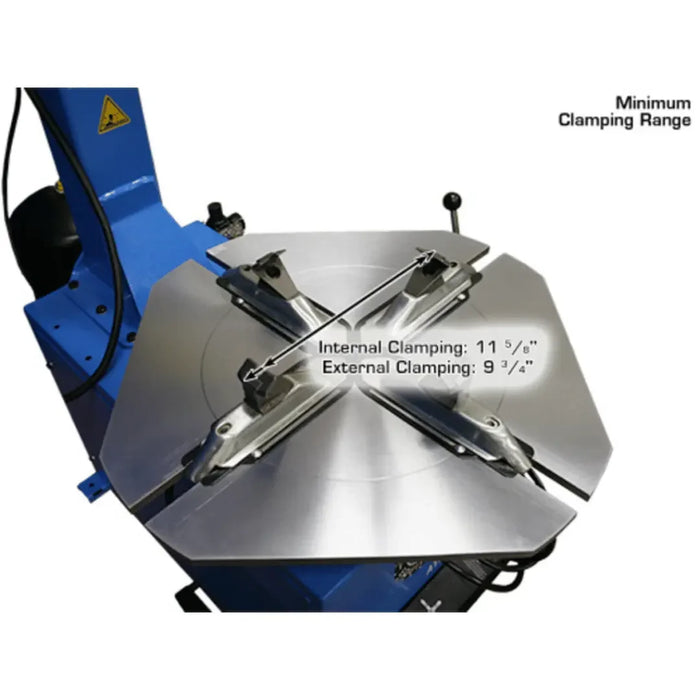

External Locking Rim Dimensions (3 Positions)	1. 9 3/4" - 21 5/8" 2. 10 3/4" - 22 1/2" 3. 11 5/8" - 23 1/4"
Internal Locking Rim Dimensions (3 Positions)	1. 11 5/8" - 23 1/4" 2. 12 5/8" - 24 1/4" 3. 13 1/2" - 25 1/4"
Maximum Tire Diameter	39"
Maximum Wheel Width (Bead Breaker)	13"
Table Motor	1 HP
Turntable Rotating Torque	885 ft/lbs.
Bead Breaker	5,500 LB. Force
Air Requirement	90-110 PSI (MUST NOT EXCEED 140 PSI)
Operating Voltage	110volt

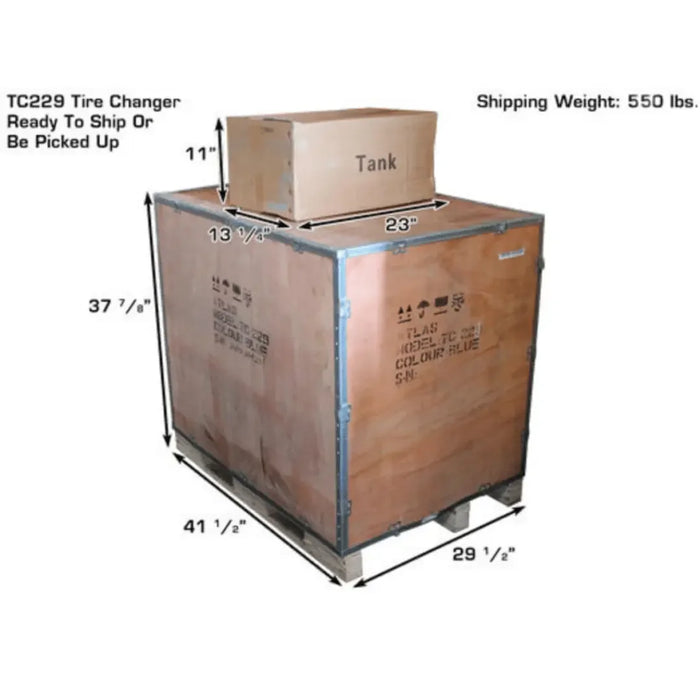

Shipping Weight	550 lbs.

Atlas® WB49-2 Specifications

Max Tire Diameter	39" (3" 6')
Rim Sizes (Cars And Light Trucks)	10"-32"
Rim Width	1 1/2"-20"

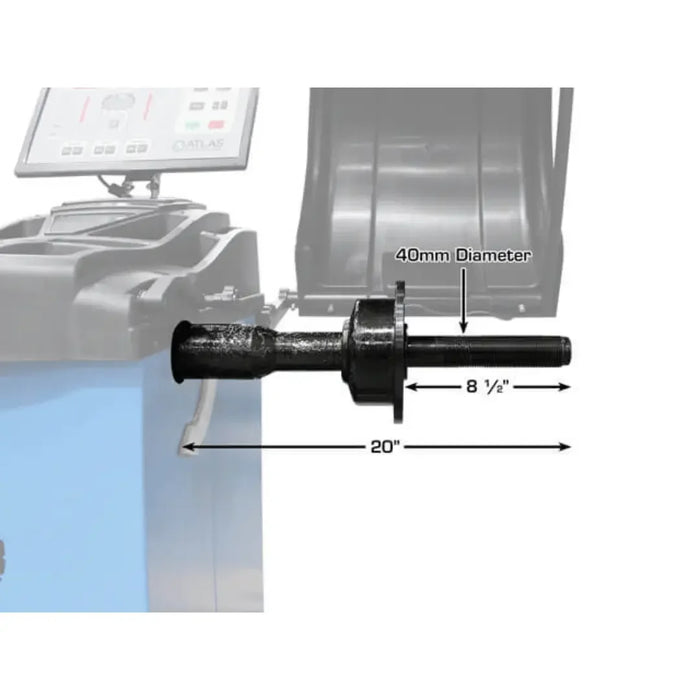

Shaft Size	40mm
Max. Wheel Weight	150 lbs.
Balancing Speed	150 RPM
Data Entry	Automatic 2D (Automatic 3D Optional)
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Motor	1/4 HP
Power Supply	110volt
Shipping Weight	400 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Upc	810524029384
