Atlas Platinum PTC500 Center Post Tire Changer with Assist Arms
Product Description

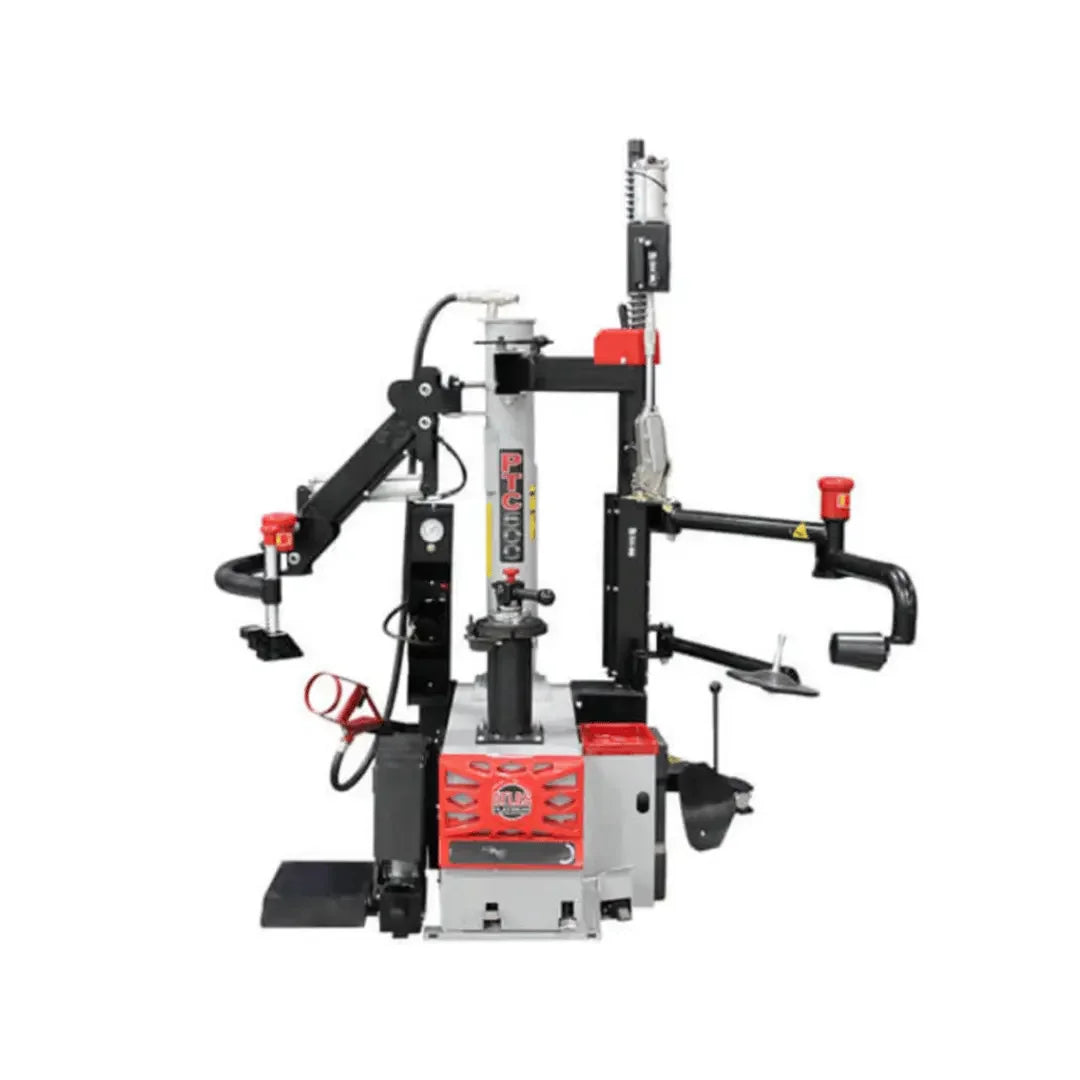

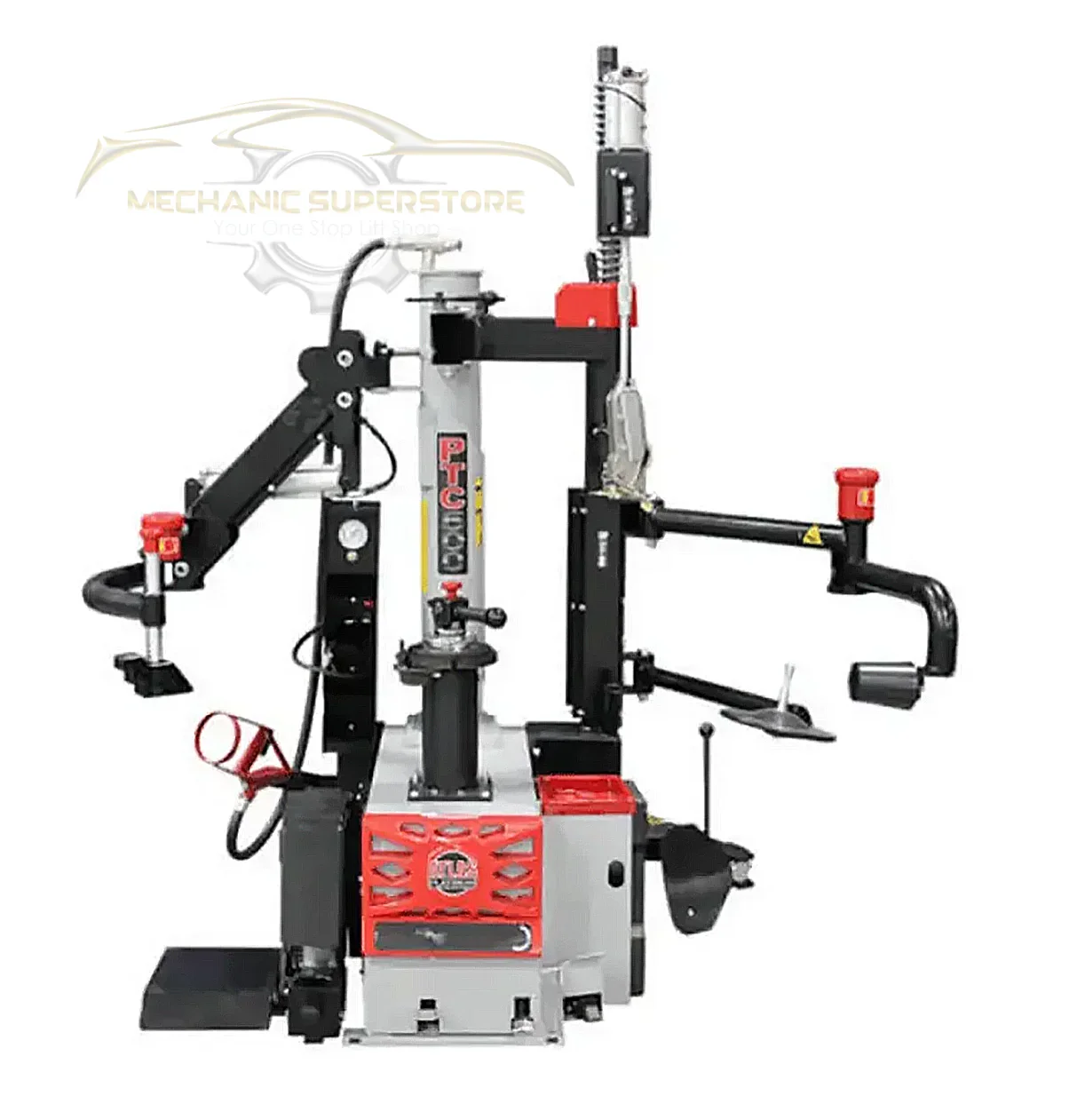

Atlas Platinum PTC500 Center Post Tire Changer with Assist Arms

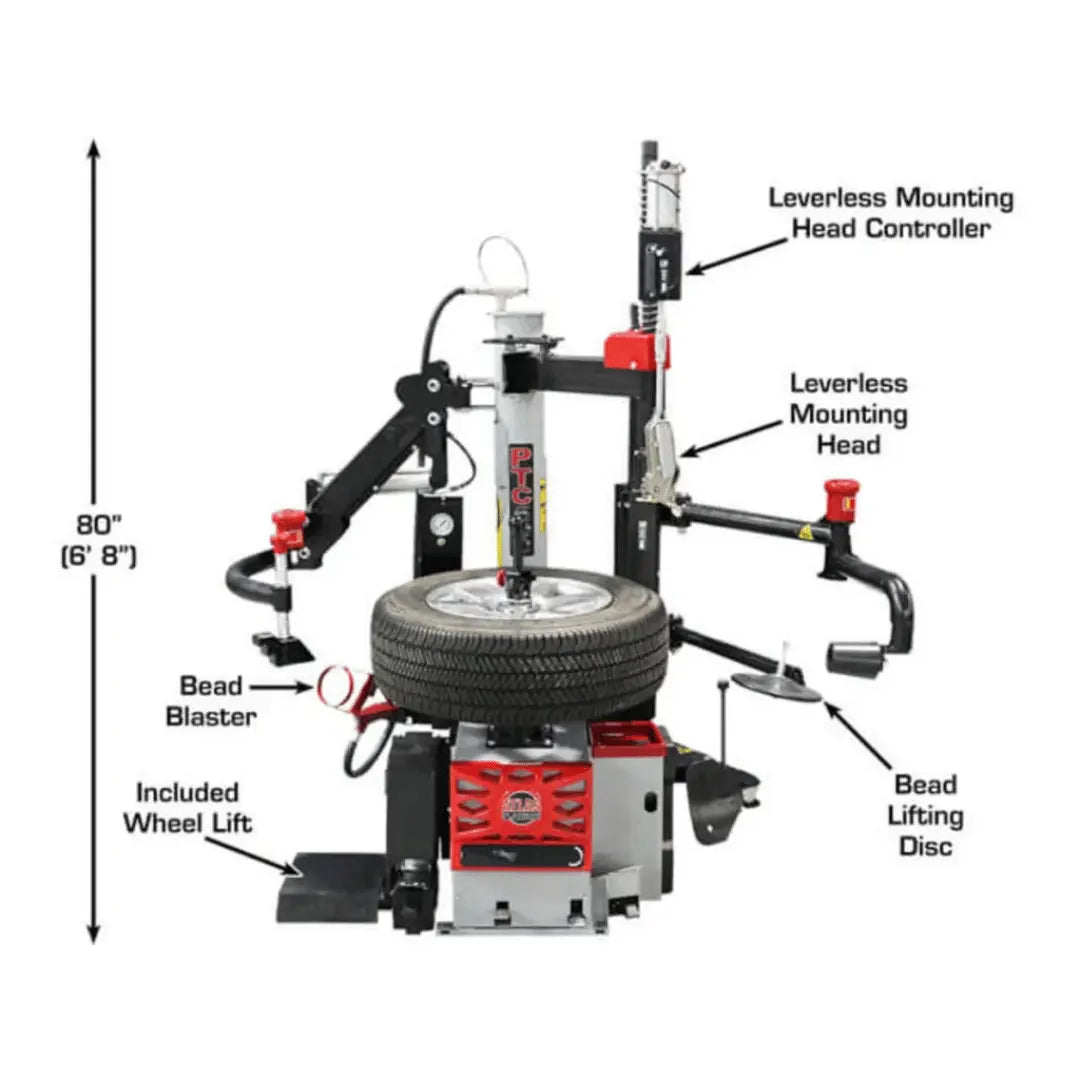

The Atlas® Platinum PTC500 center post tire changer is designed for high-volume tire shops that deal with the most challenging wheel and tire combinations in the market.

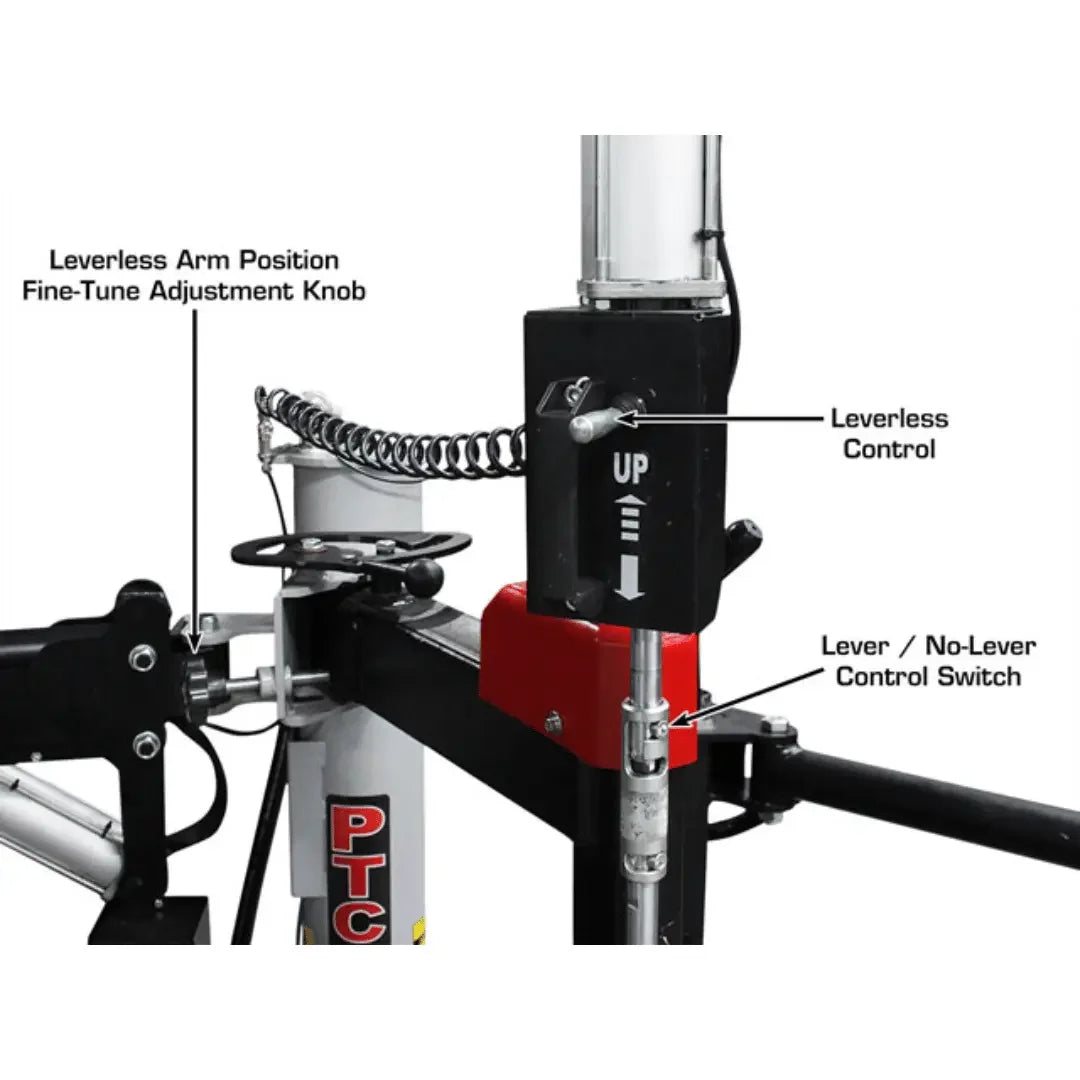

The Atlas® Platinum PTC500 includes patented, innovative features that make it stand out from the competition! The first of these is the “Lever/No-Lever System” which allows the machine to be used with a standard tire tool/lever or in a “leverless” mode with no manual tools required. The second outstanding feature is the “Smart Lock” system which allows the tire to be mounted and immediately locked in position with a flip of the lever which eliminates the need to manually thread the center cone or to maintain a complicated pneumatic locking system. The external bead seating system makes inflating even the most challenging tires a breeze. Finally, the integrated wheel lift helps reduce employee lifting injuries or damage to expensive wheels.
The Atlas® Platinum range of wheel service equipment has a 2 year warranty and incorporates the highest quality Italian designed components and engineering to assure it is the best value available at its price.
Product Features
- Platinum Center Post Tire Changer

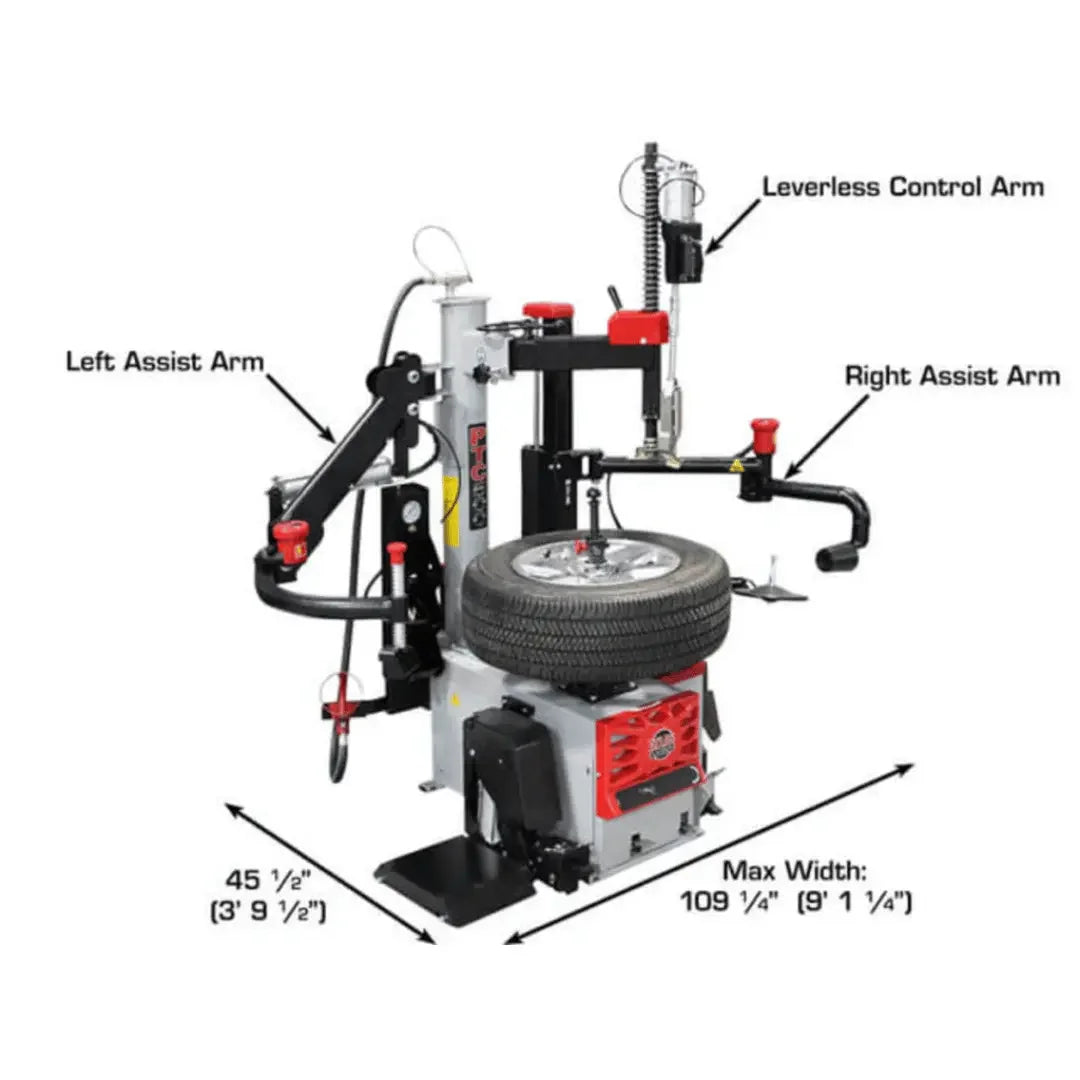

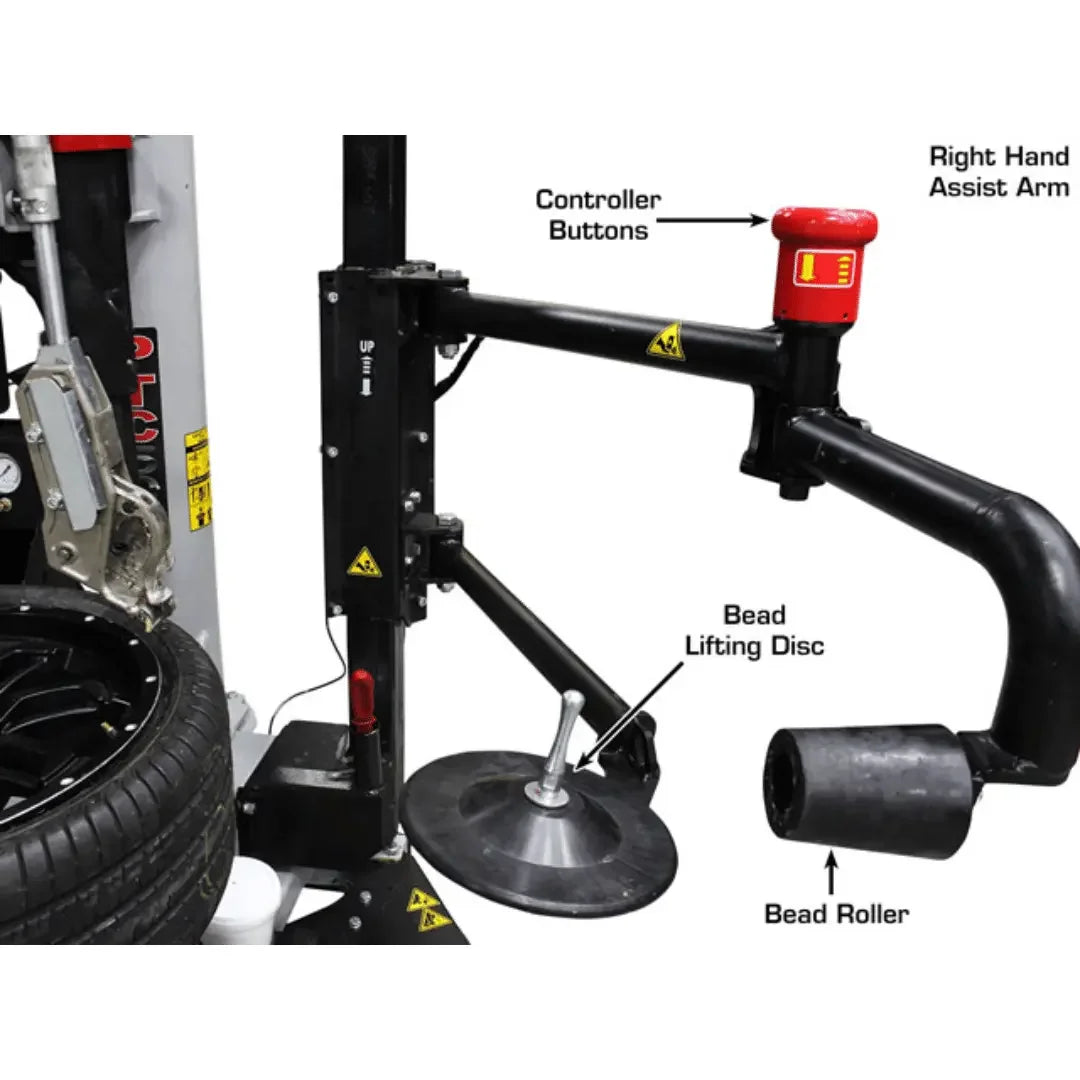

- Dual Assist Arms Included

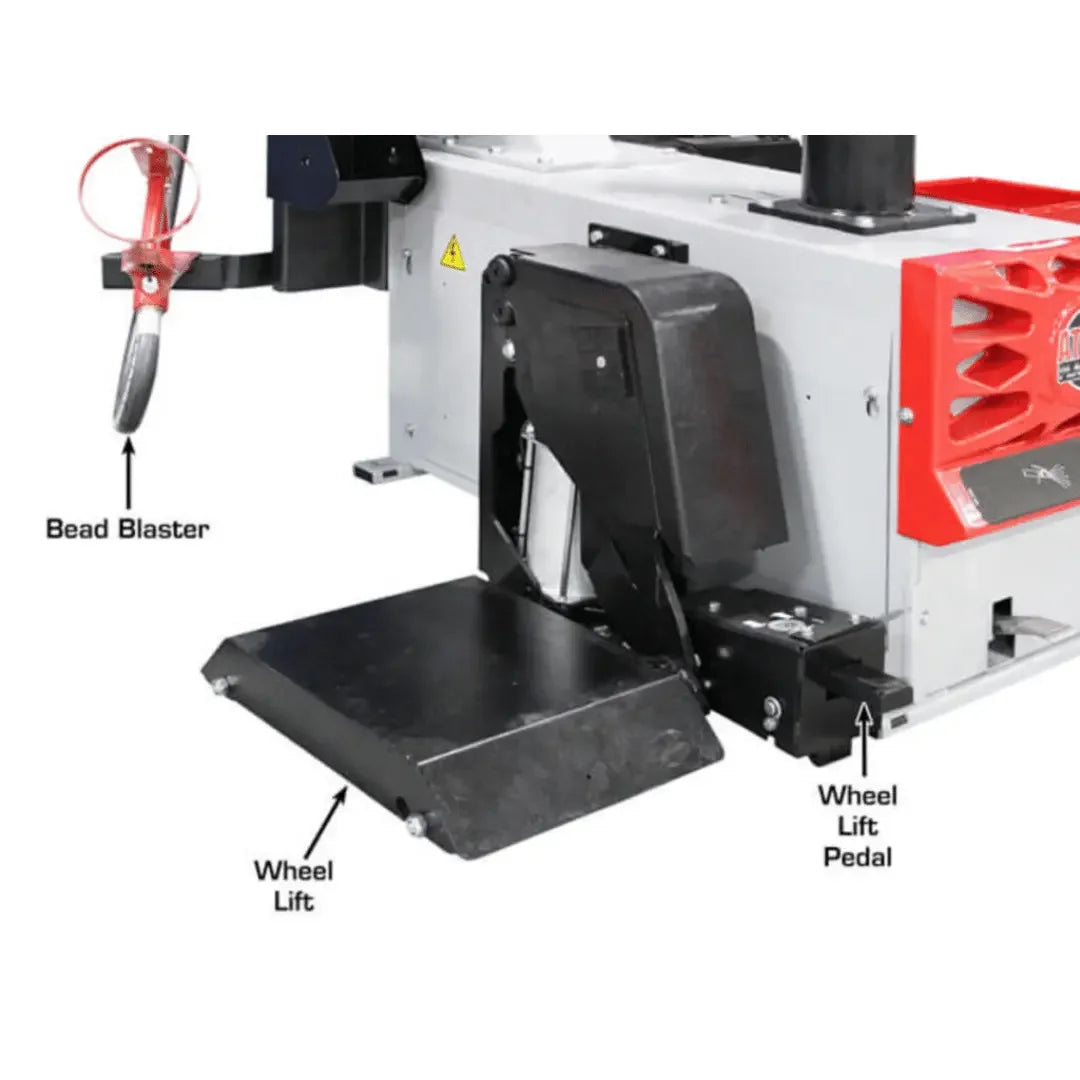

- Wheel Lift Included
- “Lever/No-Lever” Changing System

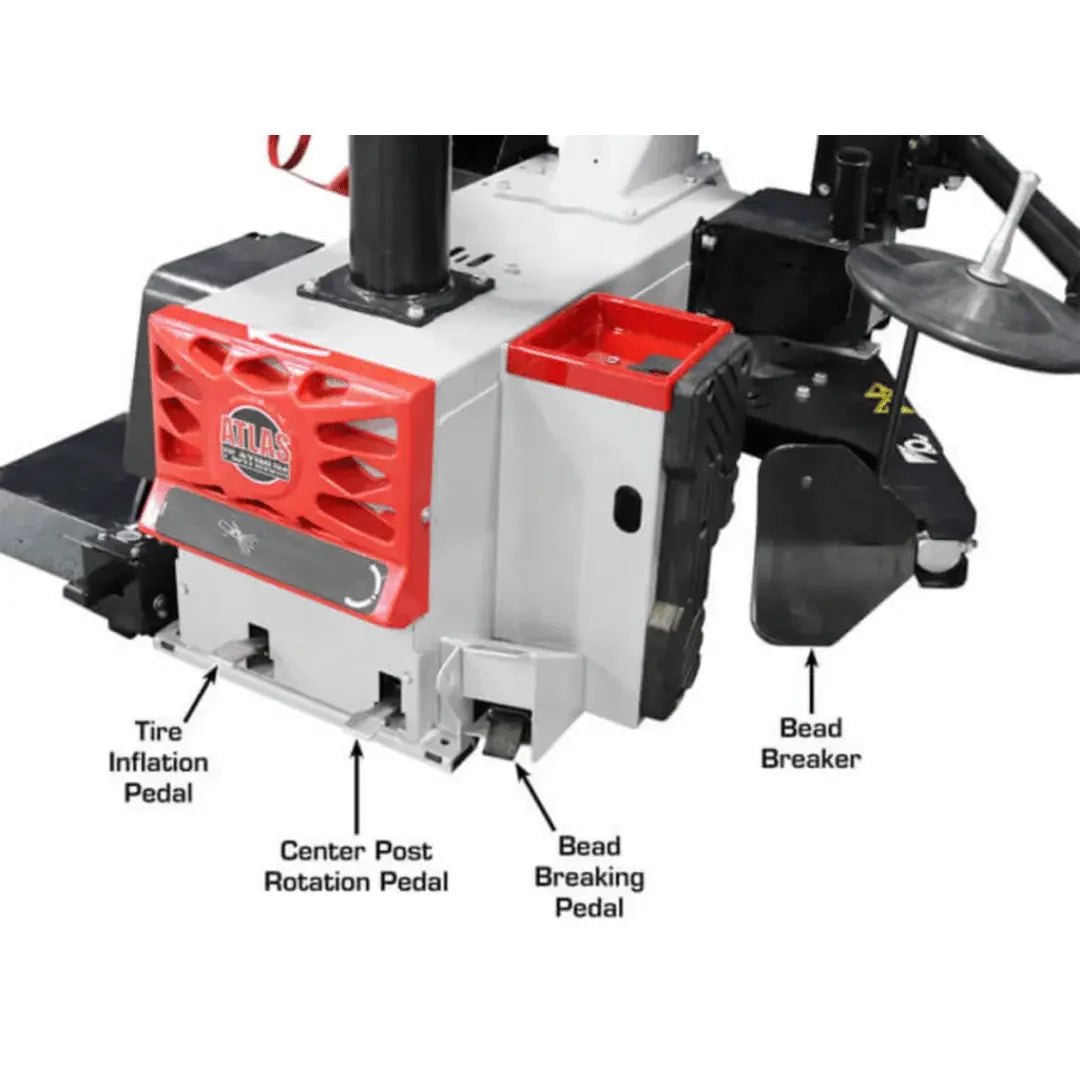

- Air operated bead breaker (external air supply required)
- Metal mount/demount head w/ replaceable plastic inserts

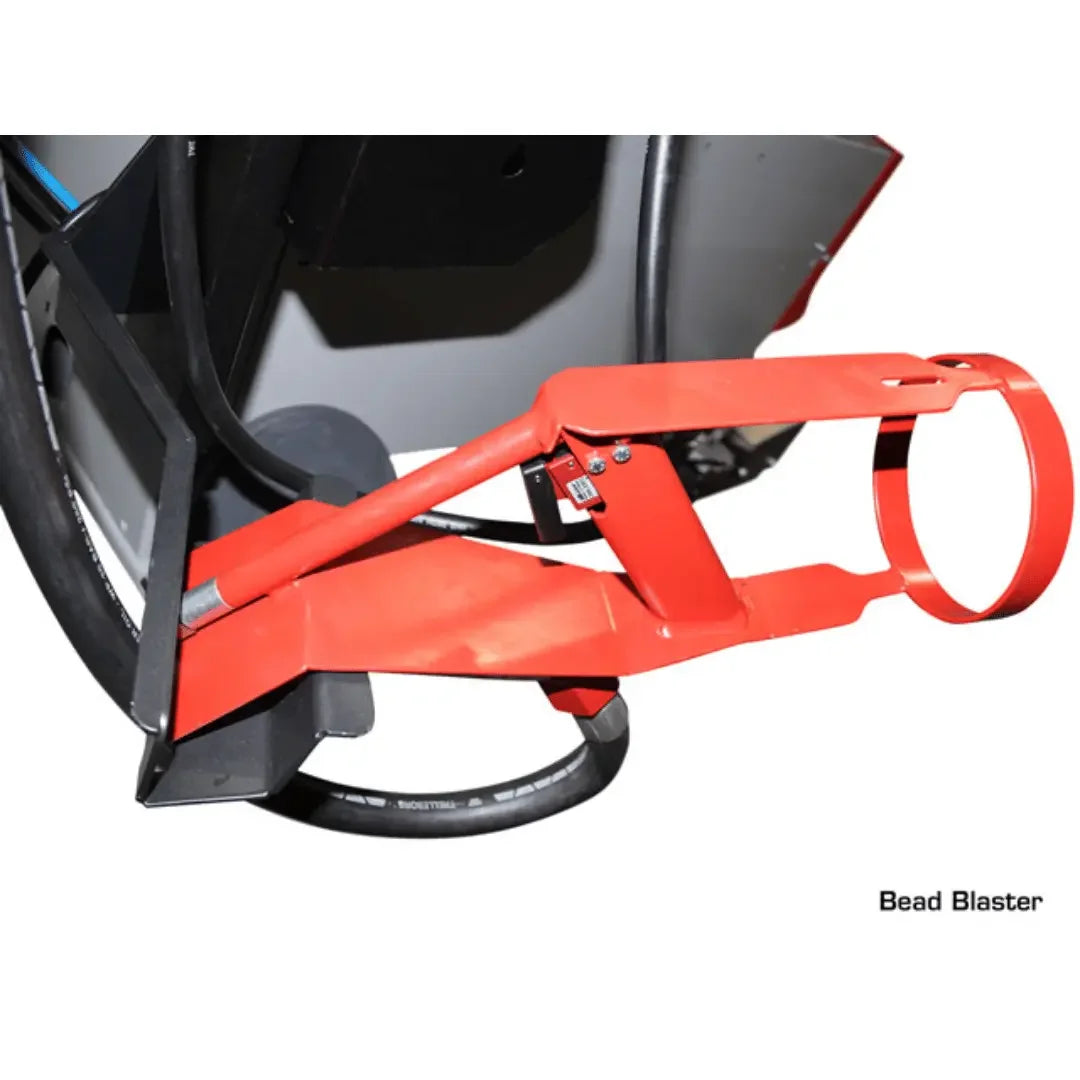

- External Flexible Bead-Blasting system

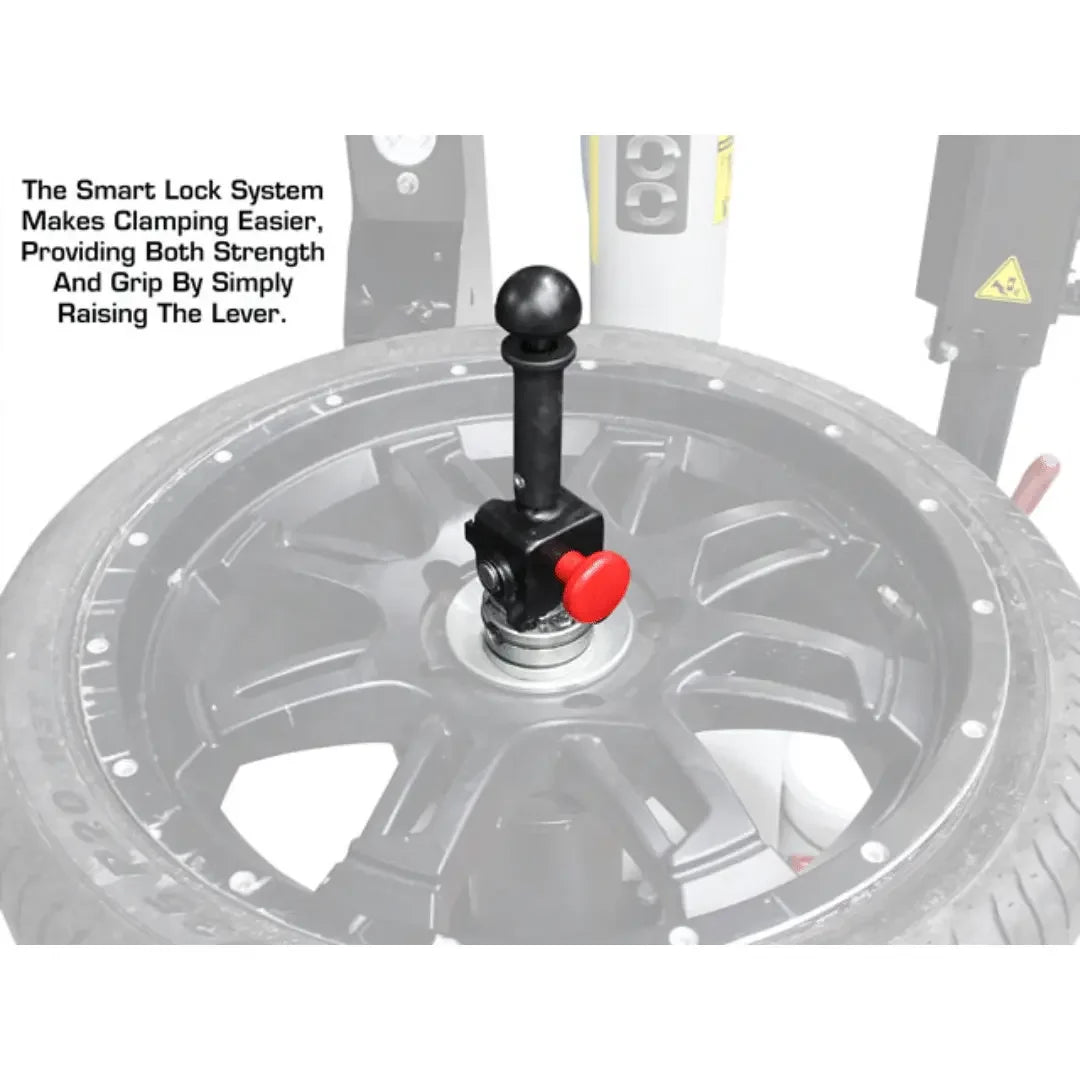

- “Smart Lock” Center-Post Mounting System
- Filter/Regulator/Lubricator Included
- Tire Tool Included
- Lube Bucket with Brush Included
- Multiple Plastic Protectors Included
- Replacement Parts & Wear Items Always in Stock
- 2 Year Parts Only Warranty
Product Specifications
| Model | Platinum PTC500 |
| Rims | Steel, Aluminum, Alloy |
| Clamping Range | 12" - 30" |
| Maximum Tire Diameter | 47" |
| Maximum Wheel Width | 15" |
| Turntable Rotating Speed | 7 RPM |
| Bead Breaker | 6,924 LB. Force |
| Air Requirement | 120-145 PSI |
| Operating Voltage | 110volt |

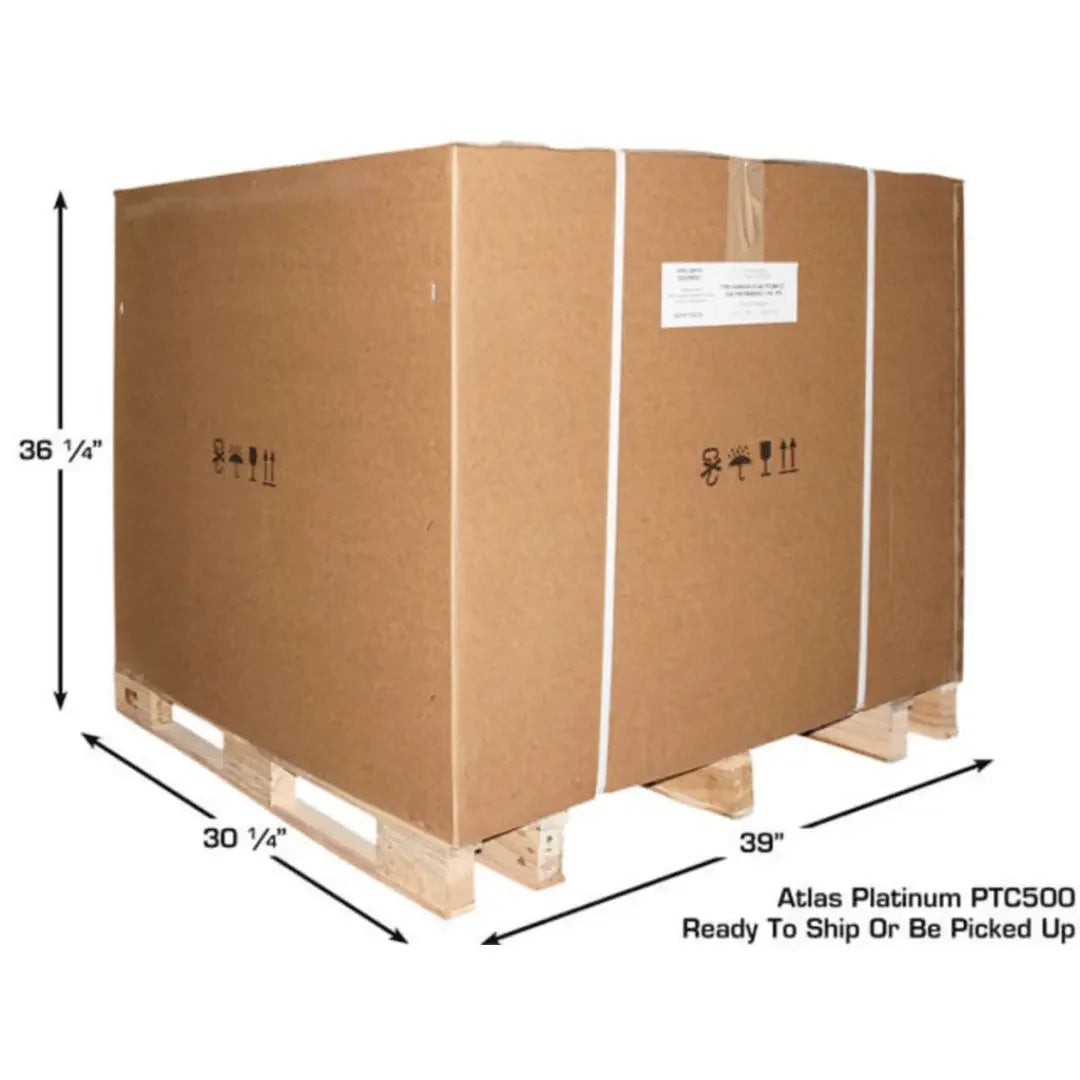

| Shipping Weight | 885 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
