Atlas Garage PRO7000ST Super Tall 7,000 lb. 4-Post Lift

Name: Atlas Garage PRO7000ST Super Tall 7,000 lb. 4-Post Lift
Brand: Atlas
Price: 8499.0 USD
Availability: InStock

Part #:ATEXH-PRO7000ST

Brand: Atlas

$0.00 - $0.00

$0.00

$8,499.00

$8,499.00 - $8,499.00

$8,499.00

Call/Text Us: 866-774-7743 Call Us

Description

-

Atlas Garage PRO7000ST Super Tall 7,000 lb. 4-Post Lift

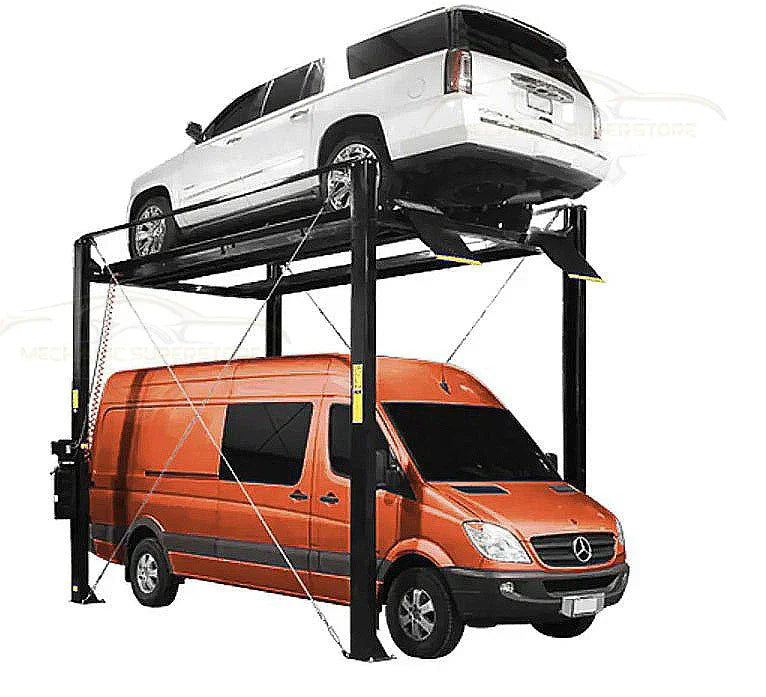

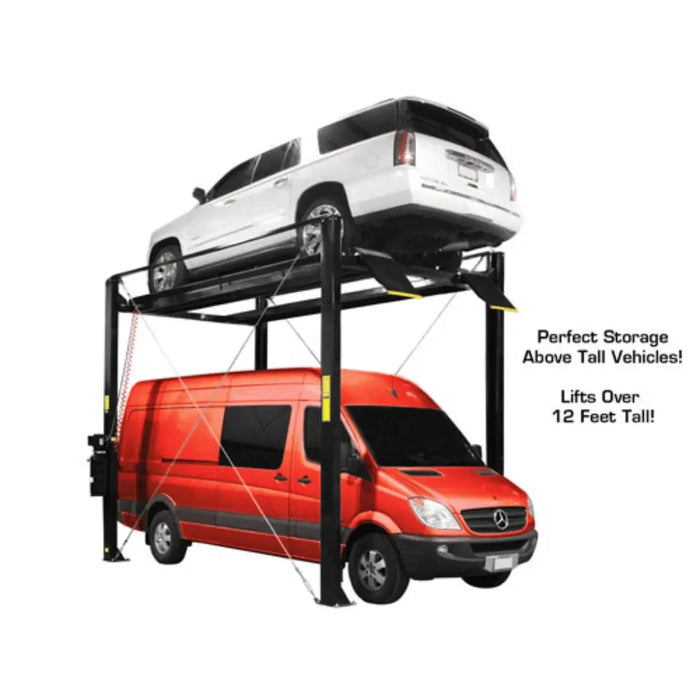

The Atlas® Garage PRO7000ST 7,000 lb. 4-post lift is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The Atlas Garage PRO7000ST raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway.

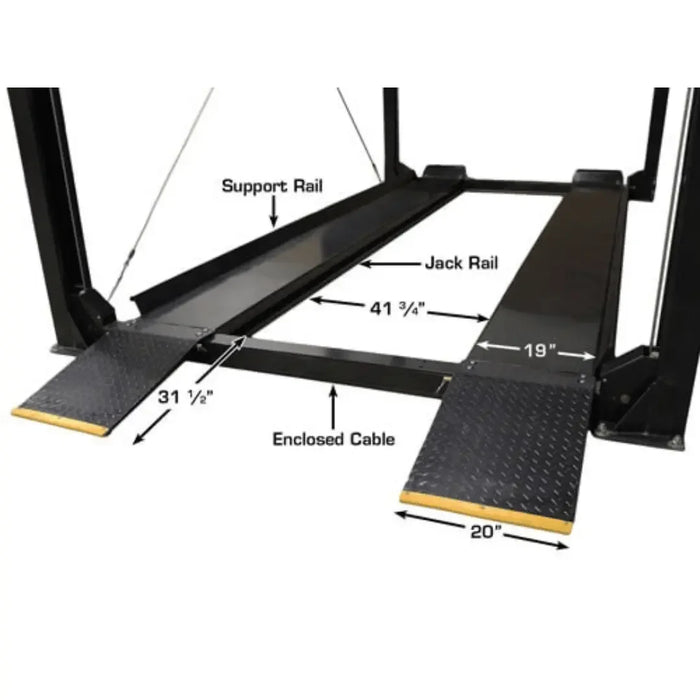

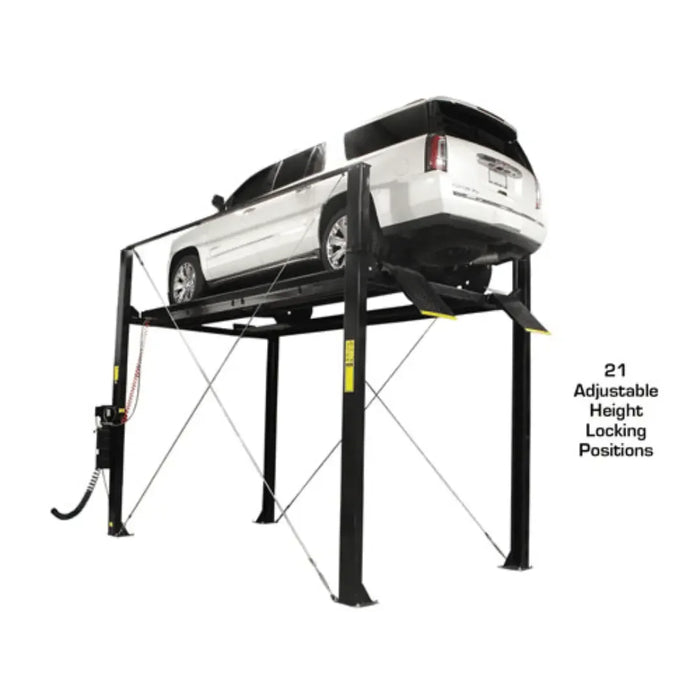

This super tall Atlas Garage lift uses the same heavy duty runways as the Atlas® Garage PRO9000. The runways feature welded tracks which allow the use of a rolling bridge jack (such as the Atlas® RJ6BK or Atlas® RJ6BKAH). The extra tall lifting height gives customers the space needed to park much taller vehicles under the vechile stored on top. There are a whopping 21 locking positions in the lock ladder, and the lock ladder may be adjusted during installation giving an almost infinite number of locking heights.

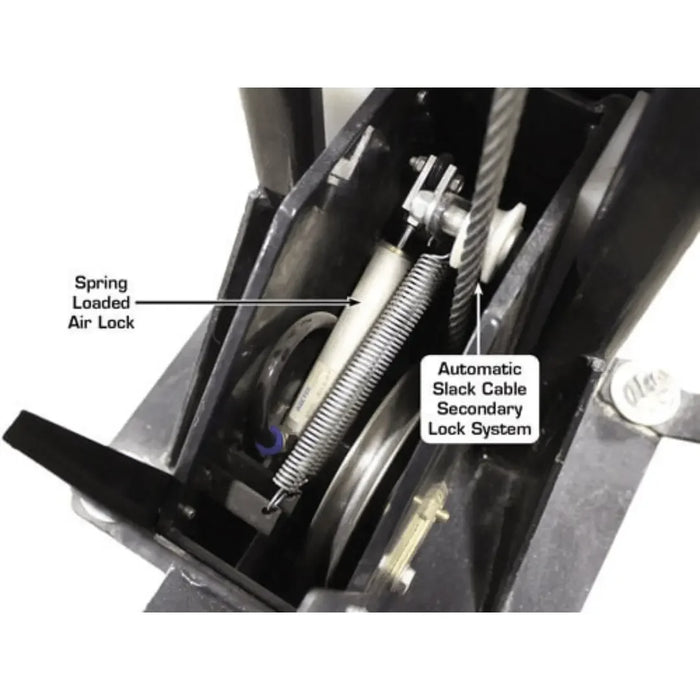

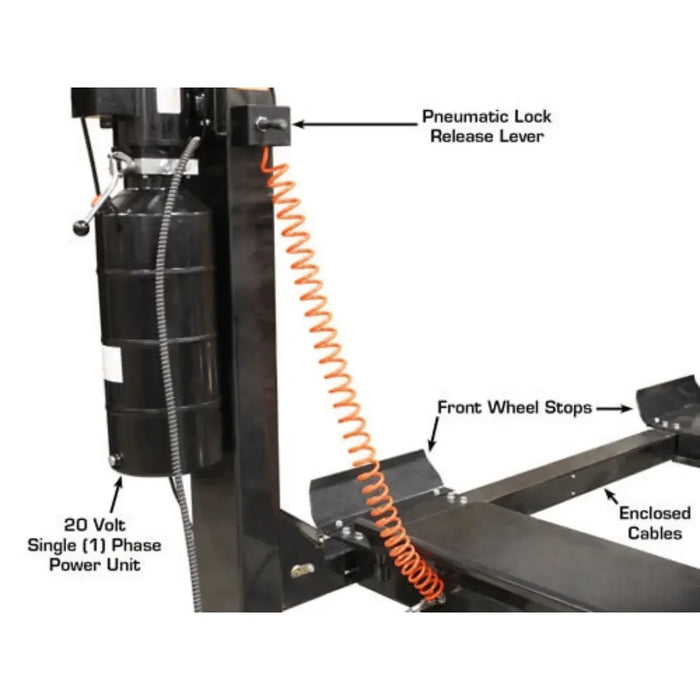

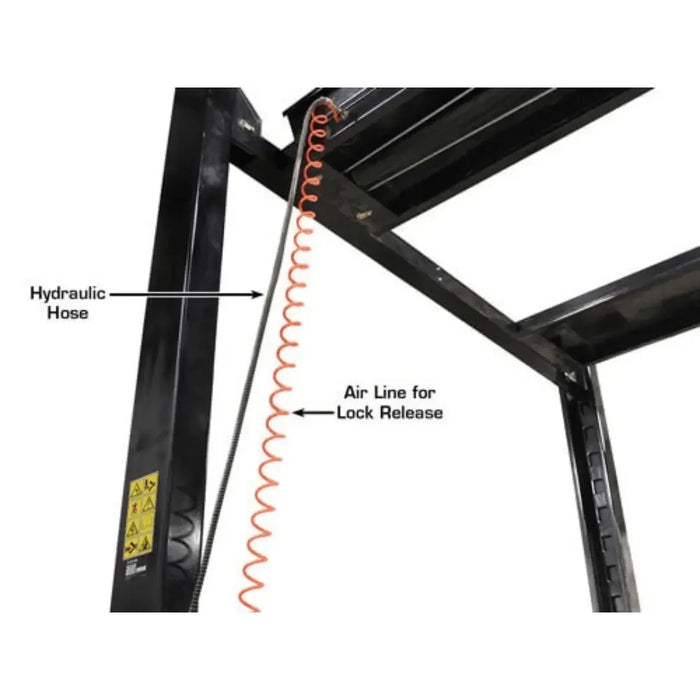

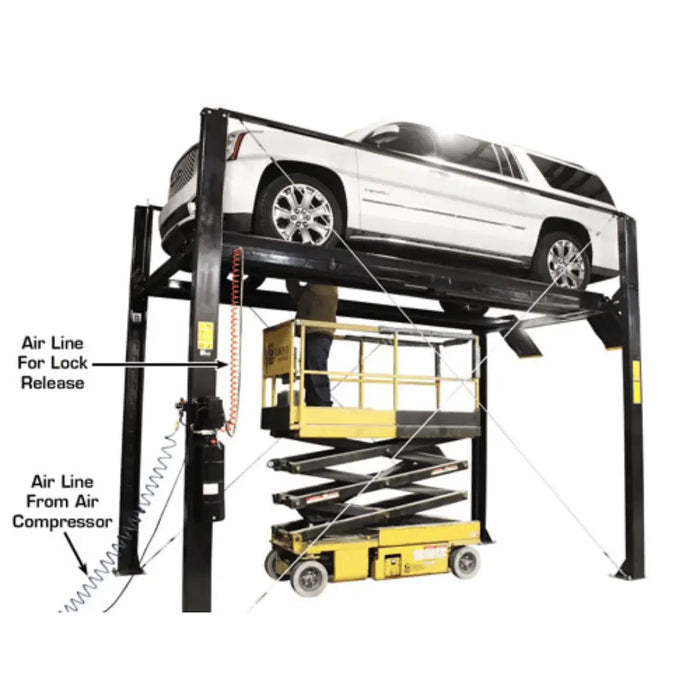

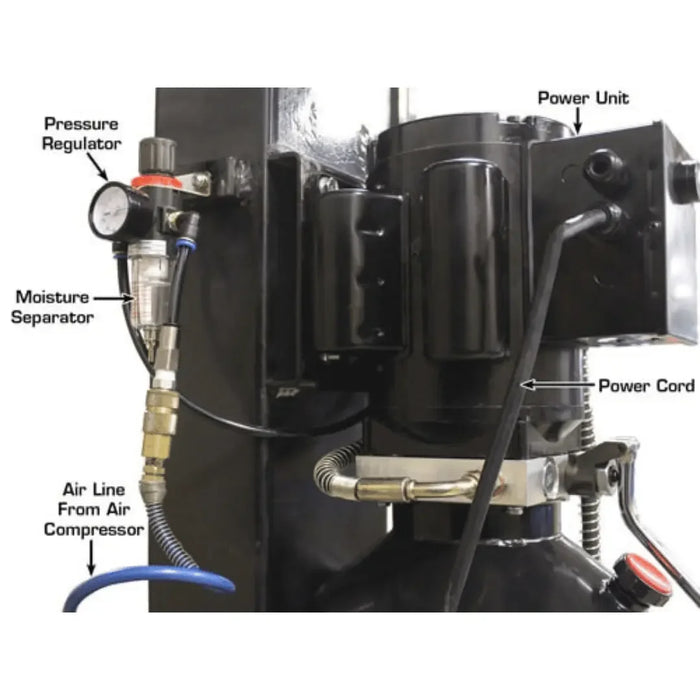

A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the cables are compromised or become too slack. Purchase this Atlas 4 post lift online.

Contact us for more information.

Product Features

7,000 lb. Capacity
Heavy Duty
"Super Tall" Lifting Height
Extra Wide & Extra Long
Diamond Plated Runways
Single Point Release, Pneumatic Locks
Lock Ladder Design
Double Lock Safety System
Steel Approach Ramps Included

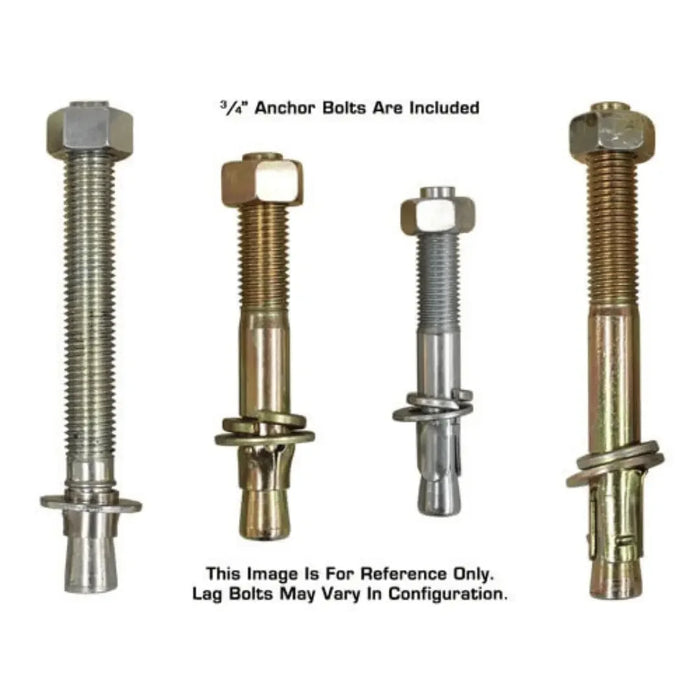

Mounting Hardware Included
Perfect for Storage or Working on Vehicles
220volt/1phase Electric Operation (Requires 30amp Breaker)
2 Year Structural/1 Year Hydraulic Warranty

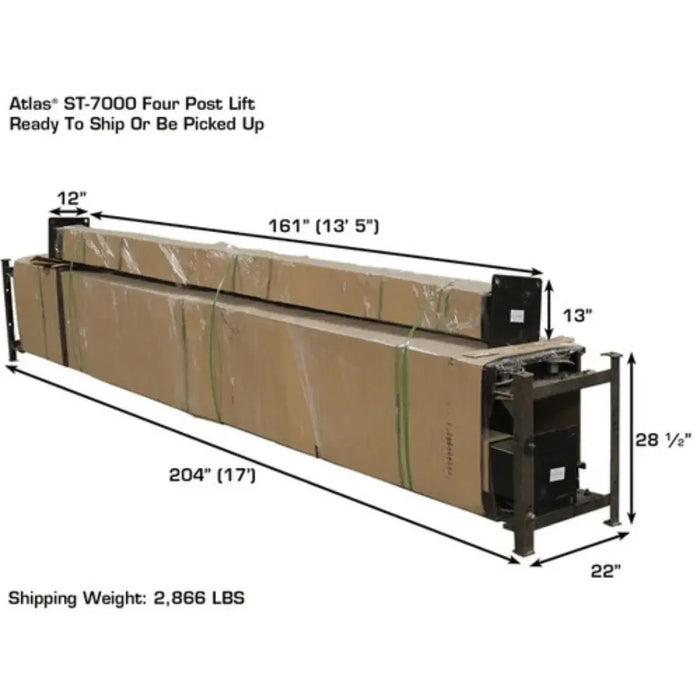

Shipping Weight: 2,866 lbs.

Product Specifications

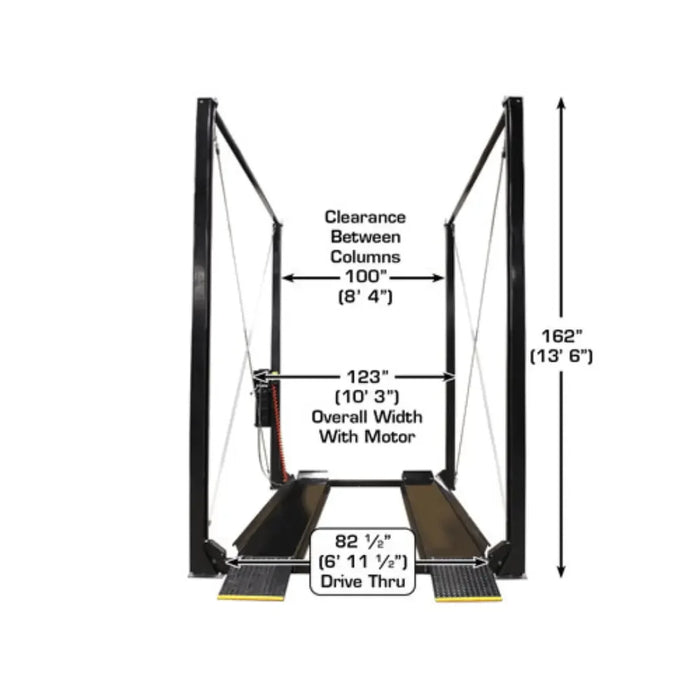

Model	Garage PRO7000ST
Capacity	7,000 lbs.

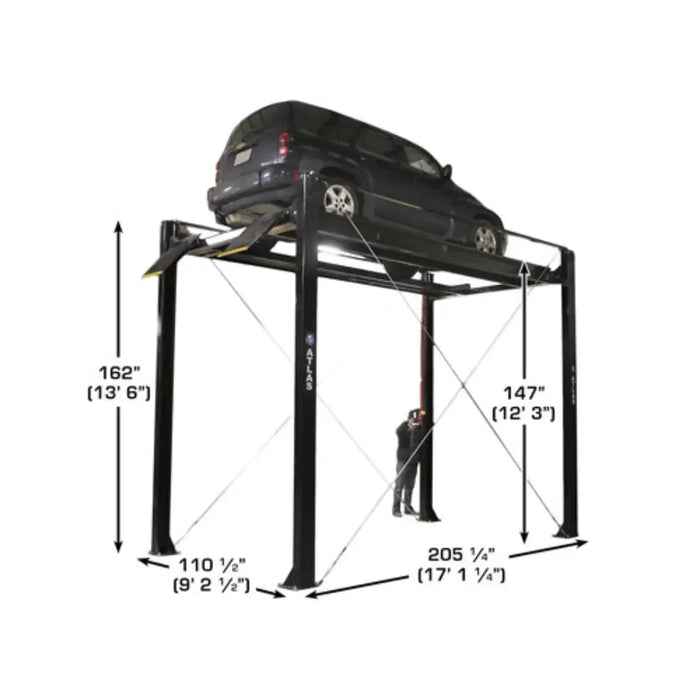

Lifting Height, Top of Runway	147" (12' 3")

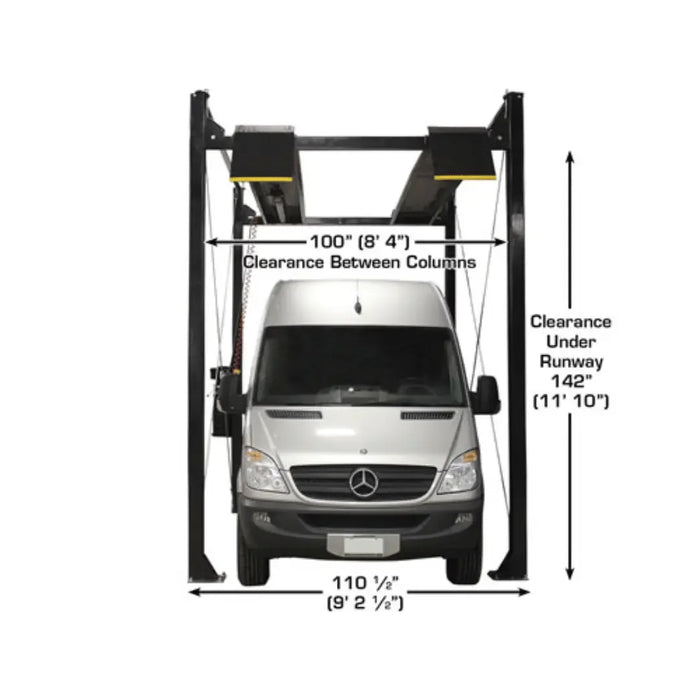

Clearance Under Runways	142" (11' 10")

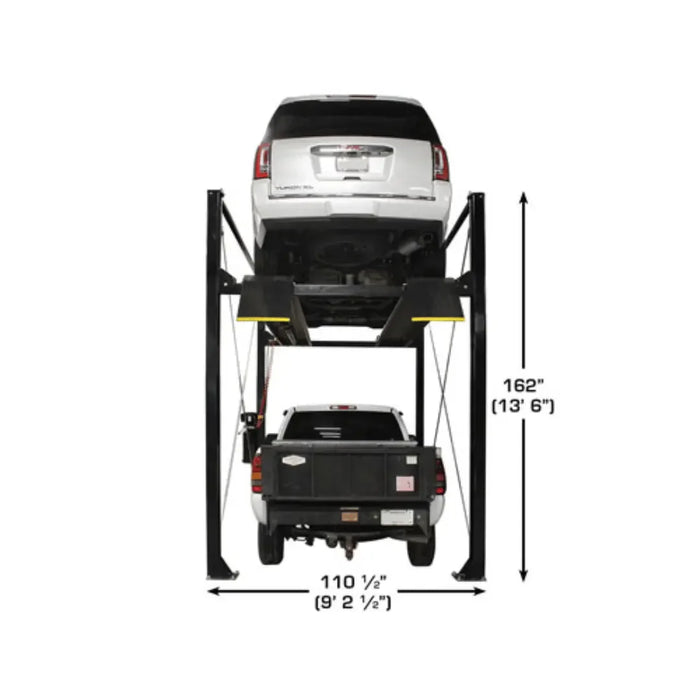

Height Of Columns	162" (13' 6")
Overall Width (Without Motor)	110 1/2" (9' 2 1/2")
Overall Width (With Motor)	123" (10' 3")

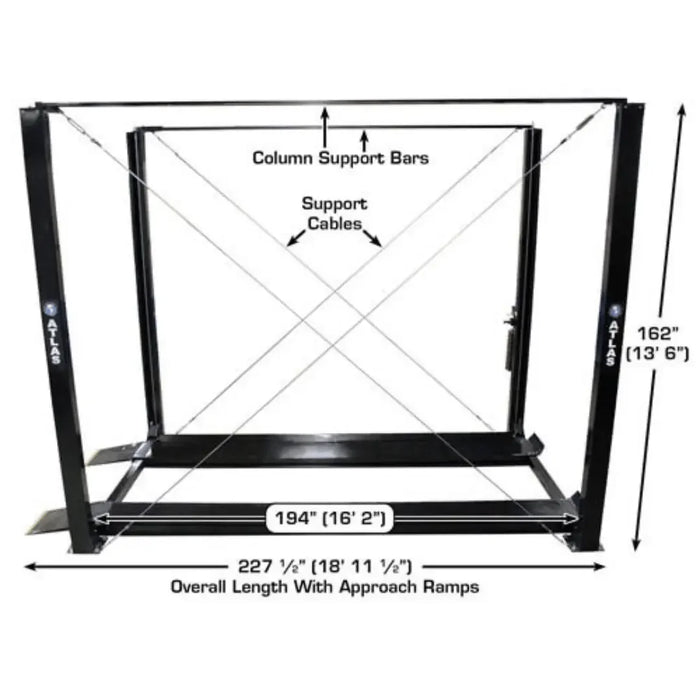

Overall Length With Approach Ramp	227 1/2" (18' 11 1/2")
Length Between Columns	185" (15' 5")
Runway Width	21"
Runway Length	194" (16' 2")
Runway Thickness	4 1/2"
Width Between Runways	45" w/ Rails 41 3/4"
Outside Runway To Outside Runway	83" (6' 11")
Clearance Between Columns	100" (8' 4")
Drive Thru	82 1/2" (6' 10 1/2")
Motor/Electrical Requirement	220volt/1phase, 30 amp breaker required
Oil Requirement	5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	2,866 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru width	6.75 ft
Drive thru between carriage	82"
Inside columns	100"
Lifting capacity	7000 lbs
Lifting height top of runway	12.25 ft
Lifting height top of runway	147"
Max rise under runway	11.75 ft
Max rise under runway	142"
Outside edge of runways	7 ft
Outside edge of runways	83"
Overall length	19 ft
Overall width	10.25 ft
Overall heights	162"
Overall length	185"227"
Overall width	110"123"
Runway length	16 ft
Runway length	194"
Upc	810524028240
Width between columns	8.25 ft
