Atlas 74,000 LB. ALI Certified Battery Powered Mobile Column Lift System

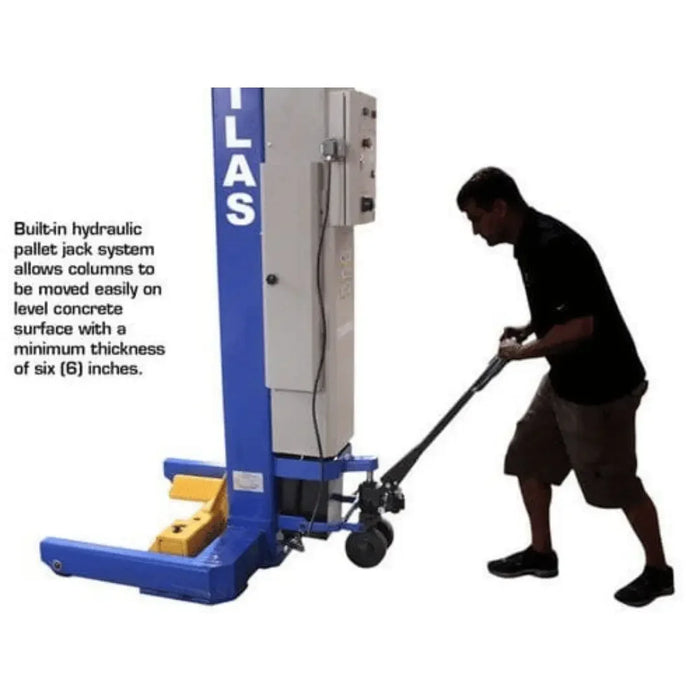

The ALI Certified Maxima® mobile column lift system is the perfect choice for any repair shop that needs to safely raise heavier trucks but has limited bay space. Each heavy duty mobile column is DC motor powered and equipped with rechargeable batteries. The hydraulic pallet jack system allows easy movement, even outside on level concrete (min. 6" thick). Columns store easily when not in use.

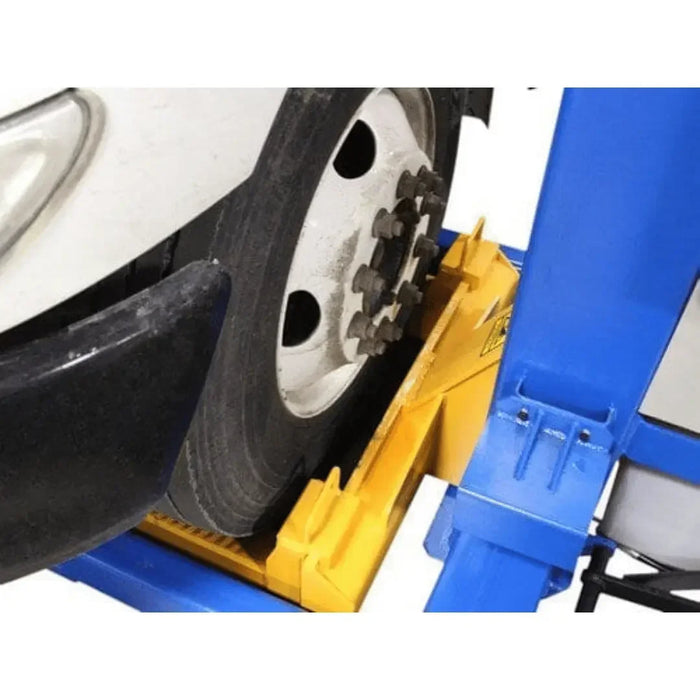

The Maxima® ML4034BC mobile column set supports short and long wheelbase vehicles. Capacity and wheelbase range increase by adding 2 or 4 extra columns. Forks adjust for tire diameters 19"–44". Each column has an LCD screen, emergency stop, and lifts up to 18,500 lbs.

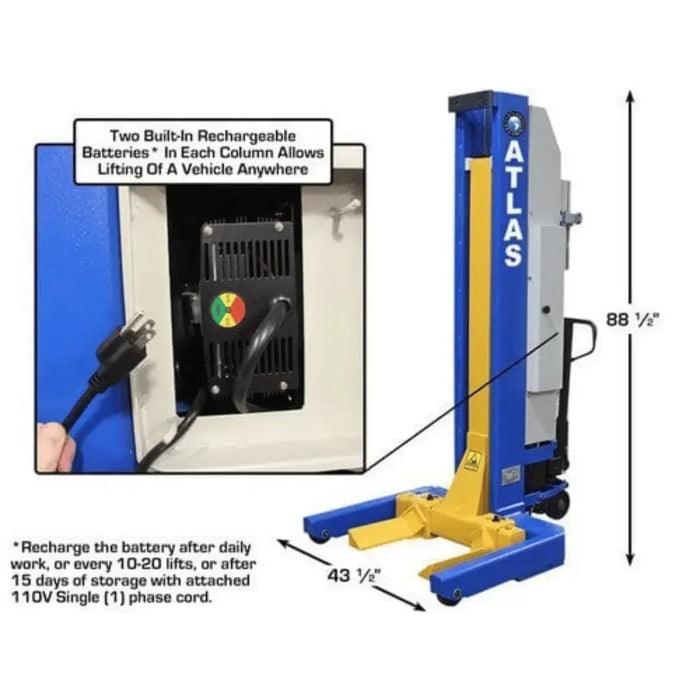

Battery life: 10–20 lifts (depending on load), rechargeable via 110V single-phase cord.

Optional Maxima® Tripod Support Stands available for wheel service support.

THIS PRODUCT DROP SHIPS FROM THE MANUFACTURER

Product Features

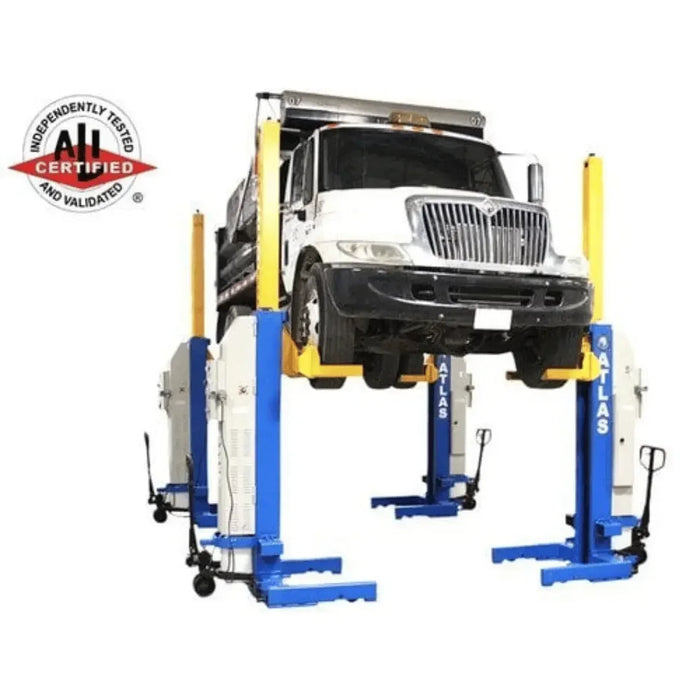

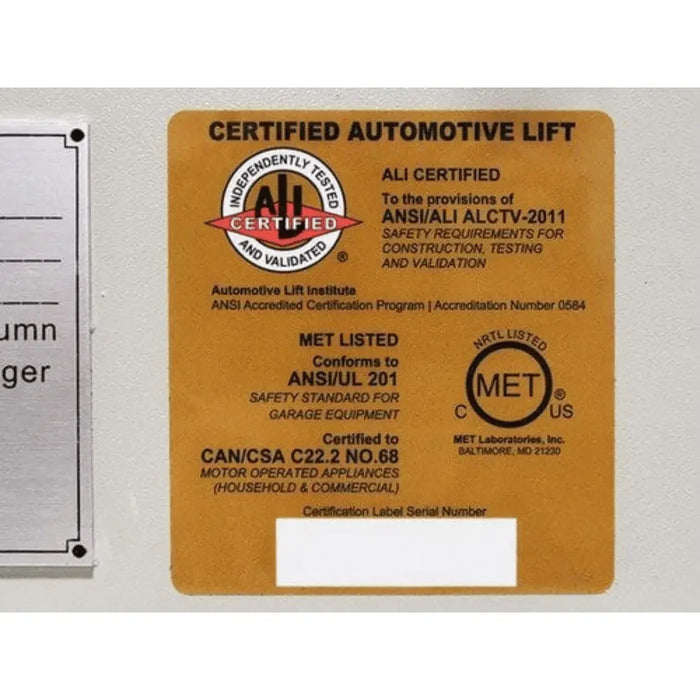

ALI CERTIFIED
Simultaneous column operation

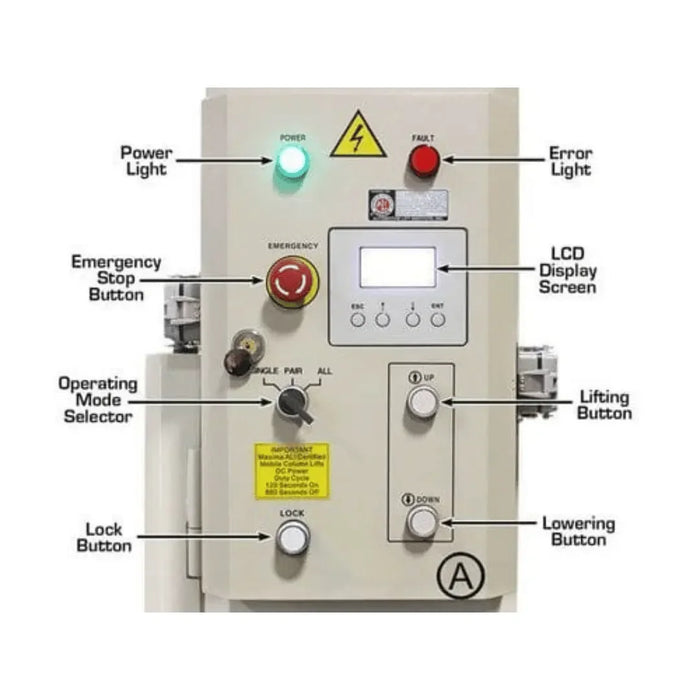

LCD screen per column
Electronic sync system
Dual safety: hydraulic + mechanical locks
Fully portable columns

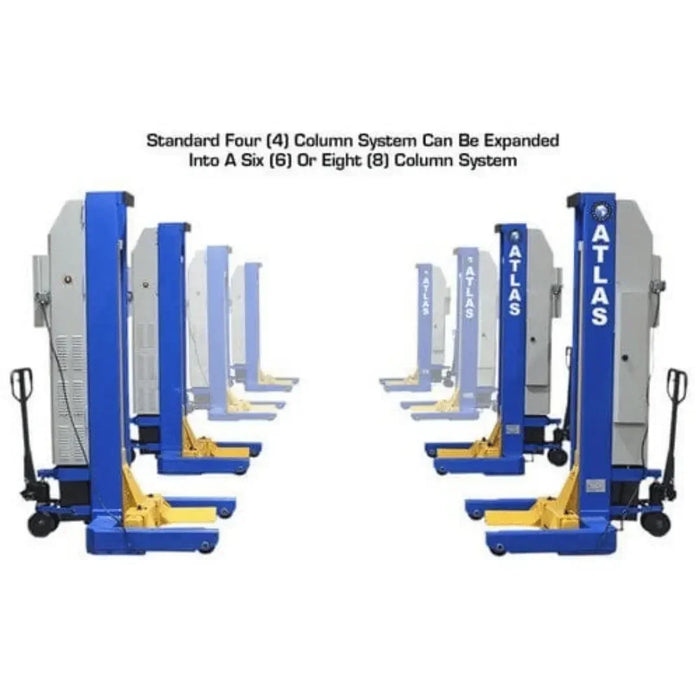

Expandable system: 4 (74,000 lb.), 6 (111,000 lb.), 8 (148,000 lb.)

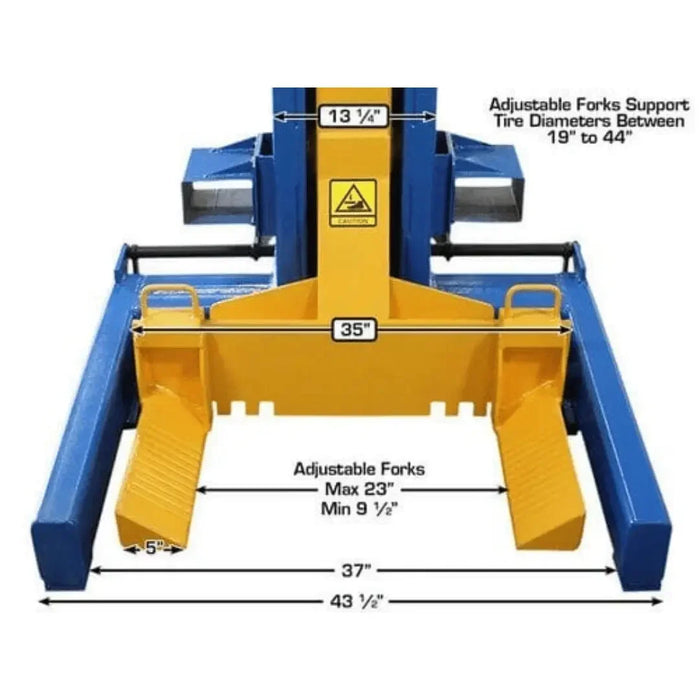

Forks adjust for 19"–44" tires
Emergency stop per column
Includes four 32′ connection cables
2.2 Kw 24V DC motor (2 batteries per column)
2-Year Limited Warranty
Lift capacity per column: 18,500 lbs
Weight per column: 1,700 lbs
Shipping Weight (4 columns): 6,800 lbs

Product Specifications

Model	ATEML-4034BC
Capacity per Column	18,500 lbs.
Motor	2.2 Kw 24V DC motor, 2 batteries/column

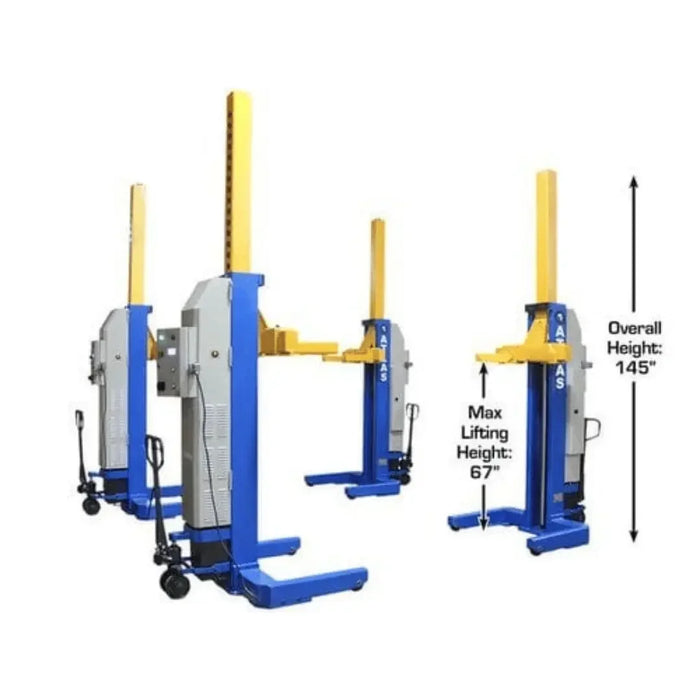

Max. Lifting Height	67" (5' 7")
Overall Height	145" (12' 1")
Resting Height	88.5" (7' 4.5")
Width	43.5" (3' 7.5")

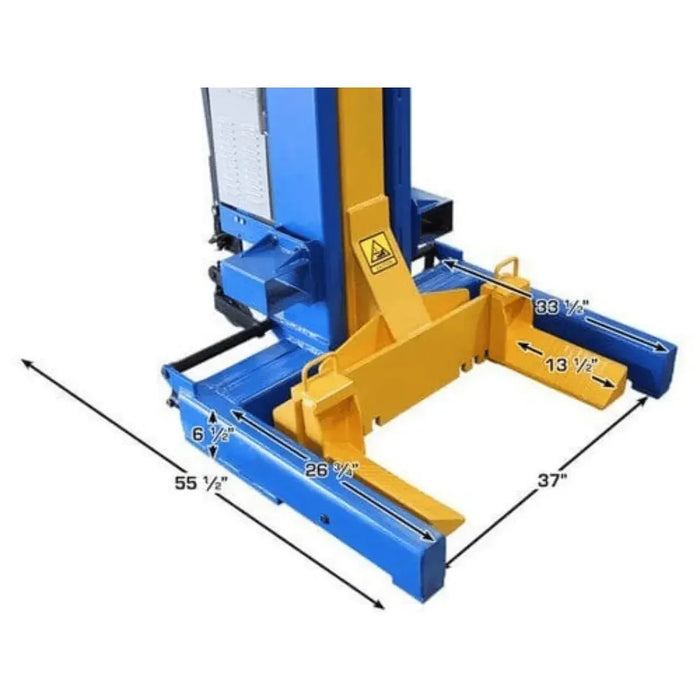

Length	55.5" (4' 7.5")
Column Width	13.25"
Max Tire Diameter	44"
Min Tire Diameter	19"
Warranty	2 Year Limited
Shipping Weight (Per Column)	1,700 lbs.
Shipping Weight (For Four Columns)	6,800 lbs.

Pick Up and Delivery

Pick Up locations: Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; New Jersey, NJ.

Questions? Call/text/chat: 866-774-7743

Downloads

Brochure

Manual

Warranty

Specifications

-

Upc	810524026451
