AMGO Hydraulics  |  SKU: PRO-12

Amgo PRO-12 12,000 lb 4 Post Lift

$5,090.00
Shipping FAQ's

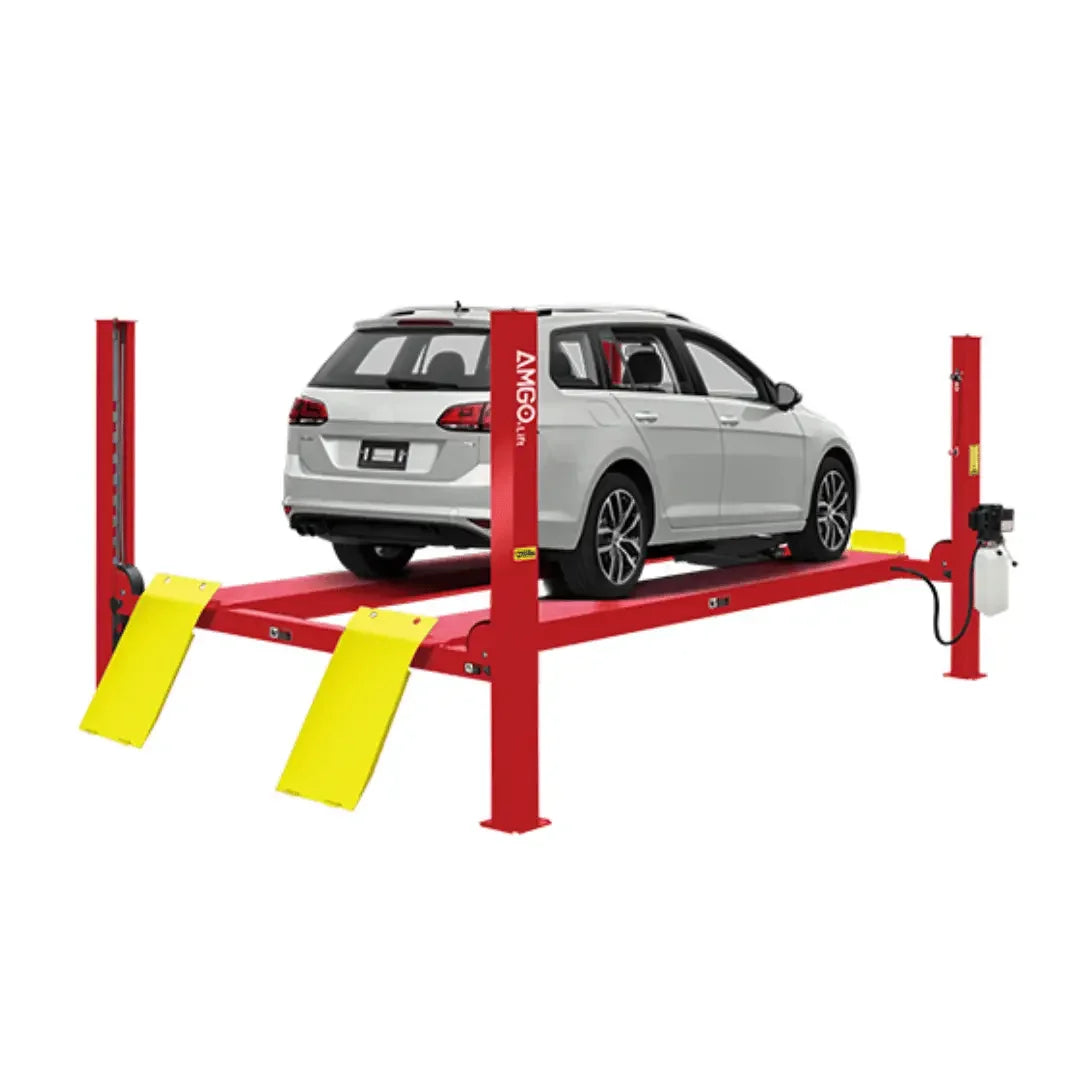

Amgo PRO-12 12,000 lb 4 Post Lift

The Amgo PRO-12 12,000 lb 4-Post Lift is designed for automotive shops, dealerships, and serious enthusiasts who need reliable heavy-duty lifting capacity. With a 12,000 lb weight rating, this lift easily accommodates cars, SUVs, vans, and light-duty trucks. Its robust steel structure and precision engineering ensure long-term durability, while the ETL-certified power unit guarantees safe and consistent performance.

One of the standout features of the PRO-12 is its stepless adjustable runway width, giving operators the flexibility to handle a wide variety of vehicles without compromise. Non-skid diamond runways provide additional safety during loading and service. The lift is also equipped with a mechanical self-locking system and secondary cable-slack protection, ensuring that vehicles remain secure at all times.

With smooth operation and thoughtful safety features, the PRO-12 is a lift designed to meet the demands of a busy professional shop while remaining accessible for personal garages that require top-tier equipment.

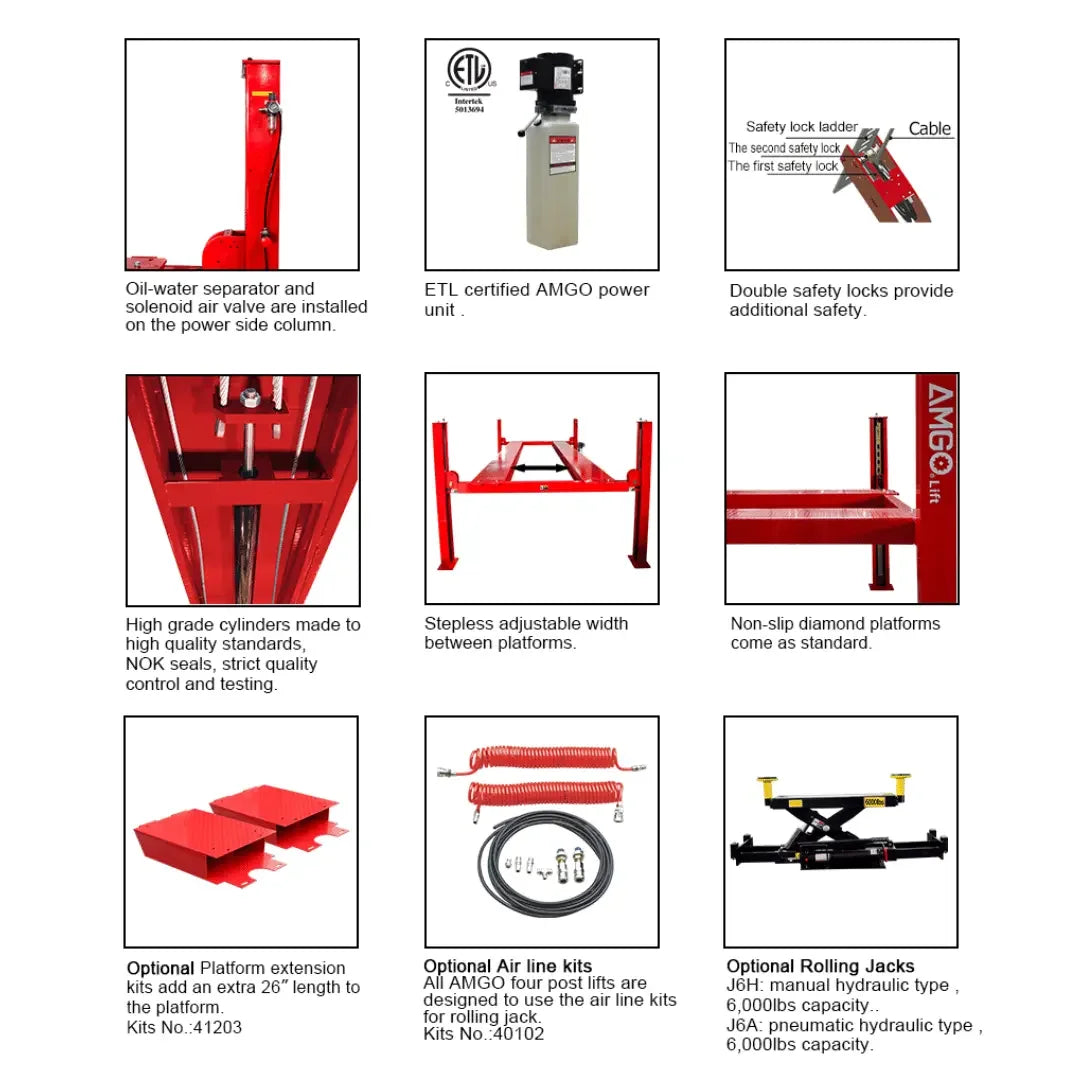

Product Features

  • 12,000 lbs capacity.
  • AMGO ETL certified power unit comes as standard.
  • Mechanical self-locking safety device with air-driven lock release.
  • Both primary multiple safety locks and cable-slack protection system are equipped as standard.
  • Cable-driven, utilizing aircraft standard high quality cables.
  • Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
  • Non-skid diamond platforms.
  • Stepless adjustable width between platforms.

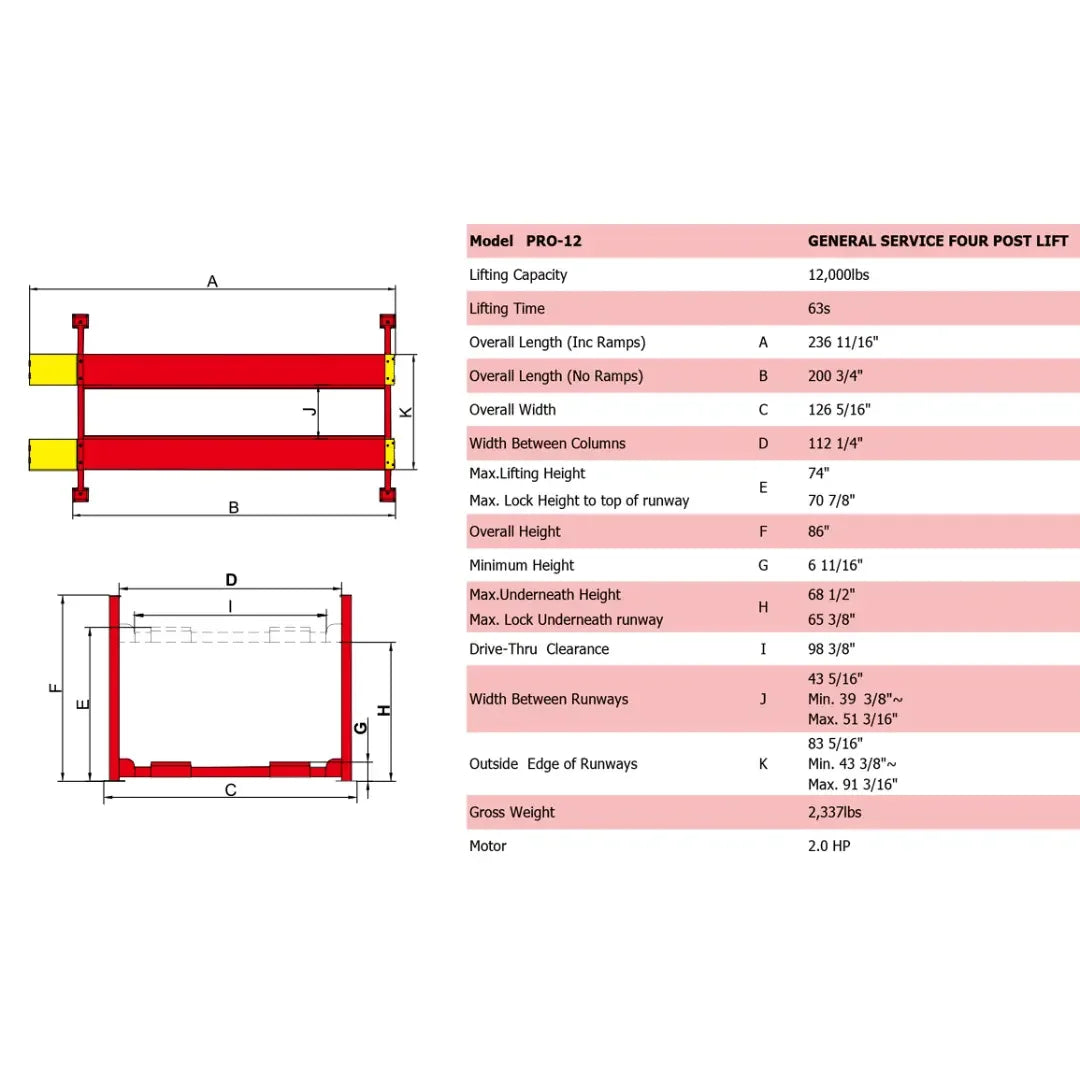

Product Specifications

Model PRO-12
Lifting Capacity 12,000 lbs
Lifting Time 63S
A: Overall Length (Inc.Ramps) 236 11/16″
B: Overall Length (No.Ramps) 200 3/4″
C: Overall Width 126 5/16″
D: Width Between Columns 112 1/4″
E: Max. Lifting Height 74″
E: Max. Lifting Height to Top of Runway 70 7/8″
F: Overall Height 86″
G: Minimum Height 6 11/16″
H: Max. Underneath Height 68 1/2″
H: Max. Lock Underneath Runway 65 3/8″
I: Drive-Thru Clearance 98 3/8″
J: Width Between Runways 43 5/16″, Min. 39 3/8″, Max. 51 3/16″
K: Outside Edge of Runways 83 5/16″, Min. 43 3/8″, Max. 91 3/16″
Gross Weight 2,337 lbs
Motor 2.0HP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.

Call, text, or chat with us if you have questions. 866-774-7743
