Amgo AX-12 12,000 Lb Scissor Lift

Name: Amgo AX-12 12,000 Lb Scissor Lift
Brand: AMGO Hydraulics
Price: 9995.0 USD
Availability: InStock

Part #:AX-12

Brand: AMGO Hydraulics

$0.00 - $0.00

$0.00

$9,995.00

$9,995.00 - $9,995.00

$9,995.00

Call/Text Us: 866-774-7743 Call Us

Description

-

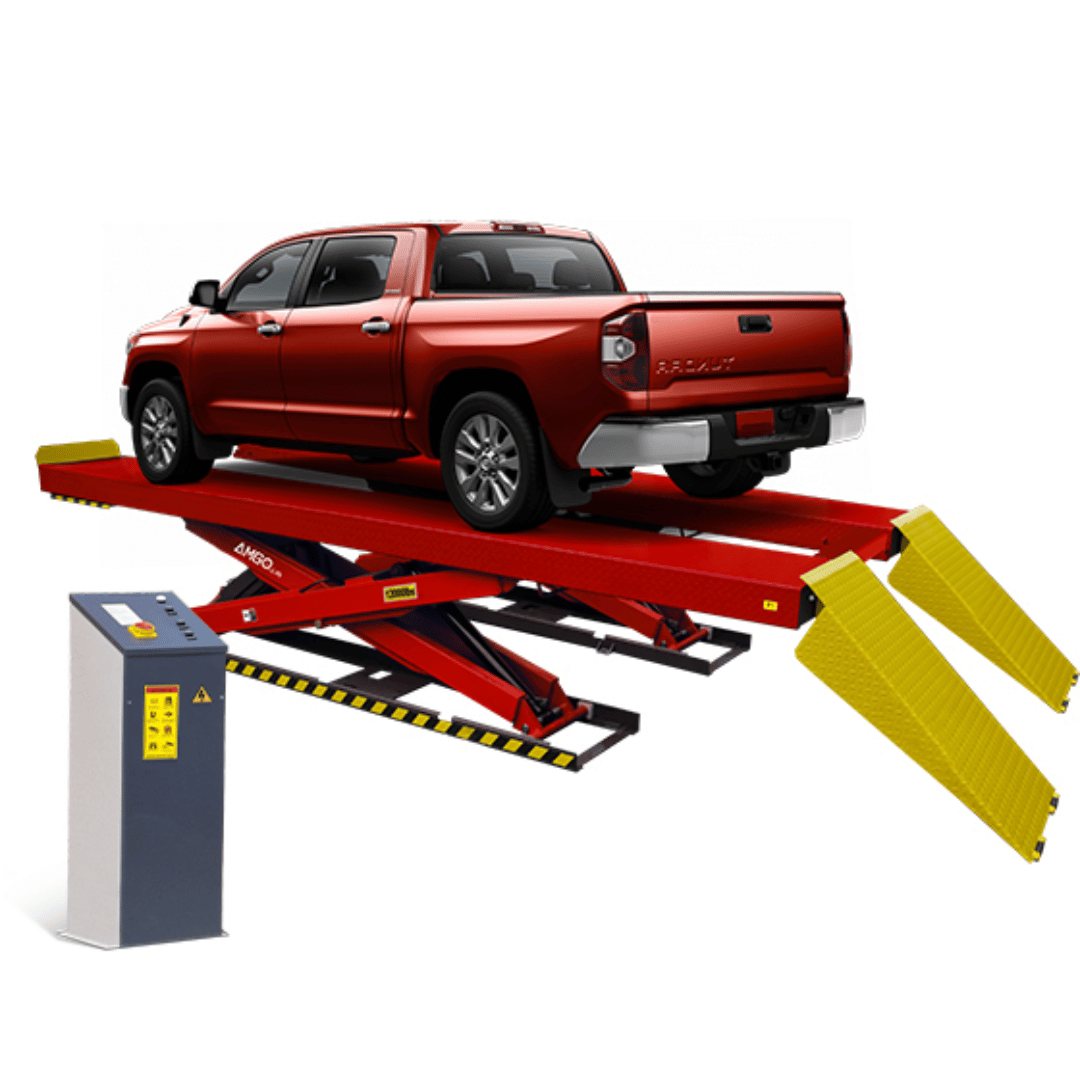

Amgo AX-12 12,000 Lb Scissor Lift

AMGO’s AX-12 features a heavy-duty structure with robust X scissors, offering superior performance to lift up to 12000lbs. It includes both hydraulic and mechanical locks, making AX-12 the safest lift in its category. More stronger and versatile, AX-12 features non-skid platforms and a convenient service shelf for enhanced usability.

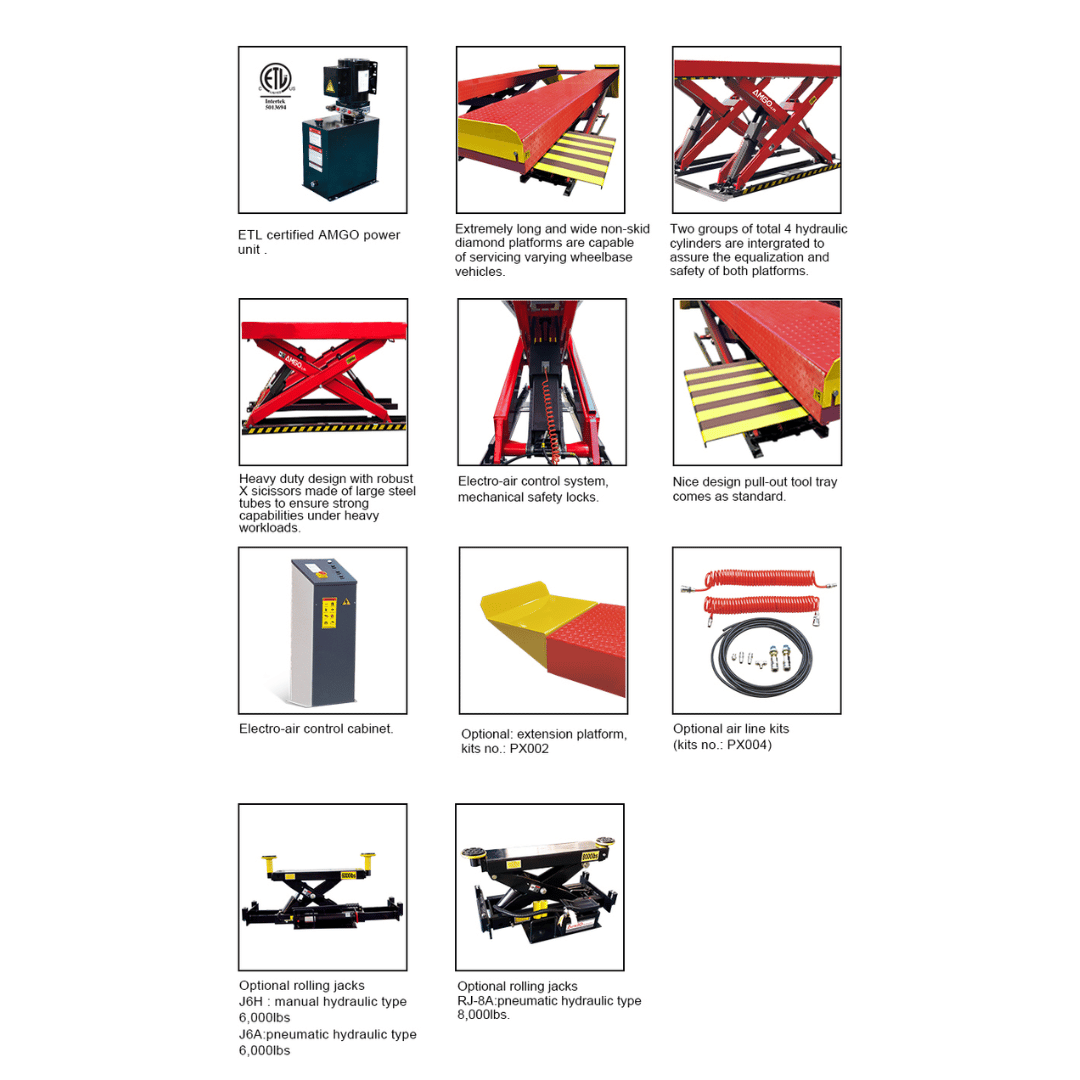

Product Features

2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
Electro-air control system, which operates the self-lock safety mechanism
Heavy-duty design, the X serial scissor lift uses a 5 7/8”x 3“ tube to make it stronger and assures the runways remain level during operations
Skid proof diamond platform provides traction for tires to stay put

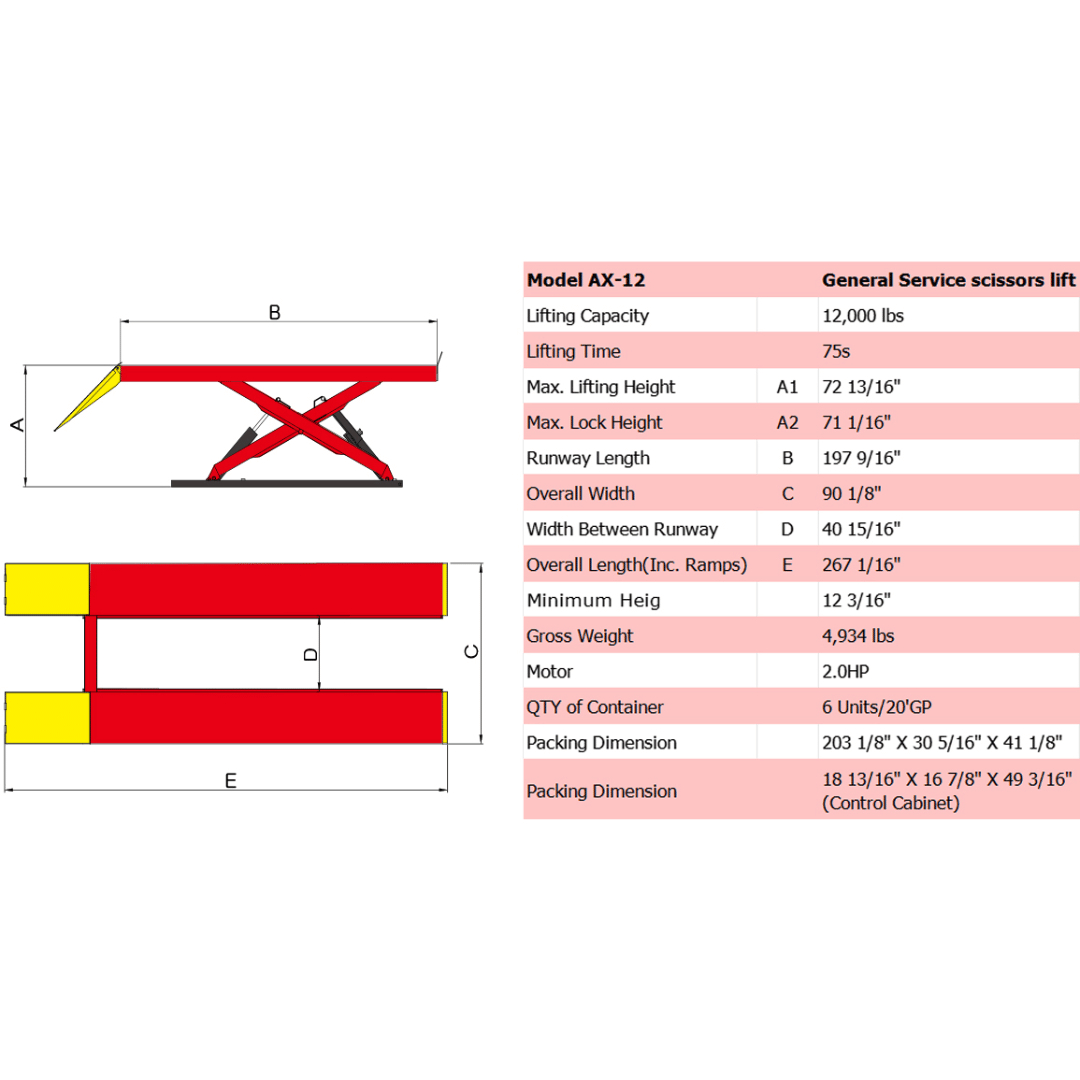

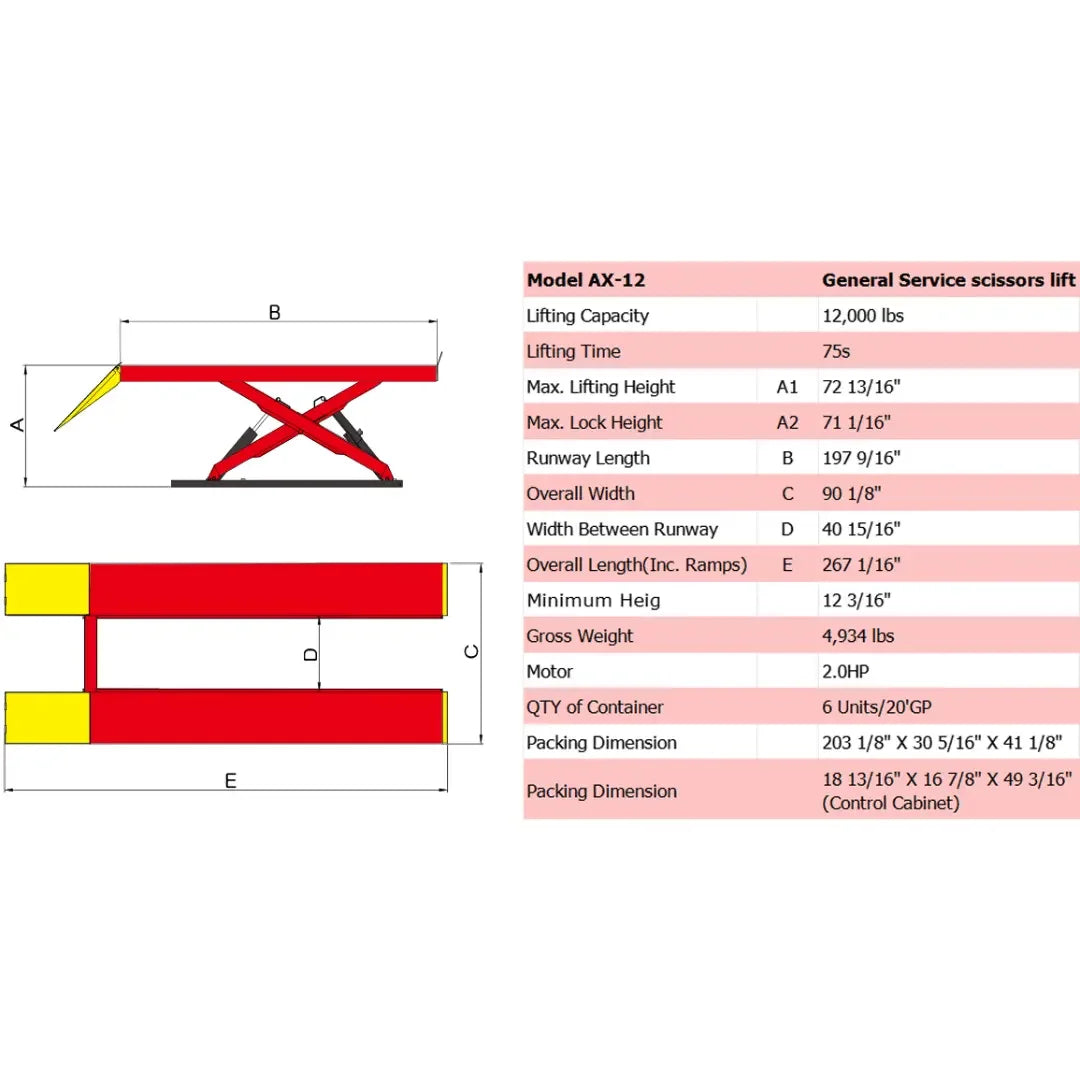

Product Specifications

Model	AX-12
Lifting Capacity	12,000 lbs
Lifting Time	75 seconds
A1: Max. Lifting Height	72 13/16″
A2: Max. Lock Height	71 1/16″
B: Runway Length	197 9/16″
C: Overall Width	90 1/8″
D: Width Between Runways	40 15/16″
E: Overall Length (Inc.Ramps)	267 1/16″
Minimum Height	12 3/16″
Motor	2.0HP
Gross Weight	4,934 lbs
QTY of Container	6 Units/20'GP

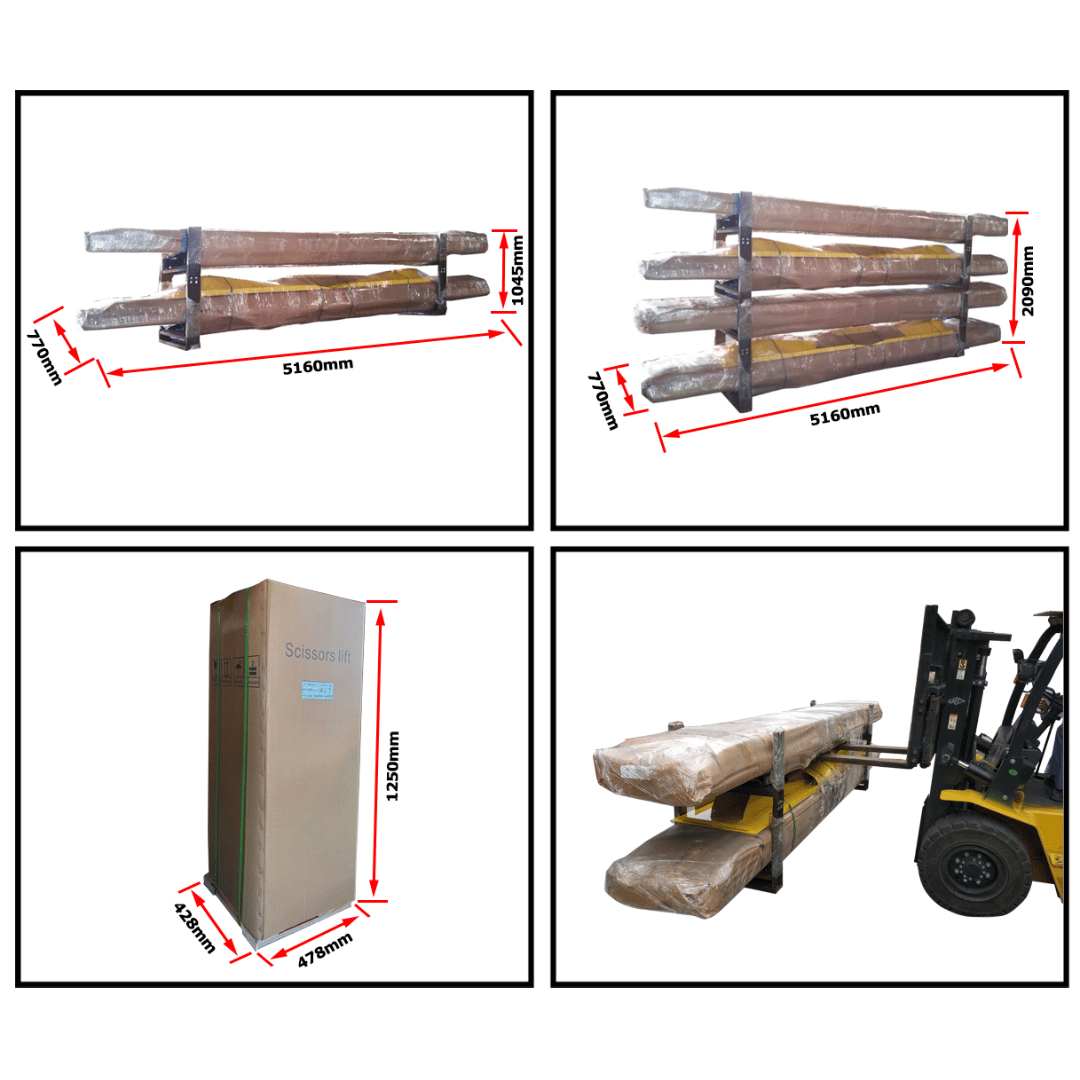

Packing Dimension	203 1/8″ X 30 5/16″ X 41 1/8″
Packing Dimension	18 13/16″ X 16 7/8″ X 49 3/16″ (Control Cabinet)

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-

Lifting capacity	12000 lbs
Lifting height top of runway	6 ft
Lifting height top of pad	72 13/16″
Max rise under runway	5 ft
Modal	AMGO AX-12
Overall length	22 ft
Overall width	7.5 ft
Overall weight	4,934 lbs
Overall width	90 1/8″
