BendPak  |  SKU: 5115127

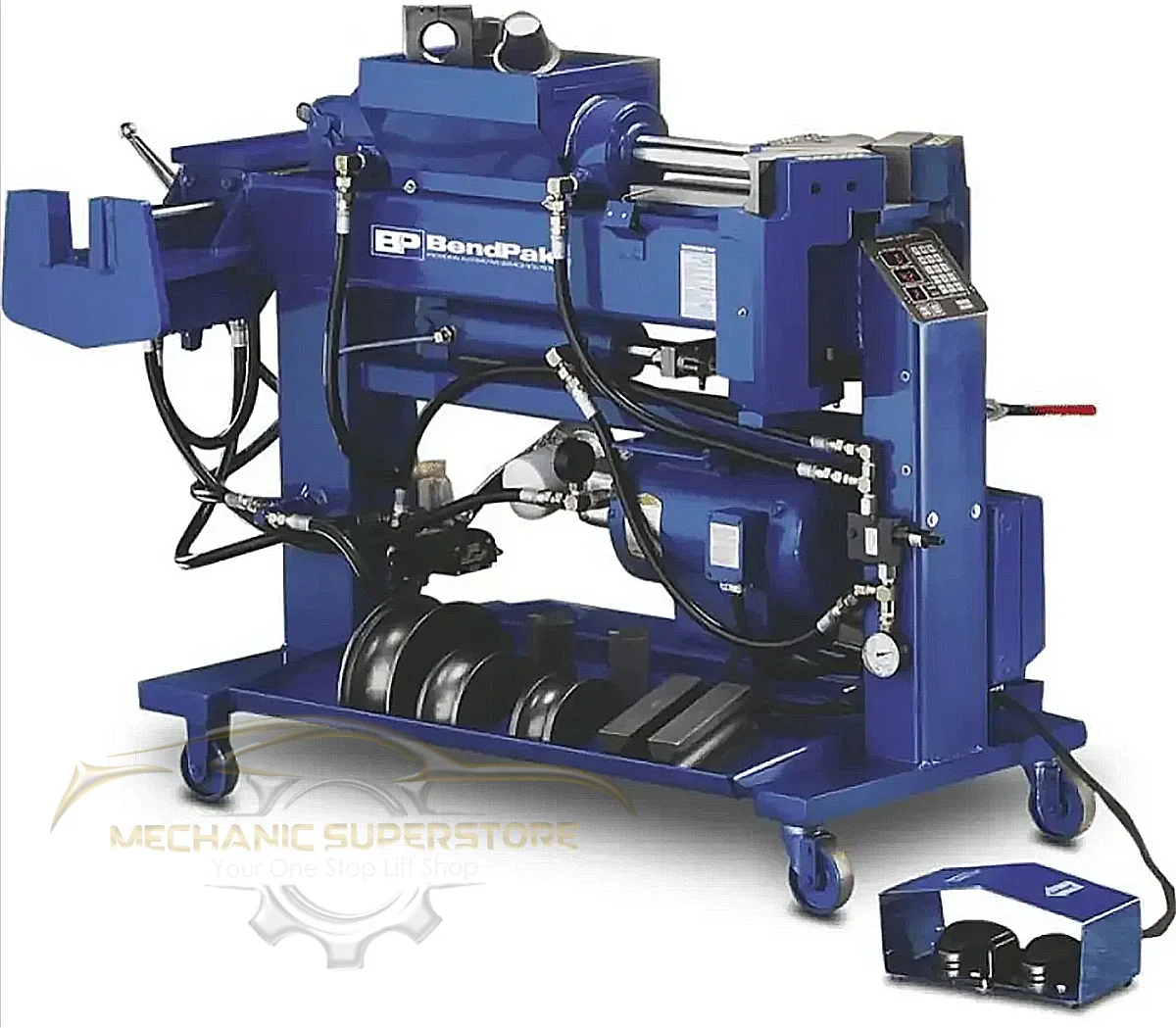

1302BA BendPak Automatic Pipe Bender Package

$14,295.00
Shipping FAQ's

BendPak Automatic Pipe Bender | 1302BA | Digital With Metric Tooling Package - 208-230V / 60Hz / 1 Phase

The BendPak 1302BA automatic pipe benders are engineered for productivity, featuring a strategically positioned keypad interface designed for easy input and precise duplication of bending routines. In high-volume environments, this automation helps streamline workflows and ensures consistent results across every bend.

Fast-Swap Bending Dies

Our twist-lock tooling and fast-change bending dies have set the industry standard—so much so that others try to replicate them. While imitation is flattering, nothing compares to the reliable performance and accuracy of genuine BendPak equipment.

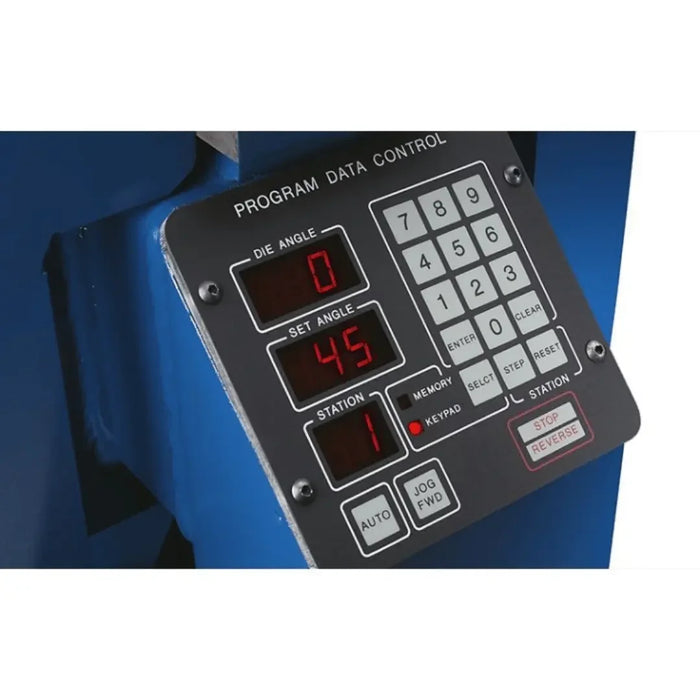

Advanced Digital Operation

Frequent users will value the built-in digital readout, which provides real-time die angle readings. Housed within the machine’s upright column is a smart control module capable of programming and managing both manual and automated bending sequences. It can store up to 99 custom bending depths, making it ideal for replicating OEM exhaust designs with speed and precision.

Product Features

  • 2 separate end-finishing units at rear for all necessary flaring and expanding

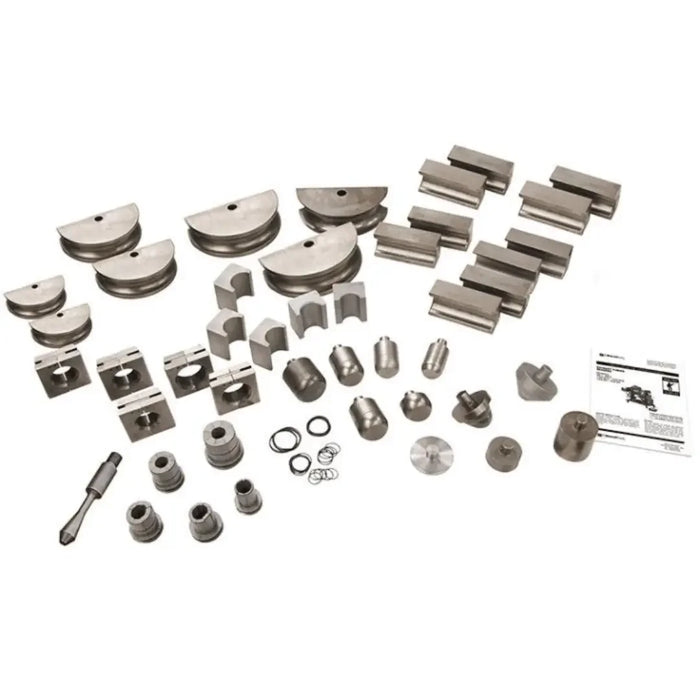

  • Comes complete with quick release bending and finishing dies

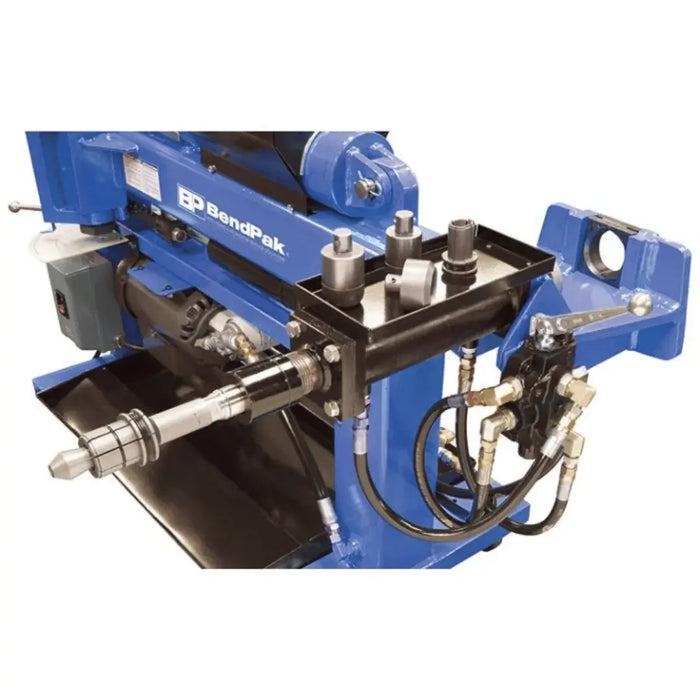

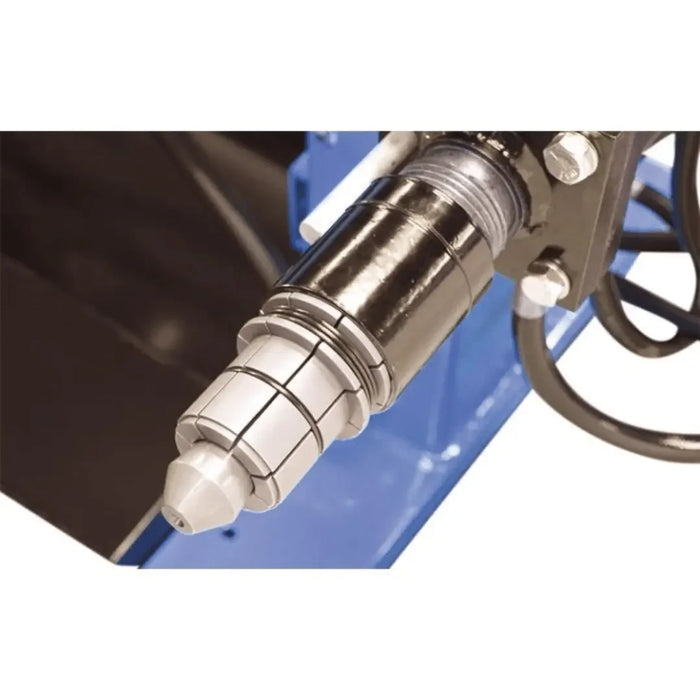

  • Includes high-speed clampless swager and internal expander
  • Easy-to-use drop-in collar makes swaging operations quick and efficient
  • Twist-lock tooling

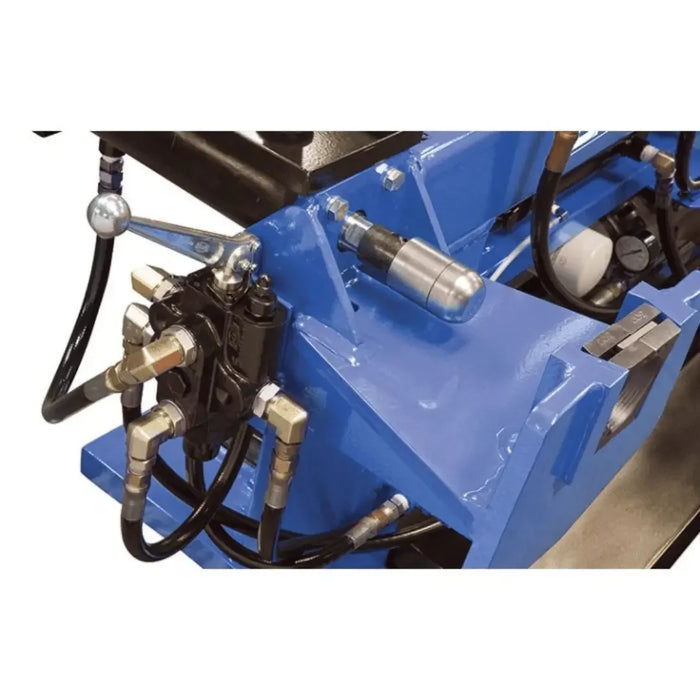

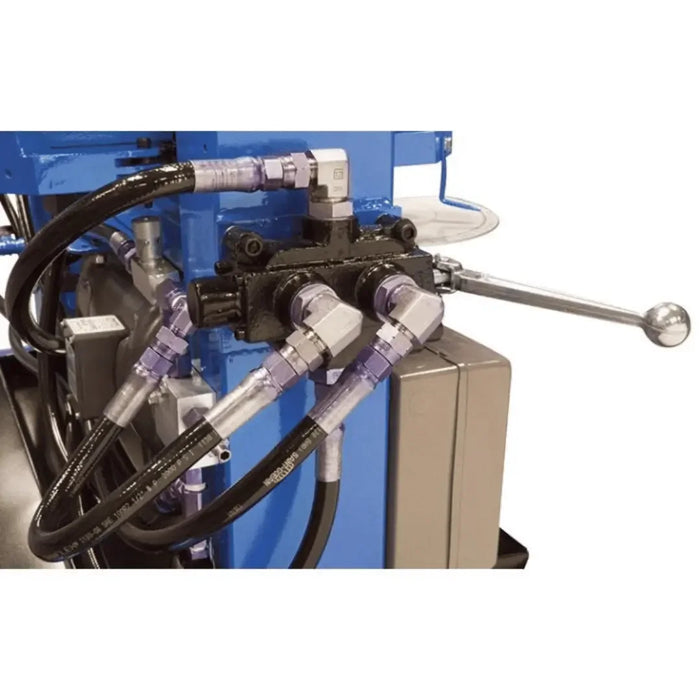

  • Integrated power-relief control valve
  • Pass-through cylinder stem passes completely through the primary frame
  • Rigid 6" x 6" x 3/8" welded-steel tube frame
  • Commercial-grade hydraulic cylinders
  • All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
  • Quick-release bending dies for reduced set-up times
  • Bending heads precision grounded to within .002"
  • Enclosed controls keep your bending area clutter-free
  • 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
  • Standard grease fittings allow for simple lubrication
  • NEMA-rated on/off switch box with overload relays
  • Pressure gauges monitor system pressures
  • Industrial grade casters for mobility
  • Adjustable pressure valve located up front
  • One-piece barrel keeps bending gates aligned
  • Heat-treated tooling for extended service life

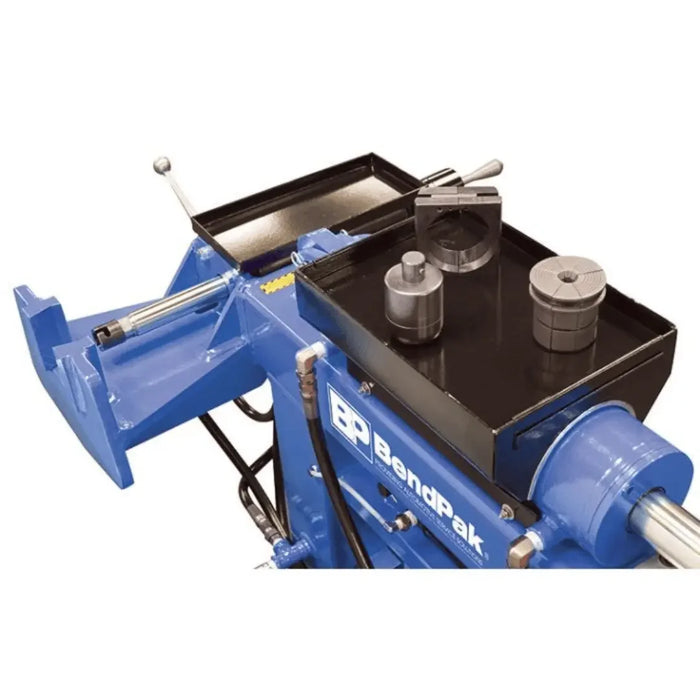

  • Convenient tool trays for organization
  • 5 HP energy efficient motor

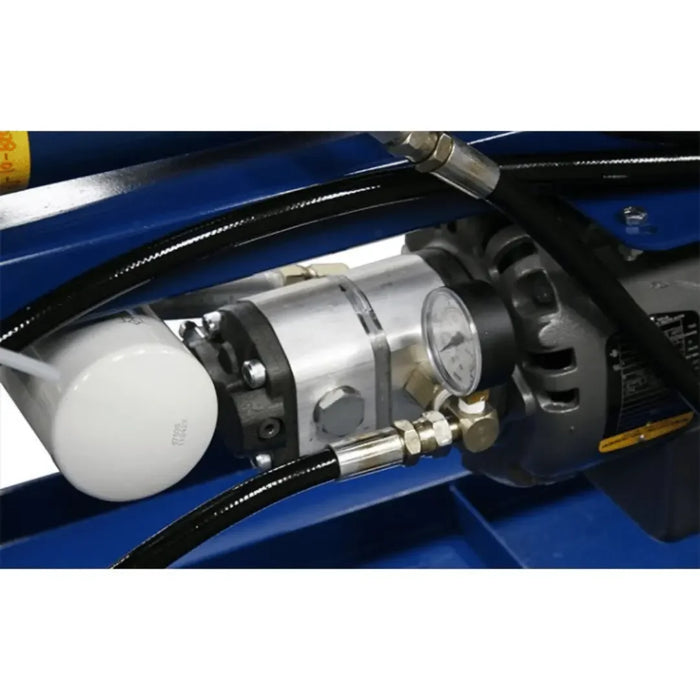

  • Direct-drive, high-speed 4 GPM pump
  • Single enclosed bottom cylinder applies even pressure
  • Large fluid reservoir for cooler oil and less contamination
  • Canister oil filter keeps hydraulic oil clean
  • Oil sight gauges for visual inspection
  • Oversized 1/2" high-pressure hose improves cooling
  • Open-sided swager box for easier tool access
  • 180° bending die available

Product Specifications

Overview

Bending Controls Automatic / Digital
Expander Controls Manual
Frame Style Double-Ended Expander
Max. Tube Capacity 3" (76 mm) .095 wall

Bending

Max. Bending Radius 5" (127 mm)
Min. Bending Radius 3.3" (89 mm)

Hydraulics

Top Cylinder Force 60,000 lbs. (27,216 kg)
Hydraulic Filter Canister
Motor 5 HP / 208-230 VAC / 60 Hz / 1 PH

Die Pack

Standard 1.5", 1.75", 1.625", 2", 2.25", 2.5" (302)

Dimensions

Width 41" (1,041 mm)
Depth 64" (1,626 mm)
Height 26" (660 mm)

Shipping

Weight 1,388 lbs.
Dimensions 48" x 70" x 30" (1,219 mm x 1,778 mm x 762 mm)
