CEMB  |  SKU: 2-HIT

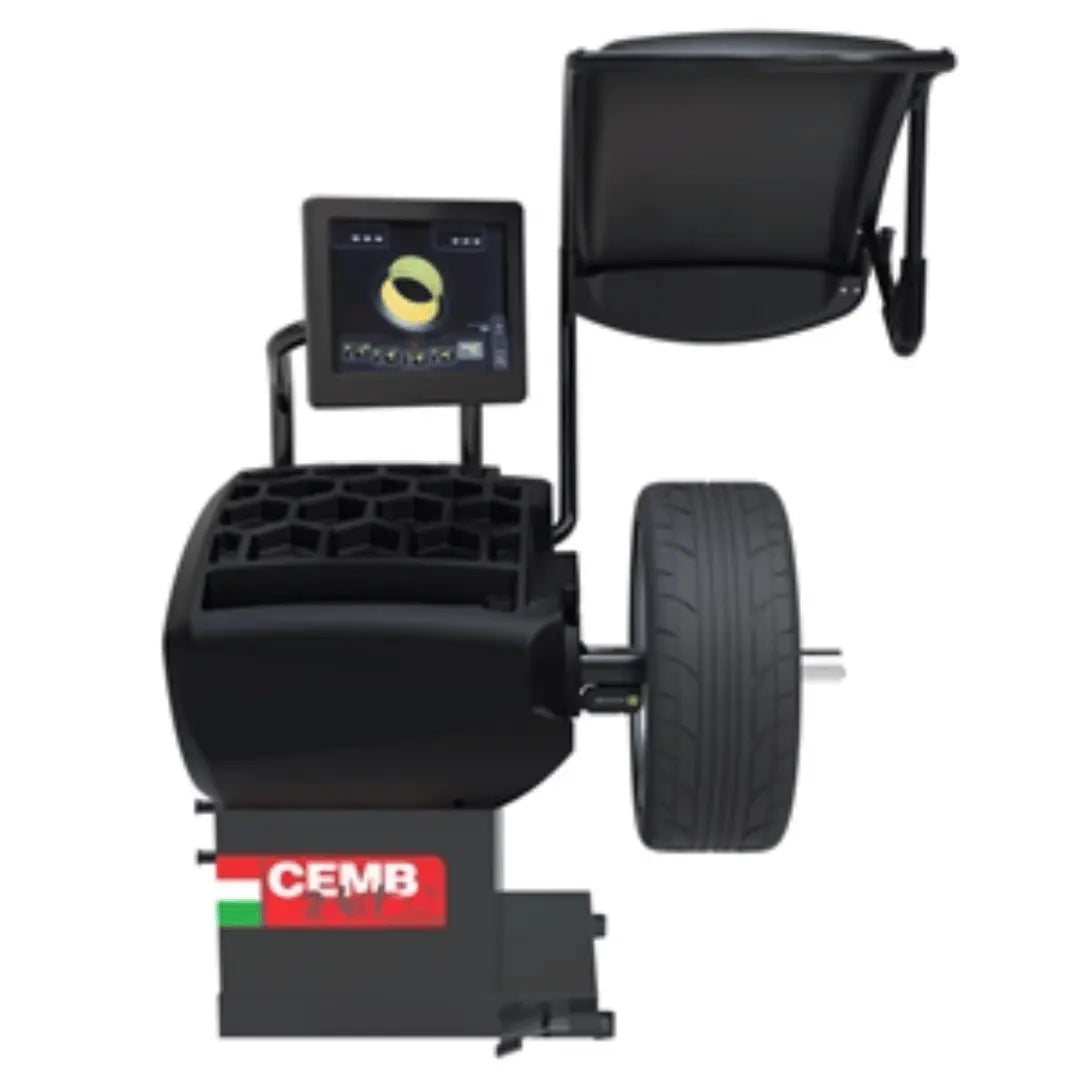

CEMB 2-Hit Tire Dealer Wheel Balancer

$11,219.00
Shipping FAQ's

CEMB 2-Hit Tire Dealer Wheel Balancer

The CEMB 2‑HIT is a professional-grade tire dealer wheel balancer designed for high-speed, ergonomic, and intuitive operation. Featuring CEMB’s patented One Plane Balancing (OPB) system, it corrects both static and dynamic imbalance using a single counterweight—saving time and improving efficiency. The unit includes an AutoAdaptive™ Mode which dynamically calculates imbalance tolerances to minimize perceived vibrations during driving.

Operators measure wheel width automatically using LA Sonar, while a Laser Spotter and matching system precisely indicate where to place weights inside the rim. Optional EMS Sonar further enhances performance by detecting eccentricity and helping technicians mount wheels in optimal positions using the HubMatch feature. A pneumatic locking system ensures rapid, accurate wheel centering, and the machine’s automatic electromagnetic positioning system locks the wheel perfectly for weight application.

Built for busy tire shops, the 2‑HIT supports wheels up to 30″ in diameter and 20″ in width, with a maximum wheel weight of 165 lbs. It runs on standard 220 V single-phase power and includes LED lighting to illuminate the working area. Ergonomic design reduces operator fatigue, while the fast measurement cycle (around 6 seconds) speeds up throughput.

Product Features

  • Pneumatic Clamping
  • One Plane Balancing (OPB) - eliminates the static & dynamic unbalance by means of a single counterweight, indicating its exact application point on the inner side of the rim
  • AutoAdaptive™ Mode - detects weight & dimensions & calculates the tolerance value that will cancel any vibration perceived on the steering wheel
  • Ergonomic Design
  • Pneumatic Wheel Locking (CEMB patient) - is extremely easy & quick to use provides accurate wheel centering
  • Side Laser - 12 o'clock laser for correct clip on weights application
  • Electric Brake - Wheel locking system that locks the wheel in the correct position by means of an electromagnetic brake
  • Splash Guard
  • LA Sonar - tread depth. Measurement in three sections of the tire
  • Touch - Innovative touch with multi-user capability
  • Automatic-Positioning - an automatic position system with electromagnetic brake ensures an extreme positioning speed & the immediate lock ofr the wheel at the exact correction point

Product Specifications

Model 2-Hit
Wheel Clamping Type Pneumatic
Max. Tire Diameter 40" (1016 mm)
Maximum Rim Diameter 30" (765 mm)
Maximum Rim Width 20" (510 mm)
Maximum Wheel Weight 165 lbs. (75kg)
Power Supply 220V, 1ph, Air
Shipping Weight 485 lbs. (220 kg)
