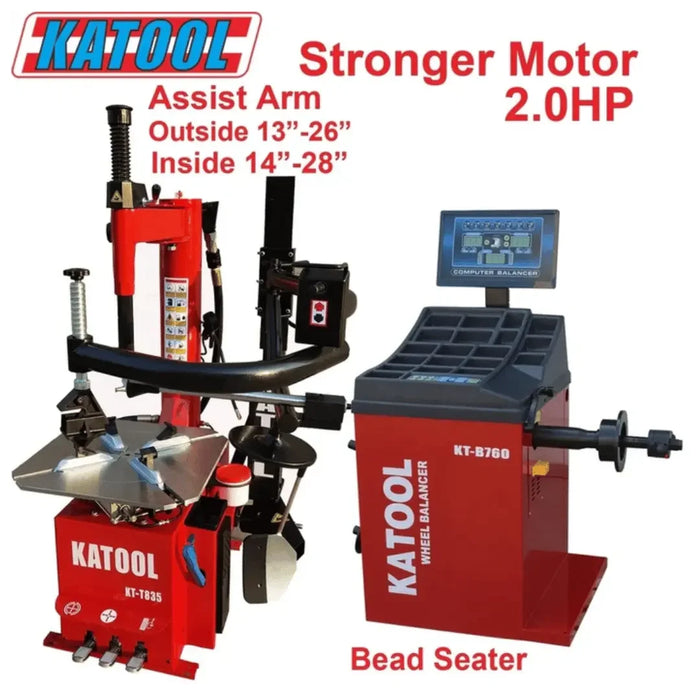

Katool Tire Changer KT-T835 & Wheel Balancer KT-B760 Combo
The Katool KT-T835 & KT-B760 tire changer and wheel balancer combo pairs a rugged wheel clamp tire changer with a highly capable automatic wheel balancer to create a unified solution for modern tire shops. This combo delivers efficiency, precision, and ease of use across the full cycle of tire mounting, dismounting, and balancing. The KT-T835 tire changer is engineered for strength and versatility, while the KT-B760 balancer supports fast, reliable measurements and corrections for a wide spectrum of wheels. When used together, they streamline workflow, reduce handling time, and improve overall job throughput.
The KT-T835 wheel clamp tire changer is built to handle aggressive usage. Its alloy steel jaws are treated with carburization to a depth of approximately 0.8 to 1.1 mm and then quenched, giving the outer surface hardness while preserving inner toughness. The jaws include protective covers to help avoid scratching or marring alloy rims. The mounting head is manufactured from solution-treated stainless steel and polished for smooth interaction, and a plastic rim protector helps shield delicate wheel finishes during operation. This design emphasis on protection is vital in shops handling expensive alloy and low profile wheels.

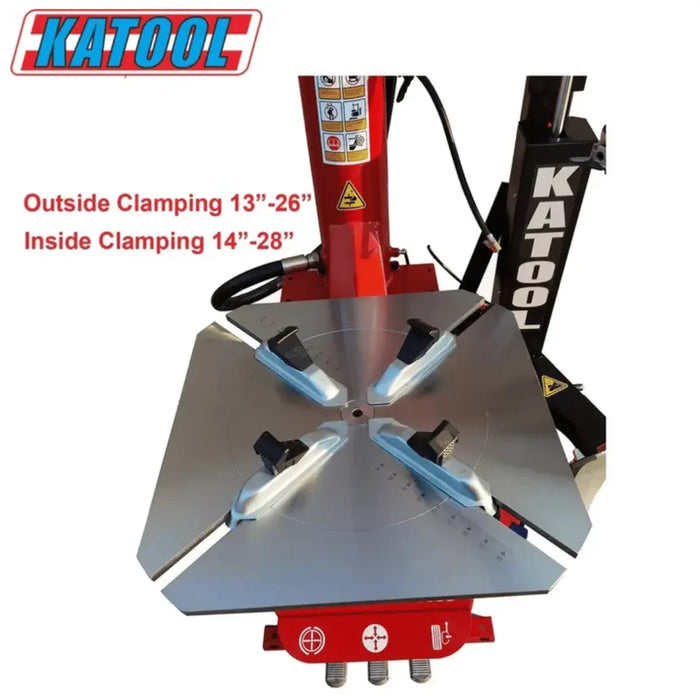

Clamping ranges on the KT-T835 are broad and accommodating. It supports external clamping from 13 to 26 inches and internal clamping from 14 to 28 inches, allowing for service of a wide variety of rims. The machine further accommodates wheels up to 41 inches in diameter and 15 inches in width, making it suitable for passenger sedans, trucks, SUVs, and more specialized wheels. The motor is rated at 2.0 HP (1.5 kW) and is intended for 110 V single-phase power, offering ample torque and operational consistency. Under load, the changer rotates at approximately 6.1 revolutions per minute—delivering balanced speed and control.
Contact us for more information or sales inquiries.
Product Features

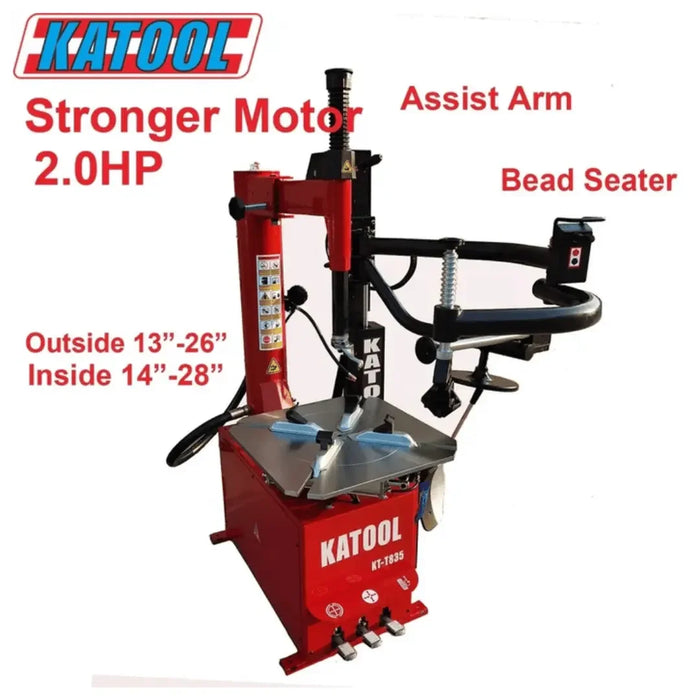

KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working

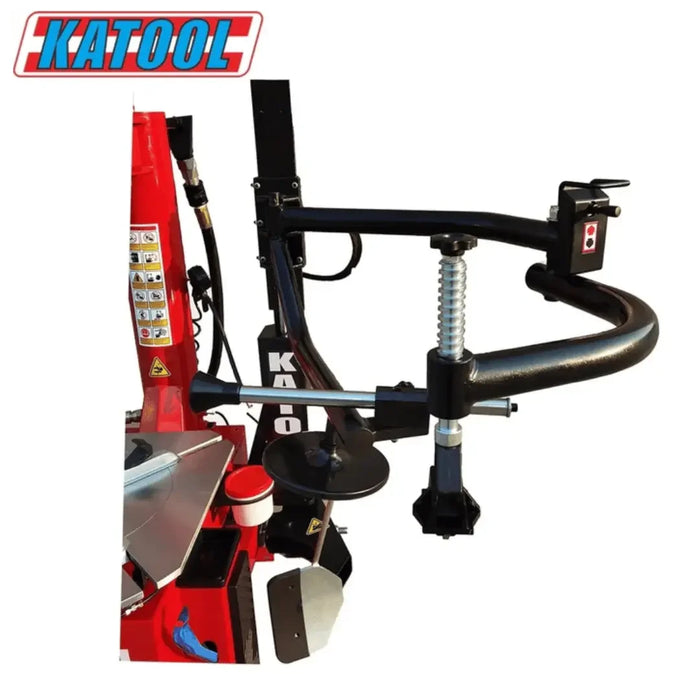

- Double side assist arm
- Bead blast seater head with post tank
- 186mm stainless bead breaker cylinder
- Closed body for protect inside parts

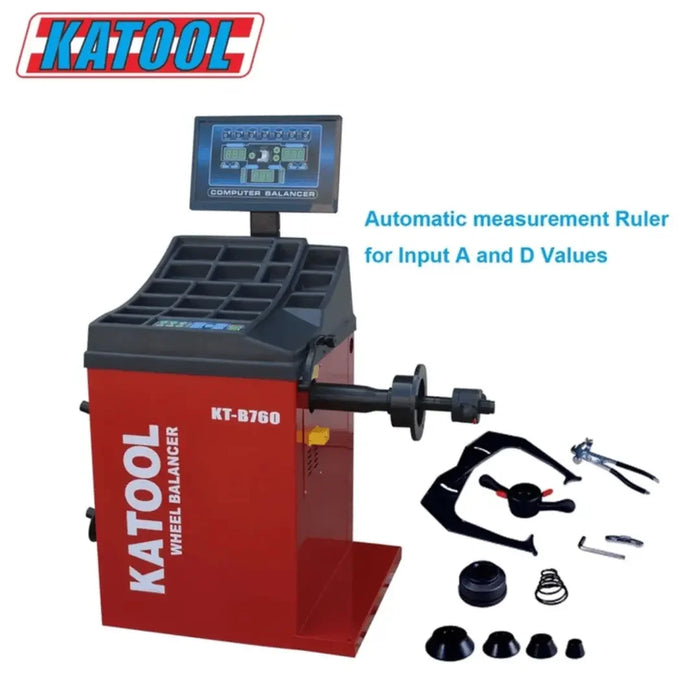

KT-B760 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Optional wheel guard
- Longer shaft, also compatible with wider wheels
Product Specifications
KT-T835 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter |
41"/1040mm |
| Max Wheel Width |
15"/350mm |
| Outside Clamp |
13"-26" |
| Inside Clamp |
14"-28" |
| Power Supply |
110V 1PH/60HZ |
| Motor Power |
2.0HP/1.5KW |
| Rotation Speed |
6.1/min |
| Air Pressure |
0.8-1.0Mpa(116-145psi) |
| Net weight |
582lbs |
KT-B760 Wheel Balancer
| Rim Diameter: |
<30" |
| Wheel Width: |
3"-12" |
| Wheel Diameter: |
<880mm/34.64" |
| Balancing Speed: |
180rpm |
| Power Supply: |
110V 1PH |
| Motor Power: |
0.25KW |
| Rim Center Hole Dia.: |
<135mm/5.31" |
| Wheel Weight: |
<65KG/143lbs |
| Balancing Accuracy: |
1g |
| Measuring Time: |
7S |
