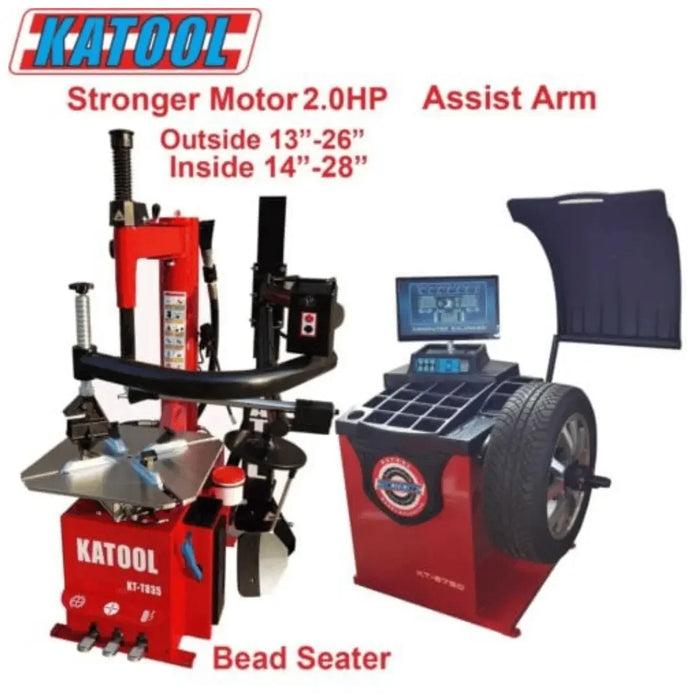

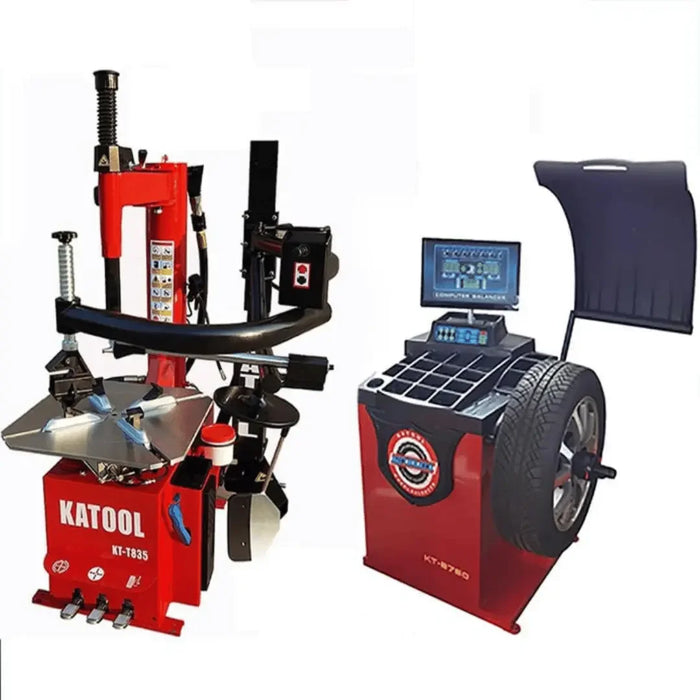

Katool Tire Changer KT-T835 & Wheel Balancer KT-B750 Combo
The Katool KT-T835 Tire Changer and KT-B750 Wheel Balancer Combo is a powerful and efficient solution designed for high-volume tire service operations. This combination of equipment offers robust performance, precision, and versatility, making it an ideal choice for automotive shops seeking to enhance their tire service capabilities.

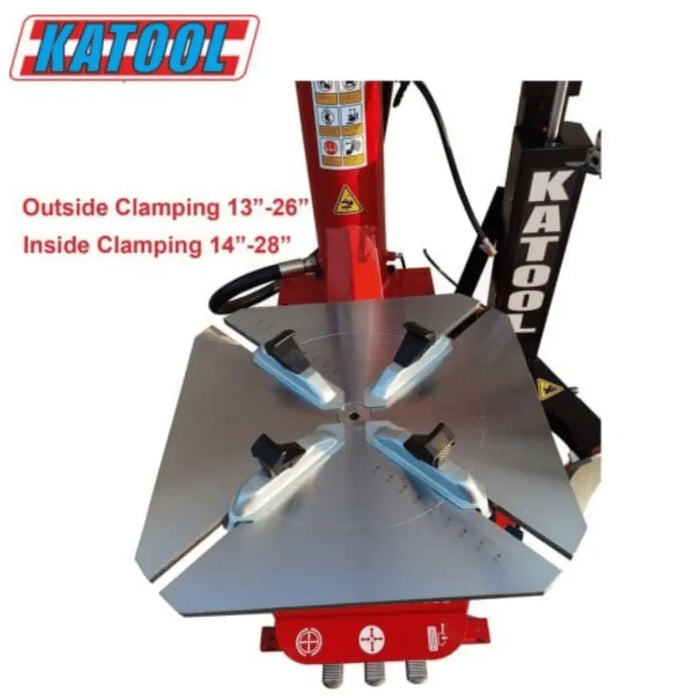

The KT-T835 Tire Changer is engineered to handle a wide range of tire sizes and types, accommodating wheels up to 41 inches in diameter and 15 inches in width. Its external clamping range spans from 13 to 26 inches, while the internal clamping range extends from 14 to 28 inches, providing flexibility to service various vehicles. Powered by a 2.0HP (1.5KW) motor operating on 110V single-phase power, the KT-T835 delivers consistent torque and speed, with a rotation speed of 6.1 revolutions per minute. This ensures efficient tire mounting and dismounting processes, reducing turnaround times and increasing productivity.
The KT-T835 features a swing-arm design with a bead blaster, facilitating the easy removal and installation of tires without causing damage to the rims. The alloy steel jaws undergo a carburization treatment to a depth of 0.8 to 1.1 mm, followed by a quenching process, enhancing their durability and strength. Protective jaw covers are included to prevent scratches and damage to alloy rims. The mounting head is constructed from stainless steel, polished, and solution-treated, equipped with a plastic rim protector to safeguard delicate wheel finishes during operation.
The KT-B750 Wheel Balancer complements the tire changer by providing precise and efficient wheel balancing. It supports rim diameters up to 30 inches and wheel widths ranging from 3 to 12 inches. The balancer operates with a motor power of 0.25KW and achieves a balancing speed of 180 revolutions per minute. It boasts a balancing accuracy of ±1 gram, ensuring optimal tire performance and safety. The automatic measurement ruler facilitates quick and accurate input of A and D values, streamlining the balancing process.
Contact us for more information.
Product Features

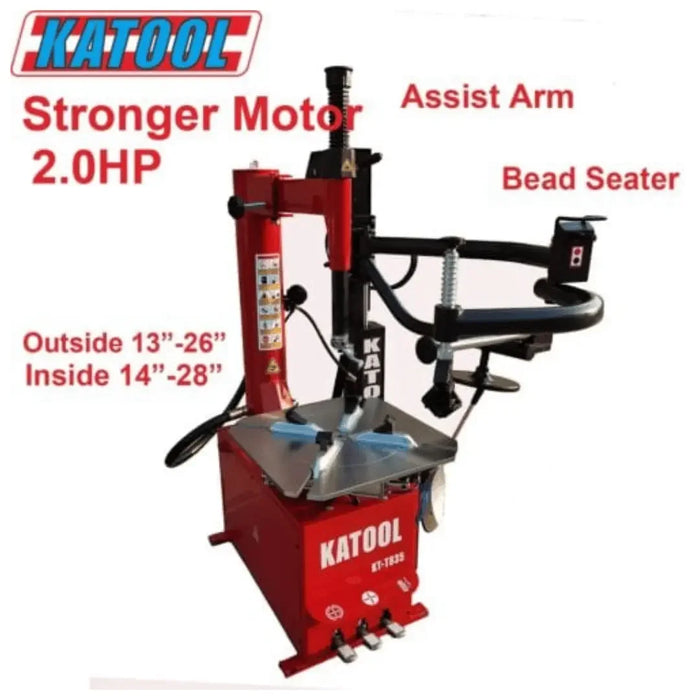

KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working

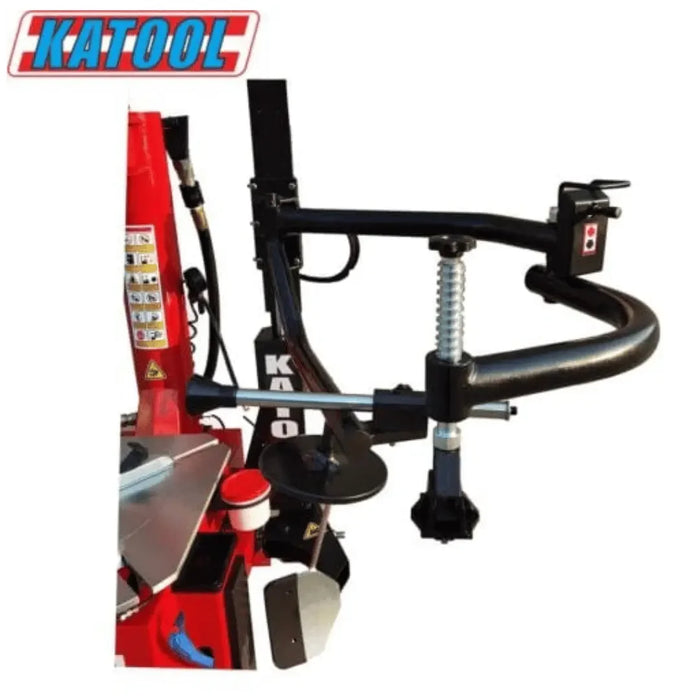

- Double side assist arm
- Bead blast seater head with post tank
- 186mm stainless bead breaker cylinder
- Closed body for protect inside parts

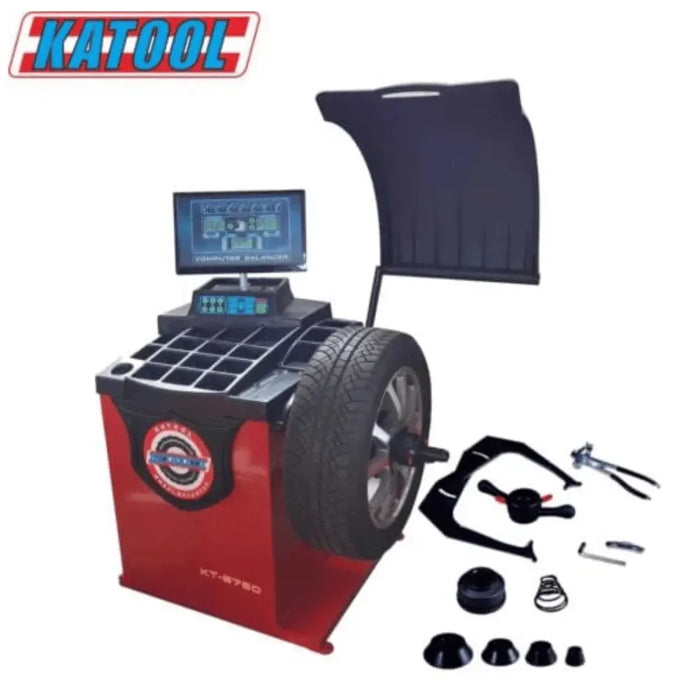

KT-B750 Wheel Balancer

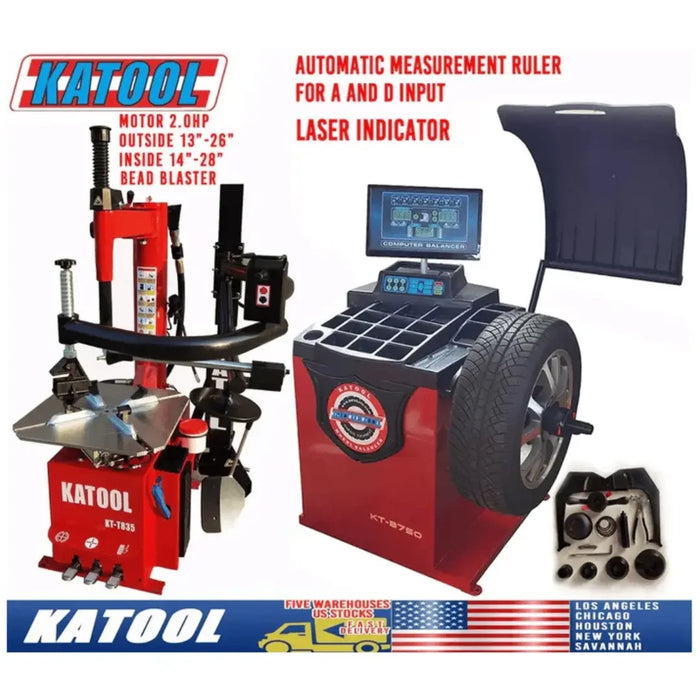

- Automatic measurement ruler for auto input A and D values
- The body use 3mm thickness steel, high strength, solid welding, few vibration
- All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision
- Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life

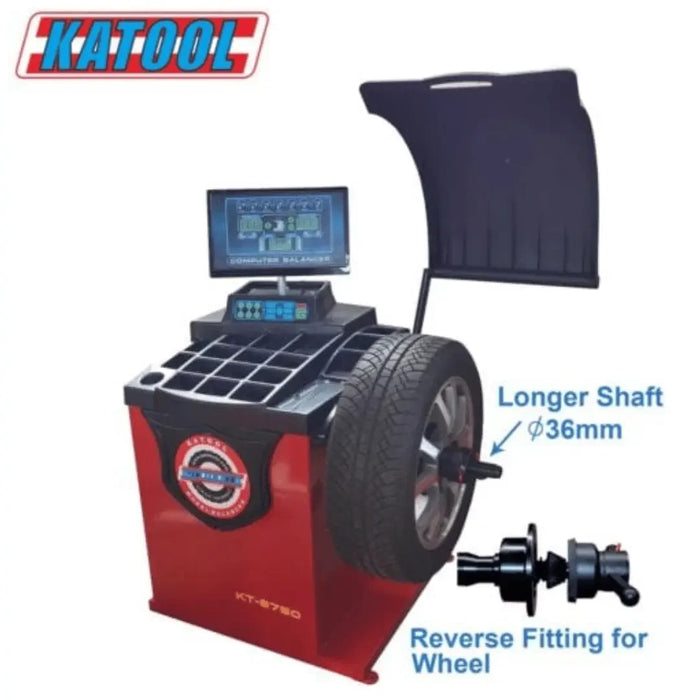

- The 36mm shaft thread is by quenching treatment, high strength
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life
- Various balance mode, according different rim for different balance mode, make the balance effect more precision
- Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy
- Unit selection(Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Wheel guard for optional
- Longer shaft for more width wheels
Product Specifications
KT-T835 Wheel Clamp Tire Changer Machine
| Max Wheel Diameter |
41"/1040mm |
| Max Wheel Width |
15"/350mm |
| Outside Clamp |
13"-26" |
| Inside Clamp |
14"-28" |
| Power Supply |
110V 1PH/60HZ |
| Motor Power |
2.0HP/1.5KW |
| Rotation Speed |
6.1/min |
| Air Pressure |
0.8-1.0Mpa(116-145psi) |
| Net weight |
582lbs |
KT-B750 Wheel Balancer
| Rim Diameter |
<30" |
| Wheel Width |
15" |
| Wheel Diameter |
<880mm |
| Balancing Speed |
180rpm |
| Power Supply |
120V 1PH |
| Motor Power |
0.25KW |
| Rim Center Hole Dia. |
<135mm |
| Wheel Weight |
<65KG |
| Balancing Accuracy |
1g |
| Measuring Time |
7S |
