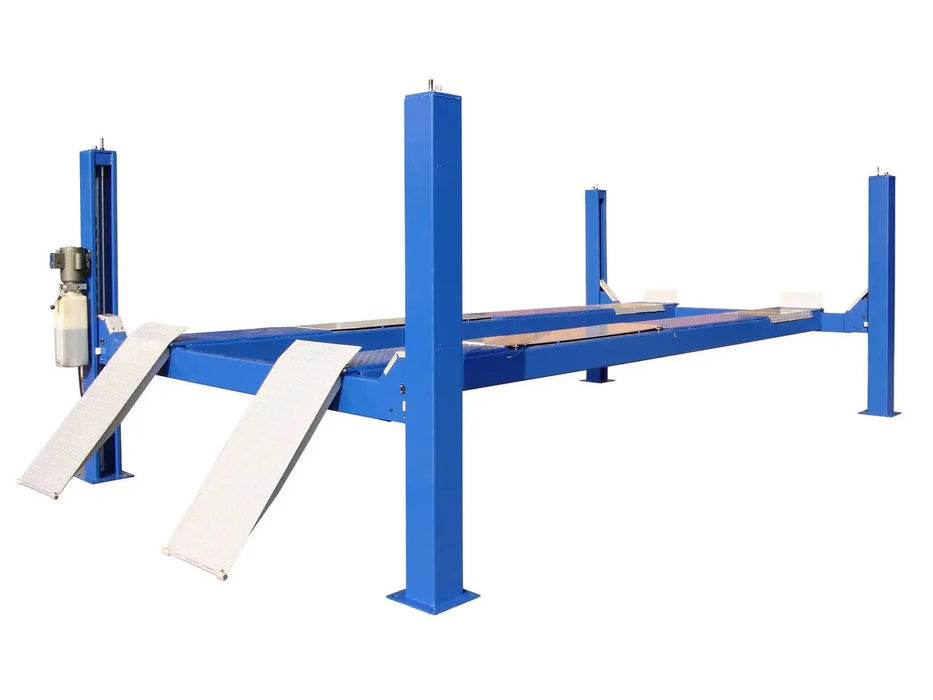

Tuxedo FP14KA-C 14,000 lb 4 Post Alignment Lift - Closed - Mechanic Super Store

Tuxedo FP14KA-C 14,000 lb 4 Post Alignment Lift - Closed

Part #:FP14KA-C
Brand: Tuxedo
$0.00 - $0.00
$0.00
$8,565.00
$8,565.00 - $8,565.00
$8,565.00
Call/Text Us: 866-774-7743 Call Us

Description

-

FP14KA-C 14,000 lb. capacity Four post Cable driven Alignment lift

Product Features

  • 14,000 lb. lifting capacity
  • Cable driven
  • Single point pneumatic safety release mechanism
  • 20” wide non-skid, diamond plate runways
  • Powder-coated paint finish
  • C-channel construction
  • Hydraulic Operation for minimum maintenance
  • Three turntable positions for a wide range of vehicles
  • Optional turntables are available
  • Rear slip plates mounted on ring roller bearings
  • Fully adjustable lock stops for easy leveling

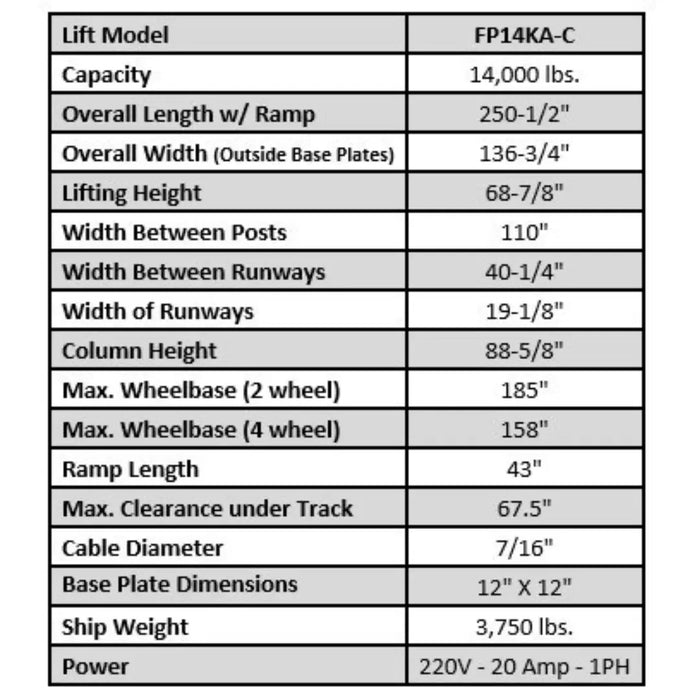

Product Specifications

Lift Model FP14KA-C
Capacity 14,000 lbs
Overall Length w/Ramp 250-1/2″
Overall Width (Outside Base Plates) 136-3/4″
Lifting Height 68-7/8″
Width Between Posts 110″
Length of Runways 20″
Width Between Runways 31-1/4″
Column Height 88-5/8″
Max. Wheel Base (2 wheel) 185″
Max. Wheel Base (4 wheel) 158″
Ramp Length 43″
Max. Clearance under Track 67.5″
Cable Diameter 7/16″
Base Plate Dimensions 12″ x 12″
Ship Weight 3,780 lbs
Power 220V – 20 Amp – 1PH

Pick Up and Delivery

Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743



Specifications

-
Drive thru between carriage Width Between Posts 110″
Lifting capacity 14000 lbs
Lifting height top of runway 6 ft
Lifting height top of pad 68-7/8″
Max rise under runway 4.85 ft
Modal FP14KA-C
Outside edge of runways 0
Overall length 17 ft
Overall width 11.25 ft
Overall length Overall Length w/Ramp 250-1/2″
Overall weight 3,780 lbs
Overall width 136-3/4″
Runway length 0
Width between columns 9.85 ft
