Tuxedo FP14K 14,000 lb 4 Post Lift - Chain Driven - Mechanic Super Store

Tuxedo FP14K 14,000 lb 4 Post Lift - Chain Driven

Part #:FP14K
Brand: Tuxedo
$0.00 - $0.00
$0.00
$6,864.00
$6,864.00 - $6,864.00
$6,864.00
Call/Text Us: 866-774-7743 Call Us

Description

-

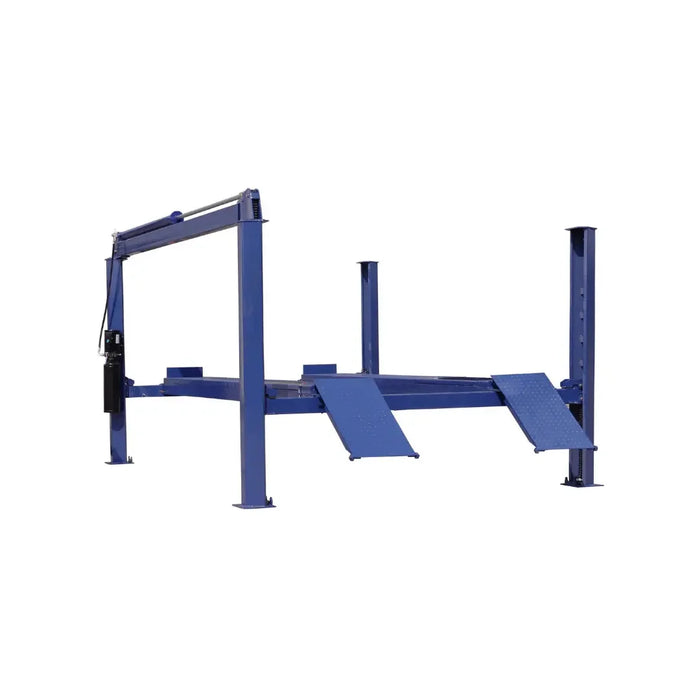

Tuxedo FP14K 14,000 lb 4 Post Lift - Chain Driven

Elevate your workshop with the Tuxedo FP14K 14,000 lb chain-driven 4 post car lift, engineered for heavy trucks, fleet vehicles, and demanding garage environments. This 4 post vehicle lift delivers rugged power with its chain-driven mechanism and a massive 14,000 lb capacity, ensuring reliable performance under daily use.

Built with heavy-gauge C-channel construction, the 4 post auto lift features non-skid diamond-plate runways and a durable powder-coat finish for maximum durability and safety. Designed to streamline shop operations, this lift includes a single-point pneumatic safety lock release to simplify operation and enhance technician safety.

With a drive-through design that offers 60" of under-track clearance and generous dimensions—237″ overall length with ramp, 123″ width between base plates, and 65.25″ lift height—this lift provides ample workspace for jacks, tools, and technician mobility. It supports wheelbases up to 192″, making it ideal for longer vehicles such as trucks and vans.

Powered by a 220 V, 20 A single-phase circuit, the FP14K keeps maintenance low with its hydraulic-assisted operation and rugged chain-driven design, making it a long-lasting solution for any professional shop or serious automotive enthusiast.

Product Features

  • 14,000 lbs Capacity
  • Chain Driven
  • 192” max wheelbase
  • Single Point Pneumatic Lock Release
  • Powder Coat Finish

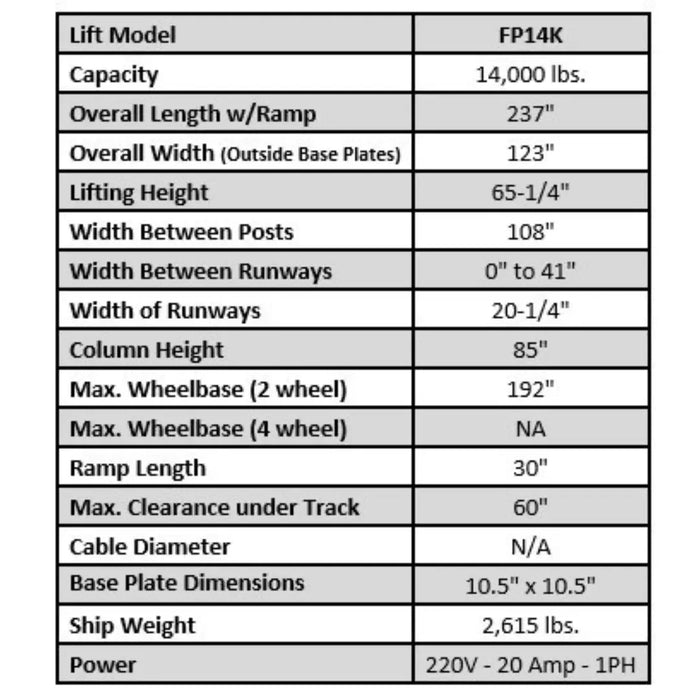

Product Specifications

Lift Model FP14K
Capacity 14,000 lbs
Overall Length w/Ramp 237″
Overall Width (Outside Base Plates) 123″
Lifting Height 65-1/4″
Width Between Posts 108″
Length of Runways 0" to 41"
Width of Runways 20-1/4"
Column Height 85″
Max. Wheel Base (2 wheel) 192″
Ramp Length 30″
Max. Clearance under Track 60″
Base Plate Dimensions 10.5″ x 10.5″
Ship Weight 2,615 lbs
Power 220V – 20 Amp – 1PH

Pick Up and Delivery

Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.

Call, text, or chat with us if you have questions. 866-774-7743




Specifications

-
Drive thru width 5 ft
Drive thru between carriage 60"
Inside columns 108"
Lifting capacity 14000 lbs
Lifting height top of runway 5.5 ft
Lifting height top of pad 65-1/4″
Lifting height top of runway 65"
Max rise under runway 5 ft
Max rise under runway 65"
Modal FP14K
Outside edge of runways 5 ft
Overall length 19.75 ft
Overall width 10.25 ft
Overall heights 85"
Overall length 237"
Overall weight 2,615 lbs
Overall width 123"
Runway length 3.5 ft
Runway length 41"
Width between columns 9 ft
