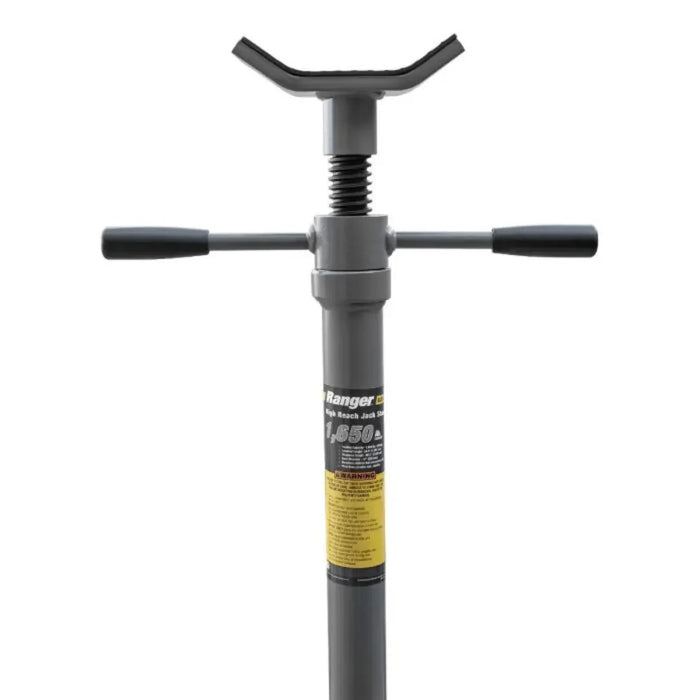

Ranger RJS-1T High Stand: Support Between 54.5" and 80.5"
Most jack stands are floor tools. This one is not. The RJS-1T starts at 54.5" (1,382 mm) fully collapsed and extends to 80.5" (2,045 mm) — meaning its lowest setting is above the point where an ordinary jack stand runs out of column. It exists for a specific and slightly nerve-racking moment: a vehicle that is already in the air, on a lift, about to have something heavy removed from it.
That is when a vehicle's balance changes. Pull an engine and a transmission out of a car sitting on a two-post lift and the centre of mass moves rearward, sometimes a long way. Take a body off a frame, a cab off a chassis, a bed off a pickup, and the same thing happens more dramatically. A high stand goes under a designated support point and takes the load that the lift arms were never asked to hold in that new configuration.
Confirm the capacity rating before you order
Published ratings for this stand differ, so both are on this page.
| Ranger spec table for the RJS-1T |
Holding capacity 1,650 lbs. (748 kg) |
| Model name and the descriptive copy supplied with it |
1 ton, described as "up to 2,000 lbs" |
Those are different numbers, not two ways of writing one number. If your job sits anywhere near either limit, confirm the rating with us in writing before you order — we will get the current figure straight from Ranger. And whichever it turns out to be, treat a stand rating the way a professional does: as a ceiling that must not be approached, on a stand used in a set with the load shared, not as a target to design a job around.
Why height changes the physics
A tall stand is not simply a short stand with more column. Every inch of extension increases the leverage that any sideways nudge — a wrench pull, a knee, a body panel swinging — exerts against the base. That is why the base specification matters more here than on a low stand: this one lands on a 12" (305 mm) base, and the load path from the support point at 80.5" down through the column into that base is only as good as the floor under it.
So the siting rules are not boilerplate on a stand this tall. Flat floor. Level floor. Concrete in sound condition, capable of carrying the load without spalling under a concentrated footprint. Extend the column no further than the job actually needs, since a partly extended column is inherently more stable than the same column at full stretch. Set it against the vehicle's own designated support points — the ones in the manufacturer's service information — never a floor pan, a plastic sill trim or a suspension arm that is about to be unbolted. And use stands in matched sets so the load is shared rather than concentrated at one column.
It is designed to be moved
The other half of the design brief is that a tall stand which lives in a corner because it is a nuisance to move never gets used. At 30 lbs. (13 kg) shipping weight one person carries this one, and it ships in a slim 52" x 13" x 3" (1,333 mm x 330 mm x 76 mm) carton — a shape that tells you something useful about storage. It stands against a wall or slides behind a tool cabinet rather than eating bay floor. That matters in a shop where the same square footage is fought over by a parts washer, a welder and somebody's project car.
Perfect for
-
Two-post lift bays, where the extra support goes in under a vehicle that is already up.
-
Restoration work — body-off, cab-off and frame jobs, where the load configuration changes completely part way through.
-
Powertrain removal in a general repair shop: engine out, transmission out, differential out.
-
Serious home garages with a lift installed and full-size vehicles going onto it.
What is in the box
The product data describes a single stand — the title is singular and the 30 lbs. (13 kg) shipping weight is a one-stand figure — and it lists no accessories, pads or adapters. We are not going to imply a pair. If you need stands in a set, which for most of the jobs above you will, tell us how many and we will confirm stock before you order.
Specifications
| Holding capacity |
1,650 lbs. (748 kg) per the spec table; see the note above regarding the 1 ton / 2,000 lbs figure |
| Lowered height |
54.5" (1,382 mm) |
| Maximum height |
80.5" (2,045 mm) |
| Base diameter |
12" (305 mm) |
| Shipping weight |
30 lbs. (13 kg) |
| Shipping dimensions |
52" x 13" x 3" (1,333 mm x 330 mm x 76 mm) |
Certification, stated plainly
Our data for this stand claims no independent safety listing, and we are not going to write one onto the page. The difference is worth understanding rather than assuming: a listing from an independent North American test house is granted after that test house has examined the equipment, and it is a separate thing from a manufacturer's own statement about its own product. Some insurance policies, some fleet standards and some local rules ask for the former specifically. If yours might, find out what the wording actually requires before purchase — ask us and we will help you match the requirement to the right equipment.
Shipping and delivery
We deliver across the contiguous United States, the lower 48. Your shipping method and price are calculated live at checkout for your address rather than estimated here. Should the stand come by freight rather than parcel, examine the carton before signing anything and note damage on the bill of lading with the driver present; a signed clean bill of lading closes off most claims. Residential delivery is a distinct service from a commercial dock and carries a residential fee where applicable, and warehouse collection is available at the locations listed further down the page.
Warranty
The applicable coverage is Ranger's published warranty document for its product line. We hold that document rather than a summary of its terms, so no period is quoted here — request the current copy from us before ordering if it affects your decision. Regardless of what it says: never modify a jack stand. Do not drill it, do not weld an extension or a wider foot onto it, and do not disassemble it before a claim is inspected. Each of those turns a tested load-bearing structure into an untested one, and it ends the coverage at the same time.
