Bludee AC800 Premium Recovery Recycle Recharge Machine for R134A Re...
Product Description

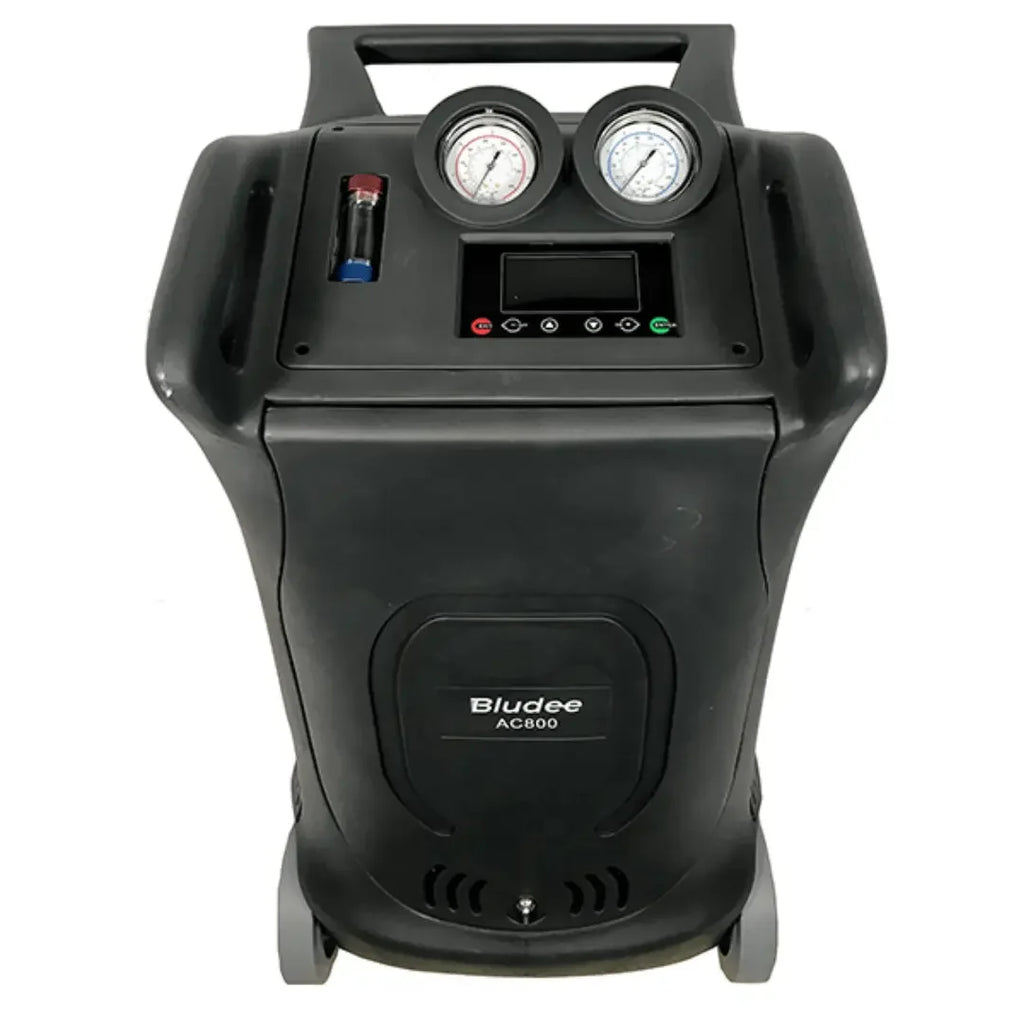

Bludee AC800 Premium Recovery Recycle Recharge Machine for R134A Refrigerant
The model AC800 is featuring an industry leading 99% recovery efficiency for standard and hybrid vehicles and fully automatic function.
The AC800 machine recover, recycle, evacuate, leak-test and recharge R-134a with improved 99% efficiency. It has automatic refrigerant refill and oil drain/inject – putting A/C lubricant back into the system. AC400 also builtin thermal printer and oil capacities database is available for all passenger vehicles.
Product Features
- Automatic recovery/recycling/recharge, walk away and return when complete
- Automatic discharging used oil/oil drain.
- Automatic vacuum helps get to the necessary vacuum level in any condition quickly
- Automatic new oil injection shows how much oil was removed from the system during service
- Automatic internal tank refill. No stopping to fill the internal tank during service
- Automatic air purge removes the potential of air accumulating in the internal tank
- Comprehensive A/C capacity database
- Support Auto Mode: One step to do automatic recovery, recycling, vacuum and recharge
- Tank filling with manual or pre-set value options
- Onboard electronic scales
- Built in thermal printer
- Tank installed internally
- Vacuum leak test to identify gross leaks in a system
- Flashing feature
- Separate POE and PAG oil injection, good for service both electric/hybrid car and regular car
Product Functions
Main functions
- Recovers and purifies refrigerant from automotive A/C system and it is then stored in to the machine internal storage cylinder for re-use.
- Removes air, debris and moisture from the vehicle A/C system, with electronic vacuum leak detection test as optional function.
- Electronically injects the preset or selected amount of oil and/or dye into the vehicle A/C system.. UV dye injection is optional.
- Electronically charges the selected amount of refrigerant in to the vehicle A/C system
- Transfers liquid refrigerant from an external cylinder to the machine internal storage cylinder.
- With this unique flushing system, the machine will extract all compressor oil from the automotive A/C system. Since A/C additives (such as UV dye, leak stopper and cooling booster) and contaminants (moisture, metal and rubber particles etc.) are mainly mixed or dissolved in compressor oil, the flush is very important not only for A/C routine maintenance, but also necessary when an A/C part is replaced.
- The machine will perform all the selected functions in a fully automatic sequence. The machine will stop automatically once all the selected functions or functions have been completed.
System Settings
- Selecting language.
- Calibrate refrigerant cylinder load cell, oil vessels load cells, pressure transducer and temperature sensor.
- The machine stores a large number of vehicle makes and models, with manufacturers’ recommended refrigerant and oil charge quantities.
- Selecting metric or imperial units of measurement. All sensor values displayed in this interface for equipment diagnosis purpose.
- Set empty refrigerant cylinder or refrigeration oil zero (tare) weight.
Product Specifications
| Model | AC800 |
| Input power | AC110V±10％~60Hz |
| Compressor | 3/8 HP |
| Average gas state refrigerant recovery speed | 0.55LBS/min |
| Recovery rate | 95% |
| Vacuum pump capacity | 60L(16GAL) /min |
| Individualized filter-drier capacity | 600ml |
| Accuracy of gas cylinder load cell | ±10g |
| Accuracy of oil bottle load cell | ±3g |
| Gas cylinder capacity | 10KG (22LBS) |
| New oil bottle capacity | 250ml |
| Used oil bottle capacity | 400ml |
| Max. Pressure | 20bar |
| Charge speed | 2Kg/Min(max.) |
| LCD display | 4.3-inch, TFT full color |
| High pressure gauge range | -1bar~40bar |
| Low pressure gauge range | Low pressure gauge range |
| Dimension | Package in crate 720*670*1190mm (29”x26”x47”); Unpacked machine 630*560*1075mm (24”x22”x46”) |
