BendPak 1302BAS 3-Button Control - Automatic Pipe Bender With Metri...
Product Description
BendPak 1302BAS 3-Button Control - Automatic Pipe Bender With Metric Tooling Package - 208-460V / 50Hz / 3 Phase
The BendPak 1302BAS series is comprised of powerful automatic exhaust pipes benders designed to expedite the bending process. A convenient, space-saving, side-loading swager, dual-function, end-finishing unit for extremely precise OE expansions and flares.
Quick-change bending dies
With simple, twistable locks and quick-change bending dies, you’ll be cycling through bending projects faster than any of your competitors. Let them try to play catch-up with their cheap imitation pipe benders while you run ahead with the best. You’ll be glad you went with the world leader in pipe bending.

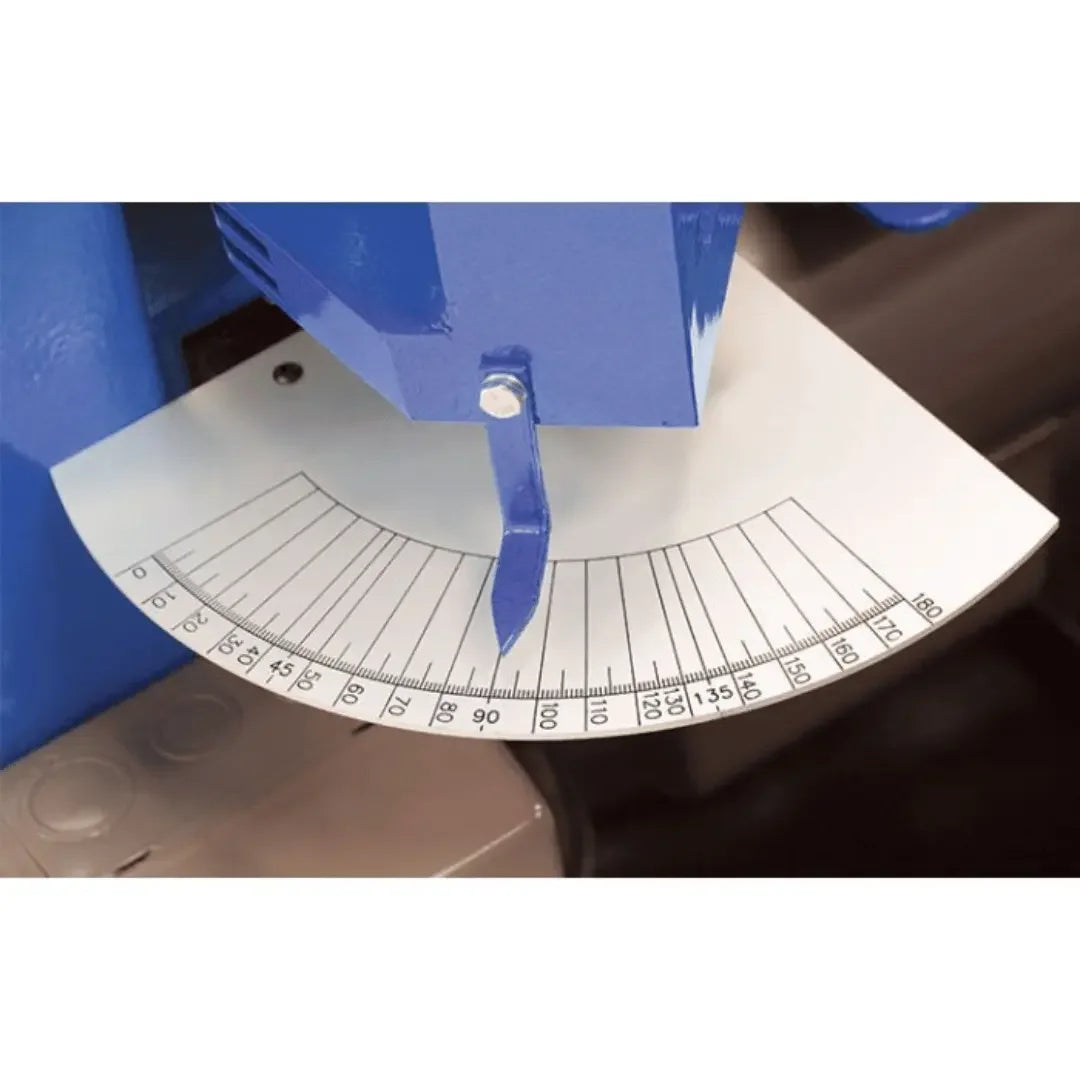

180° bending capacity
The number one request our pipe bender customers have is simply to get the deepest bend possible. We figure a U-shape is pretty darn good. If you need to bend more than 170°, ask about our 180° dies. Our pipe benders perfectly bend on a 5” radius, never permitting pipe sticking or hang-ups. Our unique relief cut design keeps a uniform bend throughout the entire bend cycle and prevents excessive crimping or deformation from costing you money and wasting your precious time.
Product Features
- 2 separate end-finishing units at rear for all necessary flaring and expanding
- 3-button control for automatic or manual bending operations
- Comes complete with quick release bending and finishing dies
- Includes high-speed clampless swager and internal expander
- Easy-to-use drop-in collar makes swaging operations quick and efficient
- Twist-lock tooling

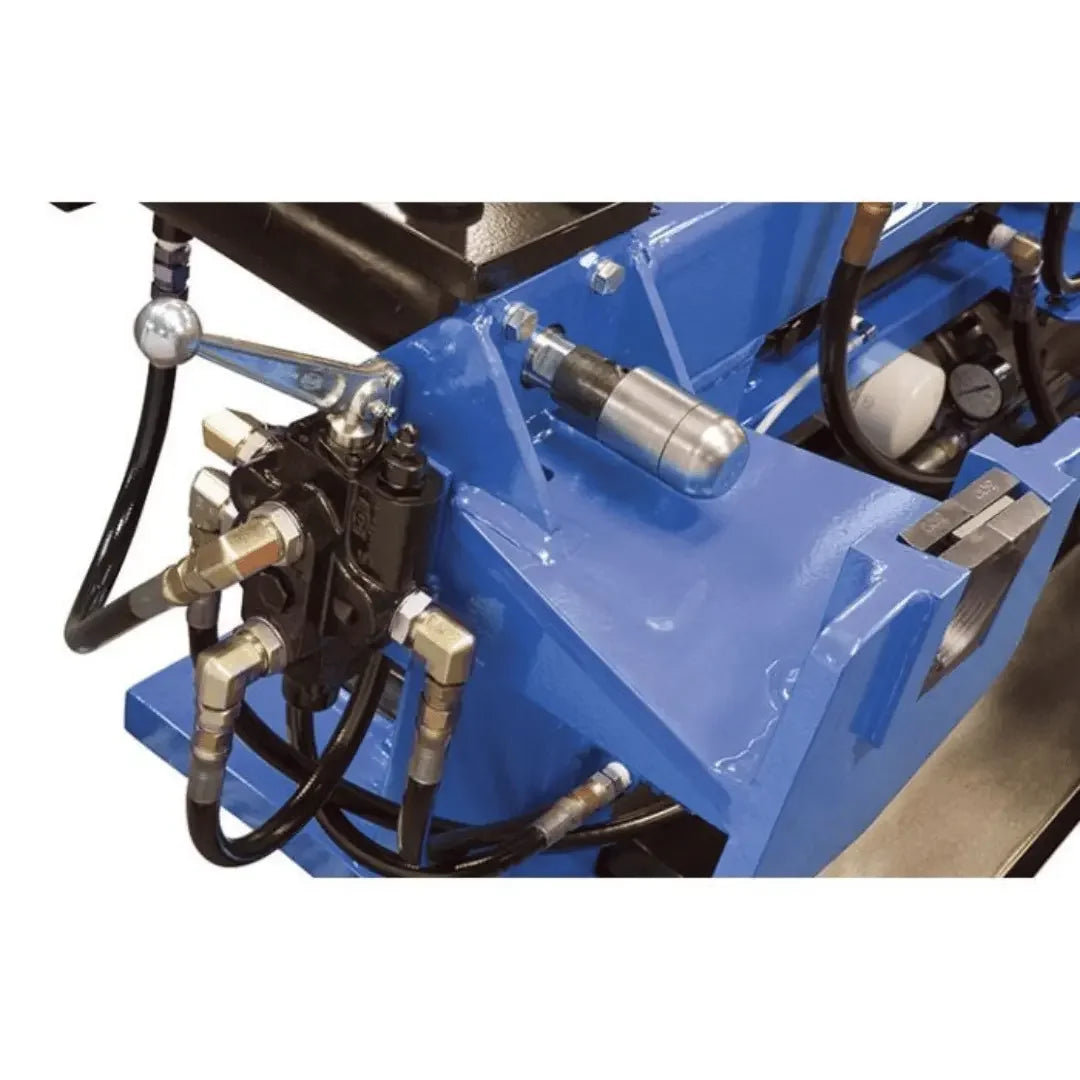

- Integrated power-relief control valve
- Pass-through cylinder stem passes completely through the primary frame
- Rigid 6" x 6" x 3/8" welded-steel tube frame
- Commercial-grade hydraulic cylinders
- All cylinders feature chrome-molly shafts, conforming to ANSI 92.2 standards
- Quick-release bending dies for reduced set-up times
- Bending heads precision grounded to within .002"
- Enclosed controls keep your bending area clutter-free
- 2.5" oversized barrel shafts for maximum dependability and minimum maintenance
- Standard grease fittings allow for simple lubrication
- NEMA rated on / off switch box incorporates overload relays that automatically disrupt power supply should an unforeseen over-current situation occur
- Pressure gauges let you know exactly what the system pressures are at all times
- Industrial grade casters help you easily move the bender around your shop
- Remote foot operated controls for added long-distance control
- Adjustable pressure valve located right up front
- One piece barrel ensures that the bending gates stay perfectly aligned with the ram
- Heat-treated tooling for greater service life
- Convenient tool trays keep your tooling organized
- Strong, 5 HP energy efficient motor delivers maximum performance
- Direct-drive, high-speed, 4 gpm pump
- Single enclosed bottom cylinder applies pressure evenly to the back gates and, because it is hidden, does not interfere with the tubing
- Large capacity fluid reservoir keeps the hydraulic oil running cooler and prevents contamination
- Canister oil filter in the hydraulic system keeps the oil nice and clean
- Oil sight-gauges allow you to visually inspect oil levels
Product Specifications
Overview
| Bending Controls | Semi-Automatic / 3-Button |
| Expander Controls | Manual |
| Frame Style | Double-Ended Expander |
| Max. Tube Capacity | 3" (76 mm) .095 wall |
Bending
| Max. Bending Radius | 5" (127 mm) |
| Min. Bending Radius | 3.3" (89 mm) |
Hydraulics
| Top Cylinder Force | 60,000 lbs. (27,216 kg) |
| Hydraulic Filter | Canister |
| Motor | 5 HP / 208-460 VAC / 50 Hz / 3 PH |
Die Pack
| Standard | 1.5", 1.75", 1.625", 2", 2.25", 2.5" (302) |
Dimensions
| Width | 41" (1,041 mm) |
| Depth | 64" (1,626 mm) |
| Depth | 26" (660 mm) |
Shipping
| Weight | 1,362 lbs. |
| Dimensions | 70" x 32" x 47" (1,778 mm x 812 mm x 1,206 mm) |
