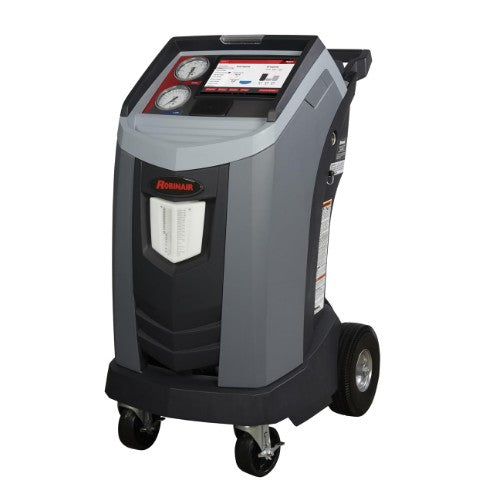

-Robinair ROBAC1234-9 RRR Machine for R-1234yf A/C Systems
Product Details
The Robinair ROBAC1234-9 is a professional-grade refrigerant recovery, recycling, and recharge (RRR) machine engineered for servicing automotive A/C systems using R-1234yf refrigerant. Designed for modern vehicles, including hybrids, this unit delivers high-efficiency performance, advanced automation, and integrated contamination protection to ensure accurate and reliable service.
Built with a user-friendly touchscreen interface and Android-based operating system, the ROBAC1234-9 simplifies navigation while offering powerful features like automatic refrigerant management, oil draining with measurement tracking, and leak detection. Wireless connectivity via Wi-Fi and Bluetooth enables seamless software updates, wireless printing, and integration with compatible accessories—making it a future-ready solution for today’s automotive service environments.
Key Features

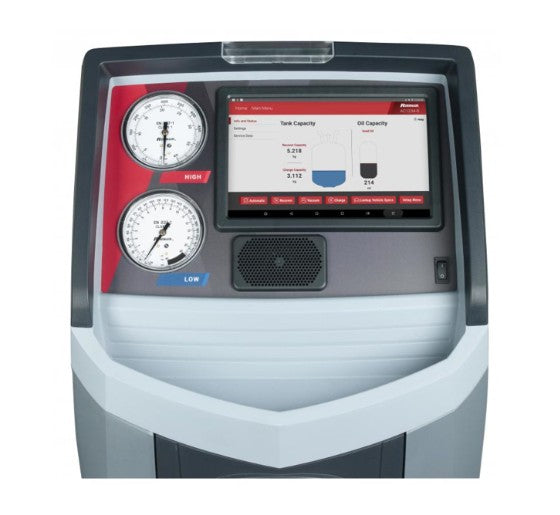

- 10-Inch Touchscreen Display – Large capacitive LCD with Android-based controls for intuitive operation and streamlined workflow
- High Recovery Efficiency – Achieves up to 98.5% refrigerant recovery, maximizing performance and minimizing waste
- Fully Automated Operation – Handles internal refrigerant refills, oil drain measurement, and leak testing with minimal user intervention
- Wi-Fi & Bluetooth Connectivity – Supports wireless updates, remote printing (Google Cloud Print, Mopria), and accessory integration
- Built-In Refrigerant Identifier – Verifies refrigerant purity before recovery to prevent contamination and protect equipment
- Designed for Modern Vehicles – Optimized for R-1234yf systems used in newer and hybrid automotive applications
Technical Specifications
- Refrigerant Type: R-1234yf
- Recovery Performance: Greater than 95% at 70–75°F in under 30 minutes
- Charge Accuracy: ±0.5 oz (±15 g)
- Vacuum Pump: 1.5 CFM dual-stage
- Internal Cylinder: 30 lb DOT tank with 21 lb usable capacity
- Certifications: SAE J2843, SAE J2927, UL 1963
Specifications
-| Modal | ROB34788NI |
|---|
