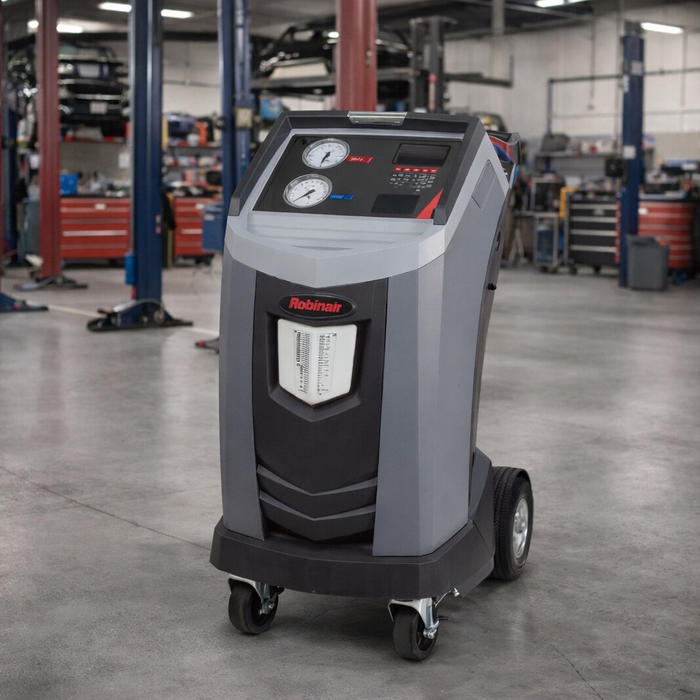

Robinair AC1234-4 Recover, Recycle, Recharge Machine
Product Details
The Robinair AC1234-4 is a fully automatic refrigerant recovery, recycling, and recharge (RRR) machine designed for professional automotive A/C service using R-1234yf refrigerant. Built to meet SAE J2927 and SAE J2843 standards, it delivers high performance with up to 98.5% recovery efficiency and charge accuracy within ±0.5 oz.
Engineered for both standard and high-voltage hybrid or electric vehicle systems, this unit simplifies service with programmable, hands-free operation. Technicians can initiate a full service cycle—including recovery, vacuum, leak testing, and recharge—and return once the process is complete. Features like an integrated refrigerant identifier, automatic internal tank refill, and oil drain measurement help improve accuracy, protect equipment, and reduce downtime.
Key Features
-
Fully Automatic Operation – Program complete A/C service cycles or run individual functions independently for flexible workflow
-
High Recovery Efficiency – Achieves up to 98.5% refrigerant recovery with precise ±0.5 oz charge accuracy
-
Integrated Refrigerant Identifier – Samples refrigerant purity before recovery to prevent contamination and meet SAE J2927 standards
-
Hybrid & EV Compatible – Designed to service both standard and high-voltage A/C systems, including hybrid and electric vehicles
-
Automatic Oil Drain & Measurement – Displays the amount of oil removed for accurate replacement and system diagnostics
-
Automatic Tank Refill & Air Purge – Maintains proper refrigerant levels and removes non-condensable gases without manual intervention
-
Liquid Refrigerant Flushing – Cleans A/C systems and components using refrigerant instead of chemicals
-
Programmable Vacuum Operation – Adjusts evacuation based on system conditions for efficient performance
-
Clear Display & Gauges – 4.3-inch graphical LCD and large gauges provide easy monitoring and operation
-
Manual Oil Injection Compatibility – Supports PAG and POE oil injection tools (Robinair 18465 and 18470)
Technical Specifications
- Refrigerant Type: R-1234yf
- Recovery Efficiency: Up to 98.5%
- Charge Accuracy: ±0.5 oz
- Internal Cylinder: 30 lb DOT tank (21 lb usable capacity)
- Oil Bottle Capacity: 355 ml (12 oz)
- Display: 4.3-inch graphical LCD
- Gauges: Ø 100 mm (3.9 in.)
- Certifications: SAE J2927, SAE J2843
