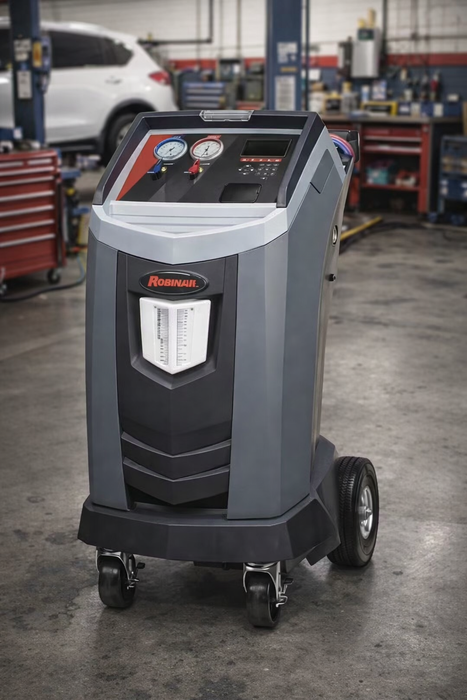

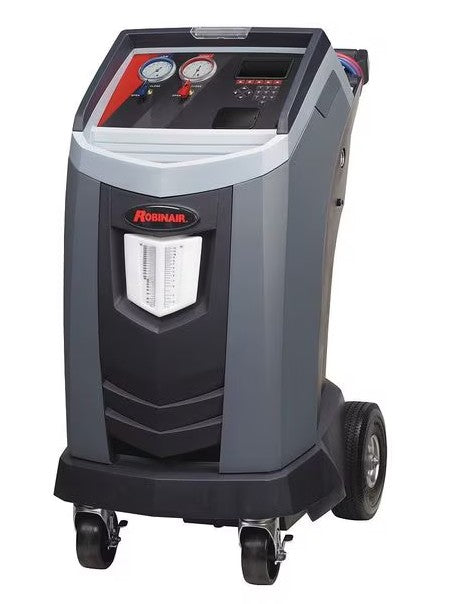

Robinair 34288NI R-134a Refrigerant Recovery Recycling and Recharge Machine
Product Details
The Robinair 34288NI is a professional refrigerant recovery, recycling, and recharge (RRR) machine designed for servicing automotive A/C systems using R-134a refrigerant. Built for reliability and efficiency, this unit utilizes a single-pass recycling system that filters refrigerant before storage, meeting industry standards for clean refrigerant reuse.
Engineered for professional shops, the 34288NI features automated recovery, oil drainage, and programmable vacuum operation to simplify service procedures and improve workflow. The system removes moisture and contaminants while providing accurate recharging control through multiple charge path options. With a user-friendly 4.3-inch color display, integrated gauges, and durable components, this machine delivers consistent performance for everyday A/C service.
Key Features
-
Single-Pass Recycling System – Filters refrigerant once before storage to meet industry standards for reuse
-
Automatic Recovery & Oil Drain – Performs deep recovery, timed vacuum cycles, and automatically drains oil for accurate measurement and replacement
-
Programmable Vacuum Operation – 1.5 CFM vacuum pump with adjustable evacuation time up to 99 minutes
-
Manual Recharge Control – Select high-side, low-side, or both-side charging paths for flexible service
-
Automatic Function Mode – Runs full recovery, vacuum, and recharge cycles with a single command
-
Internal Storage Vessel (ISV) – Refillable tank with 22 lb (10 kg) capacity
-
4.3-Inch Color Display & Keypad – Easy navigation and data entry with graphical interface
-
Integrated Manifold Gauges – High- and low-side gauges for real-time system monitoring
-
SAE-Compliant Service Hoses – Includes 9 ft hoses meeting SAE J2196 standards
-
Spin-On Filter System – Replaceable filter (Robinair 34724) with 150 lb refrigerant capacity
Technical Specifications
- Refrigerant Type: R-134a
- Vacuum Pump: 1.5 CFM
- Evacuation Time: Default 10 minutes, adjustable up to 99 minutes
- Internal Tank Capacity: 22 lb (10 kg)
- Hose Length: 9 ft (2.75 m)
- Filter Capacity: 150 lb (68 kg)
- Display: 4.3-inch graphical color LCD
