Product Description

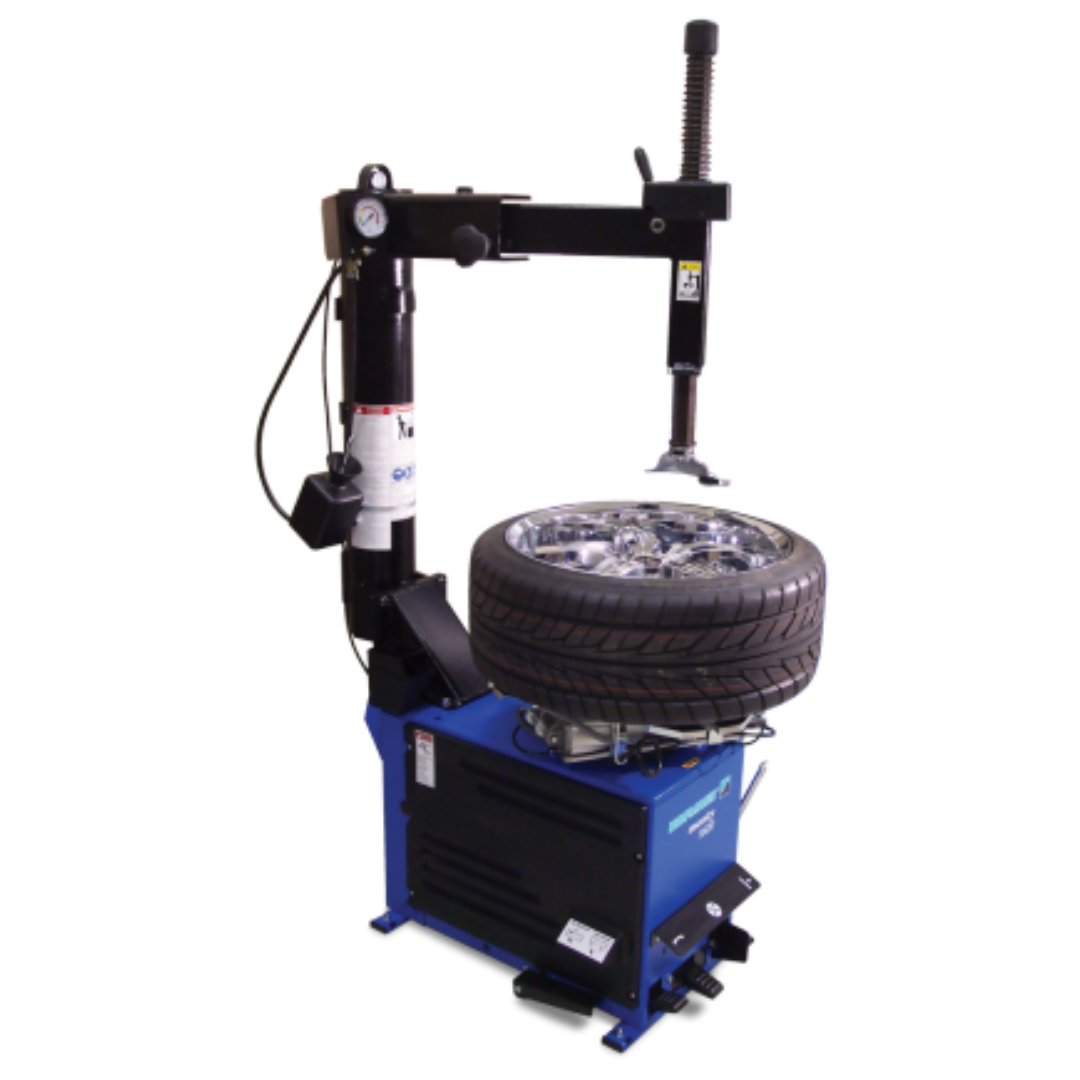

The monty® 1620 is designed for high-volume tire shops, multi-bay repair shops and car dealerships. The monty 1620 swing-arm tire changer features 21" outer-wheel clamping standard (26" with optional adapters), and accommodates tire diameters up to 50" and a wheel width of 15". It can also be upgraded by adding Hofmann’s patented EasyMont Pro, aiding in single-operator mounting/demounting of extra-stiff, low-profile, high-performance and run-flat tires.
Accommodates Large Wheel & Tire Assemblies
Allowing for a tire diameter of 50" and an outer-wheel diameter of 21", the monty 1620 can handle wheel and tire assemblies found on cars and light trucks
Dual Wheel Clamping Cylinders
Dual pneumatic clamping cylinders control all four clamping jaws, eliminating damage to wheels due to slippage
Four-Jaw Clamping Chuck
Self-centering and clamps wheels with either 24" inner or 21" outer diameter
Multi-Position Bead Breaker
6,000 lbs of power at the bead shovel and a range of up to 15 3/8" wide. The two-stage pneumatic cylinder provides precise power and can be toggled with the foot pedal as needed, making both the stiffest and the softest sidewalls a snap
Powerful Tire Inflation System
Powerful air blast operated by the foot pedal. Each moveable jaw is precisely set to the exact position under the wheel to seal the tire bead
Built To Last
Heavy, solid 1/2" thick steel clamping table. Rugged steel-reinforced chassis. Rust-proof sir cylinders and valves. Compressed air lubricator and regulator on-board
Upgradeable
EasyMont Pro features a three-piece design with a top roller, pressing foot and lifting disc. Each piece provides a specialized function that assists a single operator in mounting/demounting low-profile and high-performance tires
Optional Wheel Protectors
Protects even the most expensive alloy wheels and provides extra insurance with ultimate wheel protection so that even the most expensive wheels can be changed without an additional expense

Product Features
- Accommodates Large Wheel & Tire Assemblies
- Dual Wheel Clamping Cylinders
- Four-Jaw Clamping Chuck
- Multi-Position Bead Breaker
- Powerful Tire Inflation System
- Built To Last
- Upgradeable
- Optional Wheel Protectors

Product Specifications
Tower technology | Swing Arm |
Clamping System | Turntable & clamping jaws |
Clamping range | 10-24" (254-610mm) |
Outside clamping range | 10-21" (254-533mm) |
Inside clamping range | 12-24" (305-610mm) |
Easymont pro | Optional |
Capability | 70 Kg |
Power Supply | 115 VAC 1Ph 50/60 Hz |
Dimensions LxWxH | 72" x 68" x 85" (1,829 X 1,727 X 2,159 mm) |
Weight | 600 lbs. |

Pick Up and Delivery
All Hofmann machines come with free delivery, setup, and instruction.
