Atlas LR06 Portable Low Rise 6,000 lb Capacity Scissor Lift
Couldn't load pickup availability
Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.
I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.
Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.
Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.
Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.
Atlas LR06 Portable Low Rise 6,000 lb Capacity Scissor Lift
Product Description
Atlas LR06 Portable Low Rise 6,000 lb Capacity Scissor Lift

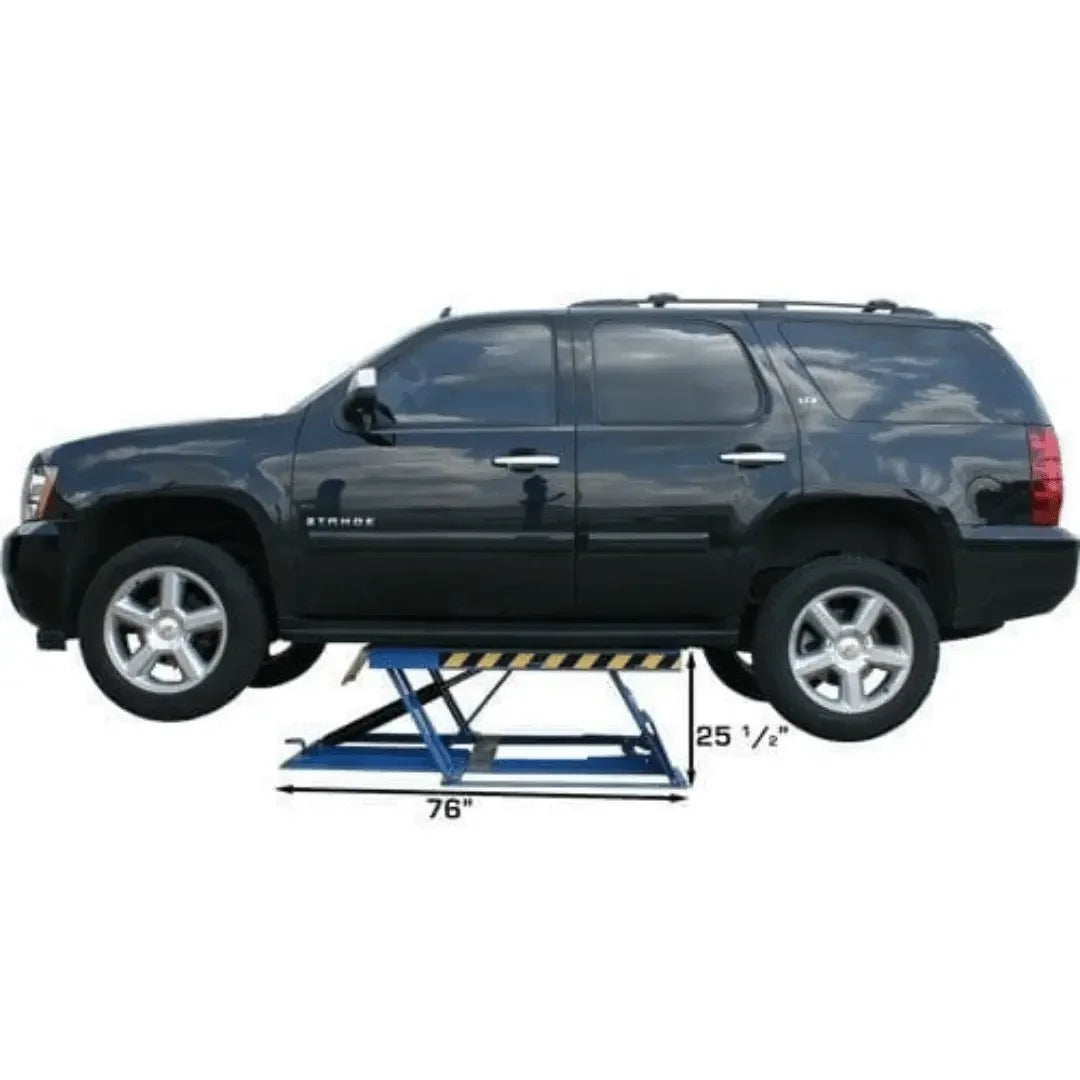

The Atlas® LR06 portable 6,000 lb. low rise lift is the perfect addition to any garage that needs a quick sure fire method to raise a car to perform wheel service or body work. The LR06 low rise lift comes with rubber pads on the lifting surface. Multiple lock positions and a unique self actuating lock bar allow the operator to perform wheel service at a comfortable working height.
Simply drive the car over the Atlas® LR06 and position the rubber blocks (if needed) under the correct lifting points of the vehicle. Press the button on the unit and lift the vehicle to the desired work height. Depress the “dump valve lever” on the power unit and the lift lowers slightly to the next lower mechanical lock position.
This durable lift is built on a heavy steel frame that provides rock solid support for a lifting base. The low provifile design accomodates most low frame vehicles. Due to the horizontal cylinder configuration it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle's lifting points.
The Atlas® LR06 can also be easily moved inside the garage or to an outside concrete apron in front of a bay. The standard wheel kit and the power unit stand work together to allow the operator to roll the LR06 portable low-rise lift across any concrete surface.
Product Features
- 6,000 lb. capacity
- Portable
- 4″ Low Profile Frame
- Multi-Position Manual Safety Locks
- 110volt Electric Operation
- Shipping Weight: 965 lbs.
- 2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
Product Specifications
| Model | LR06 |
| Capacity | 6,000 lbs. |
| Max Lifting Height | 24" (2') |
| Locking Position Heights | 12 1/4", 18 1/2", and 22 1/4" |
| Overall Pad Length | 53 1/4" (4' 5 1/4") |
| Overall Width | 70" (5' 10") |
| Overall Length | 79 3/4" (6' 7 3/4") |
| Lowered Height | 4" |
| Motor/Electrical Requirement | 110 volt |
| Oil Requirement | 1.5-2 Gallons AW32 or AW46 (NOT INCLUDED) |
| Shipping Weight | 965 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
Downloads
Brochure
Manual
