BendPak PL-12000DP 12,000 Capacity Parking Lift
Couldn't load pickup availability
Shipping-FAQ's
Shipping Info
At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.

I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.

Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.

Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.

Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.


Product Description

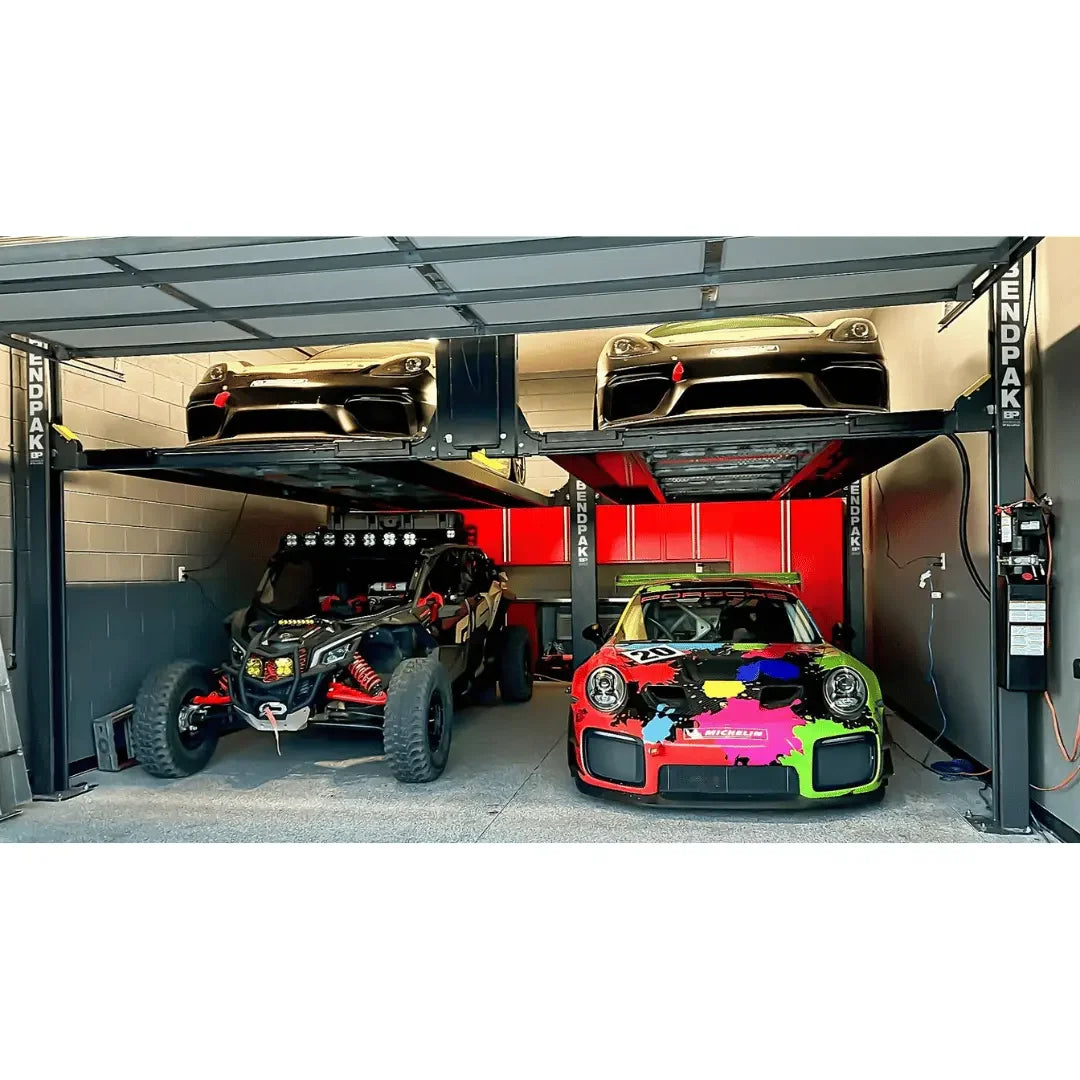

BendPak PL-12000DP 12,000 Capacity Parking Lift
12,000 Lb. Cap. Parking Lift / Tandem / Independent Platforms / SPECIAL ORDER
PL-12000DP/DPS
BendPak’s newest PL-12000DP and PL-12000DPS parking lifts are revolutionary vehicle storage solutions for those challenged with owning more cars and trucks than parking spaces to store them. They can greatly expand the number of cars in a facility without expanding building space. As the costs of commercial and residential development increase, gaining additional parking spaces in the same usable space provides instant value. These mechanical parking systems are designed to increase parking density and cut costs over traditional parking methods.
Two Independent Platforms
Because each platform operates independently, one vehicle can be lowered while the other side remains still. This eliminates the need to “shuffle” vehicles from the half of the lift where vehicles are not being accessed.
Still the Best
For over 50-years, our experience as the world’s premier parking lift manufacturer enables us to deliver optimal solutions for our clients, from the initial problem, design consultation, then ultimately through fabrication, installation, and support. We’re the leading turnkey provider for all your parking lift needs, whether for commercial garages, or residential applications.
The cutting-edge PL-12000 series lifts reflect our continuing commitment to design and deliver innovative vehicle storage solutions that offer only the highest value to our customers. The space-saving design means you can now stack one vehicle above another in the same space typically required for a single parking stall. With the strength to handle loads up to 6,000 lbs. and a footprint considerably smaller than other mechanical parking systems, they deliver more parking capability space per square inch than any other lift in its class.
Reliable and Safe
A dependable hydraulic drive system provides reliable power that requires very little service and maintenance over time. Tandem drive cylinders, combined with an intelligent hydraulic circuit, provide precise, equalized lifting of the platforms. Our promise to deliver a safe parking lift is the most important commitment we make in order to earn your trust and ensure lock systems and easy to understand operator controls, operators will be pleasantly surprised at how easy they are to safely operate.
Our commitment to quality is unsurpassed. Our dedication to taking your parking challenges to the next level extends well beyond the physical reach of our products. Our advanced yet simple design enables our lifts to perform effortlessly and tirelessly, year after year, with very little maintenance or service required. After all, we can’t expect you to be a parking lift expert – that’s our job. Featuring rugged, welded steel construction, very few moving parts, and a simple fluid power system, the hydro-mechanical PL-12000 series offers the most economical and dependable method of lifting to deliver you many years of trouble-free service.
Performance Guaranteed
We’re so sure that our lifts will out-perform all others; we’re backing that promise with a full five-year warranty. The best warranty is the business gives you more than just peace of mind; it’s proof that we took a little extra care building your lift and every precaution was taken to maintain the highest degree of quality, dependability, and reliability.

Product Features
- Dual hydraulic cylinders with heavy-duty galvanized lifting cables
- Multiple locks for multi-height parked settings
- Wide baseplates for maximum stability
- Dual electric-hydraulic power units
- Heavy-duty steel construction
- Front and rear wheel chocks
- 6,000 lb. capacity per side
- Built-in wheel stops
- High-speed lifting
- Tall rise, extended length model - PL-12000DP
- Perfect for cars, light trucks, motorcycles, and ATVs
- Superstructure features durable powder-coat finish
- Full-width platforms to keep bottom vehicles protected
- Lightweight, extended aluminum approach ramps can be easily stowed

Product Specifications
Model | PL-12000DP |
Style | Multi-Platform Parking Lift |
Number of Platforms | 2 |
Load Capacity per Platform | 6,000 lbs. / 2,722 kg |
Total Width | 221.25" / 5,620 mm |
Outside Length | 198" / 5,029 mm |
Total Length | 242.5” / 6,160 mm |
Total Height | 130.5” / 3,313 mm |
Min. Runway Height | 4.75” / 121 mm |
Maximum Rise | 82” / 2,082 mm |
Width Between Posts | 211” / 5,362 mm |
Width Between Short & Double Posts | 100.25” / 2,546 mm |
Width Between Platforms | 29” / 739 mm |
Width Between Runways | 35” or 41” / 887 or 1,045 mm |
Runway Length | 183” / 4,649 mm |
Runway Width | 19” / 482 mm |
Drive Thru Height | 80.5” / 2,047 mm |
Drive Thru Width | 85” / 2,161 mm |
Outside Edge of Runways | 76 or 82” / 1,930 or 2,083 mm |
Safety Lock Positions | 6 |
Power Unit / Motor | 220 VAC, 50/60 Hz, 1 Ph -*Other voltages, including 110V option are available upon request. All specifications subject to revision. |

Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions.

Downloads

Brochure

Manual
