BendPak HD-9STX 9,000 lb 4 Post Storage Lift
Product Description

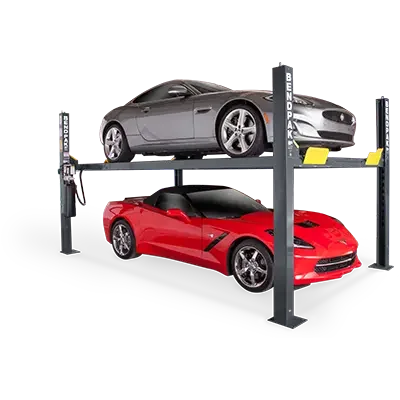

BendPak HD-9STX 9,000 lb 4 Post Storage Lift
9,000-lb. Capacity / Narrow Width / High Lift
The HD-9STX is our tall and narrow four-post lift that combines a small horizontal footprint with extended-height runways, so higher-clearance vehicles can be easily parked underneath.
More Height in Less Floor Space
The HD-9STX is your 9,000-lb. rugged lifting solution for when you need get something heavy and high, but you don't have a lot of space on the ground. Perfect for vehicle storage and service—in the shop or garages with high ceilings. Whether you're a service professional or a DIY'er, BendPak’s got the right lift for you. This model is available with optional casters, drip-trays, jack platform and more.
With more height to work with, this lift does something others do not: it fits trucks and SUVs in the lower level. This is essential for parking purposes, especially if your lower-level vehicle is too heavy for the runways. A high-rise lift also increases the comfort of techs working underneath. Pulling transmissions and draining oil is safer and easier on high-rise car lift. The HD-9STX eliminates stooping and awkward straining when accessing the vehicle underbody. When you’re uncomfortable, you’re more likely to make mistakes, and there’s nothing better than a car lift that lifts to the perfect height. The HD-9STX maximizes versatility in a car lift that adapts to your height and lifestyle. The narrow designs fits in the same floor space as the HD-9ST but requires a bit more ceiling height to fully enjoy.
Product Features
- 9,000-lb. maximum lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Freestanding design
- Narrow-width
- High-rise
- Perfect for parking, storage and service
- Runways accommodate narrow and standard vehicles
- Runways include rail-kit for optional accessories
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8" aircraft cable
- Rugged 1.25" roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Runways feature a durable matte finish
- Push-button pneumatic safety release
- Independent backup slack-cable safety latches
- Customizable power unit location
- Removable approach ramps for additional drive-under clearance
- Longer approach ramps for low-ground clearance vehicles
- Optional drive-thru ramps available
- Optional drip trays available
- Optional solid deck available to increase storage capacity
- Optional 4,500-lb. air / hydraulic rolling jacks available (Model RJ-45)
- ETL Approved
Product Specifications
Capacity
| Lifting Capacity: | 9,000 lbs. (4,082 kg) |
| Max. Capacity / Front Axle: | 4,500 lbs. (2,041 kg) |
| Max. Capacity / Rear Axle: | 4,500 lbs. (2,041 kg) |
Rise
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 82" (2,083 mm) |
| C - Max. Lifting Height | 86.5" (2,197 mm) |
| Lifting Time: | 50 Seconds |
Outside Dimensions
| D - Overall Width | 110.25" (2,800 mm) |
| E - Outside Length | 198" (5,029 mm) |
| F - Overall Length | 224" (5,690 mm) |
| G - Height of Columns | 100" (2,540 mm) |
Inside Dimensions
| H - Width Between Columns | 89.75" (2,280 mm) |
| I - Drive-Thru Clearance | 76.5" (1,943 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 188" (4,775 mm) |
| L - Width Between Runways | 37.5" (953 mm) |
| M - Runway Centerline | 56.5" (1,435 mm) |
| N - Outside Edge of Runways | 75.5" (1,918 mm) |
Minimum Wheelbase
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
Locking
| Locking Positions | 15 |
| Lock Spacing: | Every 4" (102 mm) |
Power Unit
| Motor | 220 VAC /60 Hz / 1Ph |
| Noise | 45 dB |
Shipping
| Dimensions (LxWxH): | 190" x 22" x 41" |
Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
