At Mechanic Superstore, our commitment is to provide you with the best customer service possible. For this reason, we offer you all kinds of delivery options so that you can choose the one that suits you best.
I Have The Equipment To Unload My Order
- Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.Aspects to keep in mind when choosing this option.
- The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
- Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
- You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
- Mechanic Superstore uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
- There will be a receiver charge of $135 if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.
- In case you do not have the necessary equipment to unload the equipment do not worry. Mechanics Superstore offers other delivery options.
Do you have a hitch trailer to transport your lift? If so, then this might be the best option.
Aspects to keep in mind when choosing this option.
1. Mechanics Superstore and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
2. Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer. Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.
Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.
You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.
Neither of the above delivery options suits you? Then we have the solution.
We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.
Aspects to keep in mind when choosing this option.
1. You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
2. We will quote th e installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation).
Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Mechanic Superstore, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.
BendPak HD-7PXW 7,000 lb. 4 Post Lift
Product Description

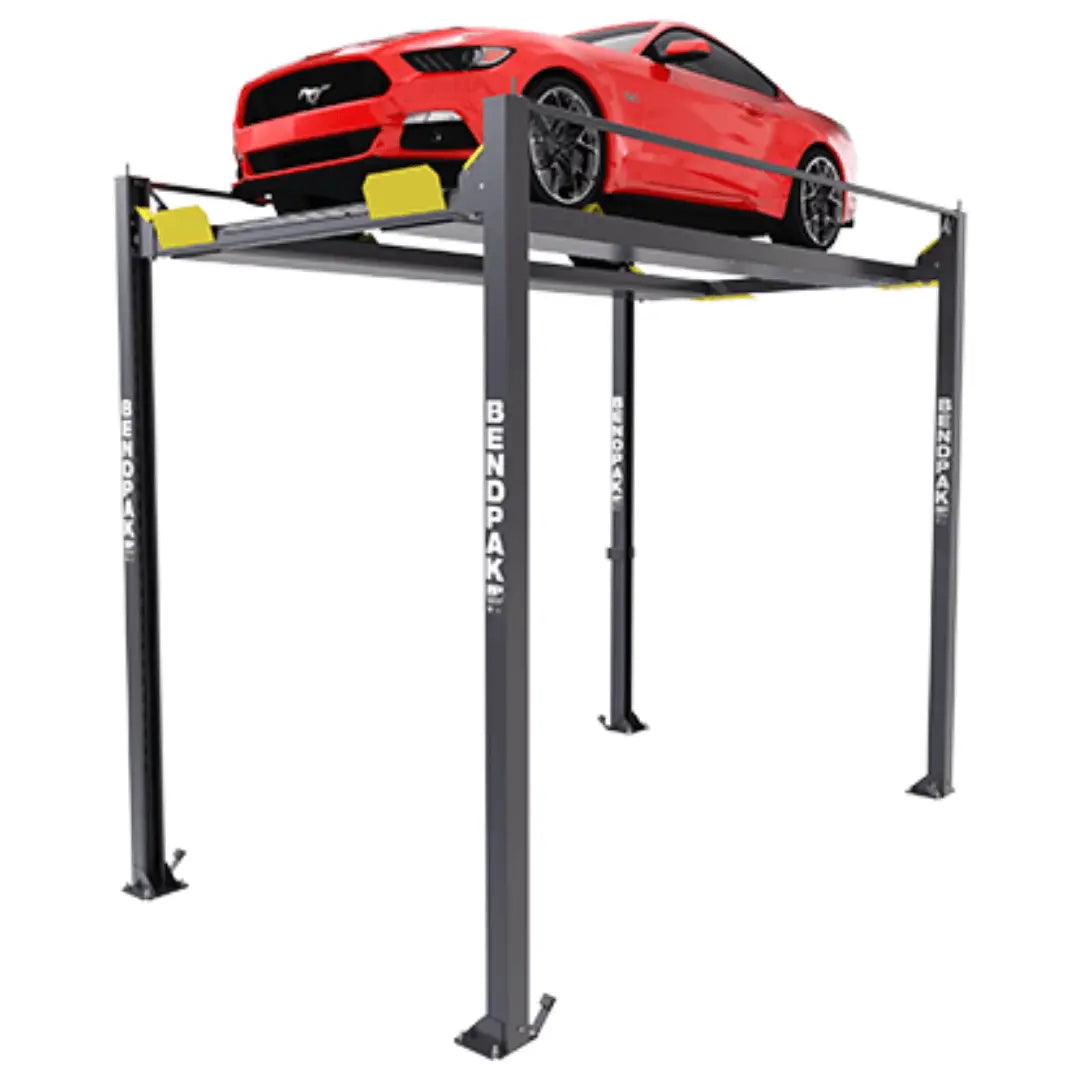

BendPak HD-7PXW 7,000 lb. 4 Post Lift
7,000-lb. Capacity / Super-Tall Four-Post Lift / Vehicle Display Platform

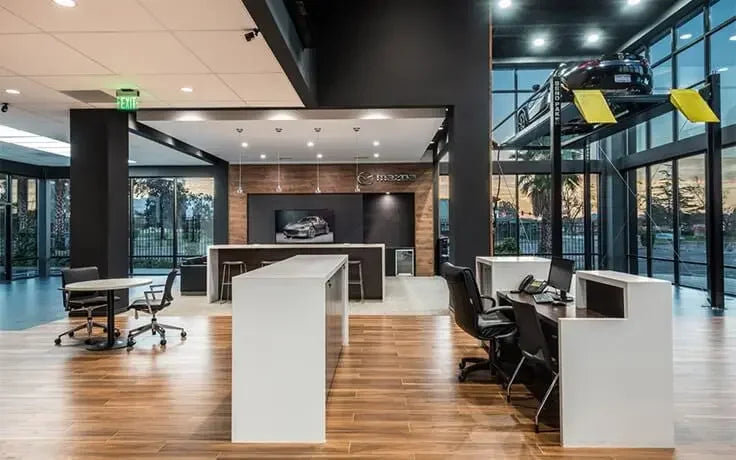

The HD-7PXW is a literal giant. This four-post lift is also a magnificent display platform and will effortlessly lift up to 7,000 lbs. over 12 feet into the air! Specially made for dealers, it's perfect for stacking taller vehicles and getting them seen!
Amazingly Tall Four-Post Lift
The HD-7PXW four-post lift has a 7,000-lb. lift capacity and 188” long runways to accommodate a variety of vehicle types and wheelbases.
Same great benefits as other lifts
The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift's lone hydraulic cylinder is neatly tucked under the power-side runway. There's simply no better-looking and higher-reaching car lift on the market than the HD-7PXW.
Product Features
- 7,000-lb. maximum lifting capacity
- Super tall rise delivers 12-feet of lifting height
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Product Specifications
Capacity
| Lifting Capacity: | 7,000 lbs. (3,175 kg) |
| Max. Capacity / Front Axle: | 3,500 lbs. (1,588 kg) |
| Max. Capacity / Rear Axle: | 3,500 lbs. (1,588 kg) |
Rise
| A - Min. Runway Height | 5" (127 mm) |
| B - Max. Rise | 140.25" (3,562 mm) |
| C - Max. Lifting Height | 145.25" (3,689 mm) |
| Lifting Time: | 60 Seconds |
Outside Dimensions
| D - Overall Width | 110.25" (2,800 mm) |
| E - Overall Length | 198" (5,029 mm) |
| F - Overall Length (includes ramps) | 213" (5,688 mm) |
| G - Height of Columns | 158" (4,013 mm) |
| Top Lock Height | 143.82" (3,653 mm) |
Inside Dimensions
| H - Width Between Columns | 100.25" (2,546 mm) |
| I - Drive-Thru Clearance | 86.5" (2,197 mm) |
Runways
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 182.25" (4,629 mm) |
| L - Width Between Runways | 35" (889 mm) or 41" (1,041 mm) |
| M - Runway Centerline | 57" (1,448 mm) or 63" (1,600 mm) |
| N - Outside Edge of Runways | 75.75" (1,924 mm) or 82" (2,083 mm) |
Minimum Wheelbase
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
Locking
| Locking Positions | 31 |
| Lock Spacing: | Every 4" (102 mm) |
Power Unit
| Motor | 208-230 VAC / 50-60 Hz / 1Ph |
| Noise | 45 dB |
Shipping
| Weight: | 2,254 lbs. (1022 kg) |
| Dimensions (LxWxH): | 192" x 22" x 31" (4,876 mm x 558 mm x 787 mm) |
Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions.
Downloads
Brochure
Manual
Warranty
