iDEAL UF-2500EH-X-BLK Electric / Hydraulic UTV Frame Lift
Product Description
Ideal UF-2500EH-X-BLK Electric / Hydraulic UTV Frame Lift

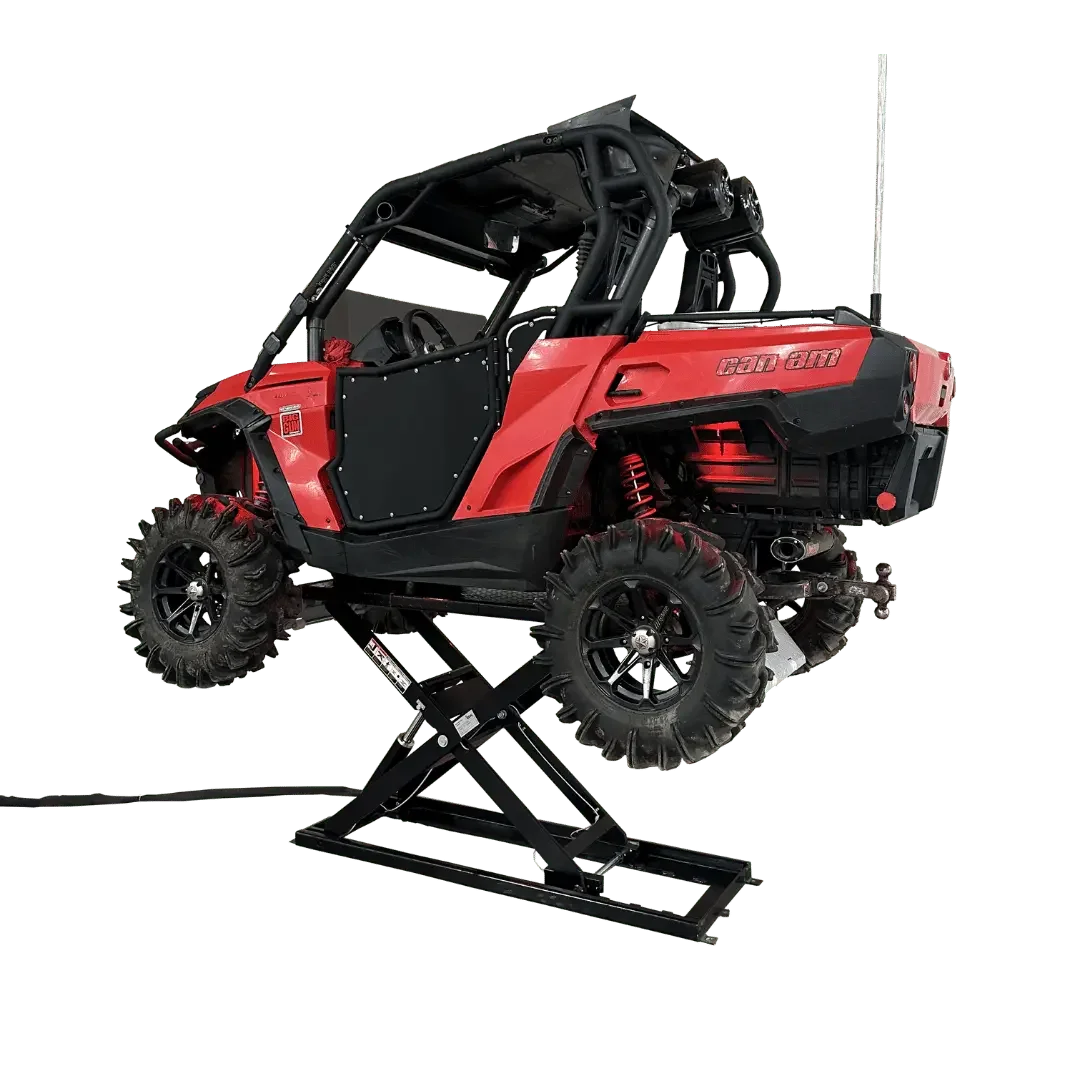

Introducing the Ideal UF-2500EH-X-BLK Electric/Hydraulic UTV Frame Lift—a versatile and powerful lifting solution designed to accommodate everything from the largest UTVs to the smallest ATVs. This state-of-the-art frame lift is engineered for maximum efficiency and space-saving operation, making it an essential tool for any professional or enthusiast working with a variety of off-road vehicles.
High Capacity and Optimal Performance
With a robust 2,500 lbs. capacity, the UF-2500EH-X-BLK is built to handle heavy-duty tasks with ease. Whether you're lifting a large UTV or a smaller ATV, this lift offers the strength and reliability needed to get the job done safely and efficiently. The lift platform measures 24″W x 88.9″L, providing ample space for a wide range of vehicle sizes, while the 43″ rise height (up to 49″ with rubber lift pads) ensures easy access to the undercarriage for maintenance and repairs.
Compact Design with Maximum Workspace
The ‘wheels free’ design of the UF-2500EH-X-BLK provides a small lift footprint, giving you additional workspace around the vehicle. This makes it ideal for workshops with limited space, allowing you to maximize your working area without sacrificing lifting capacity or stability.
Smooth and Rapid Operation
Powered by a 110V Electric/Hydraulic lift system, this frame lift offers smooth and rapid lifting and lowering operations. With a lifting time of just 25 seconds and a lowering time to match, you can quickly and efficiently position vehicles at the desired height, making your work faster and more productive.

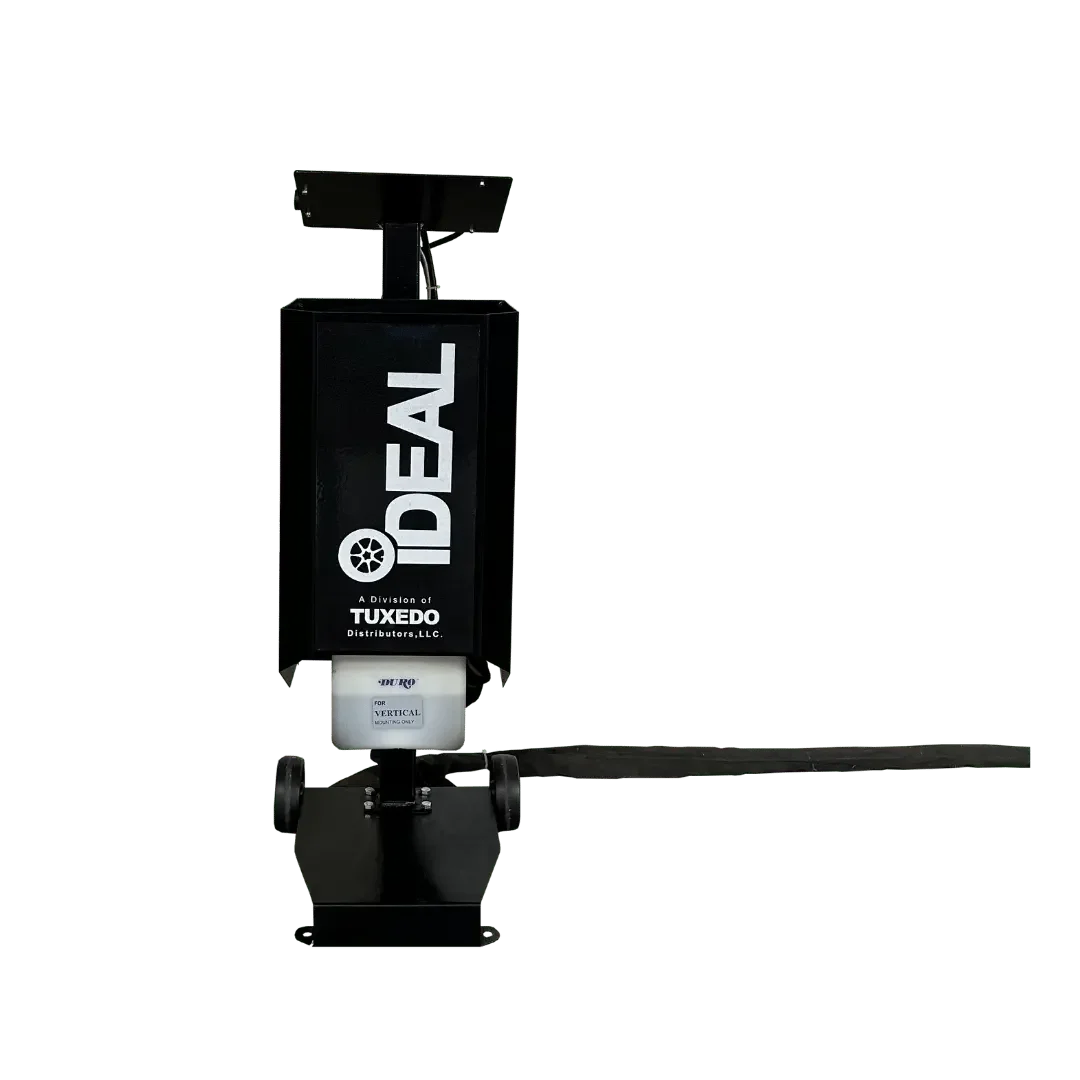

Fully Featured Control Panel
The UF-2500EH-X-BLK comes with a fully operational control panel featuring an electro-magnetic lock release. This user-friendly panel allows you to easily control the lift, ensuring precise and safe operation at all times. The lift also offers three locking positions at heights of 28", 36.5", and the maximum height, providing flexibility for various tasks.
Durable Construction and Stability

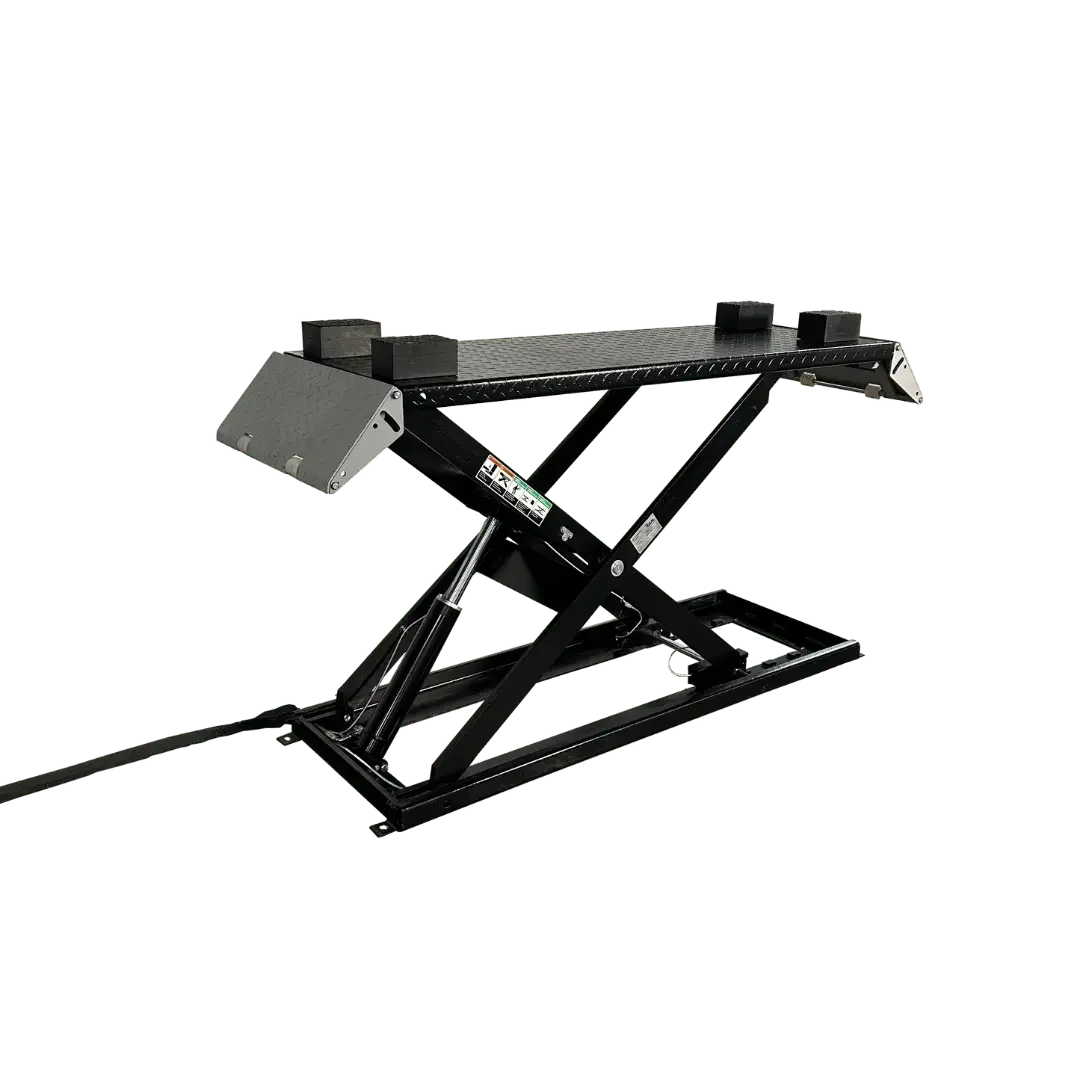

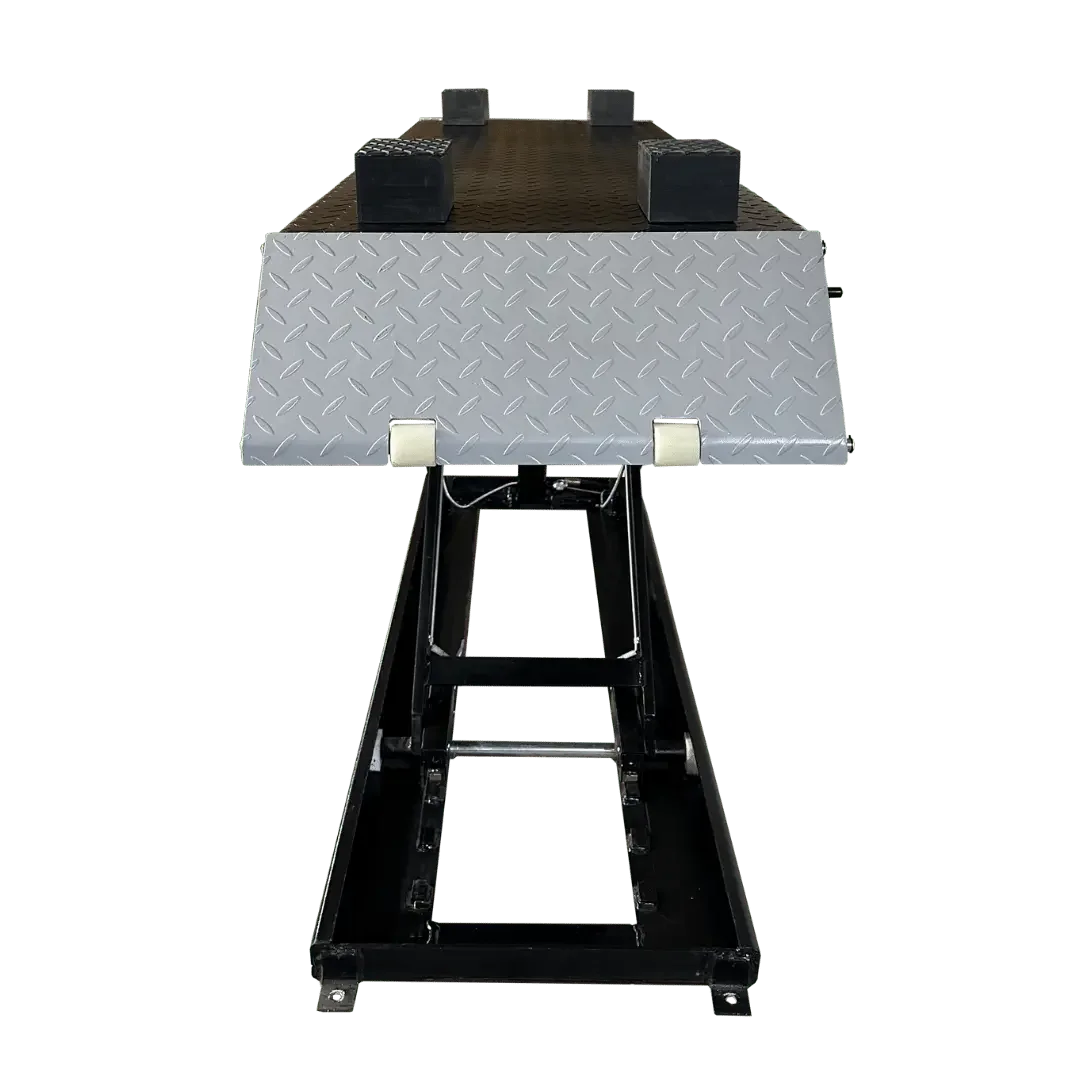

Constructed with a heavy-duty diamond plate platform and load-bearing hinged platform extensions, the UF-2500EH-X-BLK is designed for long-lasting durability and stability. The rubber contact lift pads (4.75” x 6.5” each) ensure secure lifting without damaging the vehicle's frame, while the portable or mounted pedestal stand provides convenience and flexibility in your workspace setup.
Additional Features and Options
The lift includes a power unit cover with a storage bin for added convenience, keeping your tools and accessories close at hand. For those looking to expand the lift’s capabilities, optional wheel stand kits are available, offering even greater versatility.
The Ideal UF-2500EH-X-BLK Electric/Hydraulic UTV Frame Lift is the perfect choice for those who need a reliable, space-efficient, and high-capacity lifting solution. Whether you're a professional mechanic or a dedicated off-road enthusiast, this lift provides the strength, durability, and convenience needed to tackle any job with confidence.
Product Features
- Frame Lift with exclusive ‘wheels free’ design for the largest UTVs to smallest ATVs.
- Provides SMALL LIFT FOOTPRINT for ADDITIONAL WORKSPACE
- 2,500 lbs capacity
- 43″ RISE HEIGHT (49” w/ rubber lift pads)
- 24″W X 88.9″L PLATFORM SIZE
- 4.75” MIN. HEIGHT
- Smooth & rapid 110V Electric / Hydraulic lift operation
- Fully operational control panel W/ ELECTRO-MAGNETIC LOCK RELEASE
- Three locking positions
- Heavy-Duty Diamond Plate Platform & extension Construction
- LOAD BEARING ‘HINGED’ PLATFORM EXTENSIONS
- PORTABLE OR MOUNTED PEDESTAL stand
- Power unit cover w/ storage bin
- RUBBER CONTACT LIFT PADS – 4.75” X 6.5” (4EA)
- Options: WHLSTDKIT-UF2500EH-X
Specifications
| Product Model | UF-2500EH-X-BLK |
|---|---|
| Capacity | 2,500 lbs. (1,134 kg) |
| Min. Height | 4.75" (121 mm) |
| Max Lifting Heights | 43" to 49.25” w/ Adaptor |
| Locking Heights | 28” - 36.5” |
| Overall Length w/ Ramps | 67" to 89" |
| Overall Width | 24.8" |
| Platform Size (L x W) | 67” x 24" |
| Pedestal Control Stand Size (L x W x H) | 15” x 11” x 39” |
| Pedestal / Platform Max Distance | 96” |
| Lifting Time | 25 Seconds |
| Lowering Time | 25 Seconds |
| Power | 110V, 60Hz, 1 PH-18A |
| Ship Weight | 740 lbs. |
