Amgo AX-16A 16,000 Lb Alignment Scissor Lift

Name: Amgo AX-16A 16,000 Lb Alignment Scissor Lift
Brand: AMGO Hydraulics
Price: 16800.0 USD
Availability: InStock

Part #:AX-16A

Brand: AMGO Hydraulics

$0.00 - $0.00

$0.00

$16,800.00

$16,800.00 - $16,800.00

$16,800.00

Call/Text Us: 866-774-7743 Call Us

Description

-

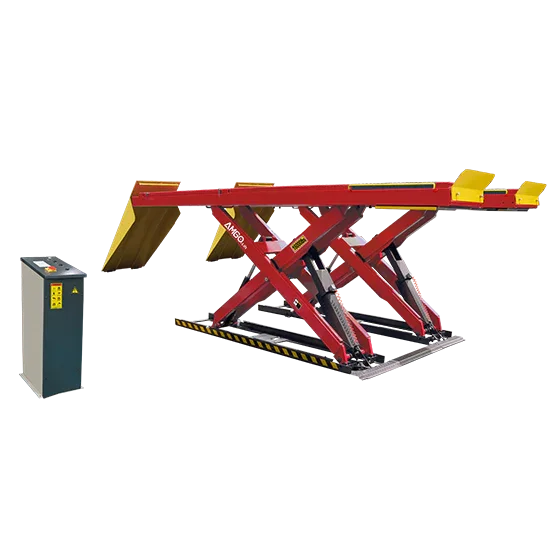

Amgo AX-16A 16,000 Lb Alignment Scissor Lift

Introducing the robust and efficient AX-16A Alignment Lift, an essential tool for any professional automotive workshop. With a formidable lifting capacity of 16,000 lbs (7,300 kg), this lift is specifically designed to handle heavy-duty vehicles, making it perfect for alignment services in busy commercial settings.

The AX-16A offers a substantial maximum lifting height of 73 5/8 inches (1870 mm), providing ample space for a variety of undercarriage work. It reaches this height in just 110 seconds, thanks to its powerful 2.0HP motor operating at 220V/60Hz, ensuring quick and efficient lifting operations. Its minimum height stands at 13 inches (330 mm), allowing for easy placement and removal of vehicles.

Designed with precision in mind, the lift features an impressive runway length of 213 3/4 inches (5428 mm) and an overall width of 94 1/8 inches (2390 mm), accommodating a wide range of vehicle sizes. The width between the runways is 44 7/8 inches (1140 mm), making it versatile for different vehicle types.

The AX-16A is also equipped for detailed alignment tasks with specifications that support both two-wheel and four-wheel alignments. The minimum four-wheel alignment length is 98 inches (2490 mm), and it can extend up to 184 1/2 inches (4680 mm) for maximum four-wheel alignment, with a generous 190 1/2 inches (4840 mm) for two-wheel alignment.

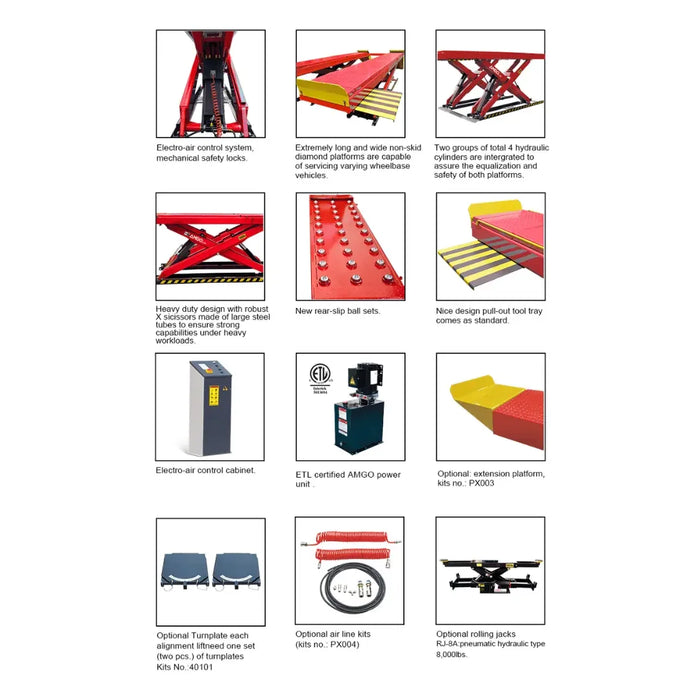

Product Features

2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
Electro-air control system, which operates the self-lock safety mechanism
Heavy-duty design, the X serial scissors lift uses a 5 7/8″ x 3″ tube to make it stronger and assures the runways remain level during operation
Skid proof diamond platform

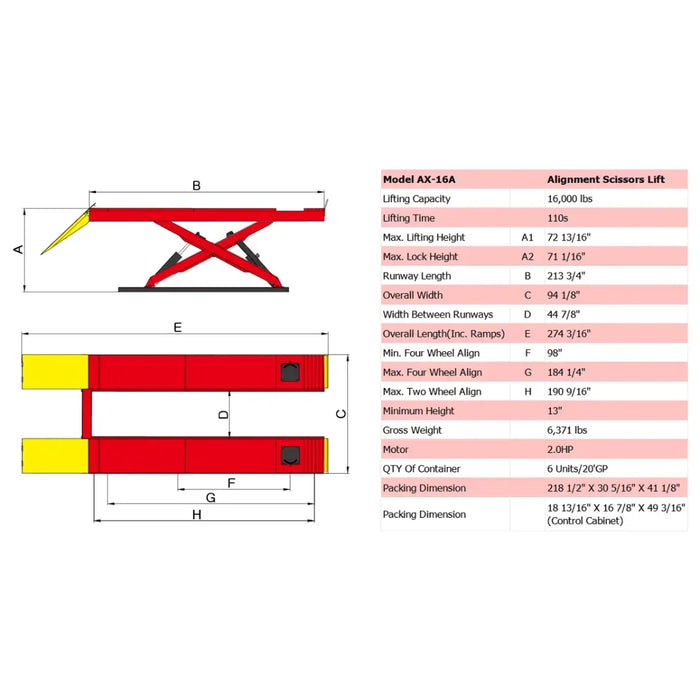

Product Specifications

Model	AX-16A
Lifting Capacity	16,000 lbs
Lifting Time	110 seconds
A1: Max. Lifting Height	72 13/16″
A2: Max. Lock Height	71 1/16″
B: Runway Length	213 3/4″
C: Overall Width	94 1/8″
D: Width Between Runways	44 7/8″
E: Overall Length (Inc.Ramps)	274 3/16″
F: Min. Four Wheel Align	98″
G: Max. Four Wheel Align	184 1/4″
H: Max. Two Wheel Align	190 9/16″
Minimum Height	13″
Motor	2.0HP
Gross Weight	6,371 lbs
QTY of Container	6 Units/20'GP

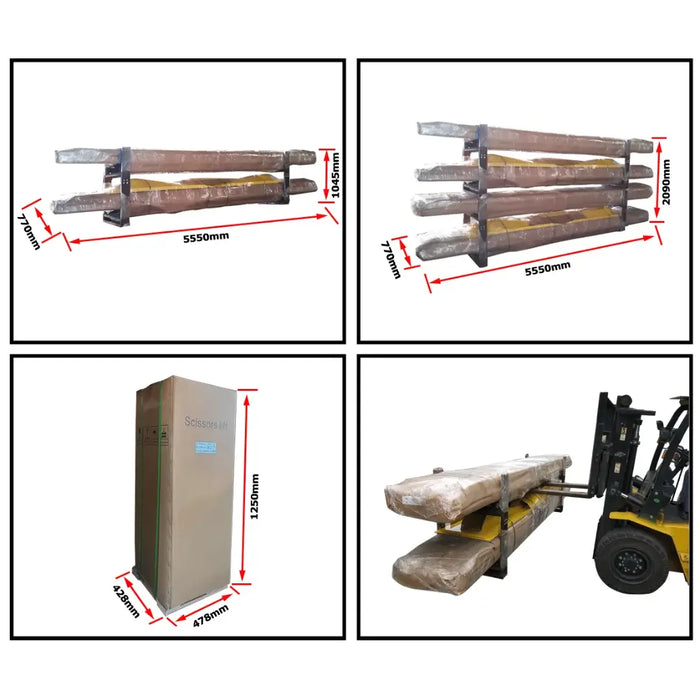

Packing Dimension	218 1/2″ X 30 5/16″ X 41 1/8″
Packing Dimension	18 13/16″ X 16 7/8″ X 49 3/16″ (Control Cabinet)

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.

Call, text, or chat with us if you have questions. 866-774-7743

Downloads

Brochure

Manual

Specifications

-

Lifting capacity	16000 lbs
Lifting height top of runway	6 ft
Max rise under runway	5 ft
Overall length	23 ft
Overall width	8 ft
Runway length	17.75 ft
