Description

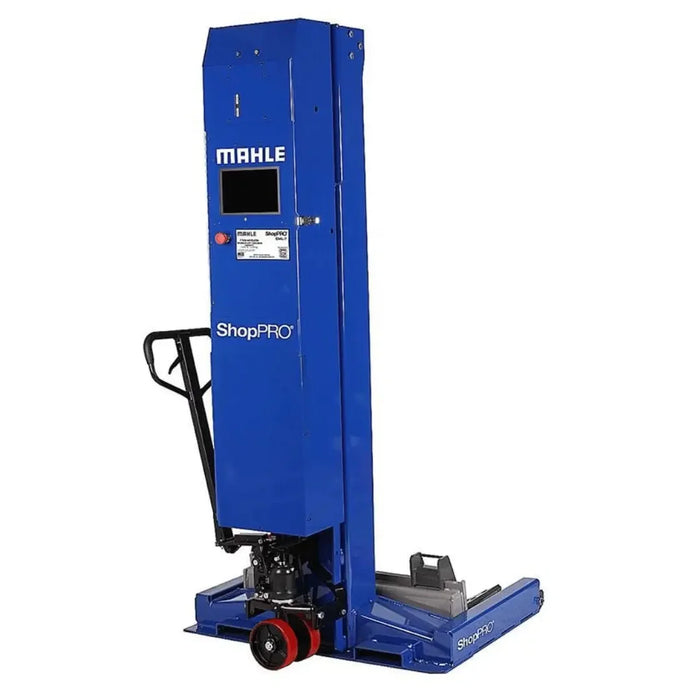

-Mahle CML-7X4 - 28 Ton (56,000 lb.) Commercial Vehicle Mobile Column Lift - Wireless (Set of 4)
The MAHLE CML 7x4 28-Ton (56,000 lb) Commercial Vehicle Mobile Column Lift is designed to meet the demands of heavy-duty vehicle maintenance, offering exceptional lifting power and flexibility. This wireless set of four mobile columns is perfect for shops that require the ability to move and lift vehicles in various locations, whether in the garage or out in the field. Each column is capable of lifting 14,000 lbs, providing a combined total lifting capacity of 56,000 lbs, ideal for large commercial vehicles such as trucks, buses, and construction vehicles.
One of the standout features of this lift system is its wireless operation, which ensures smooth, synchronized lifting without the hassle of cables. The intuitive control system allows technicians to operate the lifts with ease, offering precise and safe lifting and lowering. This advanced system is designed to maximize safety and minimize downtime, making it a must-have for any high-traffic shop that handles heavy-duty vehicles. Additionally, the compact and mobile design of the columns allows for easy storage and movement, adding to the convenience of this versatile lift system.
Built with durability in mind, the MAHLE CML 7x4 mobile column lift is constructed from high-quality materials that ensure long-lasting performance even in the most demanding environments. Its robust design provides exceptional stability, giving technicians peace of mind while working on large vehicles. Whether you’re running a commercial fleet maintenance operation or a large automotive service center, this mobile column lift system is the perfect solution for handling heavy-duty lifting tasks with reliability, precision, and efficiency.
Product Features
- Heavy Duty Lifting Capacity. 14,000 lb (CML-7) and 19,000 lb (CML-9) per column capacity options. Wide base available in 19,000 lb capacity (CML-9W).
- Intelligent. Patented wireless smart lift technology.
- Simple. Tablet-based touch screen with on-board manuals, videos and internet.
- Broad Application. Heavy duty through light duty vehicles.
- Fully Adjustable Carriage. 12" forks supports wheel diameter from 5" to 24.5"
- Patent Pending. Down-stop visual safety system.
- Adjustable. Lift height 69" (1753 mm)
- 24 volt mobile column, with a wide, adjustable carriage for over-sized tire engagement
- Features the industry's original wireless communication system, state of the art touch screen graphic control system, and a patented self-centering adjustable carriage, providing the user with the most reliable and safe lifting environment
- No external wires or cords providing clear and safe access to the undercarriage of the vehicle
- When used at full operating height the user is provided with a lift height of 69 inches of free-and-clear access perfect for preventative maintenance; transmission removal and installation; clutch replacements; and with singe and paired operation make easy work of axle, brake, and wheel work
Product Specifications
| Model | CML-7X4 |
| Lifting Capacity (Each) | 14,000 lb (6,350 kg) |
| Max. Hydraulic Operating Pressure | 2,180 psi (15 MPa) |
| Min/Max Wheel Diameter | 5 in / 24.5 in (127 mm / 622 mm) |
| Min (2)/Max (4) Lift Height | 32 in / 69 in (813 mm / 1,753 mm) |
| Lift Speed (Max Load) | 60 in/min (1,524 mm/min) |
| Weight | 1,485 lb (674 kg) |
| Height | 88.5 in (2,248 mm) |
| Height at Full Lift | 157.13 in (3,991 mm) |
| Operating Peak Power | 4 HP (3 kW) |
| Operating Voltage | 24 VDC Nominal |
| Charger Voltage Required | 70-130 VAC @50-60 Hz |
Pick Up and Delivery
Call, text, or chat with us if you have questions. - 866-774-7743
Downloads
Brochure
Manual
Warranty
Specifications
