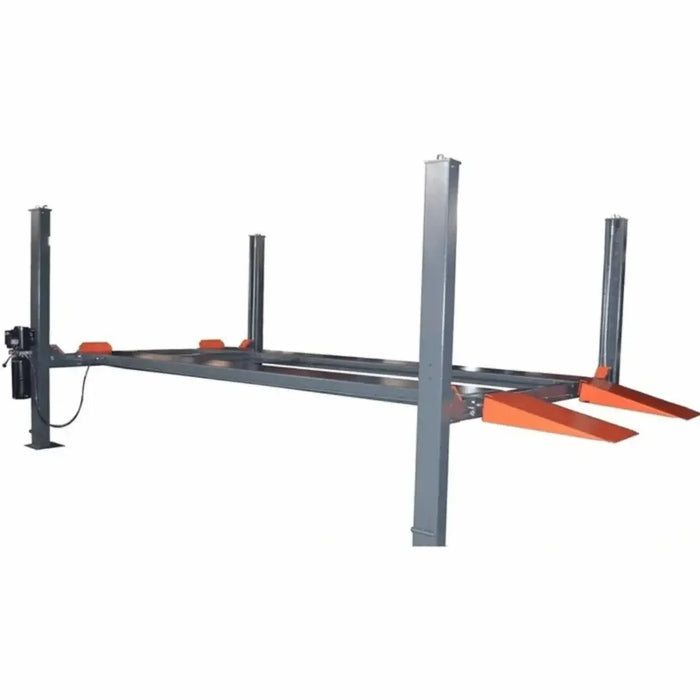

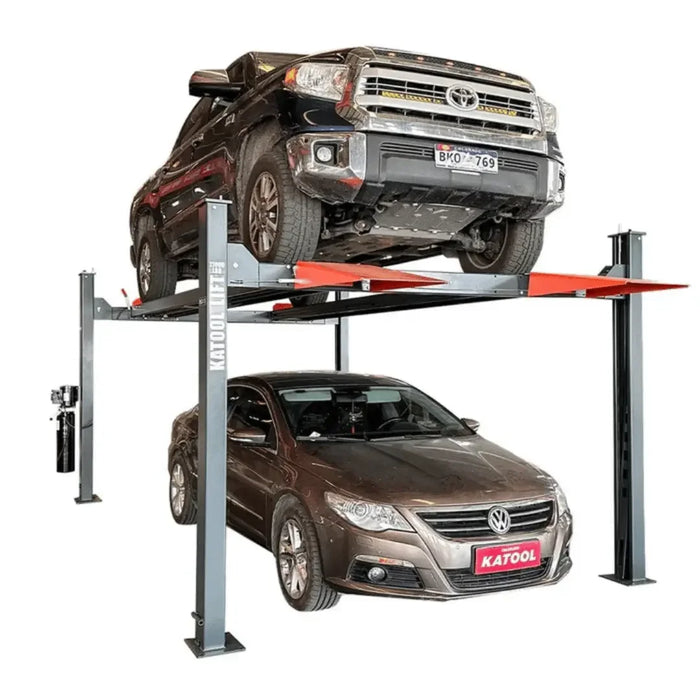

The Katool KT-4H110 11,000 lbs 4 Post Car Lift is engineered to meet the demanding needs of professional automotive service environments. Designed for durability and efficiency, this lift offers a robust solution for vehicle maintenance and storage.
Construction and Design
Constructed with high-strength steel, the KT-4H110 4 post car lift ensures long-lasting performance under heavy-duty use. Its four-post design provides a stable foundation, distributing the vehicle's weight evenly to prevent undue stress on the structure. This design is particularly beneficial for lifting heavy vehicles, including trucks and SUVs, with a maximum lifting capacity of 11,000 lbs.
Dimensions and Capacity
The lift's dimensions are optimized for space efficiency and functionality. With an overall width of 126 inches and a length of 223 inches, it occupies a compact footprint suitable for most garage spaces. The height of the posts is 95 inches, allowing for ample clearance. The maximum lifting height reaches 85 inches, facilitating easy access to the vehicle's undercarriage for maintenance tasks.
Safety Features

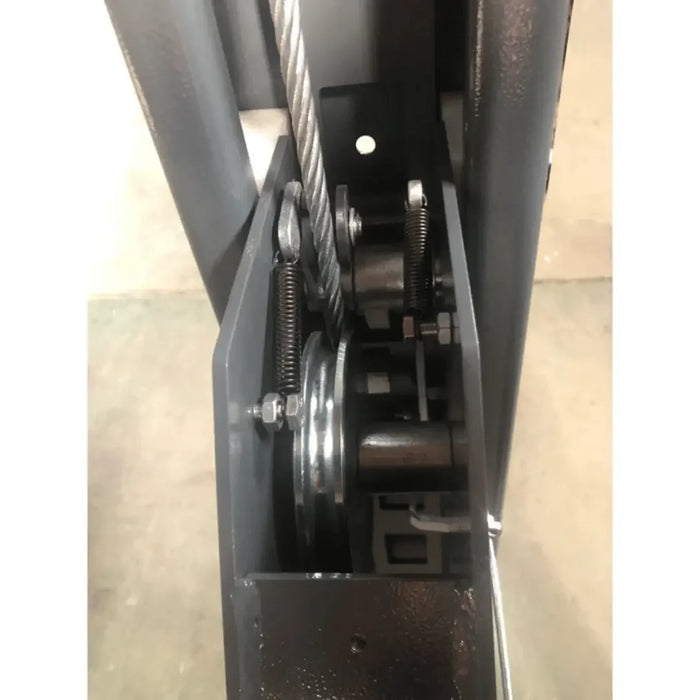

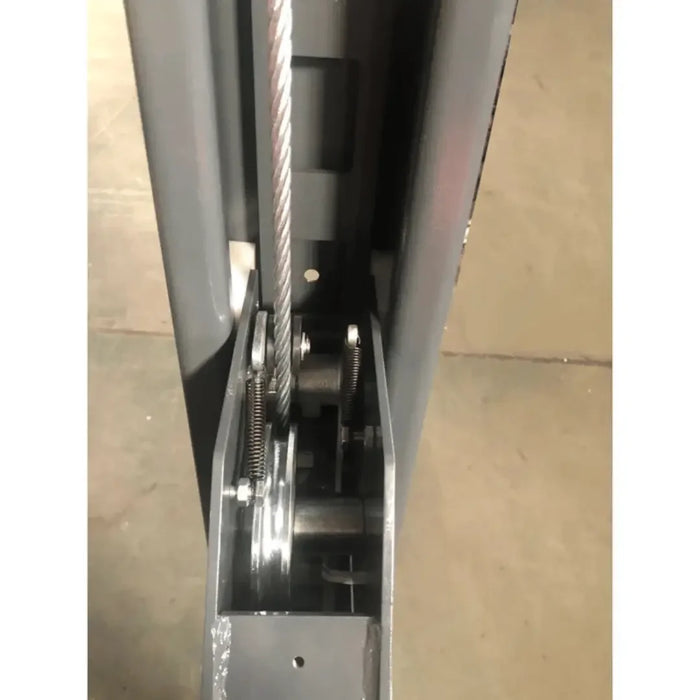

Safety is paramount in the design of the KT-4H110. The 4 post car lift is equipped with multiple safety mechanisms to ensure secure operation. It features spring-loaded safety locks that automatically engage as the lift is raised, providing continuous support. Additionally, a secondary slack-cable device acts as a backup, engaging in the unlikely event of a cable failure. These features are in compliance with CE certification standards, meeting rigorous safety and quality requirements.
Hydraulic System and Power
The KT-4H110 utilizes a high-quality hydraulic system powered by a 3.0 HP motor operating at 220V/60HZ/1PH. This setup delivers consistent and reliable lifting power, ensuring smooth operation. The hydraulic system is designed for efficiency, reducing energy consumption while maintaining optimal performance.
Installation Requirements
Proper installation is crucial for the safe operation of the lift. The KT-4H110 requires a concrete floor with a minimum thickness of 5.9 inches and a compressive strength of at least 3,000 psi. Adhering to these specifications ensures the lift's stability and safety during operation.
Maintenance and Longevity
Regular maintenance is essential to prolong the life of the lift and maintain its performance. Routine inspections should focus on the hydraulic system, safety locks, and structural components to identify any wear or potential issues. Proper lubrication of moving parts and timely replacement of worn components will help maintain the lift's functionality and safety standards.
Applications
The KT-4H110 is versatile, suitable for various automotive service tasks. Its design allows for easy access to the vehicle's undercarriage, making it ideal for brake repairs, suspension work, oil changes, and tire servicing. The lift's capacity and stability make it a reliable choice for handling a wide range of vehicles, from compact cars to larger trucks.
11,000 lbs Lifting Capacity: Handles heavy-duty vehicles with ease.
CE Approved and Certified: Meets 115% dynamic and 150% static load capacity standards.

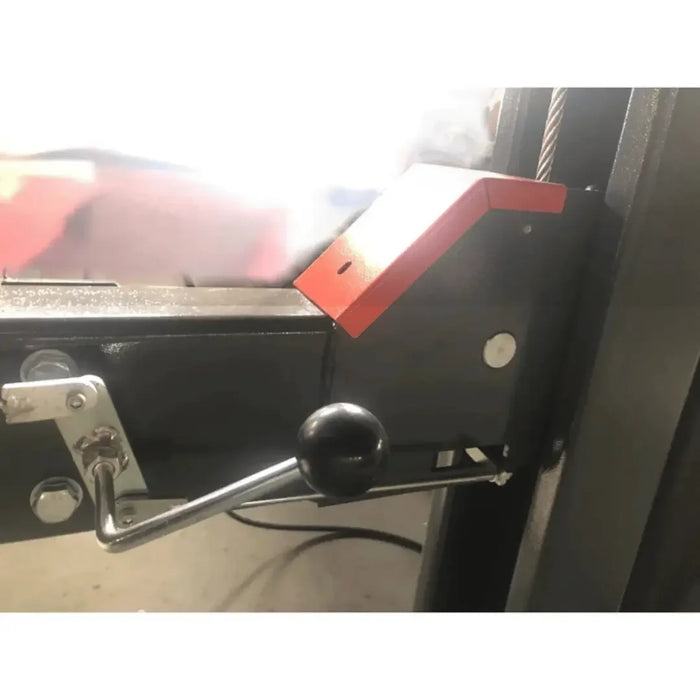

Single-Point Manual Safety Lock Release: Ensures secure and controlled operations.

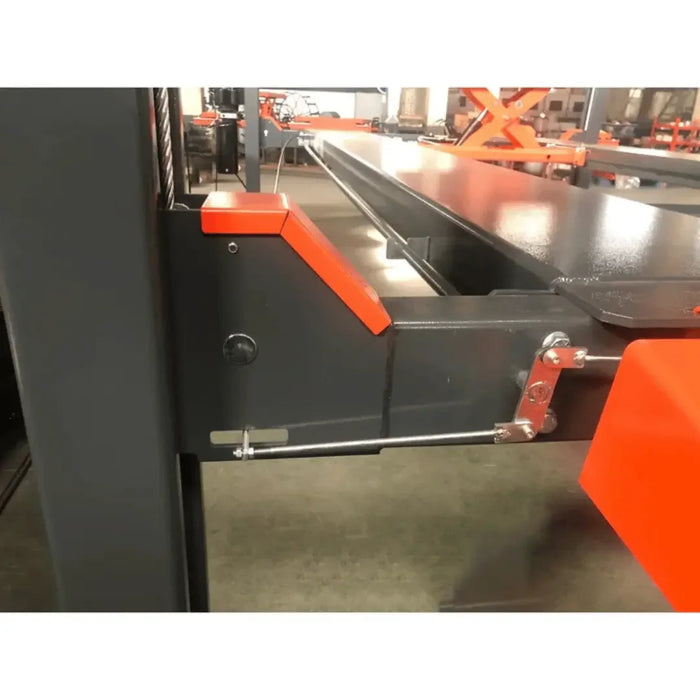

Four Mechanical Locking Devices: Each equipped with primary and secondary safety locks for added security.
Powerside Column: Flexible installation at either side, front, or rear.
Non-Skid Diamond Platforms: Provides stability during lifting operations.

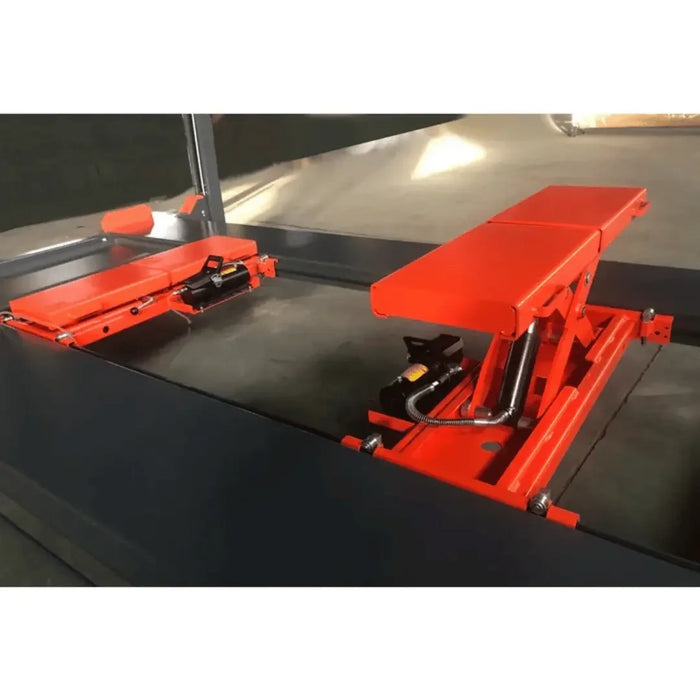

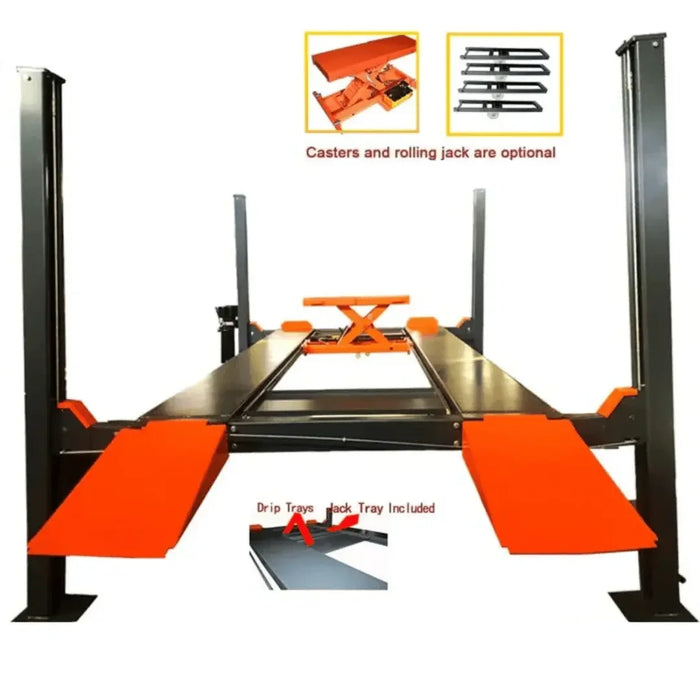

Optional Add-Ons: Caster kit for mobility and rolling jacks for additional functionality (sold separately).
Hydraulic System: Available in 110V/60HZ/1PH or optional 220V/60HZ/1PH for reliable and efficient performance.
Comes with two drip trays and a jack tray for added convenience.

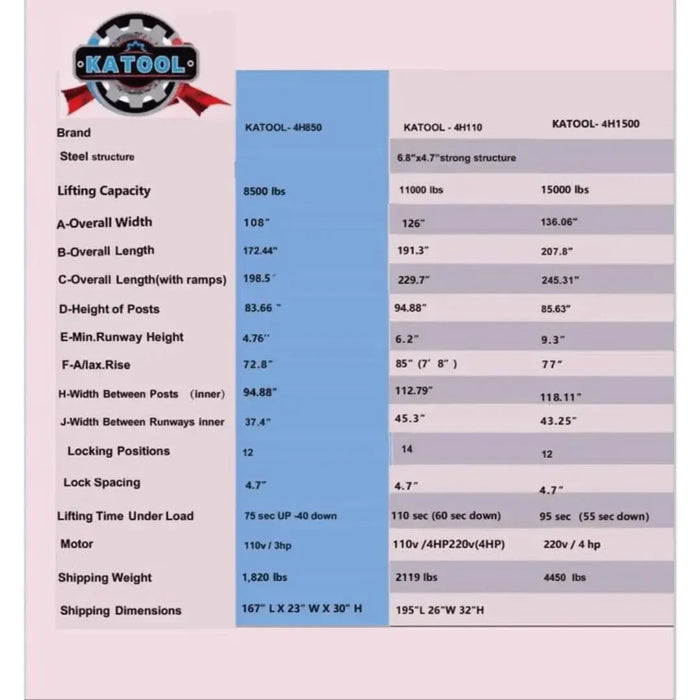

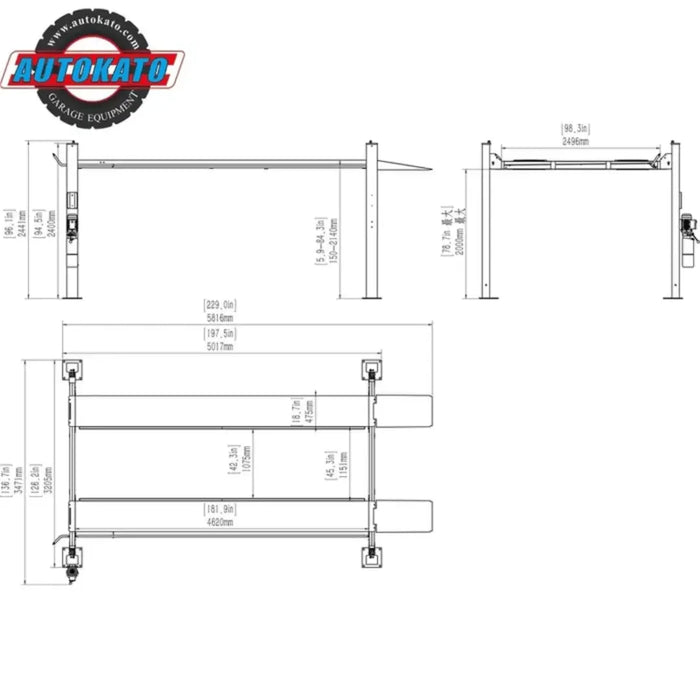

Katool KT-4H110 4 Post Car Lift Product Specifications
Lifting Capacity
11,000 lbs (4,990 kg)
Max. Lifting Height
84.25" (2,140 mm)
Lifting Time
83s Up / 40s Down
Height of Posts
94.88" (2,410 mm)
Width Overall
126" (3,200 mm)
Length Overall
229.73" (5,835 mm, with ramps)
Inside Columns
112.81" (2,865 mm)
Min. Runway Height
6.2" (157 mm)
Motor
110VAC/60HZ/1PH
Net Weight
2,116 lbs (960 kg)
Installation
Installing the KT-4H110 is straightforward, but proper concrete requirements are critical for safety. Ensure the concrete thickness is at least 3.93 inches (100 mm) with a 3,000 PSI rating. Failure to meet these specifications could lead to serious injury or equipment failure.
