Hofmann 15K 4 Post Alignment Lift - Mechanic Super Store

Hofmann 15K 4 Post Alignment Lift

Part #:HM-15K-4POST
Brand: Hofmann USA
$0.00 - $0.00
$0.00
$31,267.32
$31,267.32 - $31,267.32
$31,267.32
Call/Text Us: 866-774-7743 Call Us

Description

-

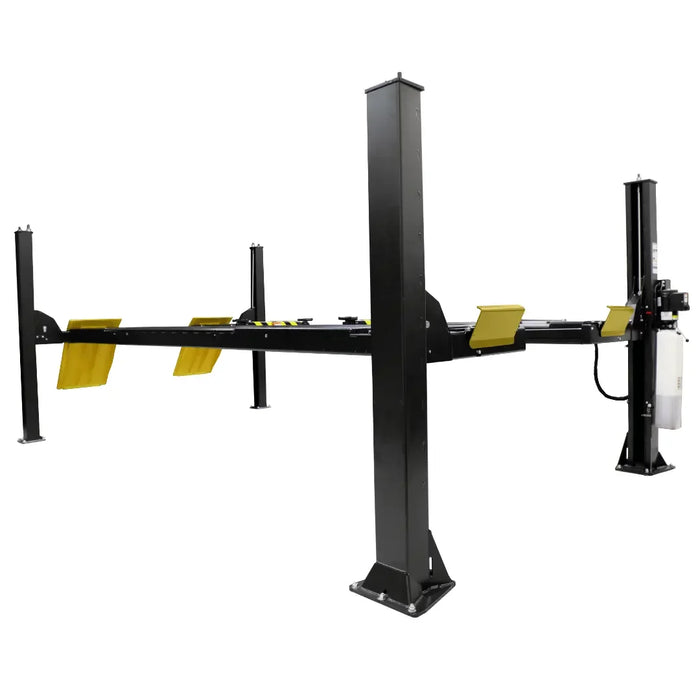

Hofmann 15K 4 Post Alignment Lift

Accommodating, accessible, and equipped - the Hofmann®15k 4-post Alignment Lift is designed for the modern era of automotive service with a robust and refined structure made for professional-grade lifting.

Offering a heavy-duty lifting capacity of 15,000 lbs., convenient open-front construction, ultra-wide runways and extended 100” rear slip plates with easy-access low-approach ramps, this 4-post lift is equipped to handle a diverse range of vehicles and take your service work to the next level.

Available in two lengths: standard and extended, this lift is certified to the industry's leading ANSI/ALI automotive lift standard.

Product Features

  • Part Number: EELR706APKG standard / EELR708APKG extended

  • Expanded clearance and extended runways

  • 120” drive-on clearance / 125” body clearance allows dual-wheel trucks to drive on without interference
  • Best-in-class, ultra-wide, 26” runways accommodate wide-track vehicles
  • Ultra-low-profile, 8” runways allow “easy-on” approach angle for low-profile vehicles
  • Extra-long 100” rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles

  • Easy access, open-front design

  • Open-front construction provides easy access to service areas for hassle-free adjustments and repairs
  • Micro-adjustment leveling on front and rear cross beam
  • Adjustable, folding 4” front wheel stops have clearance for long, low-profile vehicles
  • Imaging alignment compatible – easily accommodate split-roll during alignment using AC200 or AC400 clamps

Product Specifications

Lift Model HM-15K-4POST
Capacity 15,000 lbs.
Lifting times 85S
Motor 3 HP
Power supply 230 VAC 1Ph 50/60 Hz
Minimum concrete thickness 4"
Weight 4550 lbs.
Width Between Runways 40.625"
4 Wheel Alignment Wheelbase 68-158"
2 Wheel Alignment Wheelbase 167.75" (standard) / 195.25" (extended)
Air Supply Requirements 90-120 PSI
Front Accessibility Open
Overall Length 250.75" (standard) / 277" (extended)
Service Wheelbase 183" (standard) / 210.5" (extended)
Overall Width 142"
Column Height 99.25" (front) / 98" (rear)
Lifting Capacity Per Column 3750 lbs.
Runway Width 26"

Pick Up and Delivery

All Hofmann machines come with free delivery, setup, and instruction.

Call, text, or chat with us if you have questions. 866-774-7743


Specifications

-
Modal Hofmann 15K
Overall heights Column Height 99.25" (front) / 98" (rear)
Overall length 250"277"
Overall weight 4550 lbs.
Overall width 142"
