Hofmann 12K Alignment Scissor Lift - Mechanic Super Store

Hofmann 12K Alignment Scissor Lift

Part #:HM-12K
Brand: Hofmann USA
$0.00 - $0.00
$0.00
$31,665.43
$31,665.43 - $31,665.43
$31,665.43
Call/Text Us: 866-774-7743 Call Us

Description

-

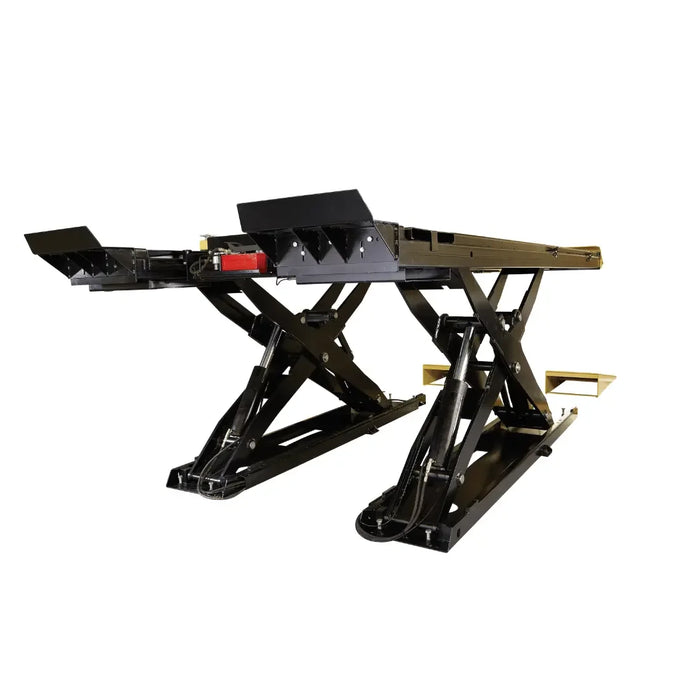

Hofmann 12K Alignment Scissor Lift

The Hofmann® 12k Scissor Alignment Lift is a rugged 12,000 lb capacity scissor alignment lift with an open front design that provides easy access to alignment service and calibration areas.

“Pro-Style” 24" wide runways provide easy drive-on for large vehicles. Hydraulic equalization and full support rear member deliver repeatable smooth level lifting. Flush mounted rear slip plates with heavy-duty encapsulated bearings support and offer smooth movement to ease rear alignment adjustments.

Product Features

  • Part Number:  EELR709APKG
  • Adjustable turnplate pocket depth ensures level positioning of turnplates
  • Expandable approach ramps provide multi tiered drive on approach to suit vehicle clearance and bay length. Extends up to 87". Retracts into itself 35" minimum
  • Each heavy duty rolling jack is easy to position and provides 6,000 lbs of wheelfree® lifting
  • Lifts straight up - no for or aft movement
  • Cross aligned heavy duty hydraulic cylinders maintain constant level lifting with supporting reinforcing rear mount cross member
  • Dual engaging twin interlocking mechanical safety racks with pneumatic release
  • Smooth lift operation with captured re-enforced glide blocks
  • Single point safety lock release system
  • Compact, enclosed control console
  • On-board Filter/Regulator/Lubricator (FRL) protects air systems
  • Powder coat finishing with non-skid runway platform surface
  • Certified to the current ANSI/ALI ALCTV:2011 lift standard
  • Flush mount model available (EELR724APKG)

Product Specifications

Lift Model HM-12K
Capacity 12,000 lbs.
Lifting Height 70"
Lifting times 95S
Lowering times 45S
Power supply 230 VAC 1Ph 50/60 Hz
Weight 6615 lbs.
Width Between Runways 40"
4 Wheel Alignment Wheelbase 89-158"
2 Wheel Alignment Wheelbase 165"
Console Dimensions DxWxH 16.5 x 14.125 x 45.75"
Air Supply Requirements 90-140 PSI
Service Wheelbase 179"
Overall Width 90"
Lifting Speed 95S
Lowering Speed 45S
Runway Width 23"

Pick Up and Delivery

All Hofmann machines come with free delivery, setup, and instruction.
