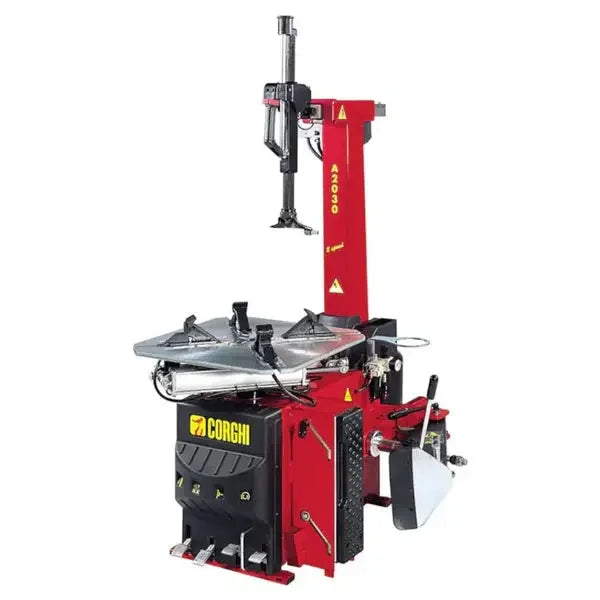

Corghi A2030 Elec Tilt Back Tire Changer

Part #:A2030
Brand: Corghi U.S.A.
$0.00 - $0.00
$0.00
$8,710.00
$8,710.00 - $8,710.00
$8,710.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Corghi A2030 Elec Tilt Back Tire Changer

The 2030 HP is the strongest built, largest capacity, tilt back rim clamp machine available. It handles wheels up to 26" and by adding a simple economical expansion kit, you can increase up to a 30" wheel. This machine has also incorporated an ergonomic adjustable bead breaker shovel that allows you to adjust the shovel upward to be on the centerline of larger diameter wheels. This machine can truly cover with ease the widest range and combination of wheels and tires of any machine on the market. Like all Corghi machines you get: Flexibility, Durability, Reliability at the most competitive price.

Product Features

  • Only Available with Electric motor
  • Handles wheels up to 26"
  • Optional jaw adapters available to change up to 30"
  • Has a built-in ergonomic adjustable bead breaker shovel that lets you to adjust the shovel upward to be on the centerline of larger diameter wheels
  • This machine offers the widest range and combination of wheels and tires of any machine on the market

Product Specifications

Rim Clamping - Internal 12-28" (305-711 mm)
Rim Clamping - External 10-26" (254-660 mm)
Horizontal Arm Stroke 8-26" (203-660 mm)
Max Tire Diameter 43" (1,092 mm)
Max Tire Width 14" (356 mm)
DV Version Rotation Torque 958.83 lb-ft
DV Version Rotation Speed 6-15 rpm
Height Above the Ground 26.57" (675 mm)
Bead Breaker Type Adjustable Arm w/Extending Shoe
Max Opening 14.9" (378 mm)
Shoe Force 15500 N
Support Telescopic
Tool Working Range 8-26" (203-660 mm)
Column Pneumatic Tilting
Head Clamping Pneumatic

Power Supply

Electrical 1ph DV version 115 V - 0.75 kW
Operating Pressure 145 psi
Weight 571 lbs.


Specifications

-
A inside wheel clamping range 13” - 29”
Assist type Pneumatic Tilting
B outside wheel clamping range 10” - 26”
Maximum rim width 14"
Maximum tire diameter 43"
Style Tilt Back
