Chicago Pneumatic RCP-7581VS 8HP 80gal vertical two-stage electric air compressor

Chicago Pneumatic Air Compressor RCP-7581VS 7.5 HP 80 Gallon Two Stage Cast Iron 208-230V 1 Phase

Part #:RCP-7581VS
Brand: Chicago Pneumatic
$0.00 - $0.00
$0.00
$3,771.00
$3,771.00 - $3,771.00
$3,771.00
Call/Text Us: 866-774-7743 Call Us

Description

-

Product Description

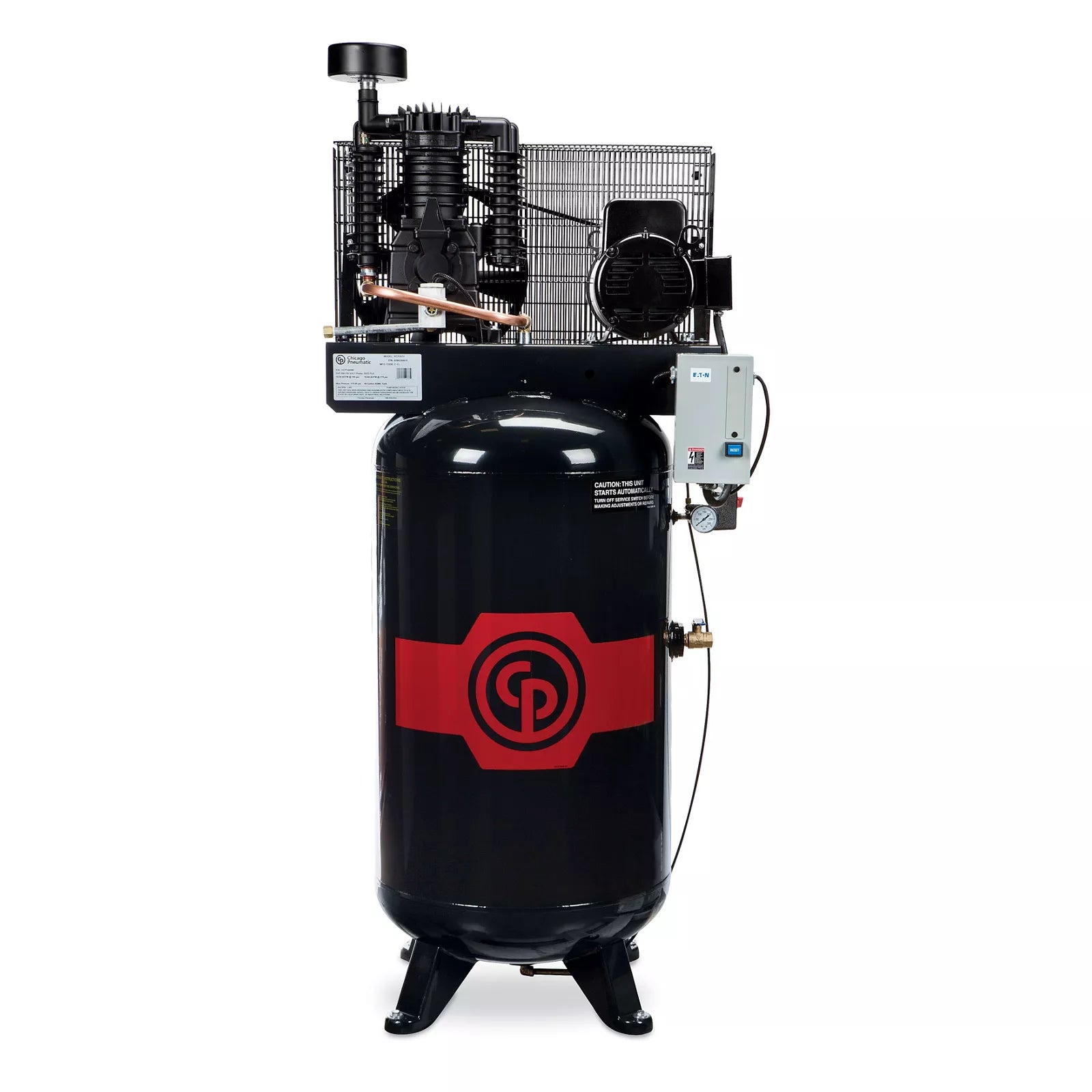

Chicago Pneumatic RCP-7581VS Stationary Two Stage 80 Gallon Air Compressor, 7.5 Hp, Vertical, 208-230V 1-Phase

This RCP series, reciprocating compressor comes with solid cast iron cylinders for strength. The aluminum heads, coolers and crankcases allow for superior heat dissipation. Industrial grade connecting rods have cast splash pins and replaceable automotive style insert bearings. The cast iron crankshaft along with balanced pistons and over sized main bearings guarantees smooth operation. This style of compressor utilizes high efficient stainless steel reed or ring valves on all models. It's built for the service professional and delivering up to 25.25 ACFM, this compressor can handle the toughest situation. Precision engineered in a rugged package; operating pressure up to 175 PSI, The RCP will get the job done. It comes complete with everything you need to optimize your work and minimize downtime.


Product Features

  • Solid cast iron tank, with an integrated after cooler
  • Start-Stop pressure switch control, ASME/CRN certified tank and safety valves
  • Magnetic starter provides the thermal protection for the electric motors and come with Nema 1 enclosures
  • Safety: Fully enclosed-high flow belt guard, low oil level switch and an automatic tank drain
  • Made in the USA

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 39"
Overall weight 479 Lbs
Overall width 24
Phase Single Phase
Pump material Aluminum w/ Cast Iron Sleeve
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 208-230V
