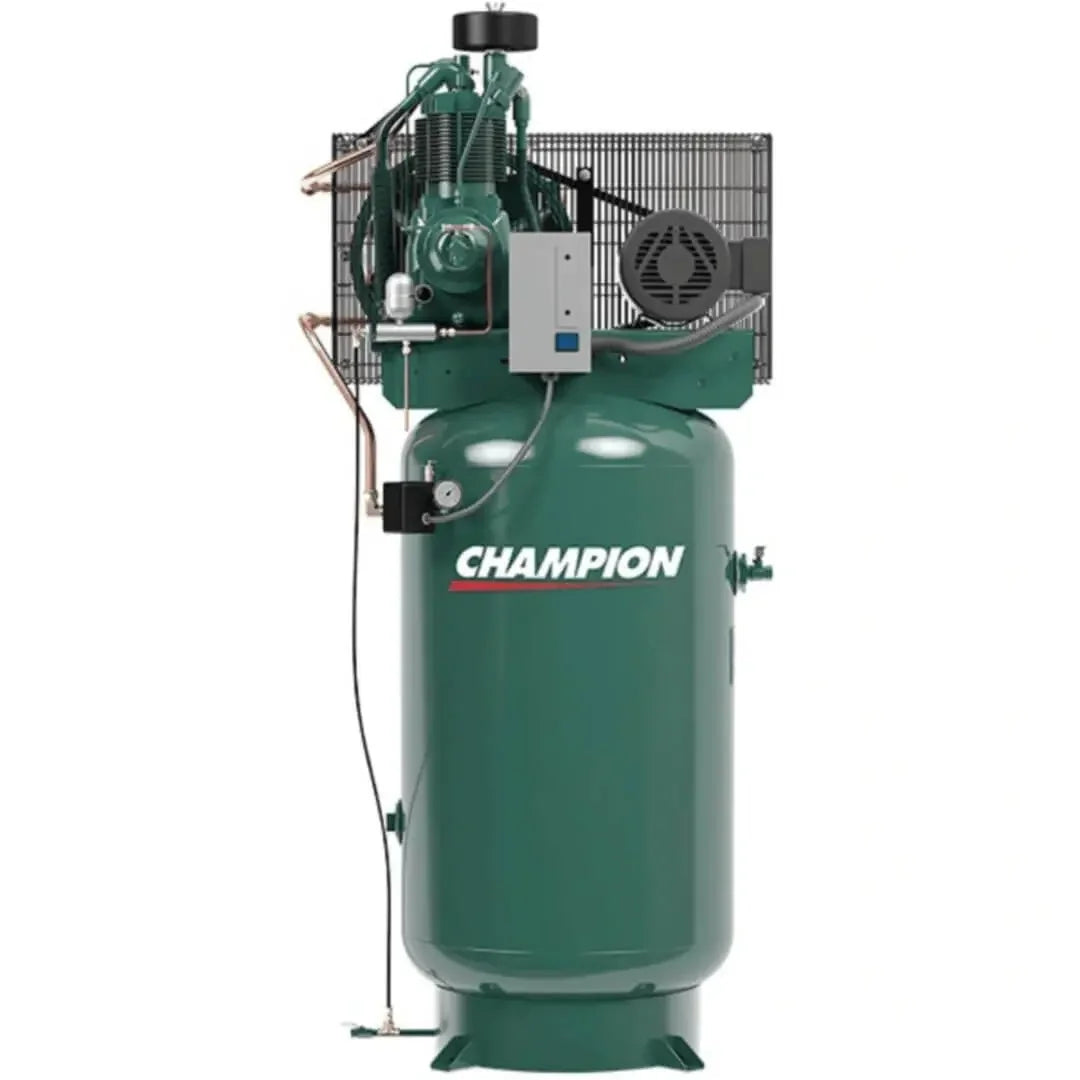

Gardner Denver VR5-8-RS 5HP 80gal vertical two-stage electric air compressor

Champion Air Compressor VR5-8-RS Reciprocating R Series

Part #:VR5-8-RS
Brand: Gardner Denver
$0.00 - $0.00
$0.00
$3,855.37
$3,855.37 - $3,855.37
$3,855.37
Call/Text Us: 866-774-7743 Call Us

Description

-

Champion VR5-8-RS Reciprocating Air Compressor R-Series

The Champion R-Series simplex two stage piston air compressor is available as a base mounted model or as a tank mounted model with tank sizes ranging from 30 gallons up to 240 gallons. The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenace and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.

Product Features

  • Heavy Duty Two Stage, Splash Lubricated Air Compressor Pump(s)
  • Multi-Finned Cylinders
  • Integral Cylinder Head
  • Intercoolers for Cooling Between Stages
  • Reliable High Flow Disc Valves
  • Oversized Main Bearings
  • Balanced Crankshaft
  • Oil Level Site Glass
  • Centrifugal Unloader for Loadless Startingptions:
  • Electric Fuel Pump
  • Canvas Cover – (Engine Driven Models
  • 9 Gallon standalone fuel tank
  • 5 Gallon standalone fuel tank

Product Specifications

Product Model VR5-8-RS
Weight 590 lbs
Dimensions 35 × 27 × 75 in
Motor 5 hp
CFM Delivery 17
Phase N/A
PSI Rating 175
RPM 737
Tank Capacity 80 Gallon
Tank Position Vertical
Voltage 230

Pick Up and Delivery

Champion Air Compressors

Call, text, or chat with us if you have questions. 866-774-7743

Downloads

Brochure
Manual
Warranty


Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 35"
Overall weight 590 Lbs
Overall width 27
Phase Three Phase
Tank orientation Vertical
Tank outlet 3/4"
Tank size gallons 80
Voltage 230V
