Challenger Lifts SA10 10000 lbs Symmetric 2 Post Lift

Part #:SA10-SYMMETRIC
Original price $0.00 - Original price $0.00
Original price $0.00
$5,822.63
$5,822.63 - $5,822.63
Current price $5,822.63

Description

-

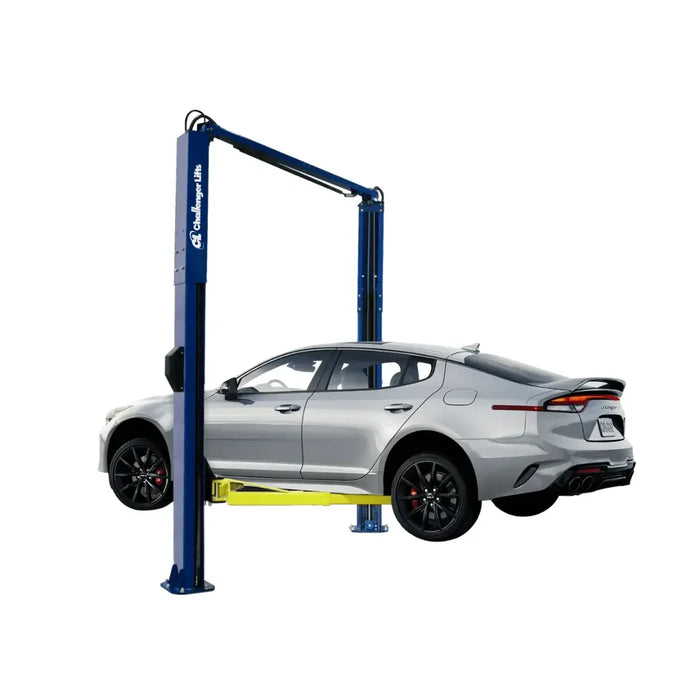

Challenger Lifts SA10 10000 lbs Symmetric 2 Post Lift

The Challenger Lifts SA10 10,000 lbs. Symmetric 2-Post Lift is engineered to provide exceptional lifting power and flexibility for shops that demand high performance and reliability. With a lifting capacity of 10,000 lbs., this symmetric 2-post lift is suitable for a wide range of vehicles, including SUVs, light trucks, and sedans. The SA10 features a versatile arm design, allowing technicians to position vehicles with ease for optimal accessibility and balance.

This lift is built with heavy-duty, low-profile arms that offer both symmetric and asymmetric lifting capabilities, providing the flexibility needed for varied vehicle types and maintenance tasks. The SA10 also includes adjustable screw pads and stack adapters, allowing for precise lifting of different vehicle heights and frame designs. The lift’s advanced hydraulic system ensures smooth, controlled lifting and lowering, while the dual-point lock release system offers additional safety and stability.

Designed with a clear floor design, the Challenger SA10 allows for easy movement and reduces trip hazards, making it safer and more convenient for technicians to work around the lift. The lift offers a maximum lift height of 74-3/4 inches, providing plenty of clearance for undercarriage repairs and inspections. The 3-stage front arms and 2-stage rear arms enable accurate and flexible positioning, supporting both symmetric and asymmetric setups depending on the vehicle type.

The Challenger Lifts SA10 is a powerful, durable solution for automotive shops looking for a versatile lift that combines strength and adaptability. With its high lifting capacity, ergonomic arm design, and focus on safety, the SA10 is well-suited for high-volume, professional environments. Whether lifting heavy-duty trucks or low-profile vehicles, this 2-post lift ensures efficiency and reliability in every use.

Product Features

  • 10,000 lb. lift capacity
  • 3-stage front arms provide greater sweep for versatility and ease of spotting
  • Can be installed in either symmetric or asymmetric position, depending on your service needs
  • Premium double telescoping screw pads adjust to multiple heights minimizing the need for adapters
  • Adjustable heights and widths provide versatility at installation for service facilities with special constraints
  • Single-point mechanical lock release system allows technician to disengage both columns simultaneously
  • Padded overhead shut off system prevents vehicle damage
  • Premium powder coat finish provides long-lasting durability
  • Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
  • Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage

Product Specifications

Model SA10
Lifting Capacity 10,000 lbs.
Lift Configuration Symmetric
Arm Configuration 3-Stage Front/ 2-Stage Rear
Rise Height 74.5”
Overall Height 136.5” / 142.5”
Overall Height (Cylinder Extended) 142.5”
2’ Height Extension Available Yes
Overall Width 129” / 135”
Drive-Thru Clearance 92.75” / 98.75”
Floor to Overhead Switch 131.125” / 137.125”
Front Arm Reach 22.375” / 41.5”
Rear Arm Reach 38.25” / 59”
Screw Pad Height 4.75” / 6.875”
Inside Columns 106.75” / 112.75”
Motor / Voltage 2HP, 208v-230v, 60Hz, 1Ph
Speed of Rise 43s
Ceiling Height Required 12'
ALI/ETL Certified Yes
Colors Available Red, Blue

Pick Up and Delivery

Call, text, or chat with us if you have questions. 866-774-7743



Specifications

-
Drive thru width 8.15 ft
Drive thru between carriage 93"99"
Inside columns 107"113"
Lifting capacity 10000 lbs
Lifting height top of arms 6.15 ft
Lifting height top of pad 75"
Max rise under arms 6.15 ft
Max rise under arms 70"
Min height lowered arm height 6.875”
Minimum pad height 5"
Motor 208-230V
Overall width 11.25 ft
Overall heights 143"
Overall width 129"135"
Width between columns 9.30 ft
