BendPak Lift HD-7500PBX 7,500‐lb. Capacity 4 Post Car Lift - Extended Height - Mechanic Super Store

BendPak Lift HD-7500PBX 7,500‐lb. Capacity 4 Post Car Lift - Extended Height

Part #:5175320
Brand: BendPak
$0.00 - $0.00
$0.00
$10,095.00
$10,095.00 - $10,095.00
$10,095.00
Call/Text Us: 866-774-7743 Call Us

Description

-

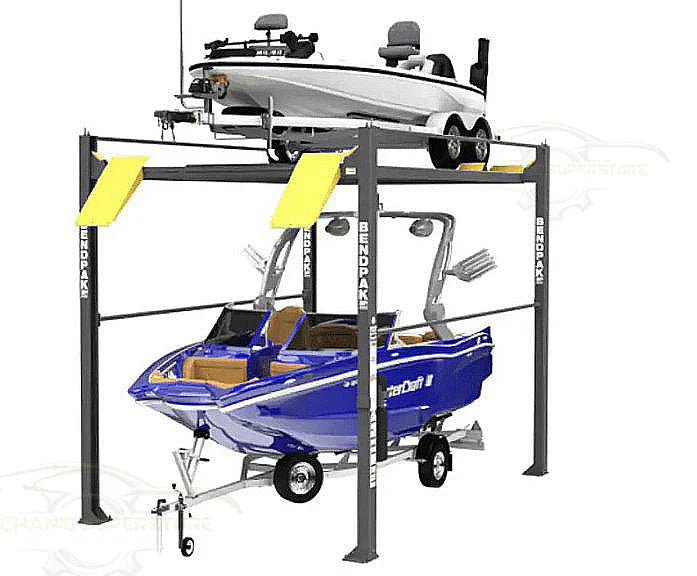

BendPak Lift HD-7500PBX 7,500‐lb. Capacity 4 Post Car Lift - Extended Height

The Bendpak Lift HD-7500PBX is the perfect high-rise dry-docking solution. Keep your boat in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-7500PBX pulls double-duty as a professional-grade car lift for vehicles.

Introducing the latest innovation in the HD-7500 Series, the BendPak HD-7500PBX High-Rise boat lift, designed to keep your boat in tip-top shape for as long as possible. Say goodbye to the uncertainties of water exposure and storage fees with this cutting-edge dry-docking solution.

BendPak has the perfect solution: Keep your boat up in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-7500BLX pulls double-duty as a professional-grade car lift for ground vehicles.

The HD-7500PBX ensures your precious boat stays out of harm’s way, and with a maximum height of 144.5”, there are more kinds of vehicles and boats that you can safely store. Now you won’t have to worry about saltwater corrosion, barnacles, or the damaging effects of cold weather. This lift offers unparalleled protection for both interior and exterior features.

This high-rise model is your ticket to significant savings, effectively eliminating the need for costly monthly boat storage fees. With BendPak, you’re able to safeguard your boat conveniently in your own garage, minimizing the risks that come with outdoor storage.

The HD-7500PBX can easily accommodate a wide variety of boat trailer types with its wide and narrow installation options. Its durability is unmatched, featuring four heavy-duty stainless steel wire ropes and a single hydraulic cylinder which results in a maintenance-free experience.

The safety of you and your boat is our top concern. Stainless and aluminum pneumatic cylinders release all four locks simultaneously with the simple push of a button, and spring-loaded safety locks engage continuously as the lift is raised. To further enhance safety, a secondary lock system acts as a slack-cable device for emergency protection.


Product Features

  • 7,500-pound lifting capacity
  • Two different lifting heights to choose from
  • Electric / hydraulic power system
  • Internal anti-sway slider blocks in each column
  • Both models feature heavy-duty 3/8" aircraft cable
  • Multi-position safety locks in each column
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder underneath runway
  • Over-sized self-lubricating cable rollers
  • Rugged 1-1/4" roller axles
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Durable powder coat finish

Product Specifications

Capacity

Lifting Capacity: 7,500 lbs. (3,402 kg)
Max. Capacity / Front Axle: 3,750 lbs. (1,701 kg)
Max. Capacity / Rear Axle: 3,750 lbs. (1,701 kg)

Rise

A - Min. Runway Height 5" (127 mm)
B - Max. Rise 140 in. / 3,560 mm
C - Max. Lifting Height: 145 in. / 3,681 mm
Lifting Time: 55 Seconds

Outside Dimensions

D - Overall Width: 132.165 (±.125) in. / 3,357 (±3.2) mm
E - Outside Length 198 in. / 5,028 mm
F - Overall Length 224.5 in. / 5,703 mm
G - Height of Columns 157.9 in. / 4,010 mm

Inside Dimensions

H - Width Between Columns: 122" (3,099 mm)
I - Drive-Thru Clearance, Width 108.5" (2,756 mm)

Runways

J - Runway Width 19" (483 mm)
K - Length of Runways 182.25 in. / 4,629mm
L - Width Between Runways 46.5" (1,181 mm) or 66.5" (1,689 mm)
M - Runway Centerline 68.5" (1,740 mm) or 88.5" (2,248 mm)
N - Outside Edge of Runways 87.5" (2,223 mm) or 107.5" (2,730 mm)
O - Drive-Thru Clearance, Height 139 in. / 3,528 mm

Minimum Wheelbase

Rated Capacity 130 in. / 3302 mm
75% Capacity 110 in. / 2794 mm
50% Capacity 95 in. / 2413 mm
25% Capacity 75 in. / 1,905 mm

Locking

Locking Positions 17
Lock Spacing: Every 4" (102 mm)

Power Unit

Motor 220 VAC / 60 Hz / 1 Ph
Noise 45 dB

Pick Up and Delivery

Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.

Call, text, or chat with us if you have questions. 866-774-7743


Specifications

-
Drive thru width 9 ft
Drive thru between carriage 108"
Inside columns 122"
Lifting capacity 7500 lbs
Lifting height top of pad 145 in. / 3,681 mm
Lifting height top of runway 145"
Max rise under runway 140"
Modal HD-7500PBX
Outside edge of runways 87"107"
Overall heights 158"
Overall length 224"
Overall width 132"
Runway length 182"
Width between columns 10 ft
