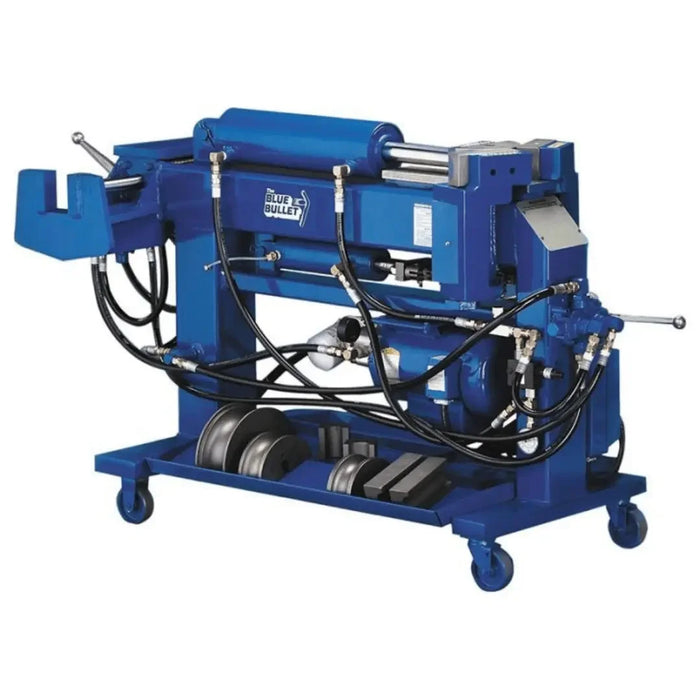

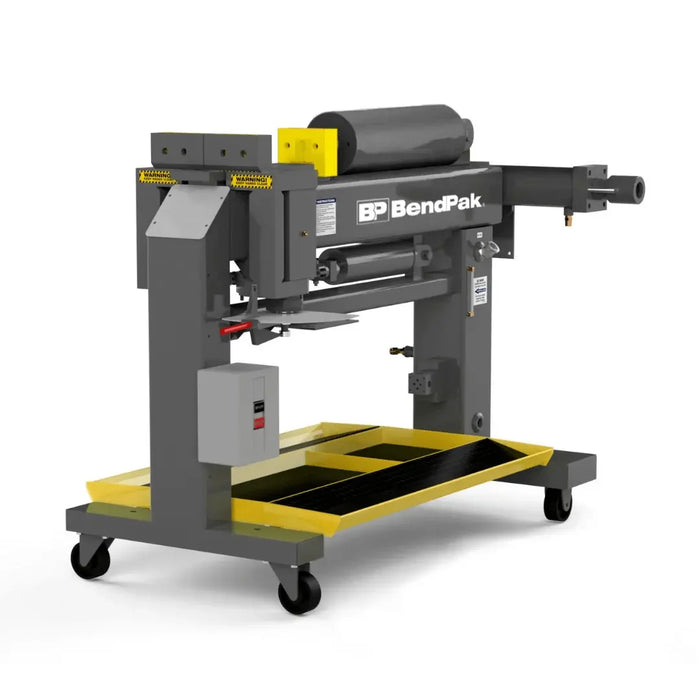

BendPak BB-2 Blue-Bullet Pipe Bender With Deluxe 302 Die Package
Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.
Go Manual and Control Your Bends
Meet the heavy-duty BendPak “Blue-Bullet” exhaust pipe bender. It takes off like a shot and helps you reach your production target every time. Includes a die package and a dual-function end-finishing unit for precision OE expansions and flares.
With its superior performance and simple operation, the Blue Bullet BB-1 and BB-2 exhaust pipe benders will hold a special place in your shop.
Quick-change bending dies
Who has time to waste? Not you. Especially when you have a car in the air and others lined up. Our competitors tried for years to come up with an effective way to swiftly switch out the bending dies, but BendPak actually did it. Our twist-lock tooling and quick-change bending dies are so effective that they are copied across the entire industry. We choose to think of imitation as the best form of flattery, but you should make sure that you get your innovative equipment from the originator and not a knock-off.
180° bending capacity
You told us you needed a bender with an extremely deep bending capability. Is a U-shape deep enough? Thought so. Be sure to ask for our 180° dies if you're planning to bend more than 170°. You'll get perfect, deep bends on a 5" radius, without pipe sticking or hang-ups. That's because we use an exclusive relief cut design on our bending dies to help maintain the pipe's uniformity throughout the bend cycle and eliminate excessive crimping or deformation.
3" bending capacity with die kit
We built a convenient 3" bending capacity into every BendPak bender. In fact, our 3" bending dies perfectly exemplify our commitment to quality. Take a close look at the design. They might look like ordinary bending dies, but these heavy handfuls are anything but. No other manufacturer uses our exclusive step-cut process for the die rails. Our dies feature better-contained, larger-sized tubing for a more uniform bend. Despite the title of "bender," this unit is actually capable of expanding and flaring, too! Choose from a full range of exclusive dies.
Long-stroke bending cylinder
Because every BendPak Blue Bullet pipe bender is equipped with an extended-top cylinder, you no longer need to use pusher block extensions when bending with small-radius dies. Also, the 14" top-cylinder can be retracted further, providing additional clearance for changing dies or removing bent tubing.
Clampless swager
All BendPak Blue Bullet pipe benders are equipped with our exclusive clampless swager, which puts out an incredible force of over 30,000 lbs. for quick and precise end forming. The clampless swager provides rapid set-up time and a high degree of accuracy for I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints, reductions and manifold flanges. All tooling is quick-release. Take a close look at the clamp assembly. You won't see a cumbersome, antiquated vise in our clamp assembly. What you will find is modern ingenuity at its finest—the narrow-hinged collars simply drop into position and allow for flare tubing ends as close as 3" from a bend. Don't worry about troublesome slippage either. The more pressure you put on the clamps, the tighter they grip.
Internal segment expander
Our internal segment expander is just as unique as our clampless swager and can be used for I.D. expansions, O.D. expansions, slip-fits, flares, ball-joints and manifold flanges. The buttress canister has a single position setting for all I.D. expansions, but it can also be adjusted for special sizing requirements. A single arbor is used for all tubing sizes 1.5" - 3". Combined, the clampless swager and internal expander let you easily perform all end-finishing operations with unparalleled ease: reducing, internal swaging, flares, flat flares, ball-joints, male ball-joints, female sockets, double-donut flares and more. The manual Blue-Bullet is equipped with a double-ended cylinder for both the clampless swager and segment expander. A single control handle operates the cylinder and is placed toward the middle, so you can stand comfortably in one location and operate both sides.
