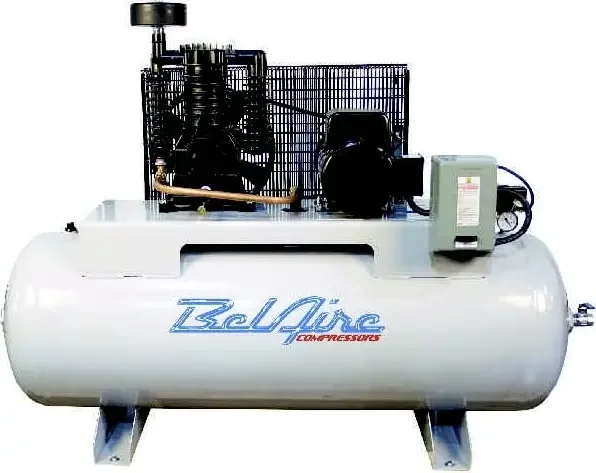

BelAire 318VLE 8HP 80gal horizontal two-stage electric air compressor

BelAire Air Compressor 318HLE Elite Series 7.5 HP 80 Gallon Two Stage 208-230V 1 Phase

Part #:318VLE
Brand: BelAire Compressors
$0.00 - $0.00
$0.00
$3,904.00
$3,904.00 - $3,904.00
$3,904.00
Call/Text Us: 866-774-7743 Call Us

Description

-

BelAire 318HLE Elite Series 7.5 HP 80 Gallon Compressor

The BelAire 318HLE Elite Series 7.5 HP 80-Gallon Two-Stage Air Compressor is engineered for demanding applications requiring consistent and high-volume compressed air. Its robust 7.5 horsepower motor, operating on a 208-230V Single Phase power supply, drives a two-stage pump that efficiently delivers up to 22.3 CFM at 100 PSI, ensuring reliable performance for heavy-duty tasks. The 80-gallon horizontal ASME-certified tank provides ample air storage, reducing the frequency of motor cycling and enhancing overall system efficiency. Designed with durability in mind, the compressor features solid cast iron cylinders and an oil sight glass for easy maintenance.

Safety is prioritized with an ASME code tank and safety valves, while the fully enclosed high-flow belt guard ensures safe operation. This compressor is ideal for professional workshops, automotive service centers, and industrial environments where continuous, high-capacity air supply is essential.

Click on the manual link below for warranty information.


Product Features

  • Solid Cast Iron Cylinder Sleeve 2 Stage Pump
  • Delivers 22.3 CFM at 100 PSI
  • Rugged components provide long-lasting dependability
  • Start / Stop Pressure Switch Controls
  • Save time & energy
  • ASME Tank & Safety Valve
  • 80 gallon air reserve for big jobs or multiple users
  • 3/4" air outlet; 175 PSI maximum pressure
  • 2 Year Bumper To Bumper Factory Warranty
  • No additional purchase necessary
  • Fully Enclosed High-Flow Belt Guard
  • Protects the belt & the operator
  • Manual Air Tank Drain
  • Makes tank simple to maintain
  • 208 Volt Or 230 Volt Single Phase Power
  • Easily wires into either your 208V-1 or 230V-1 system
  • CPXHT25 dryer recommended (not included)

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208-230 Volt AC
Phase Single Phase
Magnetic Starter Yes
Amp Draw Consult Certified Electrician
Recommended Breaker 60 Amp Breaker

Engine

HP 7.5

Pump

CFM 22.3
CFM Rated @ 100 PSI
Pump Material Aluminum w/ Cast Iron Sleeve
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubrication
Pump Low Oil Shut-off Yes

Tank

Tank Size 80 Gallons
Tank Outlet 3/4 Inch
Electronic Drain Valve No
Tank Orientation Horizontal

Accessories

Pressure Gauge Yes
Air Dryer No

Overview

Weight 548 Pounds
Certification ASME
Consumer Warranty 2 Year
Commercial Warranty 2 Year
Product Length 71 Inches
Product Width 24 Inches
Product Height 49 Inches
Power Type Electric

Specifications

-
Air dryer No
Electronic drain valve No
Magnetic starter Yes
Overall length 39"
Overall weight 477 Lbs
Overall width 24
Phase Single Phase
Pump material Aluminum w/ Cast Iron Sleeve
Tank orientation Horizontal
Tank outlet 3/4"
Tank size gallons 80
Voltage 208-230V
