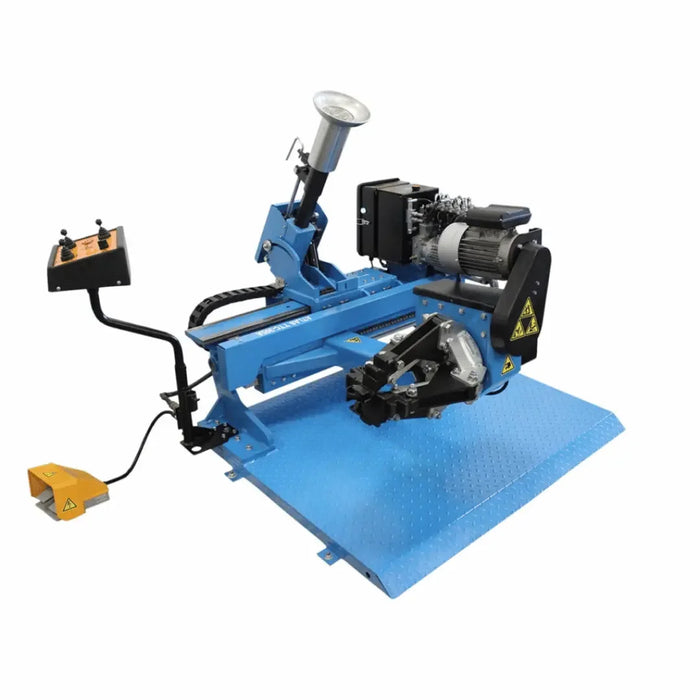

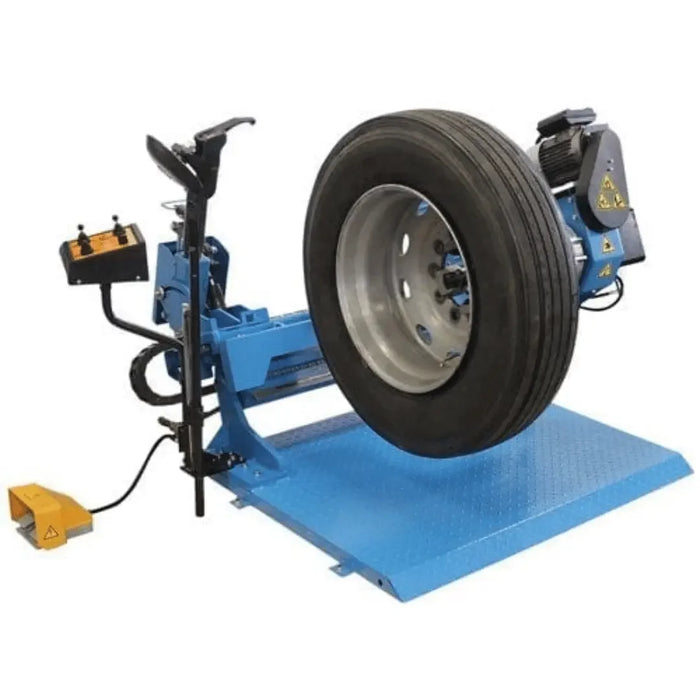

Atlas TTC305A Automated Truck Tire Changer

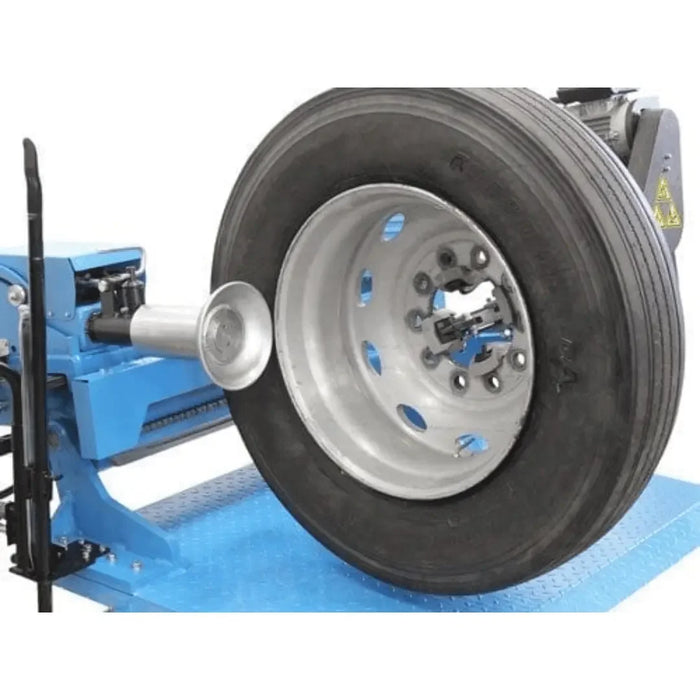

The Heavy Duty Atlas® TTC305A automatic truck tire changer is designed and engineered to handle rim bore sizes from 8 inches to 26 inches and tire diameters in excess of 55 inches. The fully automatic Atlas® TTC305A truck tire changer can easily accommodate tires with a maximum width of 30 1/2 inches. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the most well respected wheel service equipment manufacturer in Asia.

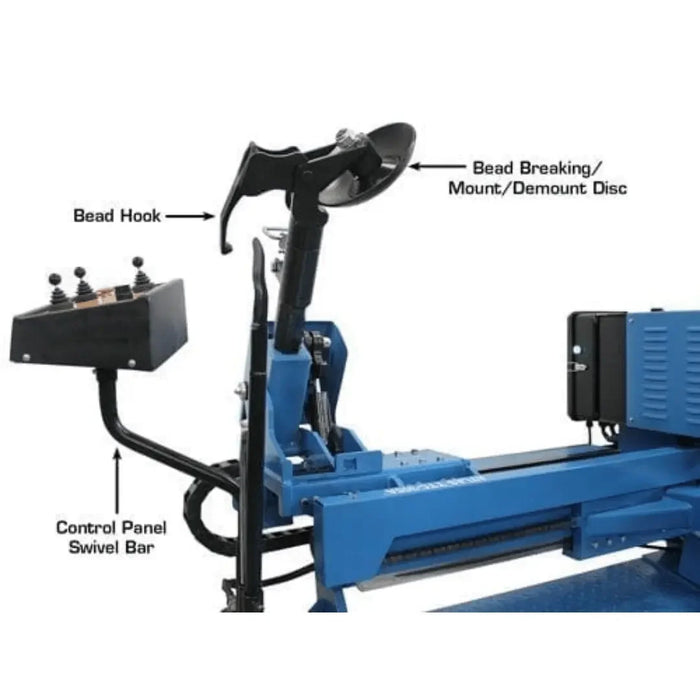

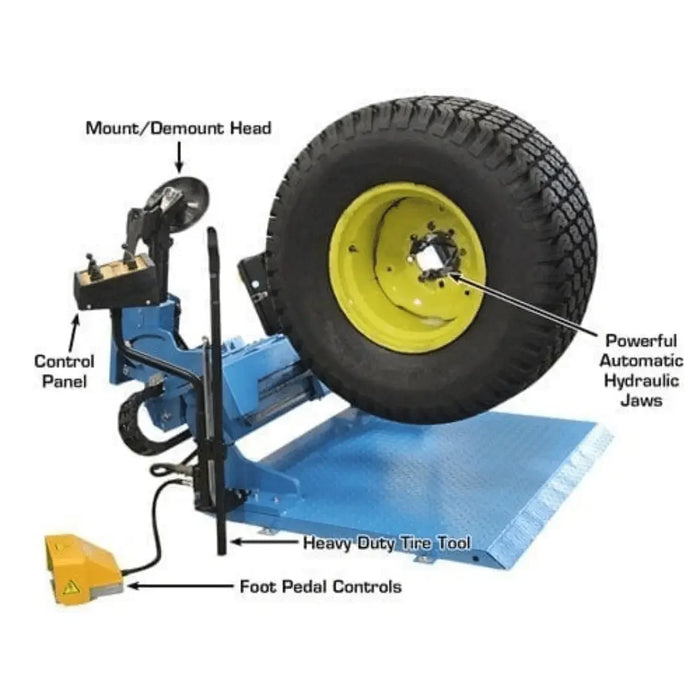

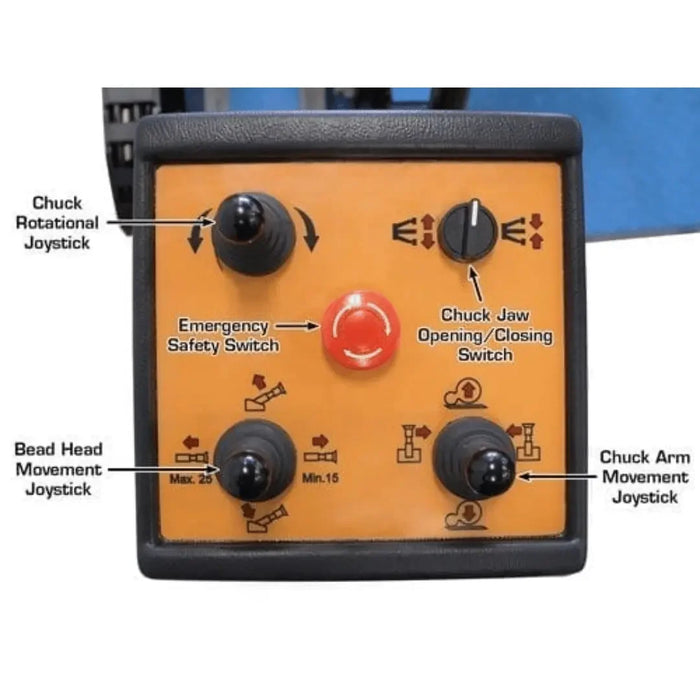

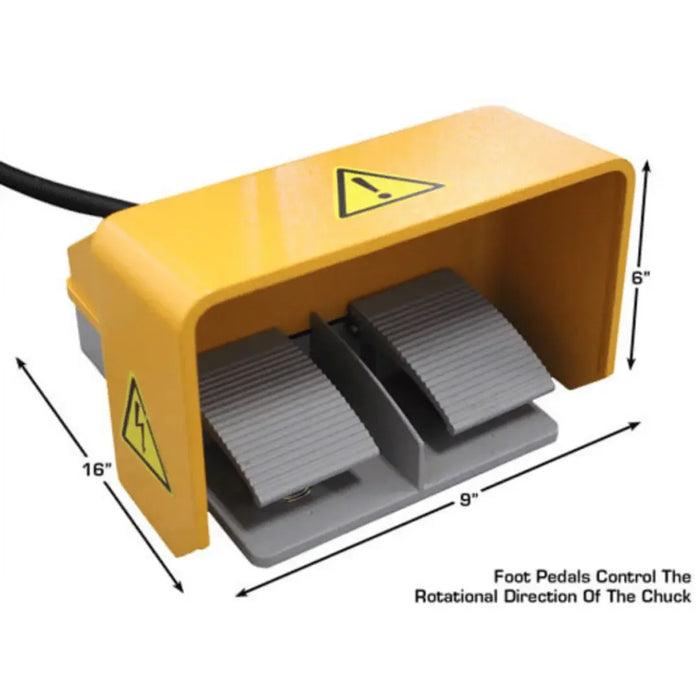

The Atlas® TTC305A truck tire changer features a single speed hydraulic chuck with five (5) locking rim positions. The ergonomic toggle control panel and foot pedals control the automatic operation of the truck tire changer. The main panel allows the technician to control the automatic movement of the chuck arm, the automatic positioning of the bead tool (raise and lower) and the automatic movement of the carriage to align the bead tool with the tire. The foot pedals control the rotational direction of the chuck. The Atlas® TTC305A comes with a standard mount/demount head and a super fast roller head that can be swapped out in very little time. There is an emergency safety switch on the control panel that can stop all functions immediately.

This is the perfect automatic tire changer for high production shops that change semi-tires, 19.5 tires and forklift tires. Quit using tire irons and a strong back! Let the Atlas® TTC305A take the hard work out of changing those tires that are too big for your passenger tire wheel clamp tire changer.

Product Features

Fully Automatic Truck Tire Changer

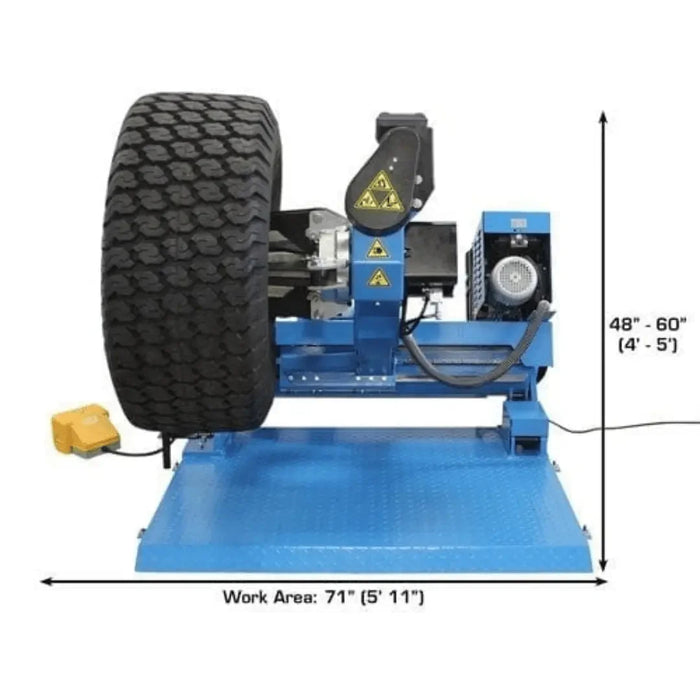

Handles rims from 8″ to 26″ and tire diameters in excess of 55″
Accommodates tires with a max width of up to 30 1/2″
Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm
Bead Breaker

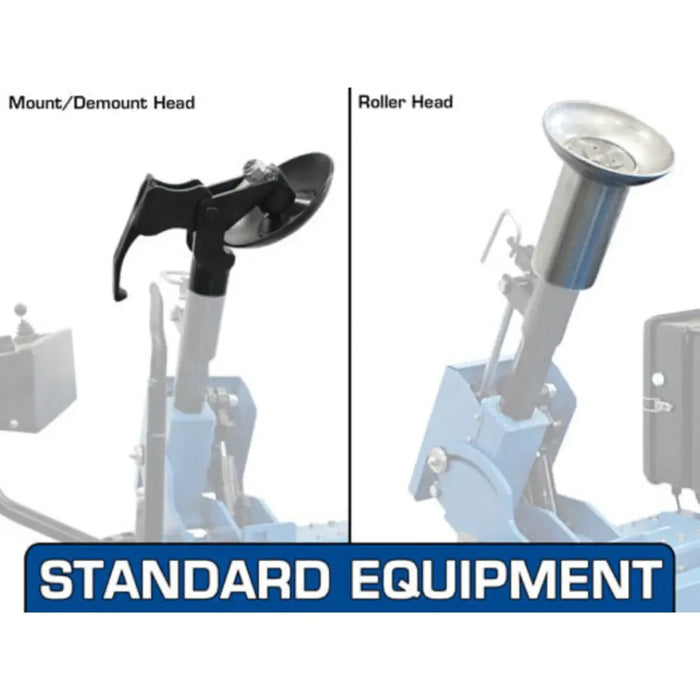

Interchangeable Mount/Demount and Roller Heads
Electric/Hydraulic Self-Centering Four Jaw Chuck
5 different rim locking positions
Mounted Control Unit w/ additional Foot Pedal Controls

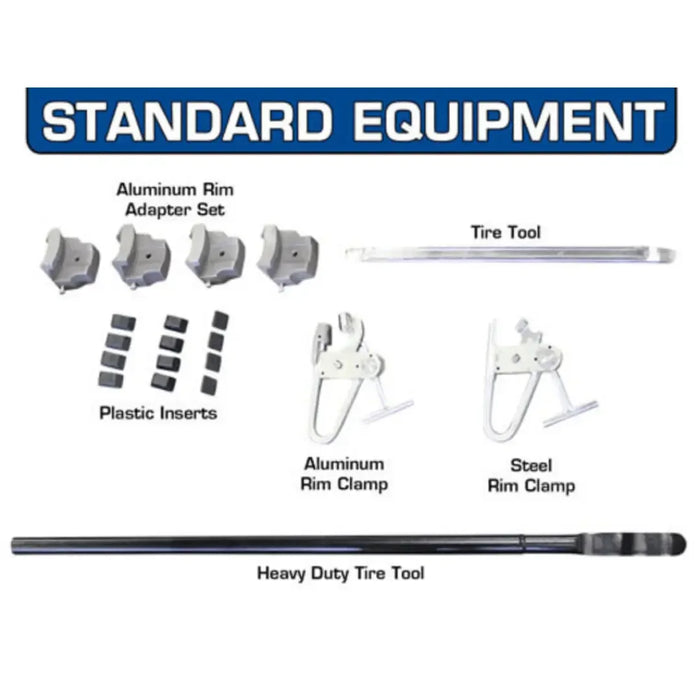

Heavy Duty Tire Tool Included
Rim Clamps for Steel and Alloy Wheels Included
Alloy Rim Adapter Set w/ Plastic Inserts Included
1 Year Parts Only Warranty

Product Specifications

Model	TTC305A

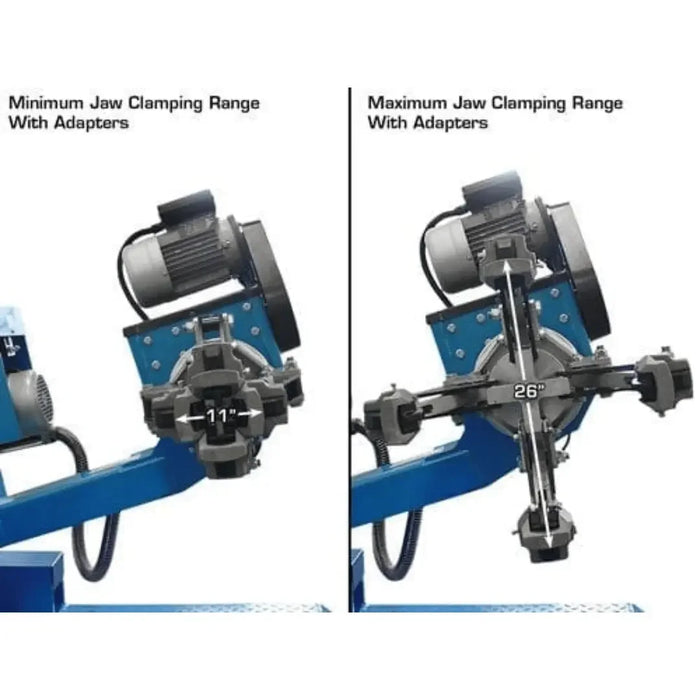

Rim Clamping Range	13" - 26"
Minimum Clamping Size W/ Alloy Adapters	8"
Max Wheel Weight	838 lbs.
Maximum Tire Diameter	55"
Max Tire Width	30 1/2" (2' 6 1/2")
Clamping Power	6,600 lbs.
Operating Pressure	0-1885 PSI
Acoustic Pressure	<70dBA
Bead Breaker Force	3990 lbs.Tool Arm Positioning
Tool Arm Positioning	Automatic
Tool Head Positioning	Automatic
Construction	Single Piece Frame w/ Solid Floor Plate

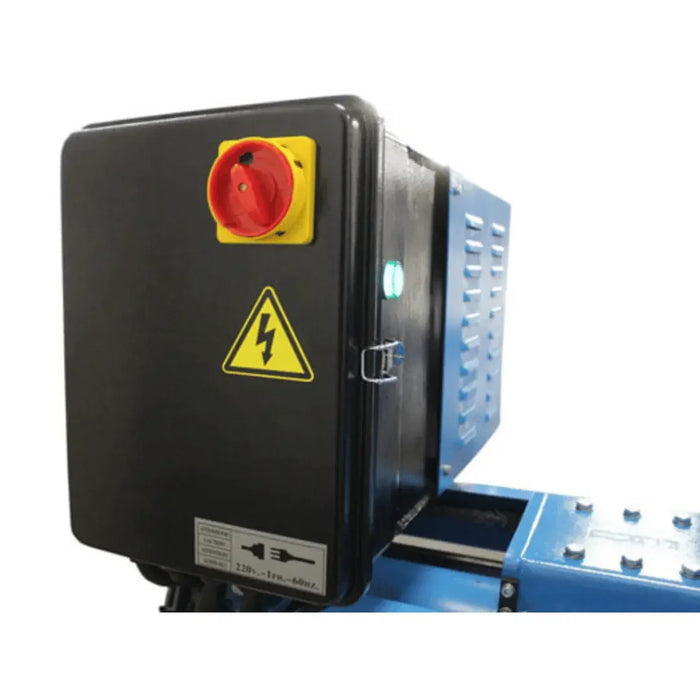

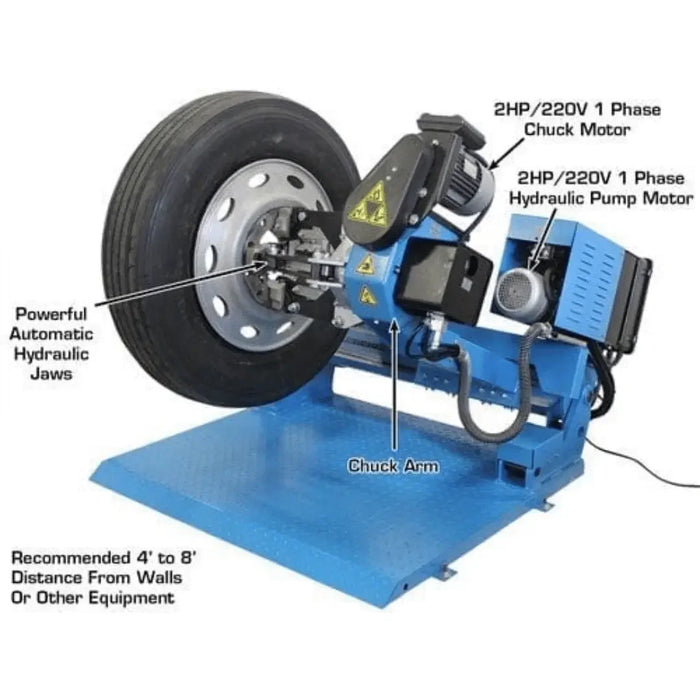

Hydraulic Motor Power	2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
Chuck Motor Power	3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

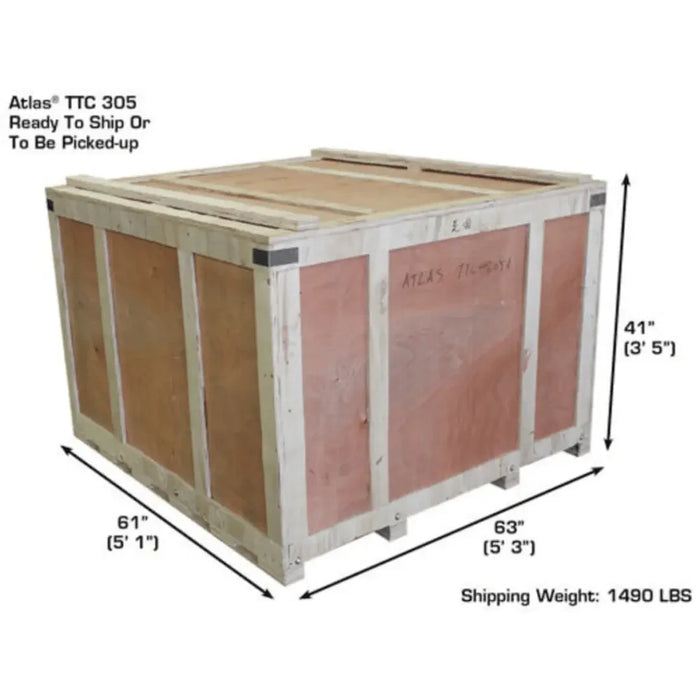

Shipping Weight	1,490 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Upc	810524000000

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
