TC306 Tire Changer + WBT-210 Wheel Balancer Combo Package

Name: TC306 Tire Changer + WBT-210 Wheel Balancer Combo Package
Brand: Atlas
Price: 19049.0 USD
Availability: InStock

Part #:ATETTCWB-COMBO4

Brand: Atlas

$0.00 - $0.00

$0.00

$19,049.00

$19,049.00 - $19,049.00

$19,049.00

Call/Text Us: 866-774-7743 Call Us

Description

-

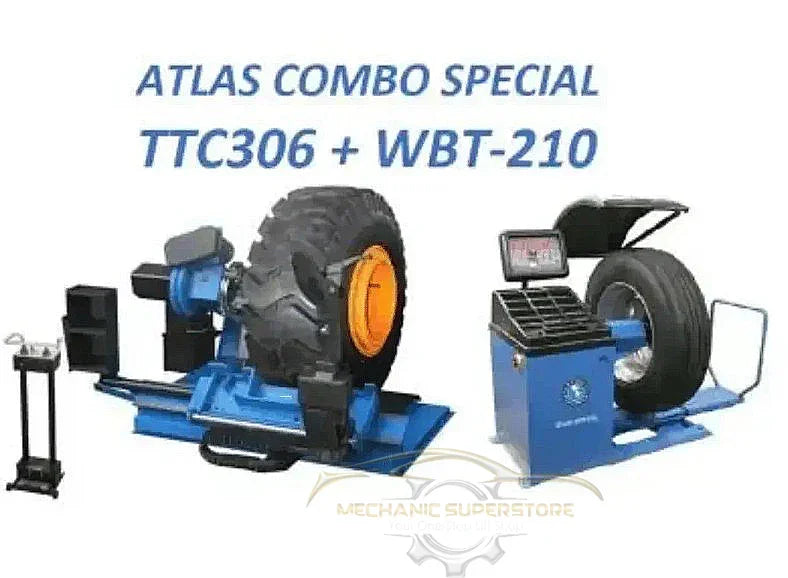

Atlas TC306 Tire Changer + WBT-210 Wheel Balancer Combo Package

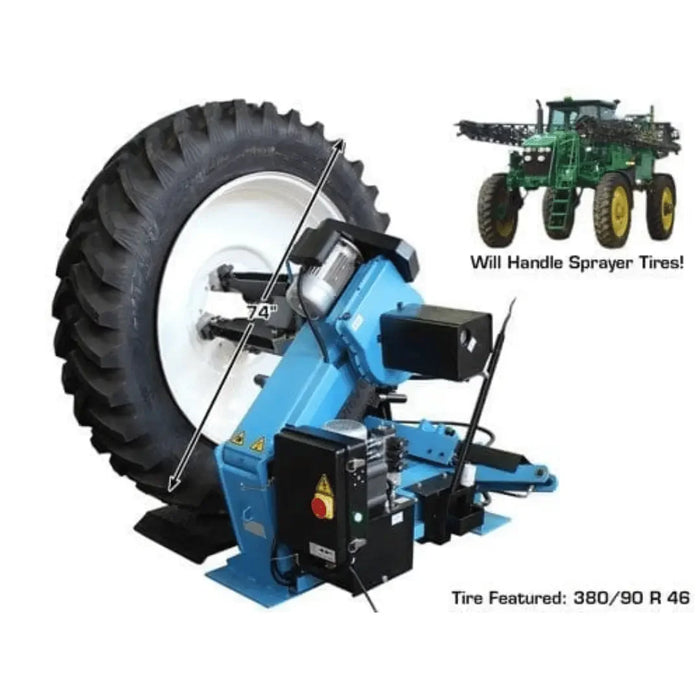

This Combo Package includes the Atlas® TC306 truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Atlas® TTC306 tire machine is very similar to the Atlas® TTC303, but with several additional features. The remote control allows the operator to move the bead breaker disc and mount/demount head automatically. This Super Duty Atlas® truck tire changer is designed and engineered to handle rim sizes from 14 inches to 56 inches and tire diameters in excess of over 97 inches. The Atlas® TTC306 Truck Tire Changer can easily accommodate tires with a maximum width of up to 53 inches. This is the perfect tire changer for those companies that need the extra capacity to change large agricultural and earthmover tires. The Deluxe TTC306 has identical features of those truck tire changers costing over $20,000..

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized ” gumbo-mudders ” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

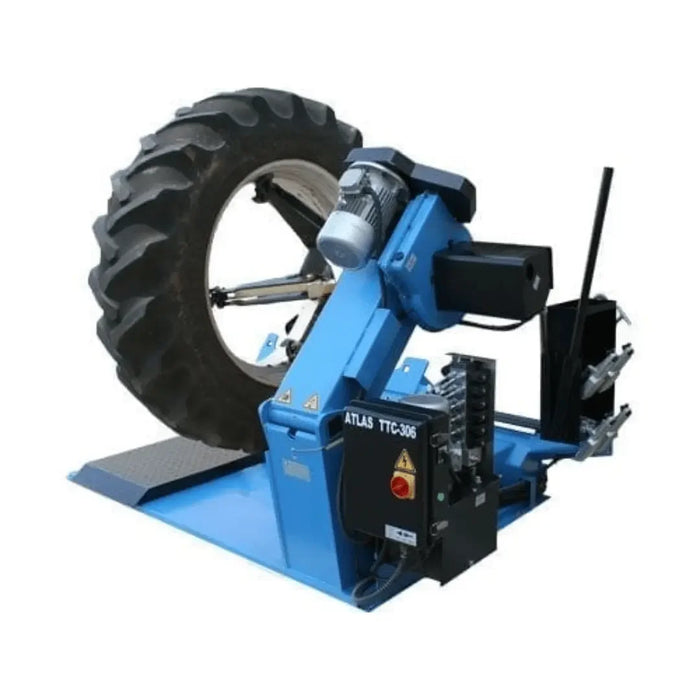

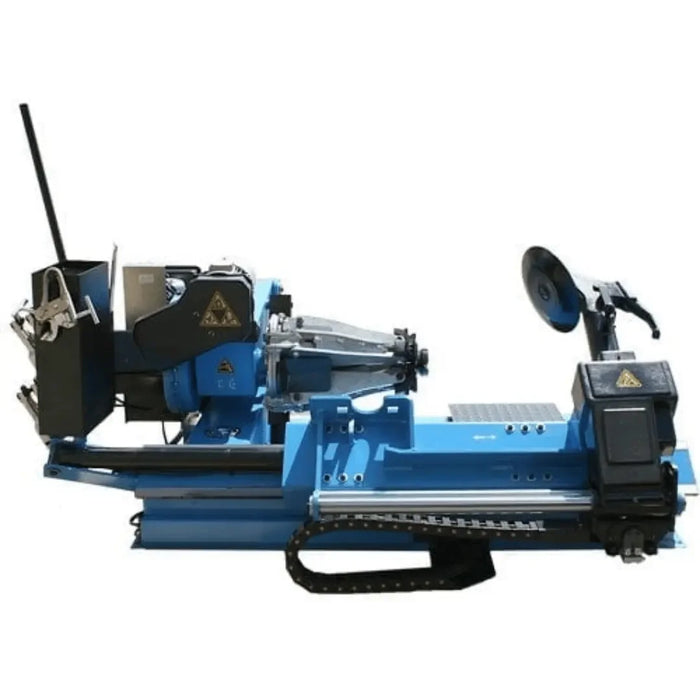

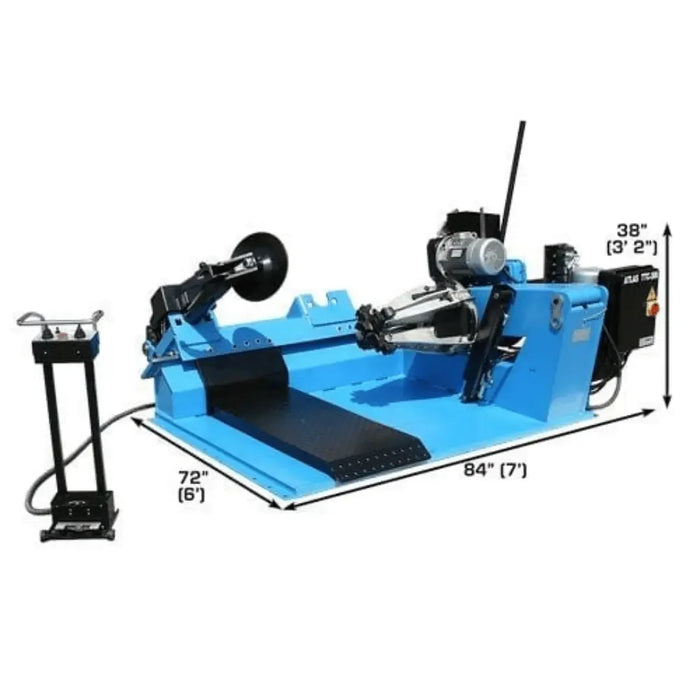

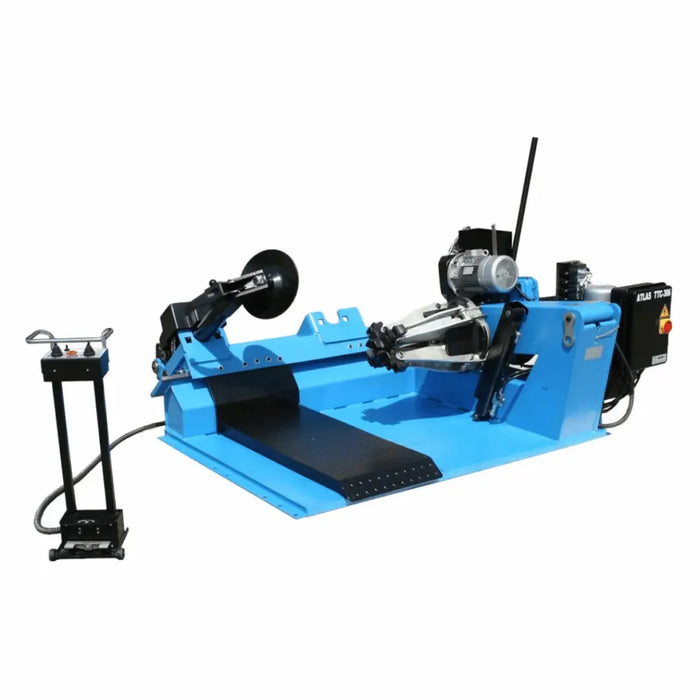

TC306 Tire Changer

Deluxe Automated Truck Tire Changer
220 VOLT 3 PHASE ELECTRIC
2-Speed Hydraulic Chuck w/ 5 Rim Locking Positions

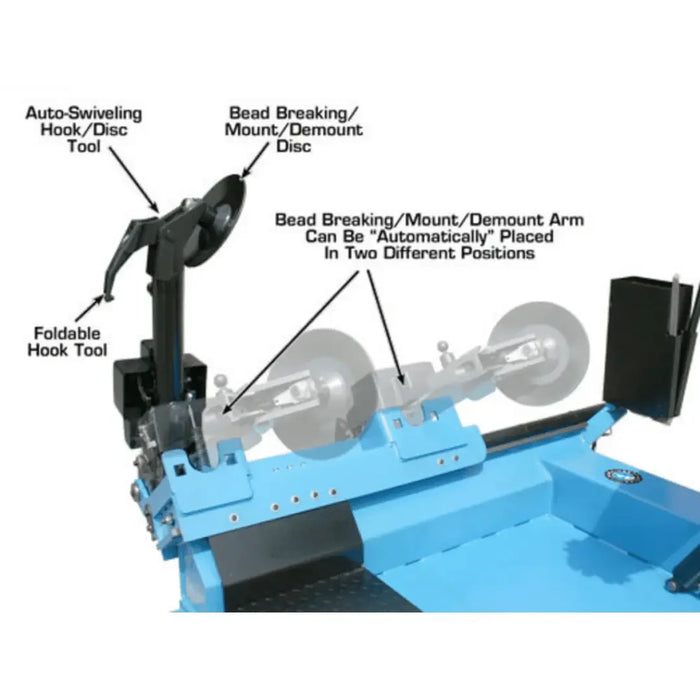

Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

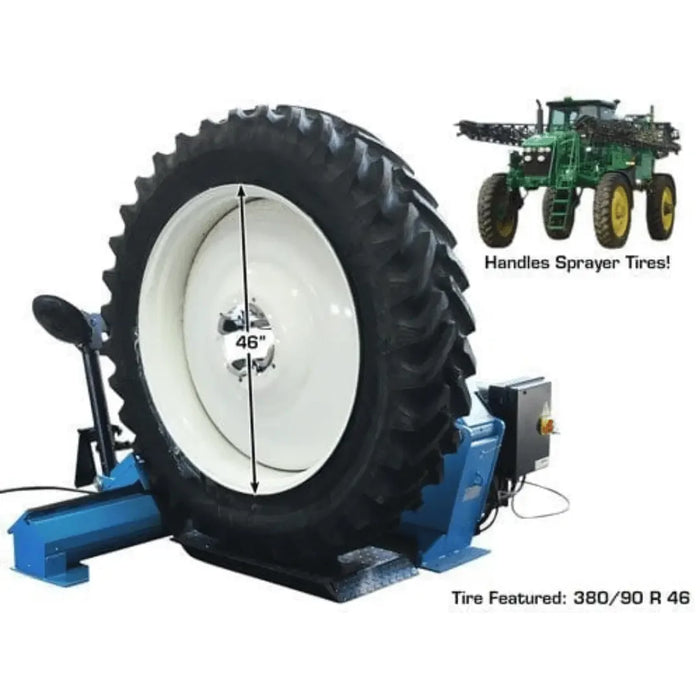

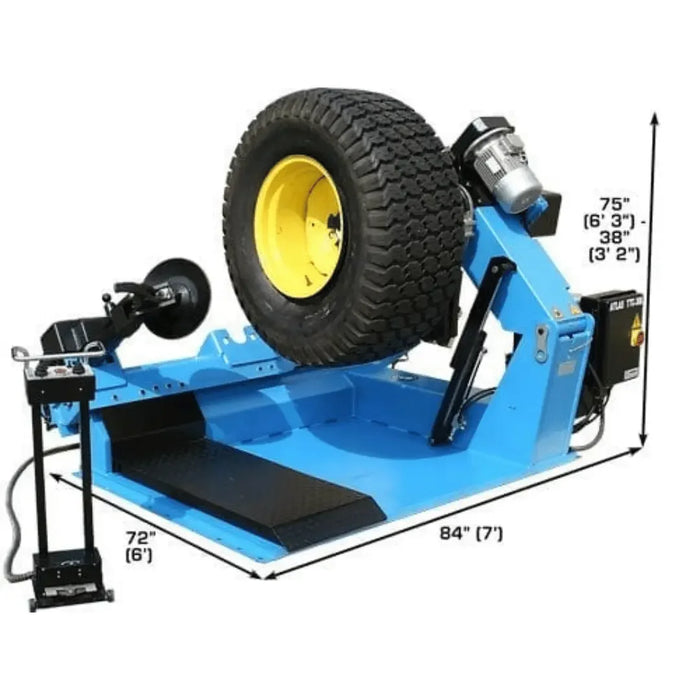

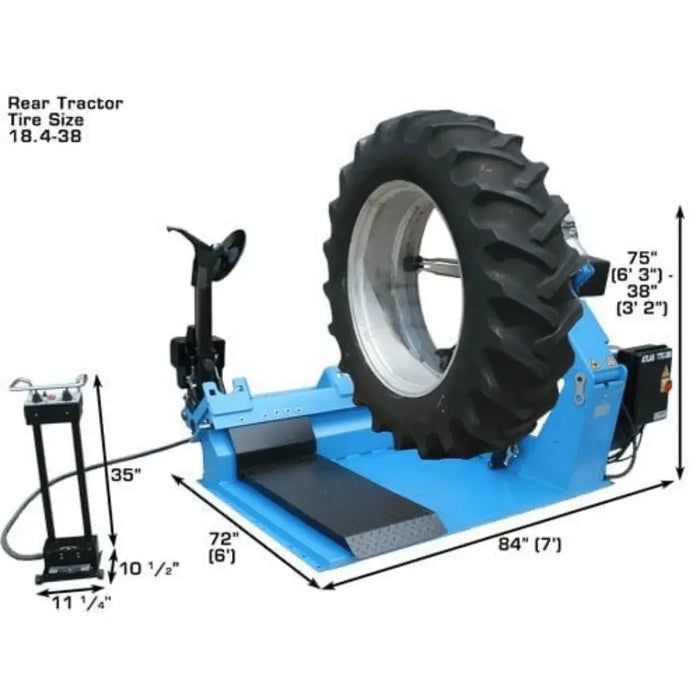

Handles rims from 14″ to 56″ and tire diameters in excess of 97″
Accommodates tires with a max width of up to 53″
Bead Breaker

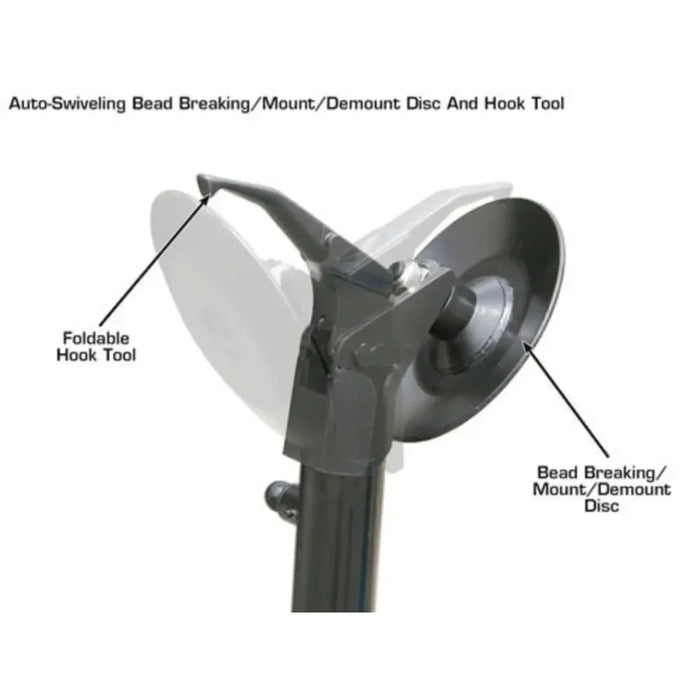

Mount/Demount Head

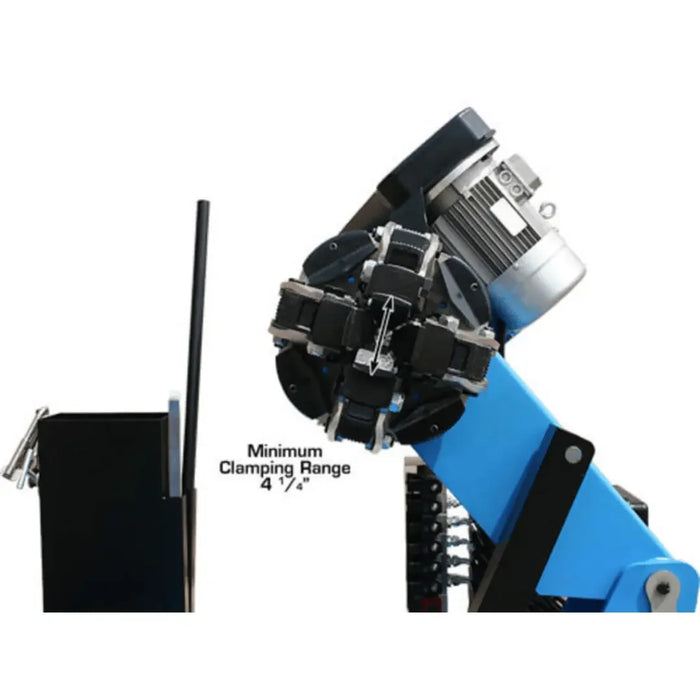

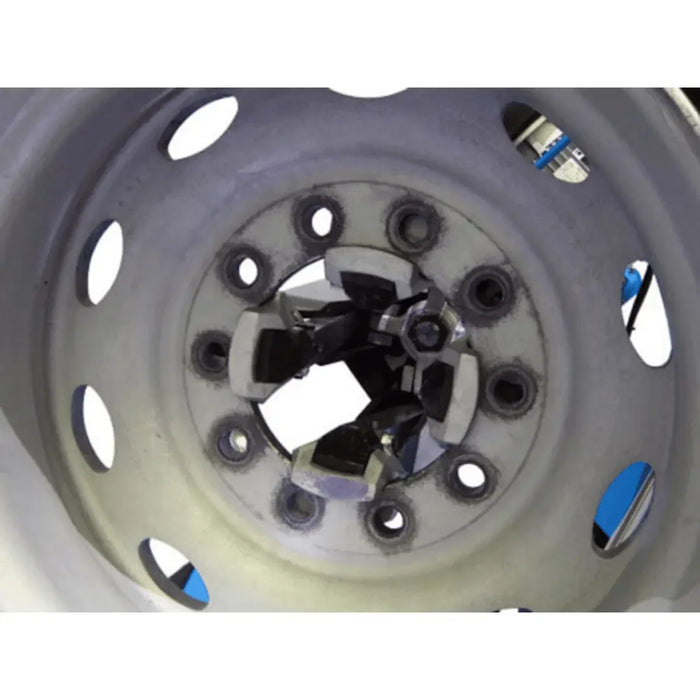

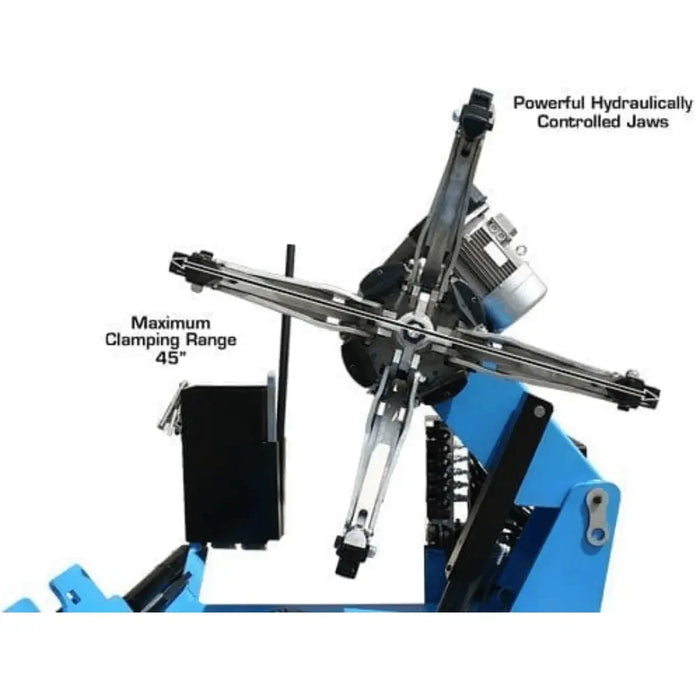

Electric/Hydraulic Self-Centering Four Jaw Chuck
5 different rim locking positions

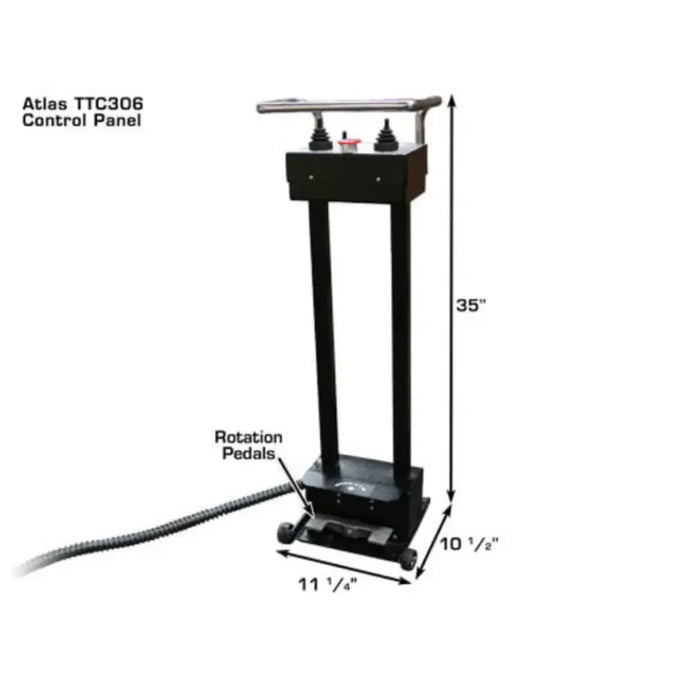

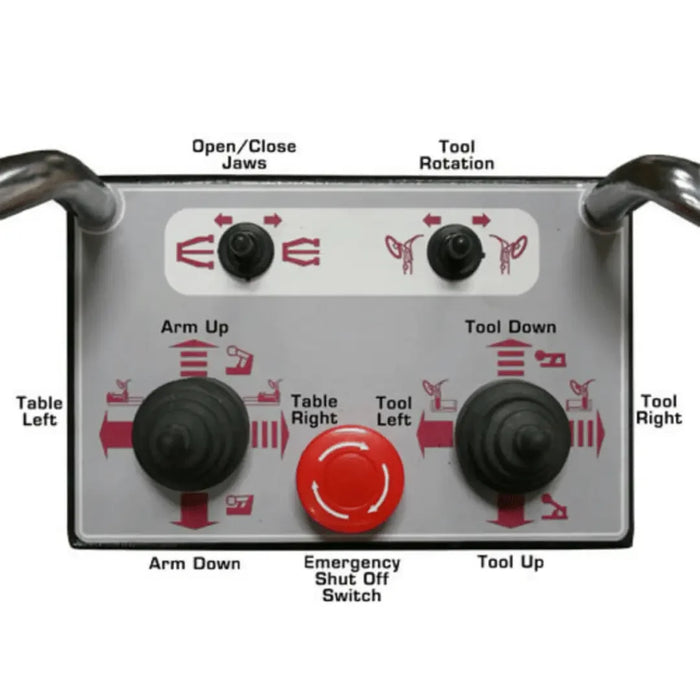

Wired Mobile Control Unit (Wireless Control Optional)
Heavy Duty Tire Tool Included

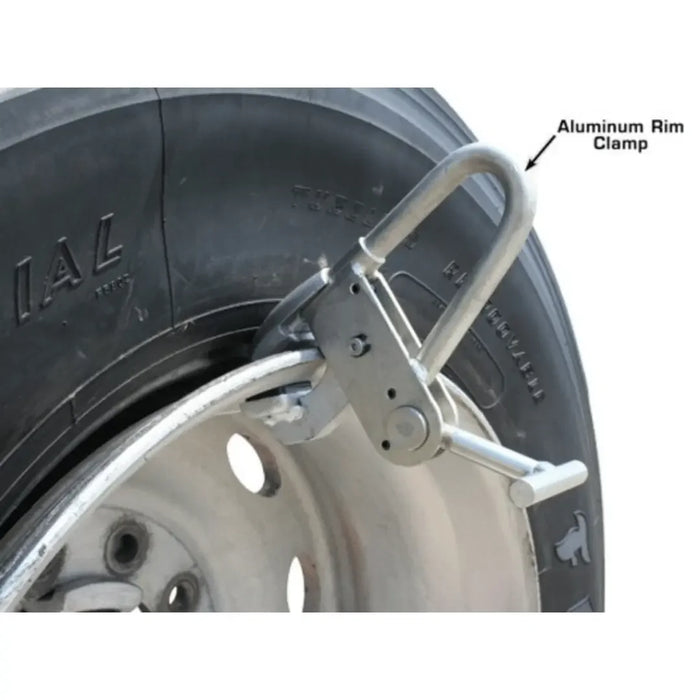

Rim Clamps for Steel and Alloy Wheels Included

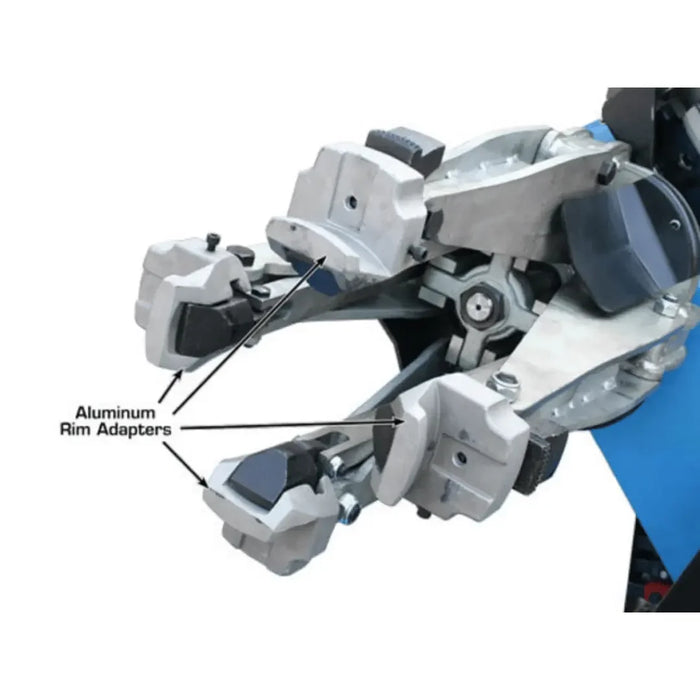

Alloy Rim Adapter Set w/ Plastic Inserts Included
Clamping Extensions Included
1 Year Parts Only Warranty

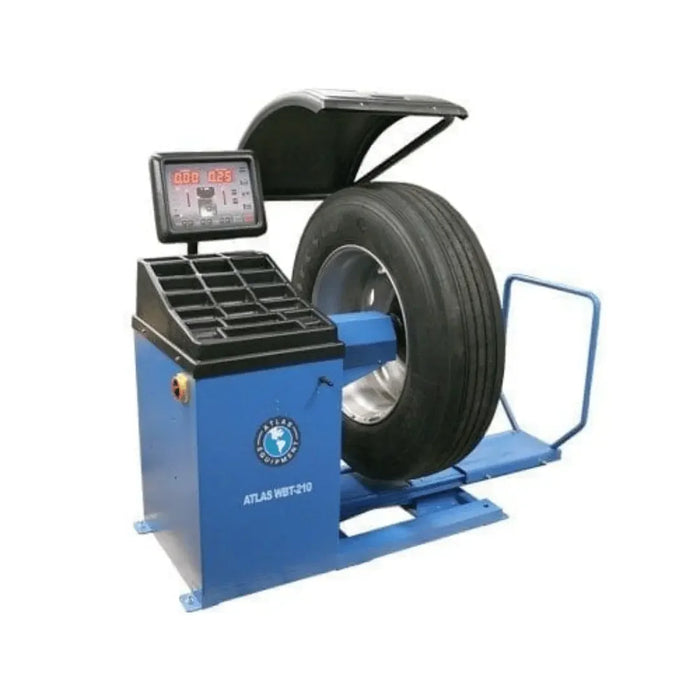

WBT-210 Wheel Balancer

Computer Controlled Heavy Duty Spin Balancer
Cone sets for car and light truck tires included
Cone and spacer set for truck, bus, or implement tires included
Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included
Pneumatic wheel lift (external air supply required - NOT INCLUDED)
Automatic start/stop when hood is lowered/raised

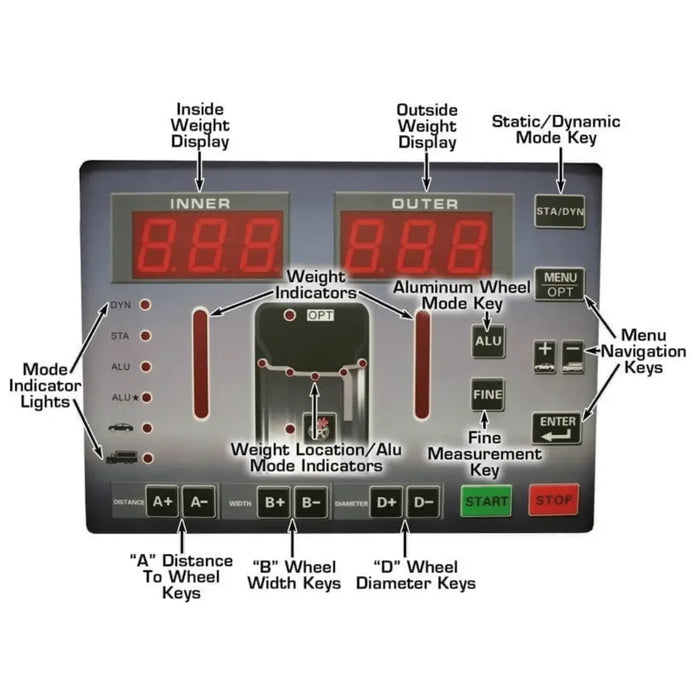

Static and dynamic balancing modes
Rapid optimization (OPT)
Self-Diagnosing and Calibrating
Exceptional stability in reading the unbalance between planes
Display in grams or ounces, and in mm or inches
Wheel Weight Pliers & Wheel Width Caliper Included
Replacement Parts & Wear Items Always in Stock
1 Year Parts Only Warranty

Product Specifications

Atlas® TC306 Specifications

Rims	Steel, Aluminum, Alloy
Rim Clamping Range	14" - 46"

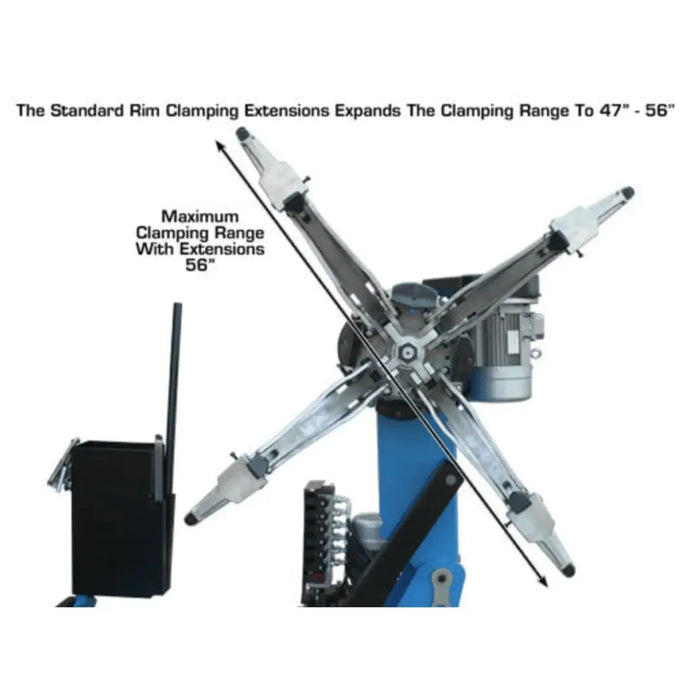

Max Clamping Size W/ Extensions	56"
Max Wheel Weight	3,968 lbs.
Maximum Tire Diameter	98" (8' 2")
Max Tire Width	42" (3' 6")
Clamping Power	13,173 lbs.
Operating Pressure	0-1885 PSI
Acoustic Pressure	<70dBA
Bead Breaker Force	5930 lbs.
Tool Arm Positioning	Automatic
Tool Head Positioning	Automatic
Construction	Single Piece Frame w/ Solid Floor Plate

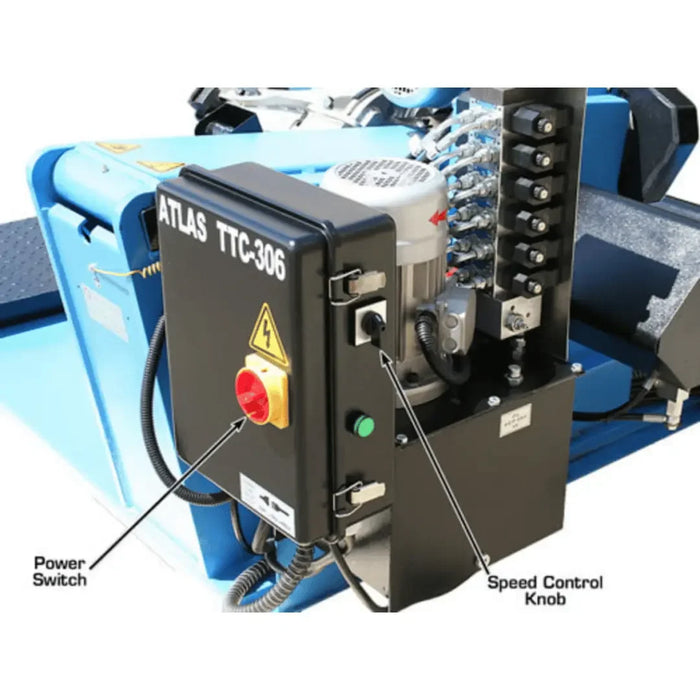

Hydraulic Motor Power	3 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
Chuck Motor Power	3.5-4 HP, 220v (+/- 5% 209-231 volts) 3phase, 30 amp breaker required
Shipping Weight	2,260 lbs.

Atlas® WBT-210 Specifications

Max Tire Diameter	43"
Rim Sizes (Cars And Light Trucks)	10"-30"
Rim Width	1 1/2"-20"
Shaft Size	40mm
Max. Wheel Weight	165 lbs.
Balancing Speed	130 RPM
Data Entry	Super Automatic 3D
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Cycle Time	7 Seconds
Power Supply	110volt
Shipping Weight	290 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Upc	810524029803

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
