Atlas TTC305A Tire Machine+ WBT-210 Wheel Balancer Combo Package

Name: Atlas TTC305A Tire Machine+ WBT-210 Wheel Balancer Combo Package
Brand: Atlas
Price: 15049.0 USD
Availability: InStock

Part #:ATETTCWB-COMBO2

Brand: Atlas

$0.00 - $0.00

$0.00

$15,049.00

$15,049.00 - $15,049.00

$15,049.00

Call/Text Us: 866-774-7743 Call Us

Description

-

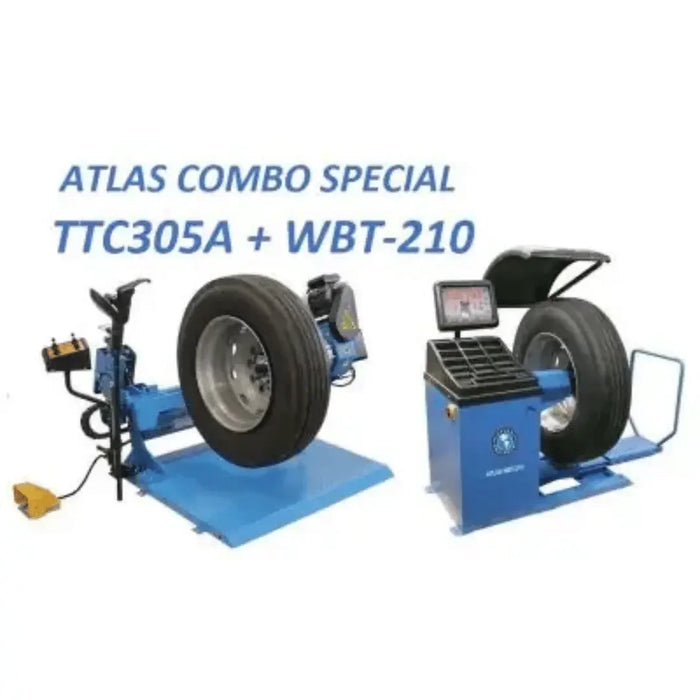

Tire Machine - Atlas TTC305A Tire Changer + WBT-210 Wheel Balancer Combo Package

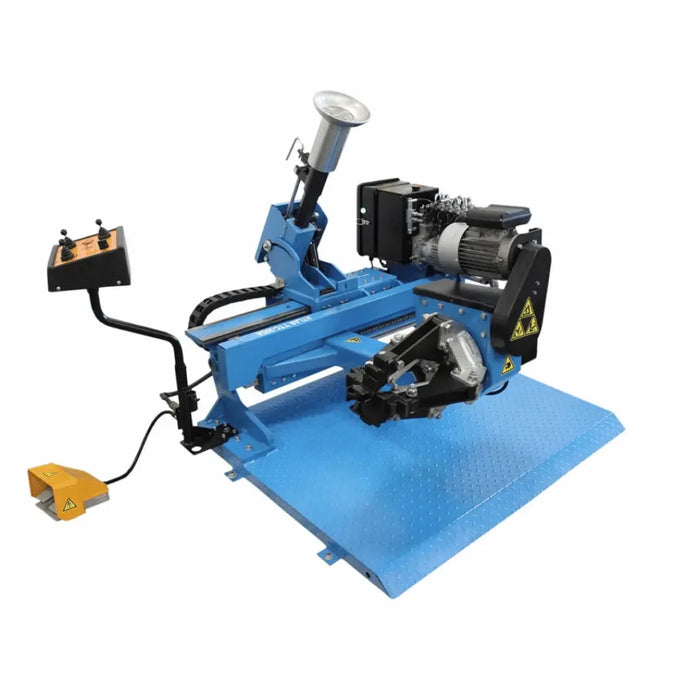

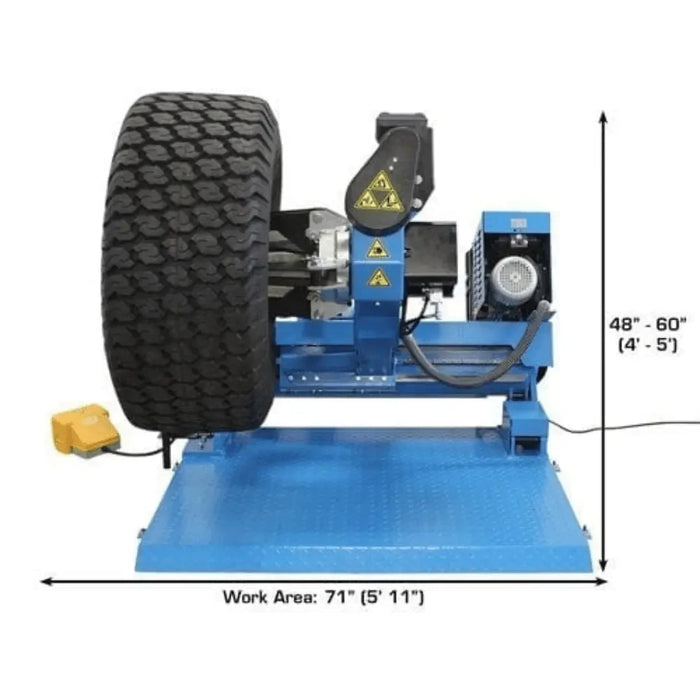

This Combo Package includes the Atlas® TC305A truck tire changer and the the heavy duty computerized Atlas® WBT-210 wheel balancer. The Atlas® TC305A automatic truck tire changer is designed and engineered to handle rim bore sizes from 8 inches to 26 inches and tire diameters in excess of 55 inches. The fully automatic Atlas® TC305A truck tire changer can easily accommodate tires with a maximum width of 30 1/2 inches. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the most well respected wheel service equipment manufacturer in Asia.

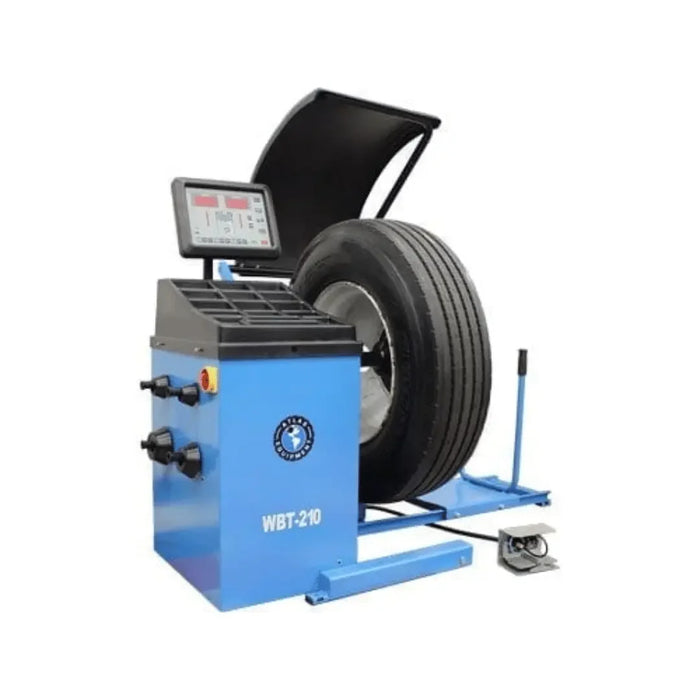

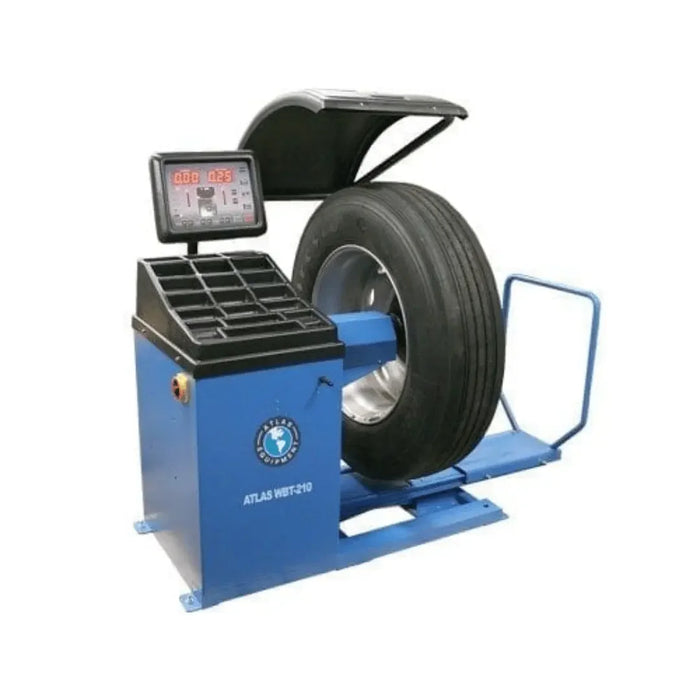

The Atlas® WBT-210 is the perfect wheel balancer for those shops that want one balancer that can balance a 14 inch steel rim up to and including a 300 pound semi-truck tire. There are many large (32 inch) custom wheels and over-sized ” gumbo-mudders ” that can easily be balanced on the Atlas® WBT-210 computer wheel balancer.

The Atlas® WBT-210 is the perfect computer spin balancer for those trucking companies that operate everything from passenger cars to light trucks to over the road semi tractor/ trailer rigs. The 40 mm heavy duty shaft accommodates the standard mounting cones for most cars and pickup trucks. There are several large truck adapters included with the package that will allow the operator to mount and balance most BUDD style wheels.

Product Features

TC305A Tire Changer

Fully Automatic Truck Tire Changer
Handles rims 8″ to 26″ and tire diameters in excess of 55″
Accommodates tires with a max width of up to 30 1/2″
Automatic movement and positioning of Bead Tool, Carriage, & Chuck Arm

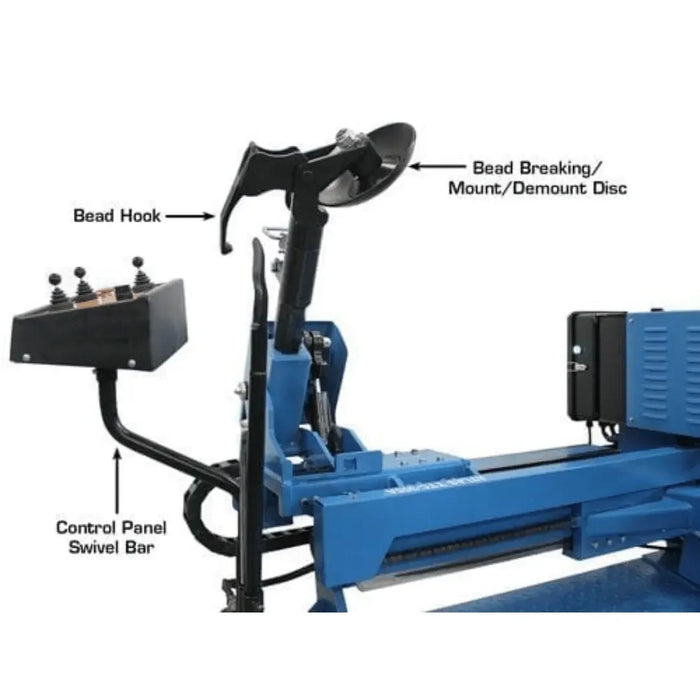

Bead Breaker

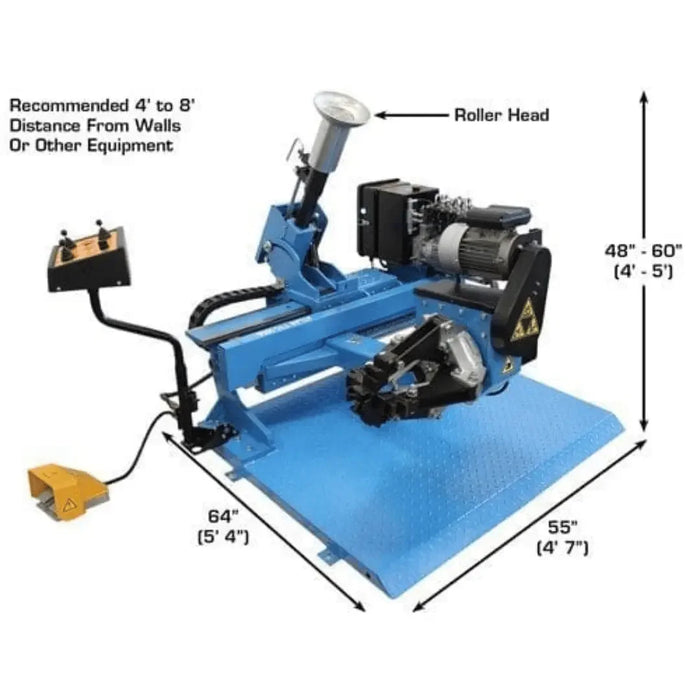

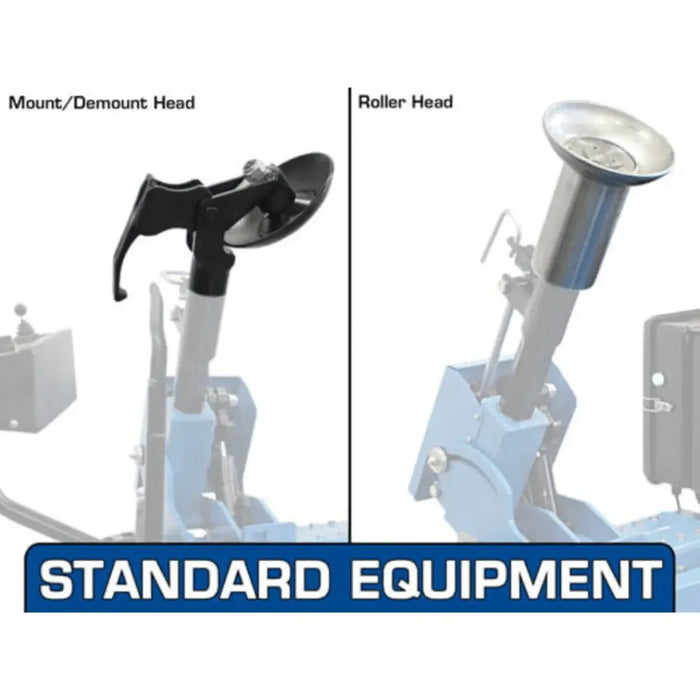

Interchangeable Mount/Demount and Roller Heads

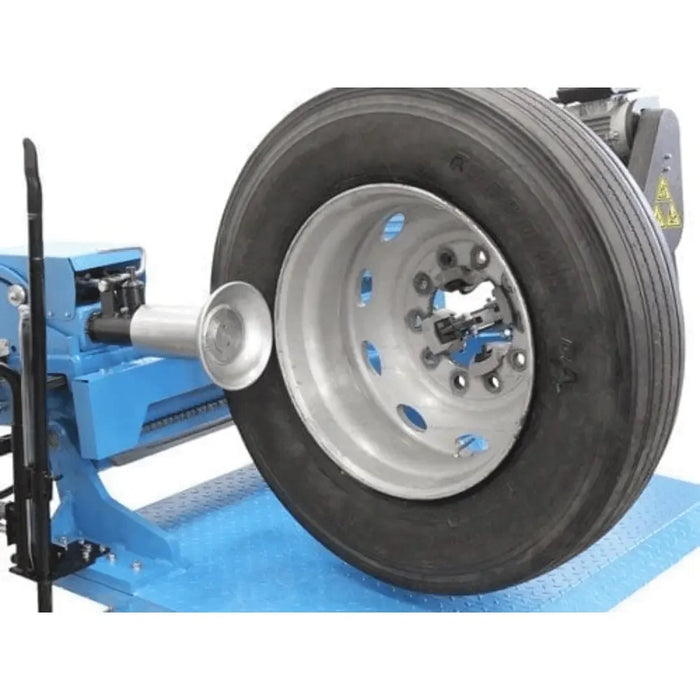

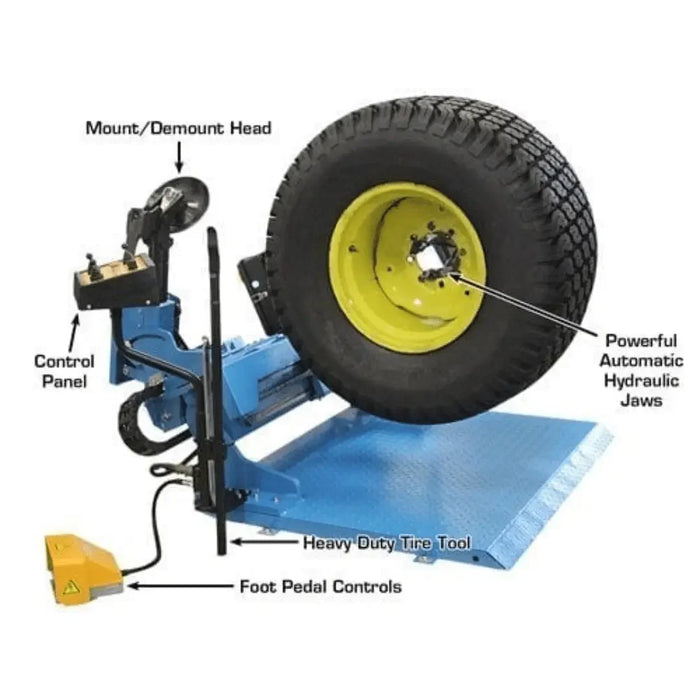

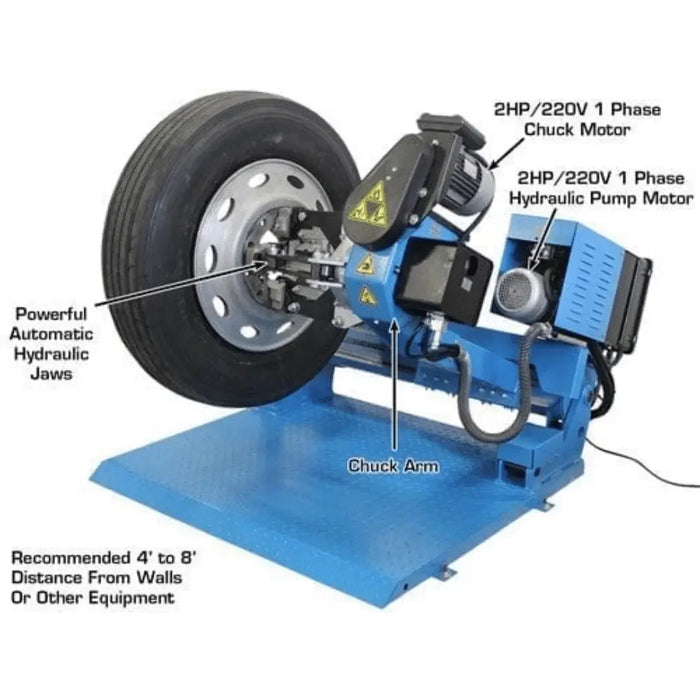

Electric/Hydraulic Self-Centering Four Jaw Chuck
5 different rim locking positions

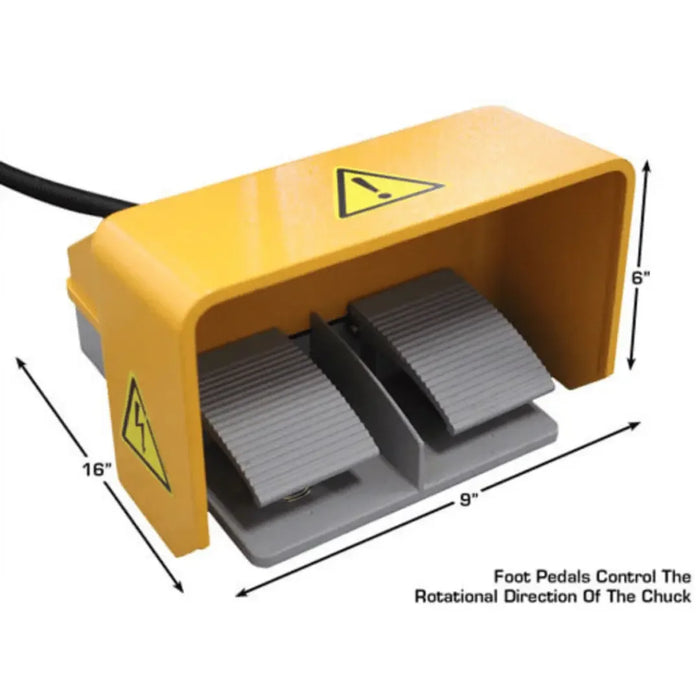

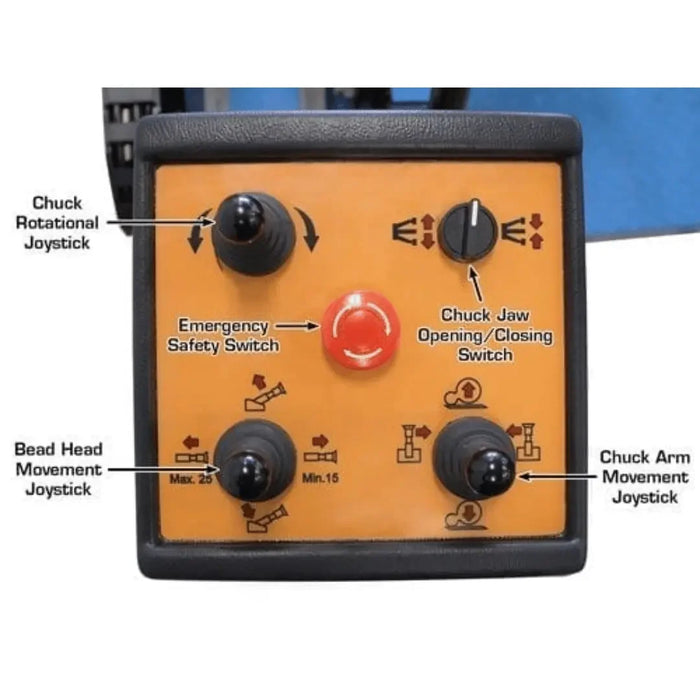

Mounted Control Unit w/ additional Foot Pedal Controls
Heavy Duty Tire Tool Included
Rim Clamps for Steel and Alloy Wheels Included
Alloy Rim Adapter Set w/ Plastic Inserts Included
1 Year Parts Only Warranty

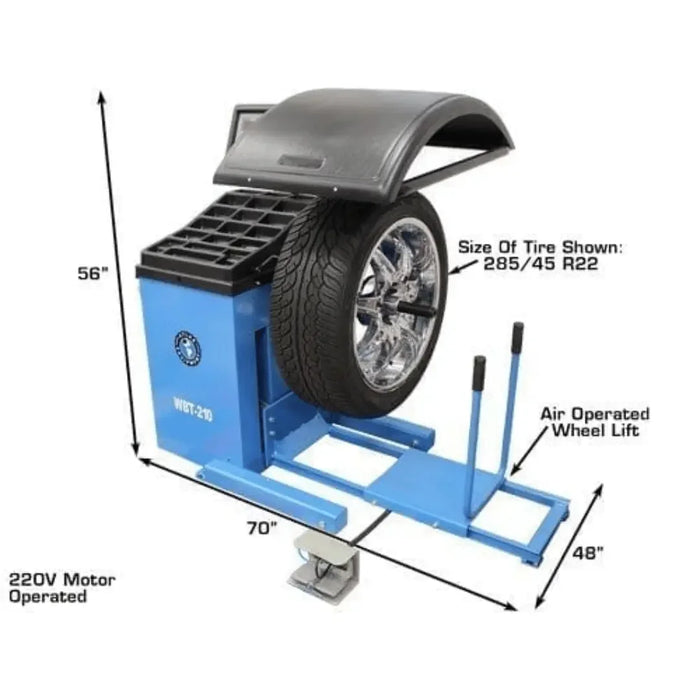

WBT-210 Wheel Balancer

Computer Controlled Heavy Duty Spin Balancer
Cone sets for car and light truck tires included
Cone and spacer set for truck, bus, or implement tires included
Plastic Quick Release Nut & Heavy-Duty Steel Wing Nut Included

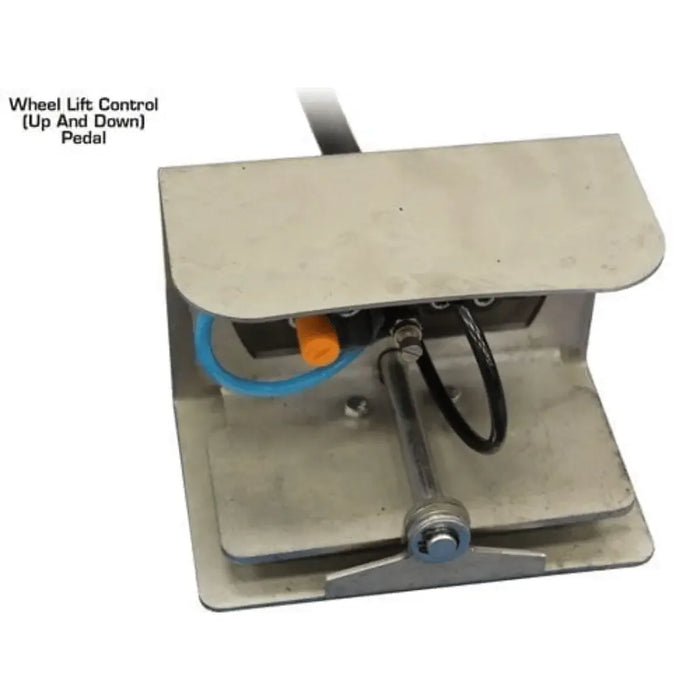

Pneumatic wheel lift (external air supply required - NOT INCLUDED)
Automatic start/stop when hood is lowered/raised

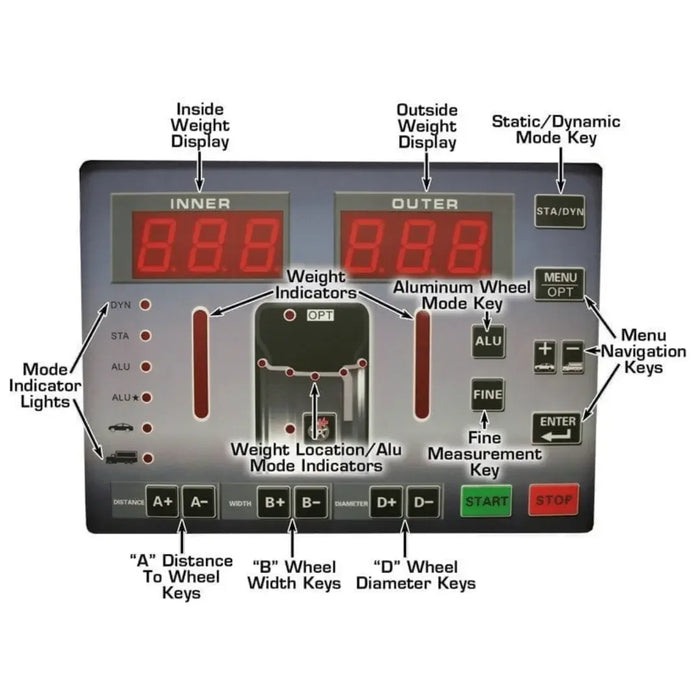

Static and dynamic balancing modes
Rapid optimization (OPT)
Self-Diagnosing and Calibrating
Exceptional stability in reading the unbalance between planes
Display in grams or ounces, and in mm or inches
Wheel Weight Pliers & Wheel Width Caliper Included
Replacement Parts & Wear Items Always in Stock
1 Year Parts Only Warranty

Product Specifications

Atlas® TC305A Specifications

Rims	Steel, Aluminum, Alloy

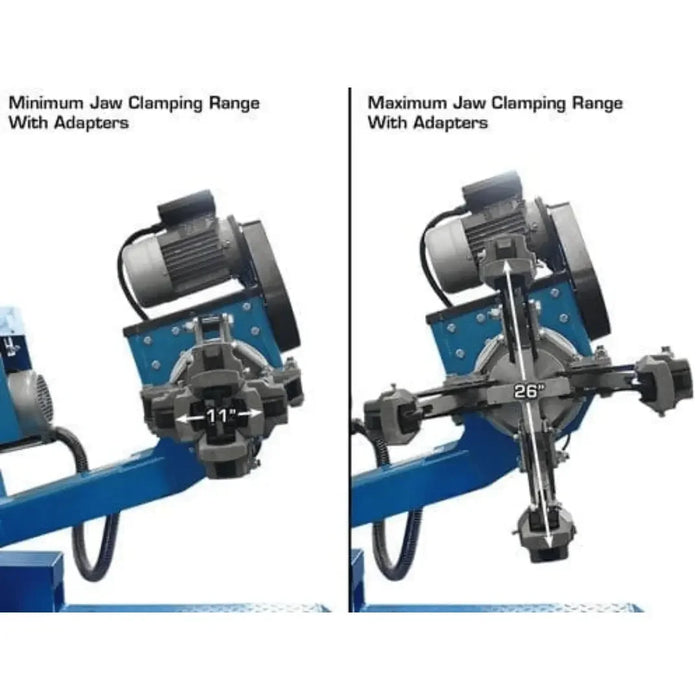

Rim Clamping Range	13" - 26"
Minimum Clamping Size W/ Alloy Adapters	8"
Max Wheel Weight	838 lbs.
Maximum Tire Diameter	55"
Max Tire Width	30 1/2" (2' 6 1/2")
Clamping Power	6,600 lbs.
Operating Pressure	0-1885 PSI
Acoustic Pressure	<70dBA
Bead Breaker Force	3990 lbs.Tool Arm Positioning
Tool Arm Positioning	Automatic
Tool Head Positioning	Automatic
Construction	Single Piece Frame w/ Solid Floor Plate

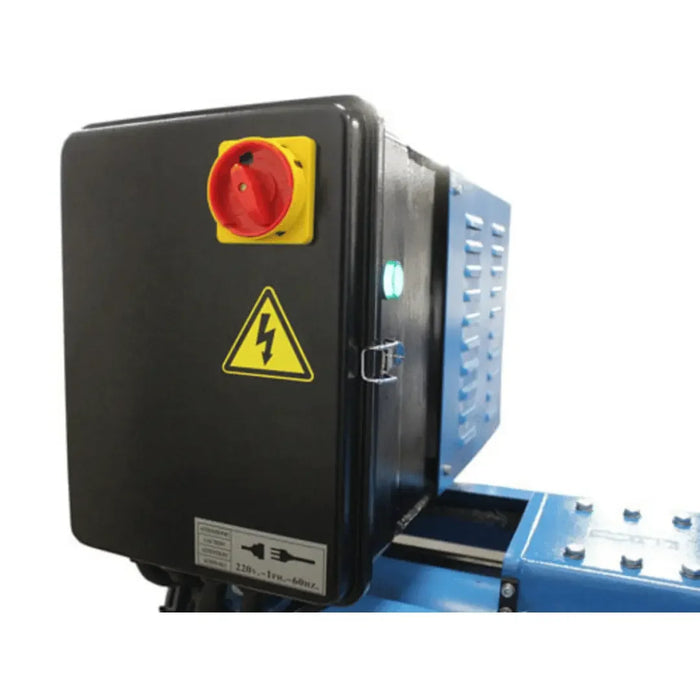

Hydraulic Motor Power	2 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required
Chuck Motor Power	3 HP, 220v (+/- 5% 209-231 volts) 1phase, 30 amp breaker required

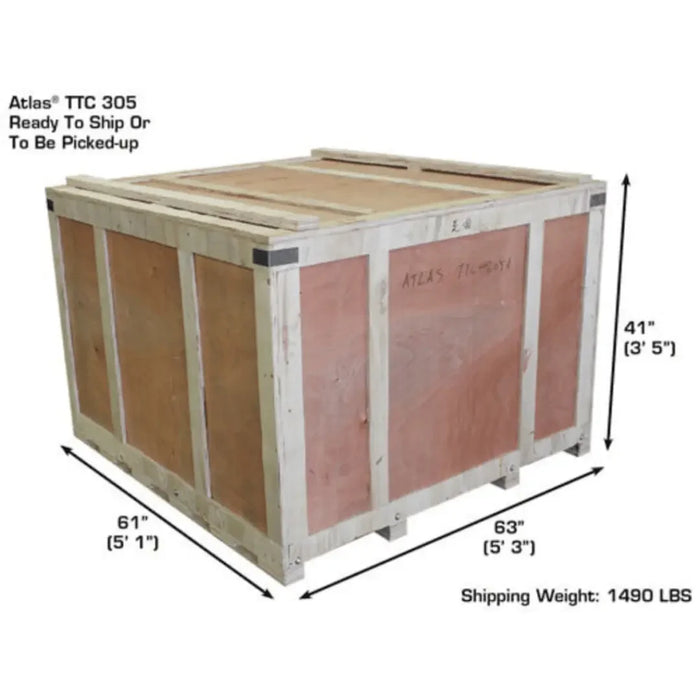

Shipping Weight	1,490 lbs.

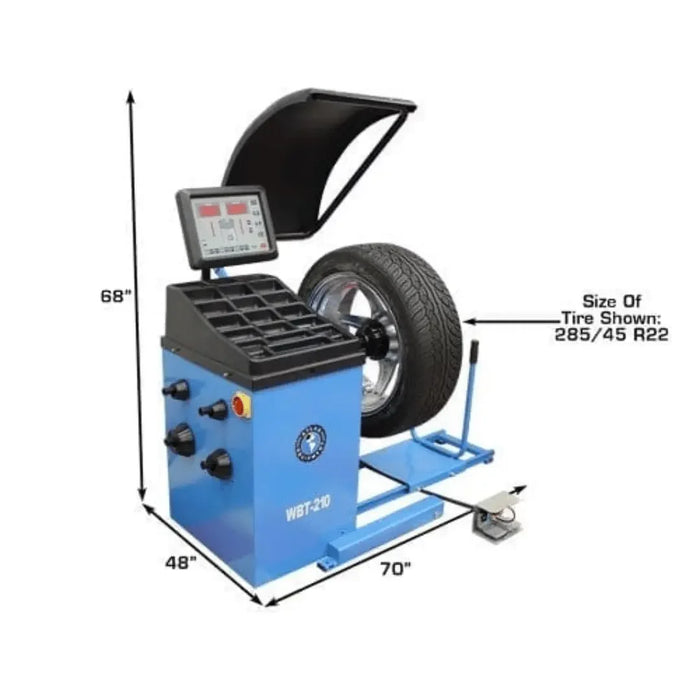

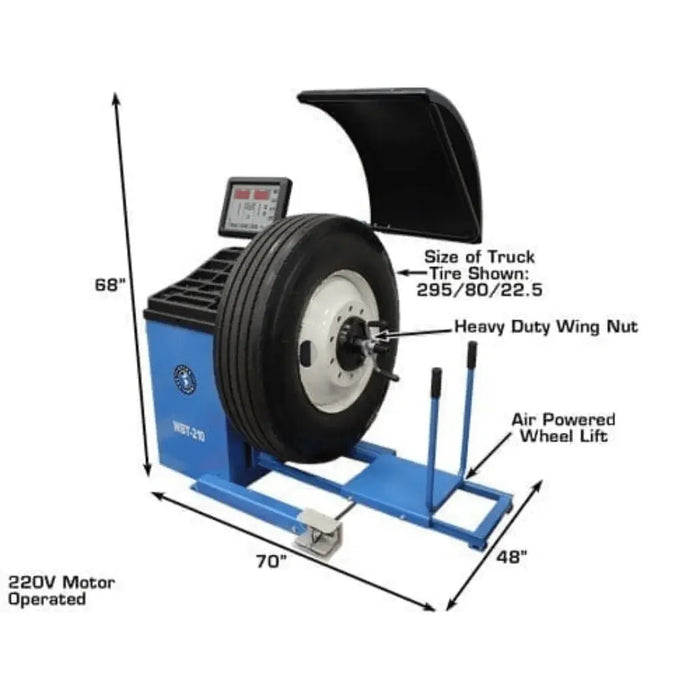

Atlas® WBT-210 Specifications

Max Tire Diameter	43"
Rim Sizes (Cars And Light Trucks)	10"-30"
Rim Width	1 1/2"-20"

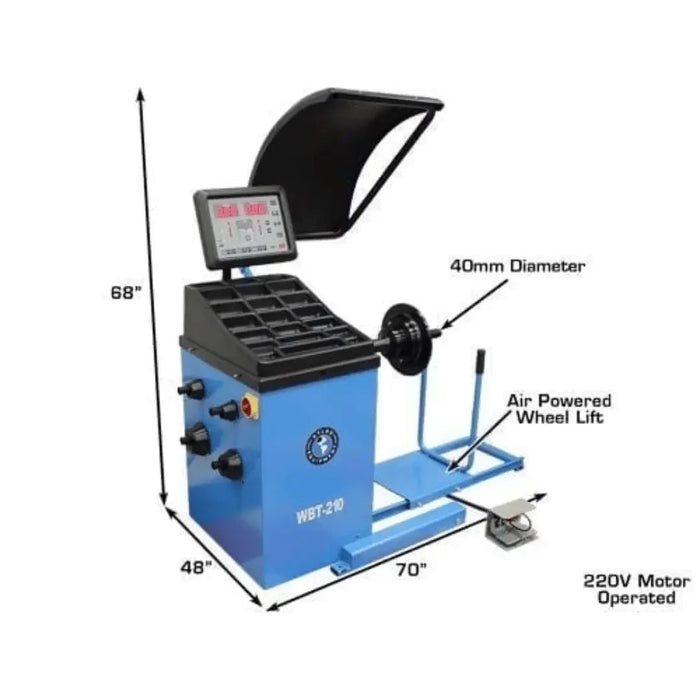

Shaft Size	40mm
Max. Wheel Weight	165 lbs.
Balancing Speed	130 RPM
Data Entry	Super Automatic 3D
Measurements	Standard Or Metric
Accuracy	1 gram
Weight Position Resolution	1.4 Degrees
Self Calibration	Yes
Cycle Time	7 Seconds
Power Supply	110volt
Shipping Weight	290 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Downloads

Brochure

Manual

Warranty

Specifications

-

Upc	810524029780

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
