Description

-

Atlas Platinum PVL15 ALI Certified Commercial Overhead 15,000 lb. Capacity 2 Post Lift

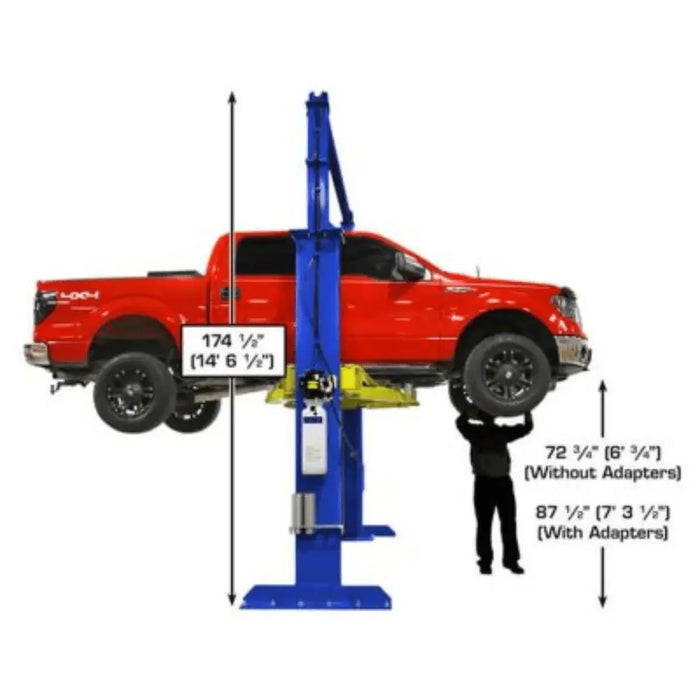

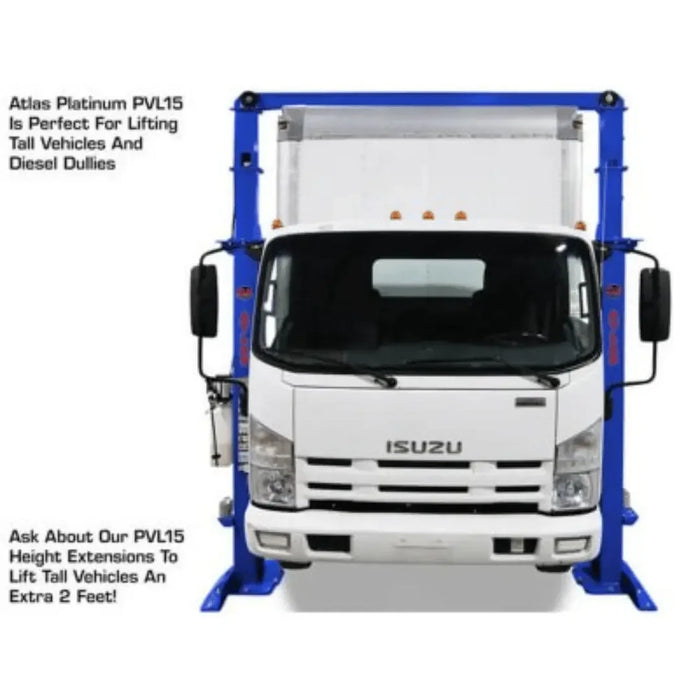

The Atlas® Platinum PVL15 is an ALI CERTIFIED, commercial grade, 15,000 lb. capacity overhead 2 post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2" (14' 6 1/2"), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.

This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

Product Features

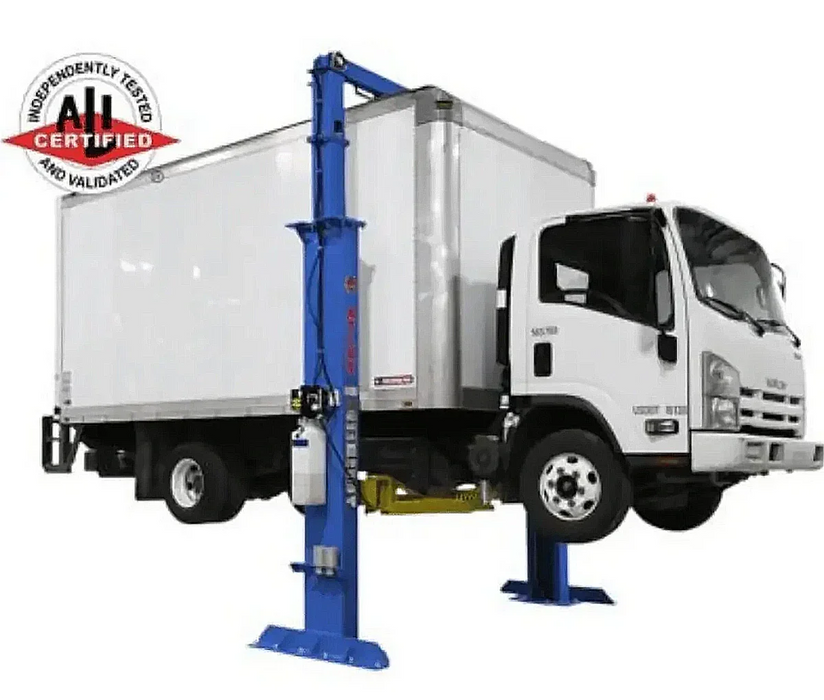

ALI Certified Lift
15,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall & Extra Wide
Overall Height 174 1/2" (14' 6 1/2")
Padded Carriages

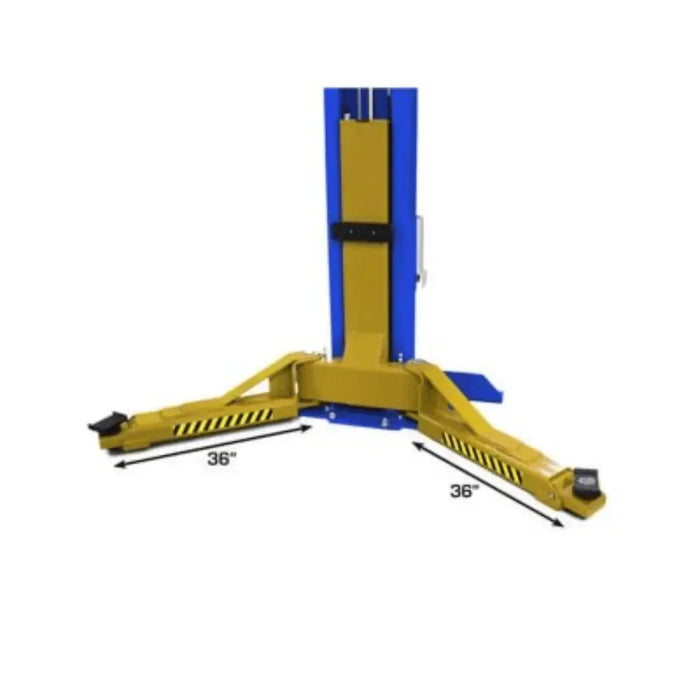

Symmetric Arms
Professional Grade Arm Lock Restraint System
Dual Direct-Drive Hydraulic Cylinders
Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
Heavy Duty 3/8" Equalization Cables
Mounting Hardware Included
Standard with Premium ALLY Power unit
Shipping Weight: 2,600 lbs.
5 yr Structural ‐ 2 yr Hydraulic ‐ 2 yr Power unit Warranty
This part number Freight Prepaid

Product Specifications

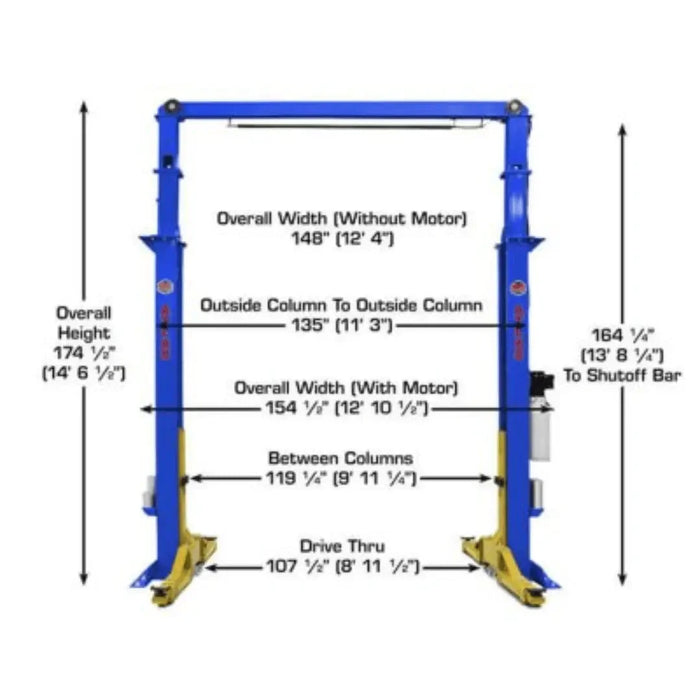

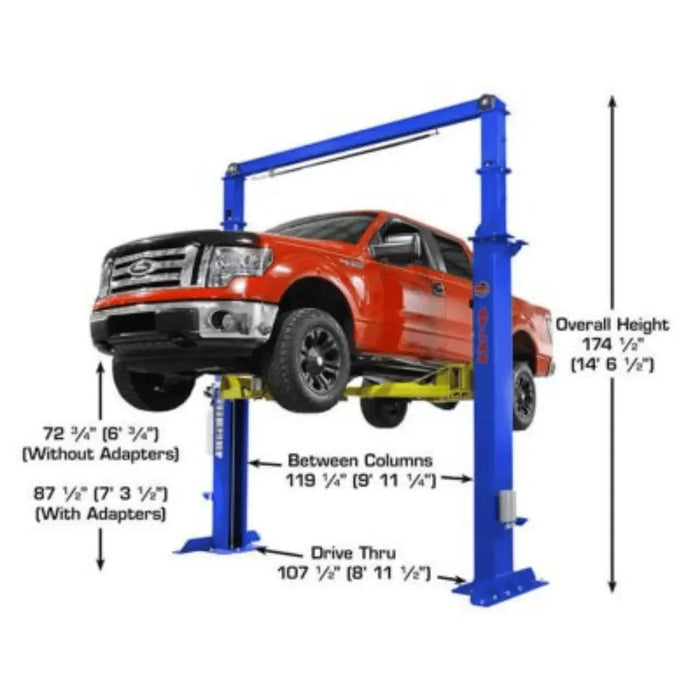

Model	Platinum PVL15
Capacity	15,000 lbs.
Overall Height	174 1/2" (14' 6 1/2”)
Overall Floor Width	148" (12' 4”)
Outside Column to Outside Column	135" (11' 3")
Maximum Lift Height (Without Adapters)	72 3/4"
Maximum Lift Height (With Adapters)	87 1/2"
Minimum Arm Height	6"
Inside Column	119 1/4” (9' 11 1/4”)
Drive Thru	107 1/2” (8' 11 1/2”)
Column Size	8" x 14 1/2"
Column Thickness of Steel	8mm
Base Of Lift	21" x 48"
Motor/Electrical Requirement	220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	2,600 Lbs
Adapter Heights	4 Each 5”, 10”
Arm Hole/Adapter Peg Size	2.75”
Requires a minimum of	6" of concrete with a 3000 psi. rating

Pick Up and Delivery

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru width	9 ft
Drive thru between carriage	108"
Inside columns	119"
Lifting capacity	15000 lbs
Lifting height top of arms	6 ft
Lifting height top of pad	72"88"
Max rise under arms	7.25 ft
Max rise under arms	72"
Min height lowered arm height	6"
Minimum pad height	6"
Modal	Platinum PVL15
Motor	220V
Overall width	12.25 ft
Overall heights	175"
Overall weight	2,600 Lbs
Overall width	148"
Width between columns	10 ft

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
