Description

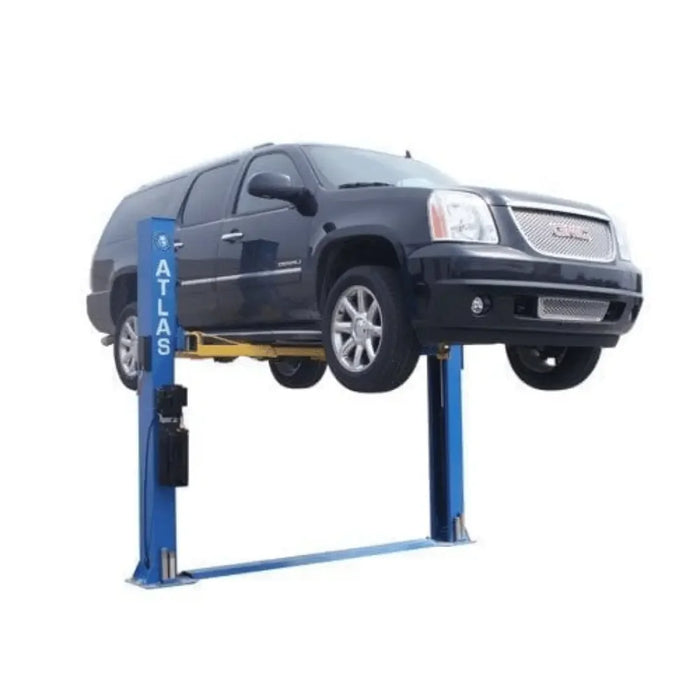

-Atlas BP8000 8,000 lb Capacity Baseplate 2 Post Lift
The ATLAS BP8000 2 Post Car Lift is a versatile and efficient solution for car enthusiasts and small-scale professional garages alike. Offered by Mechanic Superstore, this lift is specially designed for low ceiling environments, requiring just a minimum of 9 feet 3 inches of clearance. Its total column height of 108 inches (9 feet) makes it a perfect fit for almost any setting, ensuring that space limitations don't hinder your vehicle maintenance capabilities.
Boasting an 8,000 lb. capacity, the ATLAS BP8000 balances robust performance with a compact design. It is categorized as a hobbyist-grade lift, tailored not for heavy commercial use but for those who demand reliability and functionality for personal or light professional applications. The inclusion of a twelve-piece truck adapter set and mounting hardware ensures you're well-equipped to handle a diverse range of vehicles right from the start.
This baseplate, open-top style lift features advanced engineering with 3-stage front arms and 2-stage rear arms, providing the flexibility needed to accommodate various vehicle types and sizes. Safety is a paramount concern, addressed through automatic arm restraints and a double safety lock system.

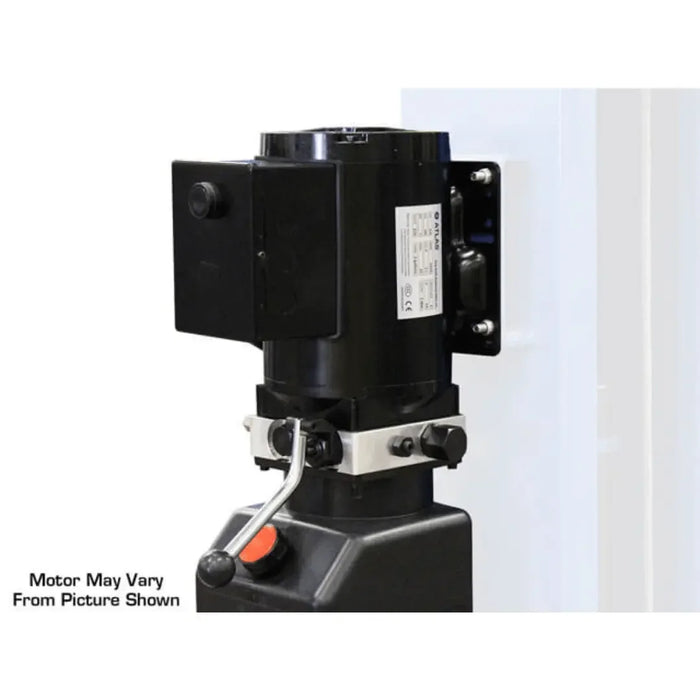

Powered by dual hydraulic chain-drive cylinders, the lift operates smoothly and efficiently, reducing the time and effort required for vehicle lifting. The ATLAS BP8000's design and functionality are complemented by a substantial warranty offering, including 5 years for structural components and 2 years for hydraulic parts, covering only parts to give you peace of mind regarding your investment.
Contact us for more information.
Product Features
- 8,000 lb. Capacity
- Hobbyist Grade Lift ‐ Not intended for heavy commercial use
- Baseplate, Open-Top Style Lift

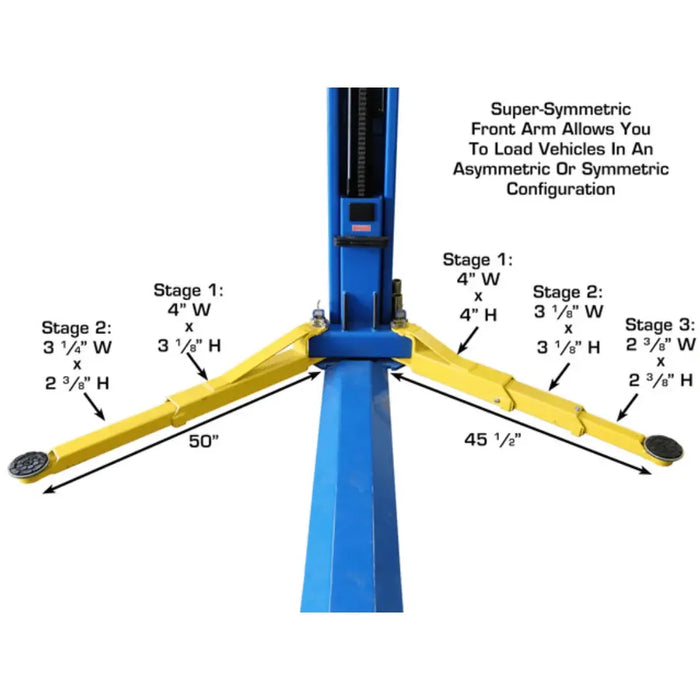

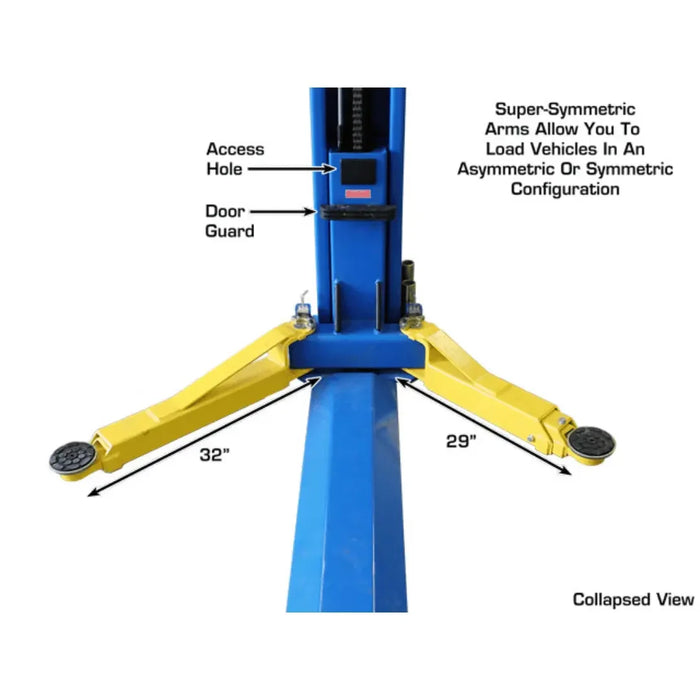

- 3-Stage front arms/2-Stage rear arms

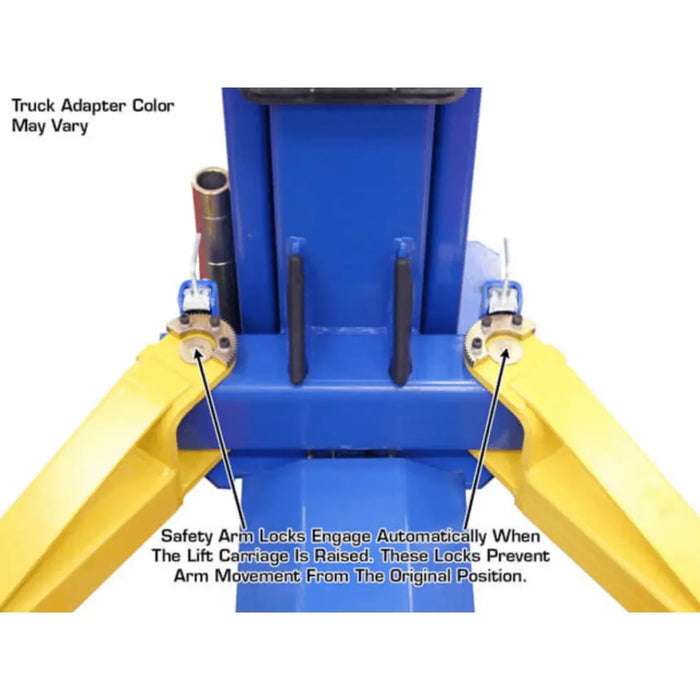

- Automatic Arm Restraints

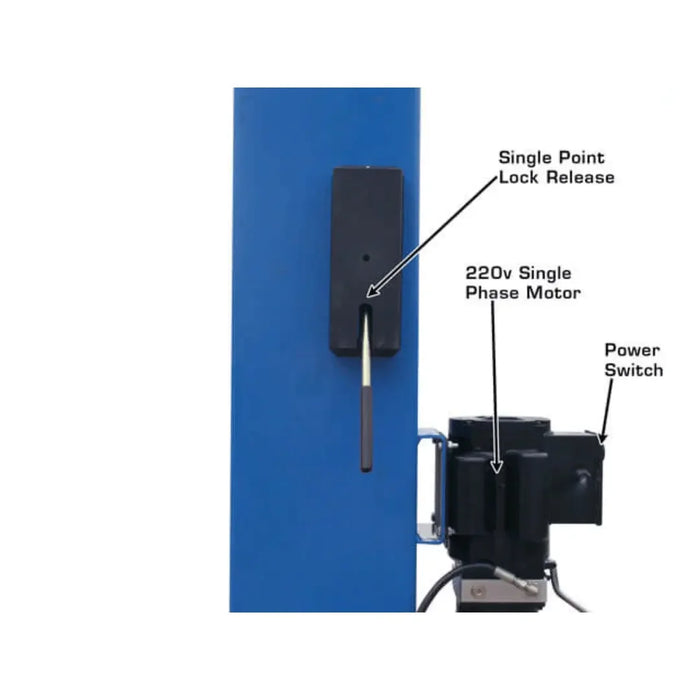

- Single-Point Lock Release
- Double Safety Lock System

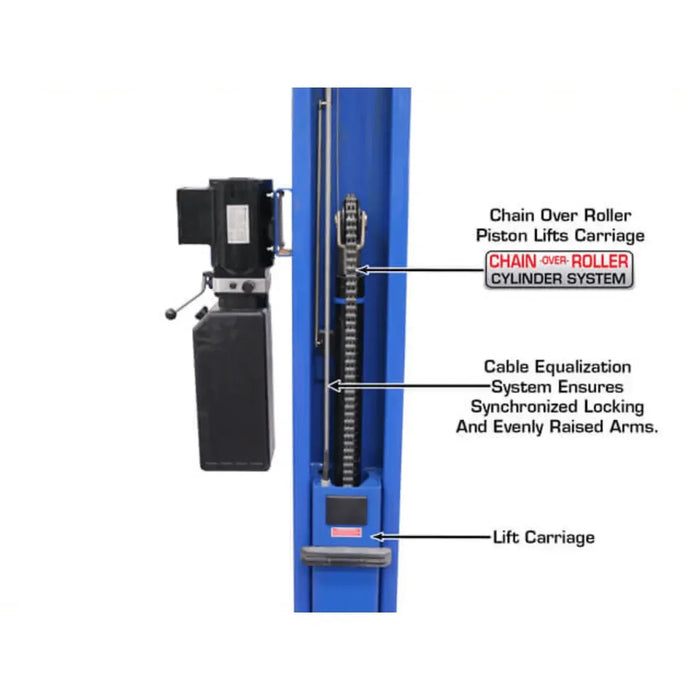

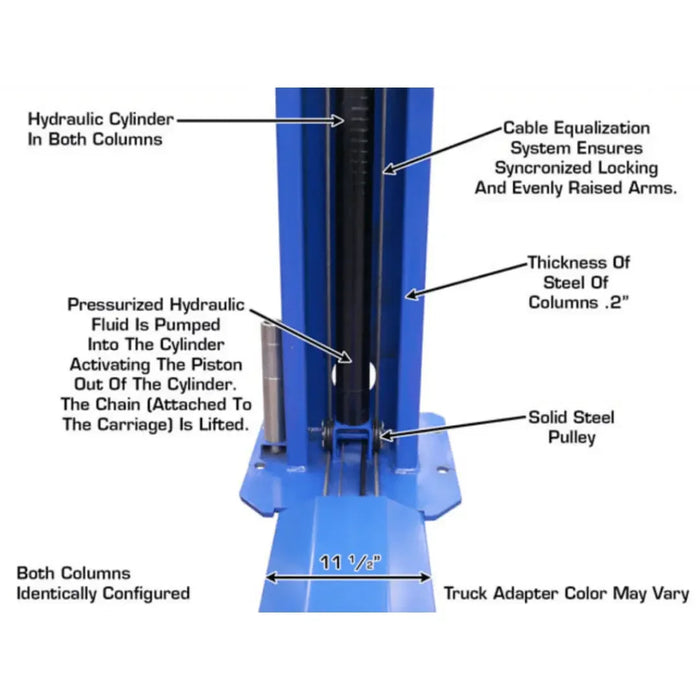

- Dual Hydraulic Chain-Drive Cylinders

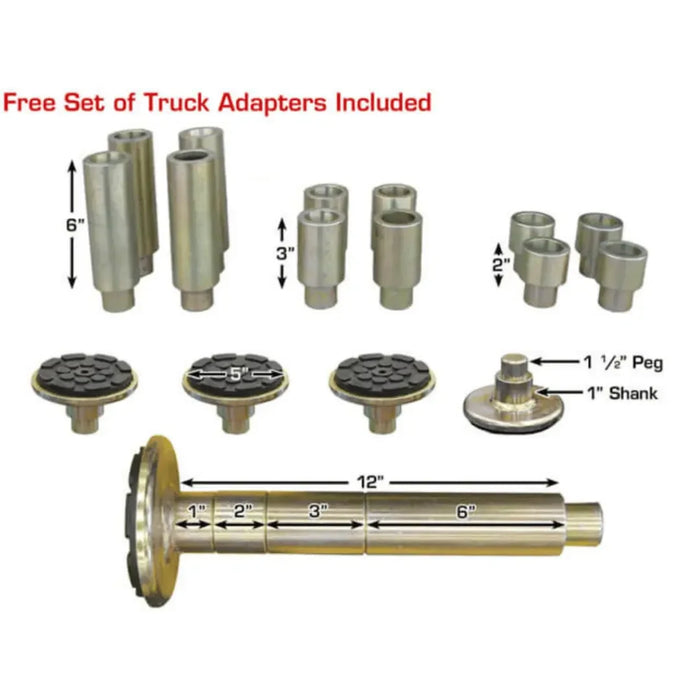

- Free 12 Piece Truck Adapter Set
- Mounting Hardware Included

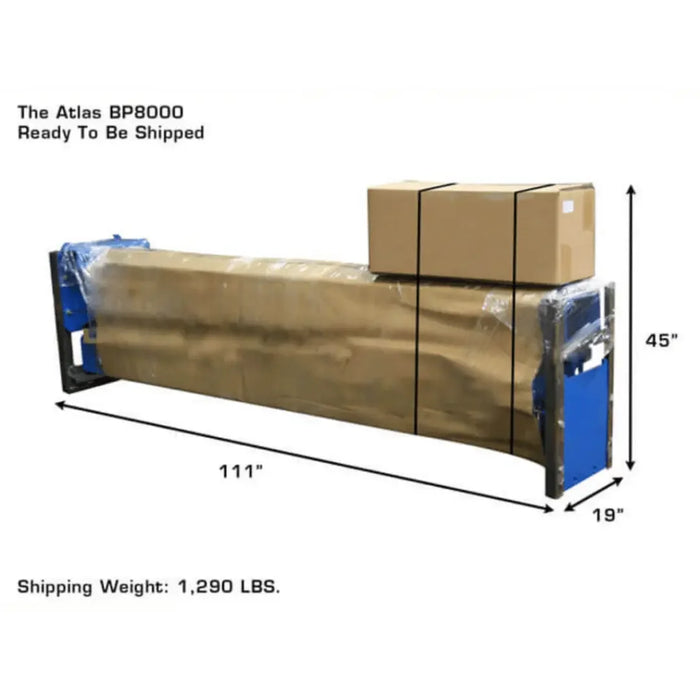

- Shipping Weight: 1,300 lbs.
- 5 yr Structural ‐ 2 yr Hydraulic Warranty ‐ Parts Only
- This part number FREIGHT PREPAID
Product Specifications
| Model | ATTD-BP8000 |
| Capacity | 8,000 lbs. |

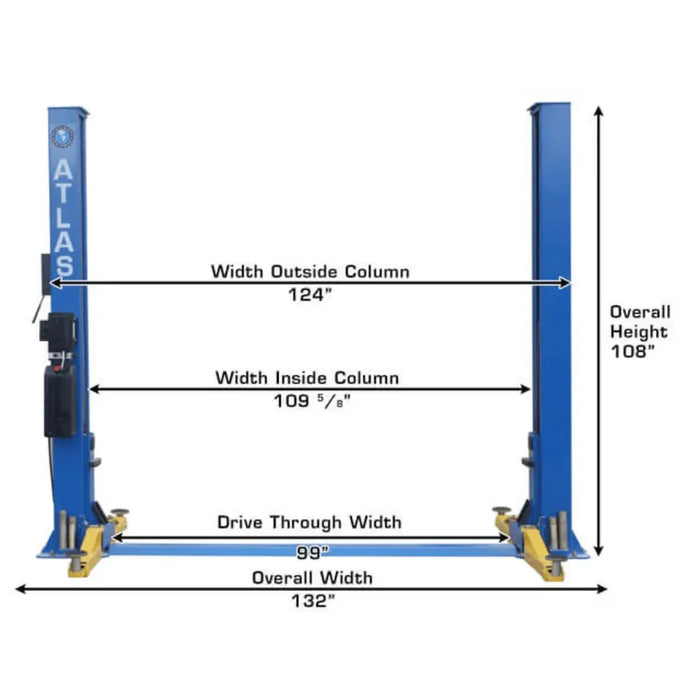

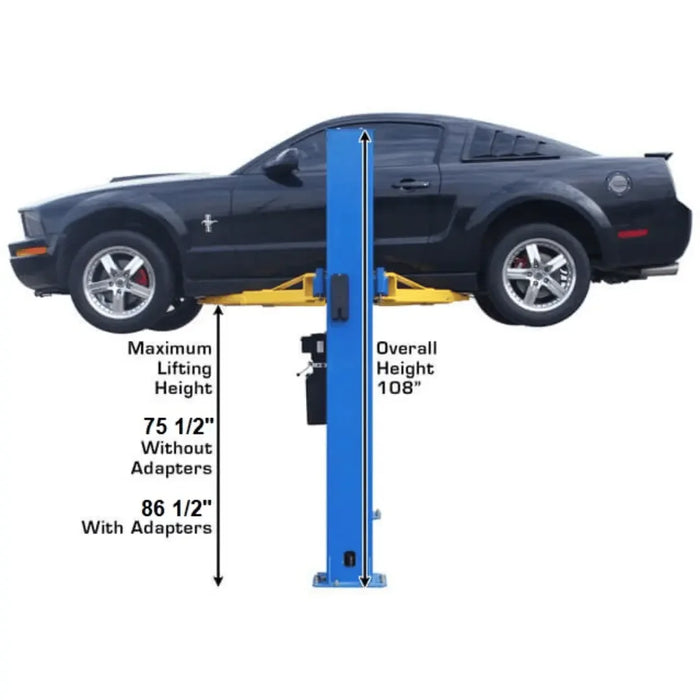

| Overall Height | 108" (9') |
| Overall Floor Width | 132" (11') |

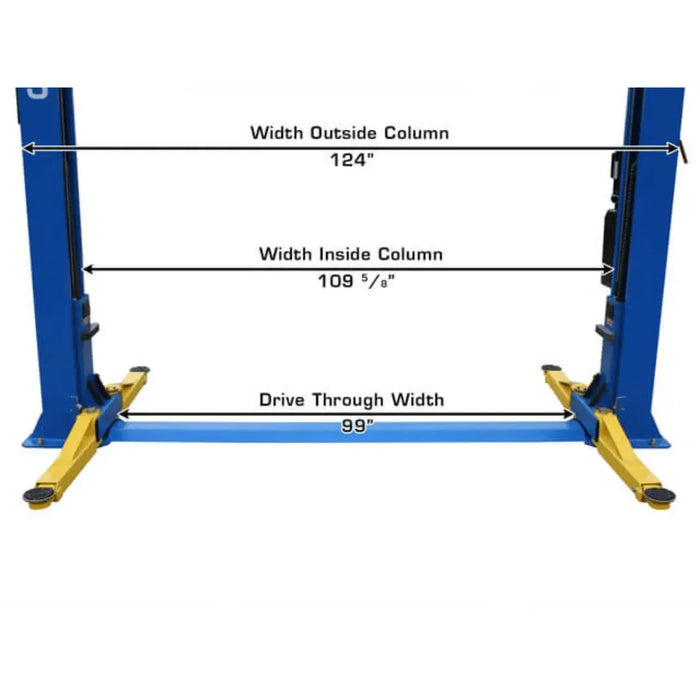

| Outside Column to Outside Column | 124" (10' 4") |

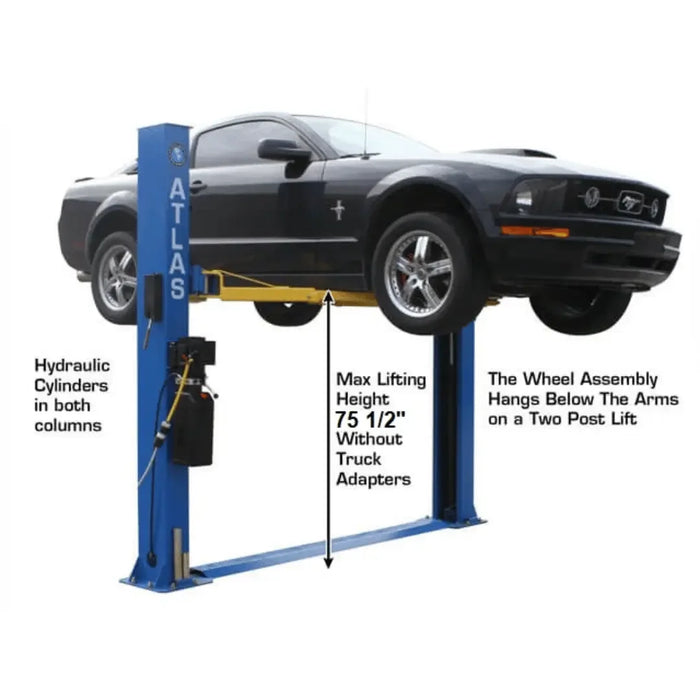

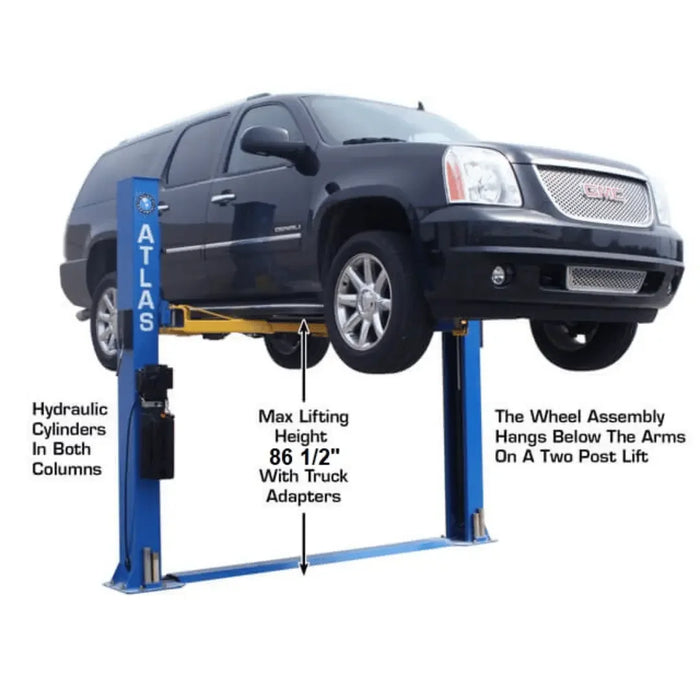

| Max Lift Height (Without Adapters) | 75 1/2" |

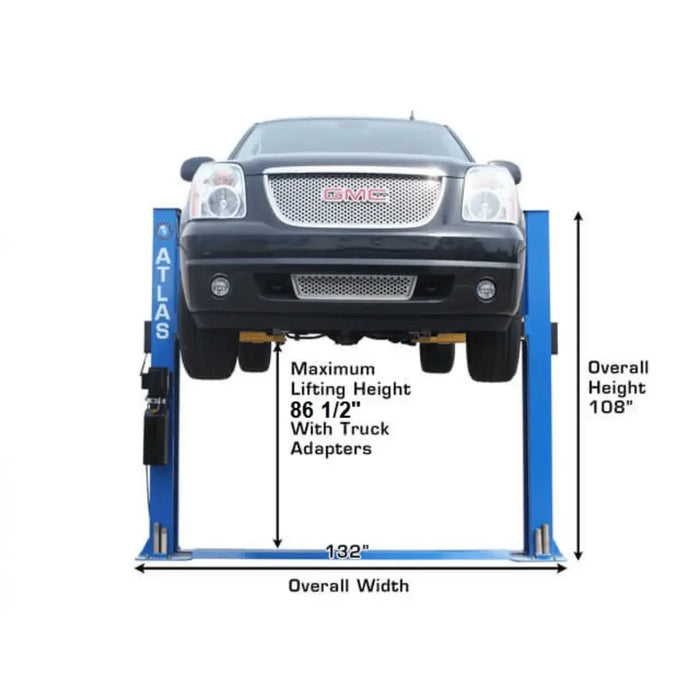

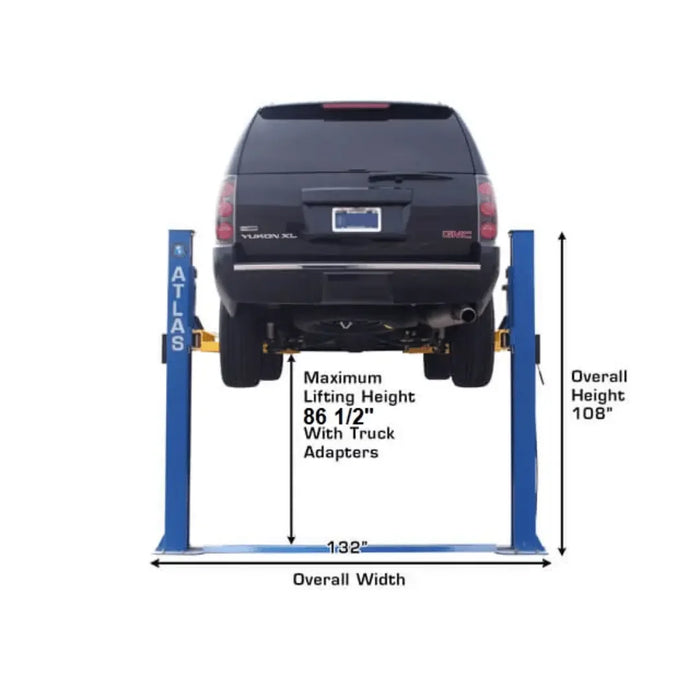

| Max Lift Height (With Adapters) | 86 1/2" |
| Minimum Arm Height | 4" |
| Inside Column | 109 1/8” (9' 1 1/8”) |

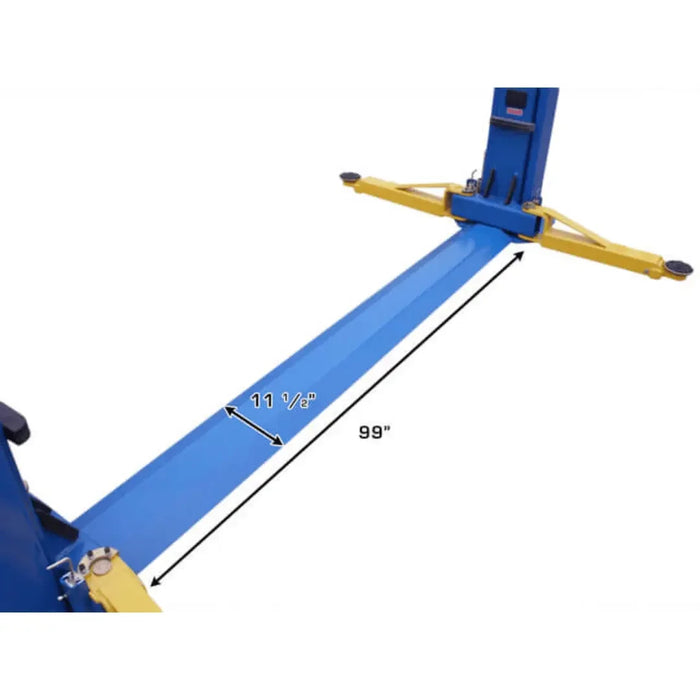

| Drive Thru | 99” (8' 3”) |

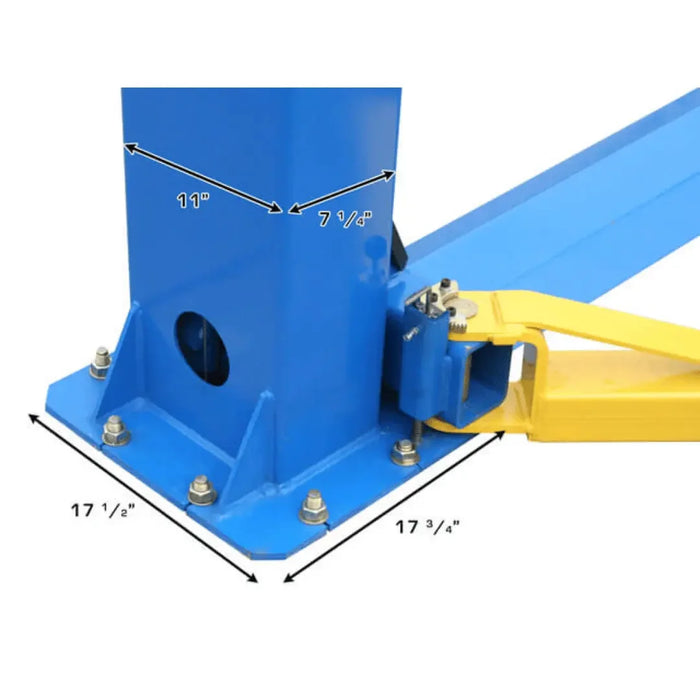

| Column Size | 7 1/4" x 11" |
| Column Steel Thickness | 6mm |

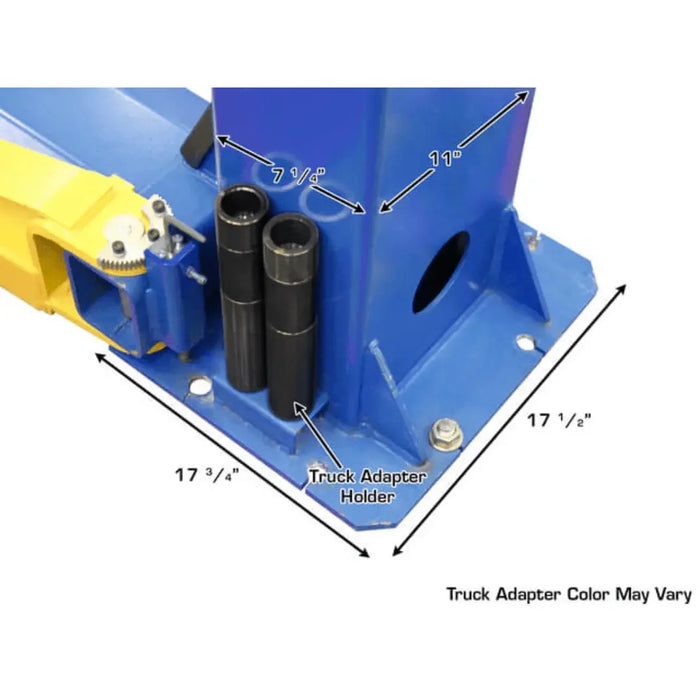

| Base Of Lift | 17 1/2" x 17 3/4" |

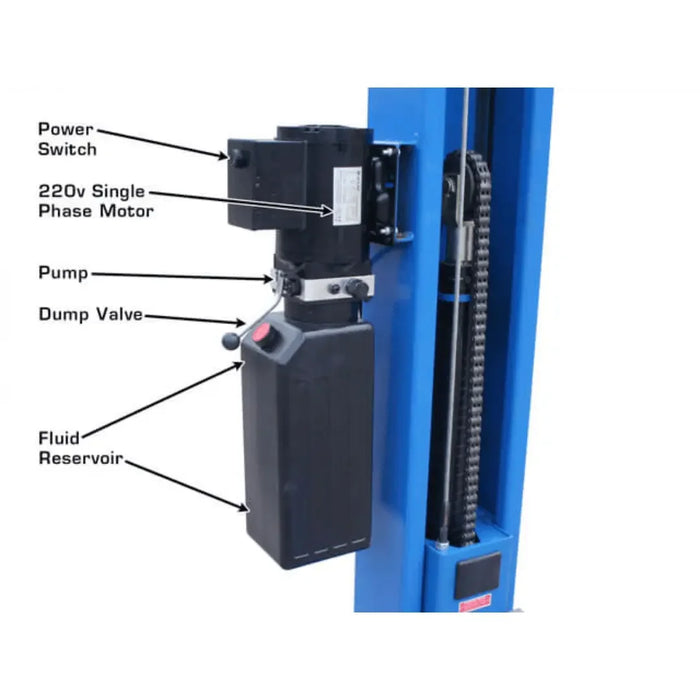

| Electrical Requirement | 220V single phase (30 amp breaker recommended) |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Shipping Weight | 1,300 Lbs |

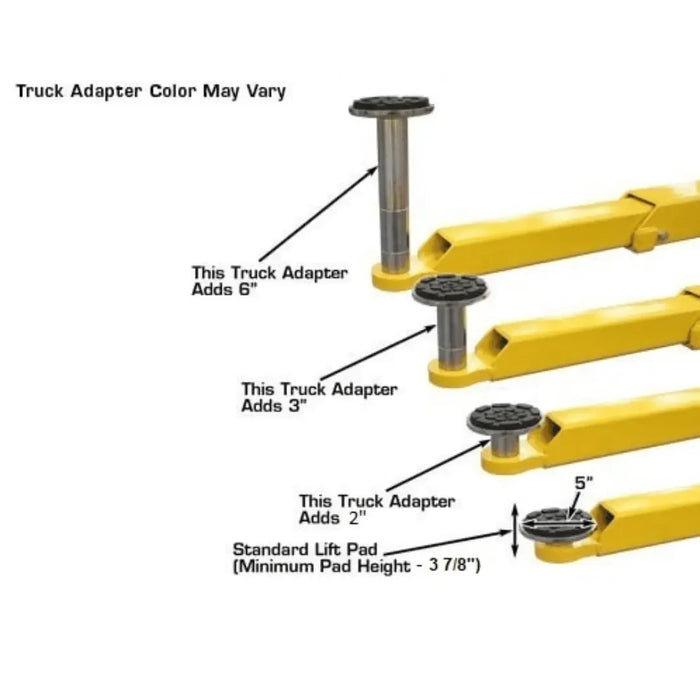

| Adapter Heights | 4 Each 2”, 3”, 6” |
| Adapter Peg Size | 1.5” |
| Concrete Requirement | 4" of concrete with 3000 psi rating |
Pick Up and Delivery
Call, text, or chat with us if you have questions. - 866-774-7743
Specifications
-| Drive thru width | 8 ft |
|---|---|
| Drive thru between carriage | 99" |
| Inside columns | 109" |
| Lifting capacity | 8000 lbs |
| Lifting height top of arms | 6 ft |
| Lifting height top of pad | 75"86" |
| Max rise under arms | 7 ft |
| Max rise under arms | 75" |
| Min height lowered arm height | 4" |
| Minimum pad height | 4" |
| Motor | 220V |
| Overall width | 11 ft |
| Overall heights | 108" |
| Overall width | 132" |
| Width between columns | 9 ft |
