Atlas ATTD-412 12000 lb Heavy Duty 4-Post Lift

Name: Atlas ATTD-412 12000 lb Heavy Duty 4-Post Lift
Brand: Atlas
Price: 6399.0 USD
Availability: InStock

Part #:ATEATTD-412

Brand: Atlas

$0.00 - $0.00

$0.00

$6,399.00

$6,399.00 - $6,399.00

$6,399.00

Call/Text Us: 866-774-7743 Call Us

Description

-

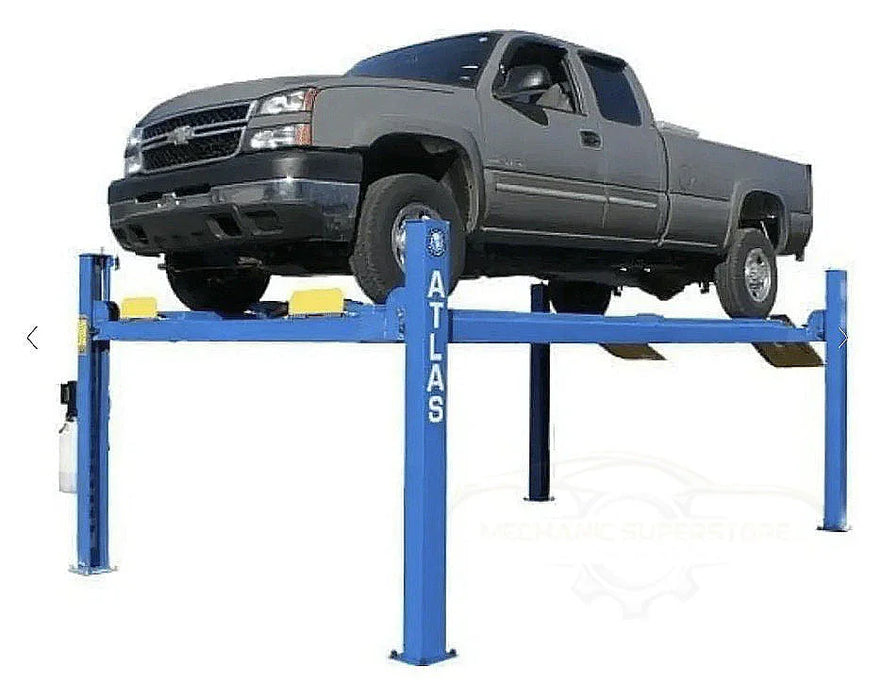

Atlas ATTD-412 12000 lb Heavy Duty 4-Post Lift

The Atlas® 412 incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The Atlas® 412 is tested to ensure that this lift system will perform flawlessly at its rated capacity. The Atlas® 412 has been manufactured to the same exacting specifications for many years.

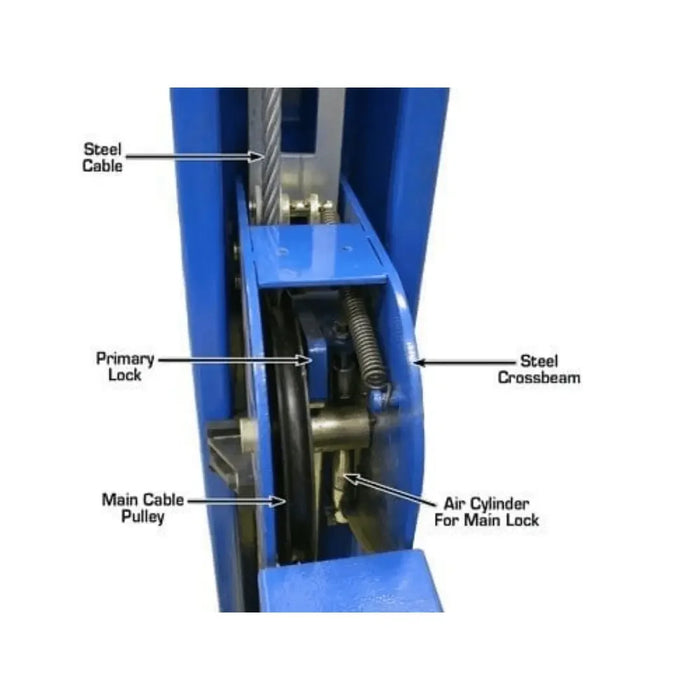

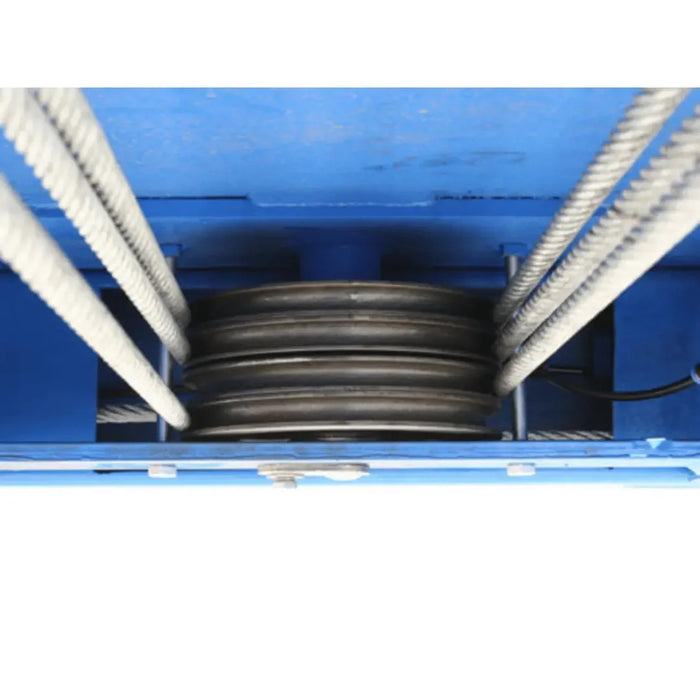

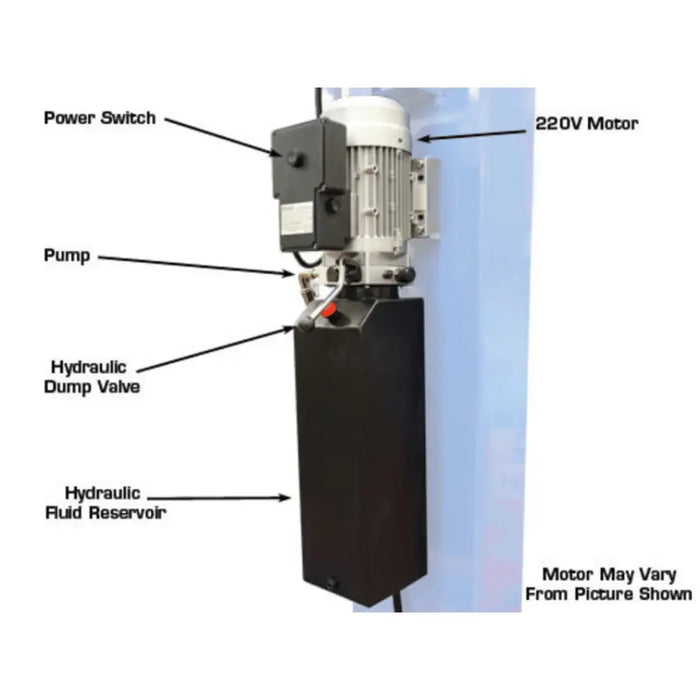

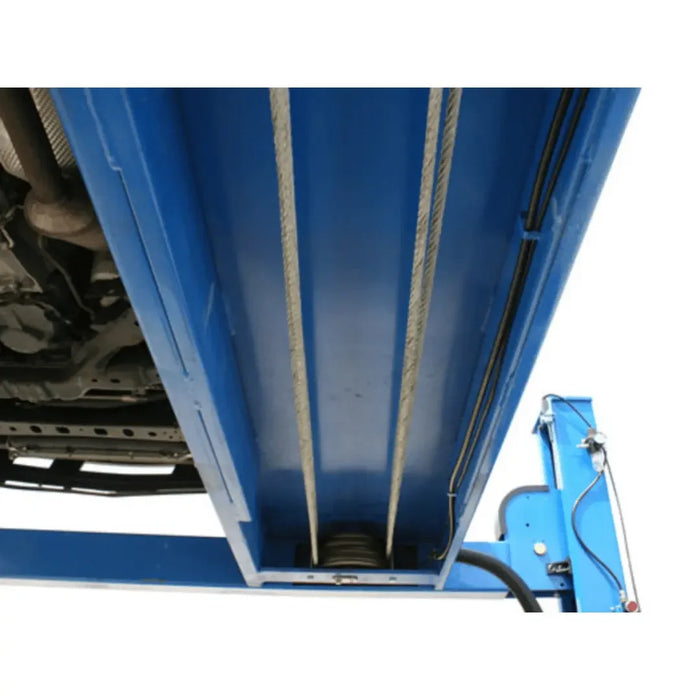

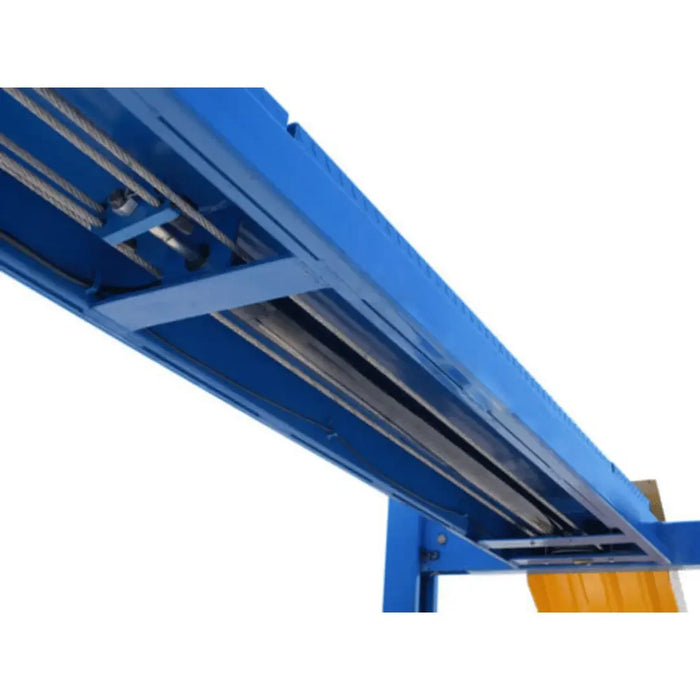

The Atlas® 412 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

Finally, the Atlas® 412 features “tracks” between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ6BK) on the lift. Rolling jacks sold separately.

Product Features

12,000 lb. Capacity
Heavy Duty, Commercial Grade
Extra Tall, Extra Wide & Extra Long
Diamond Plated Runways

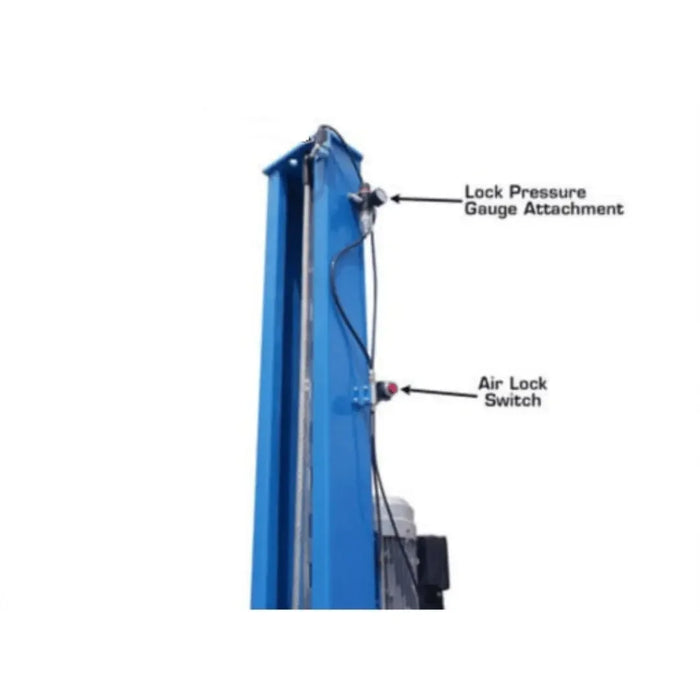

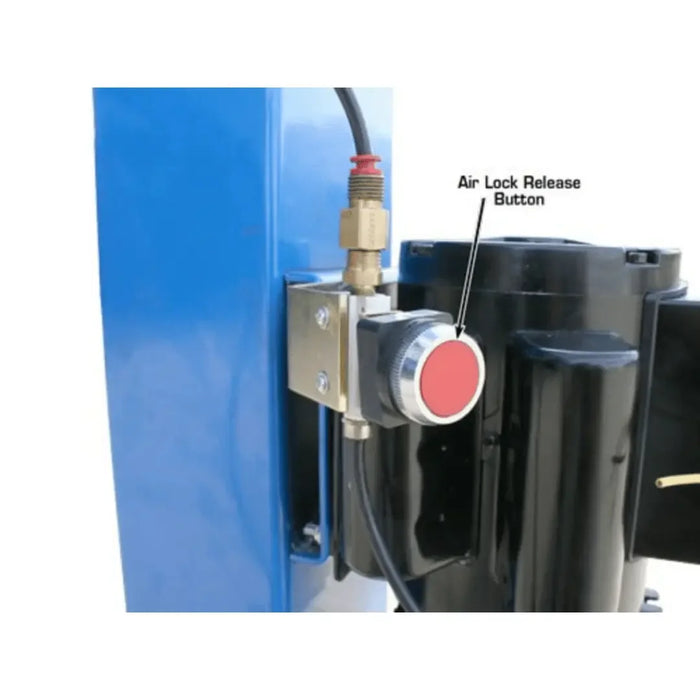

Air Operated Single Point Lock Release (External Air Supply Required - NOT INCLUDED)

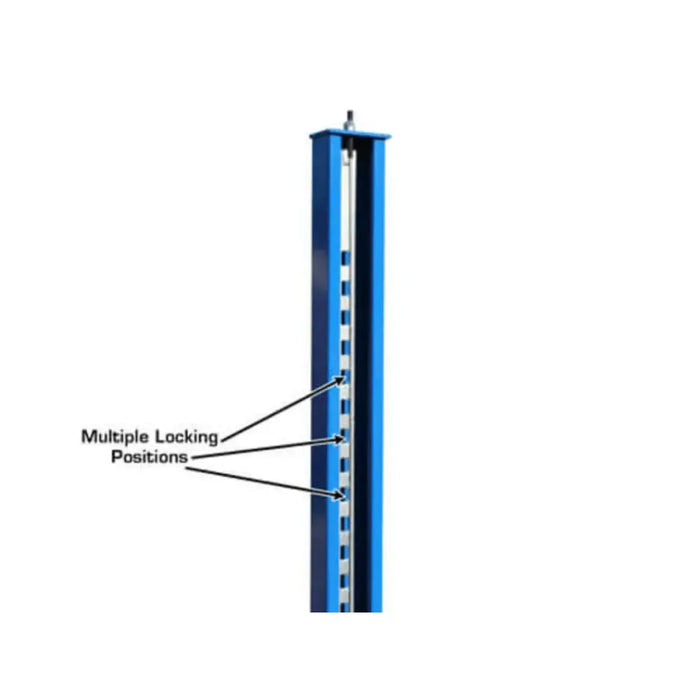

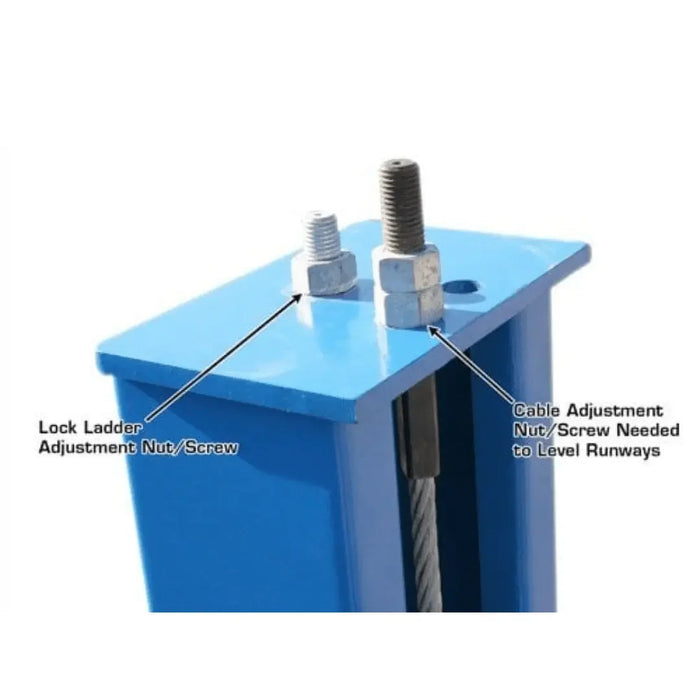

Lock Ladder Design
Double Lock Safety System
Powder Coat Finish

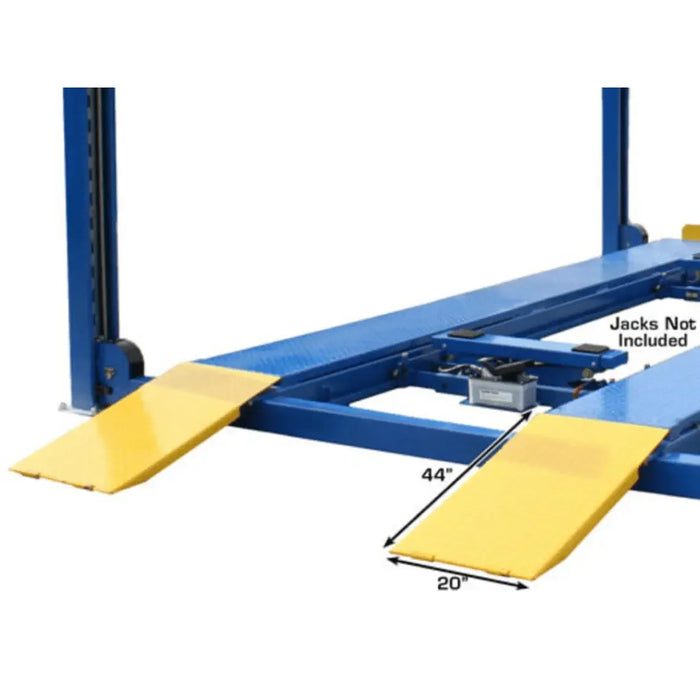

Steel Approach Ramps Included
Additional Drive off Ramps Available (Sold Separately)
Runway Extensions Available (Sold Separately)

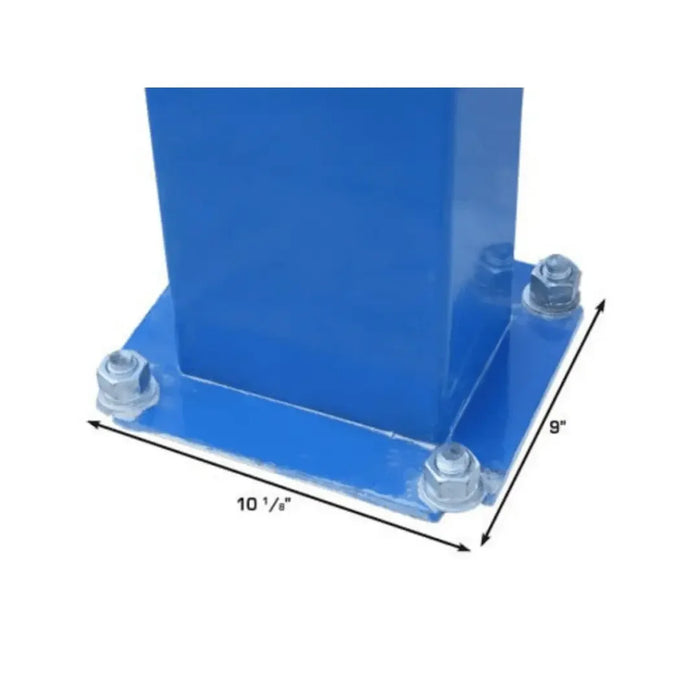

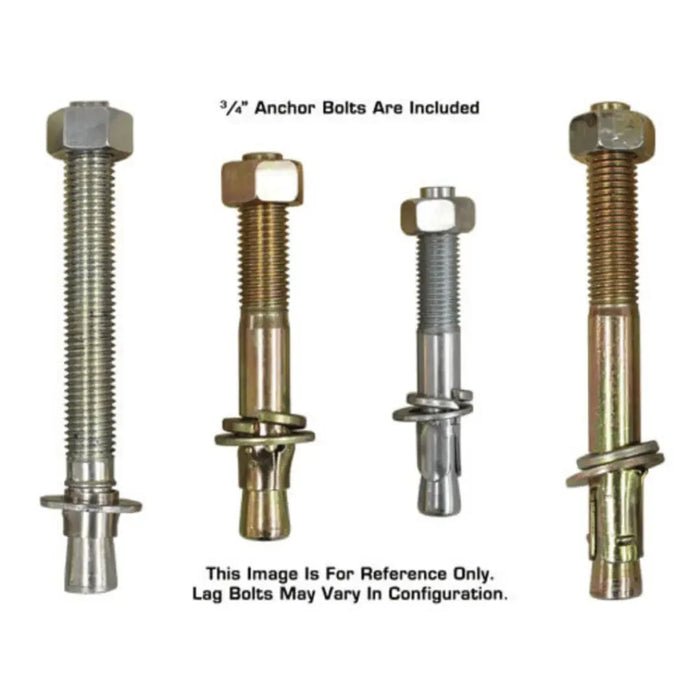

Mounting Hardware Included
220volt/1phase Electric Operation (Requires a 30amp Breaker)

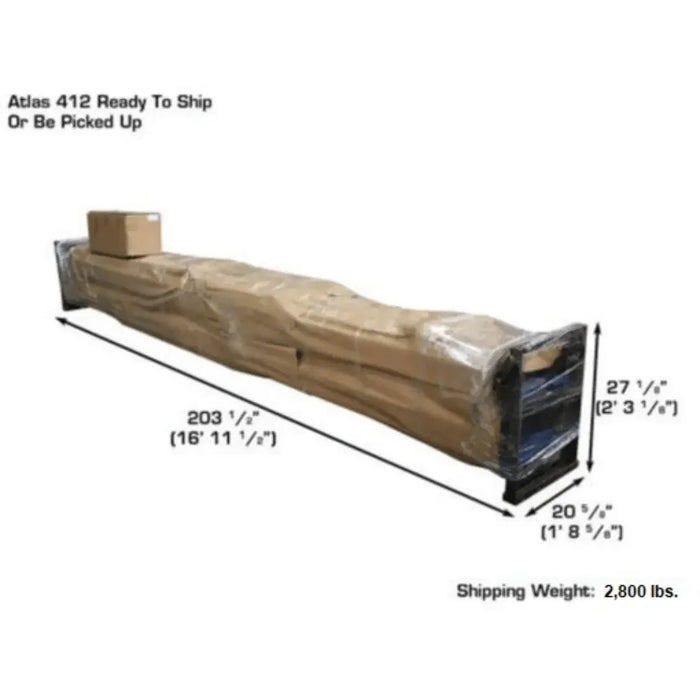

Shipping Weight: 2,800 lbs.
5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Product Specifications

Model	ATTD-412
Capacity	12,000 lbs.

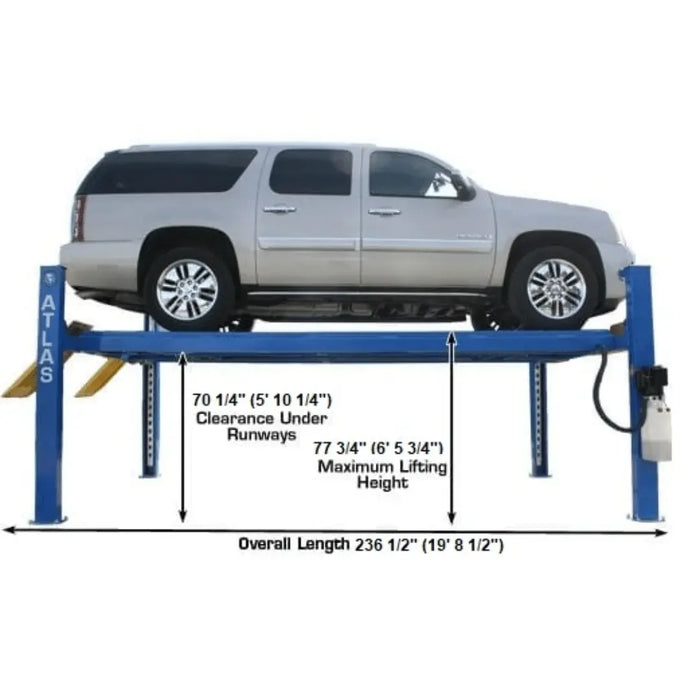

Lifting Height	77 3/4" (6' 5 3/4")
Clearance Under Runways	70 1/4" (5' 10 1/4")

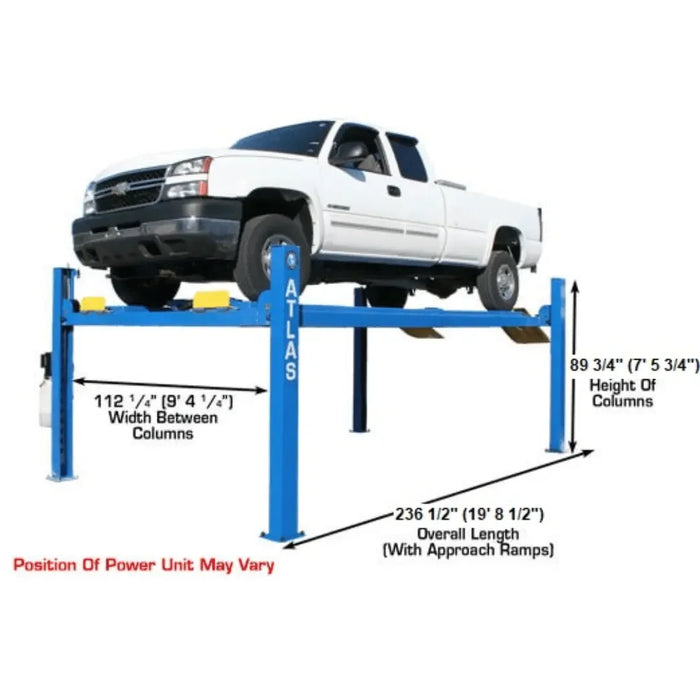

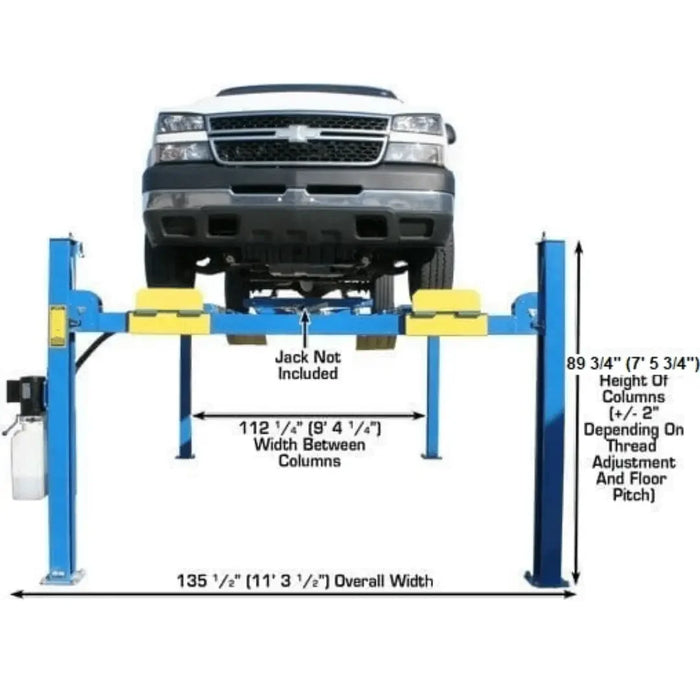

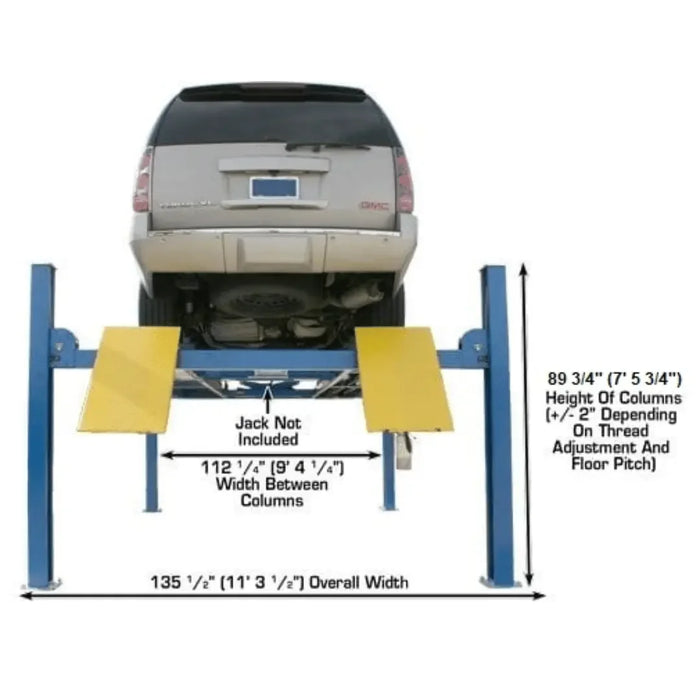

Height Of Columns	89 3/4" (7' 5 3/4")

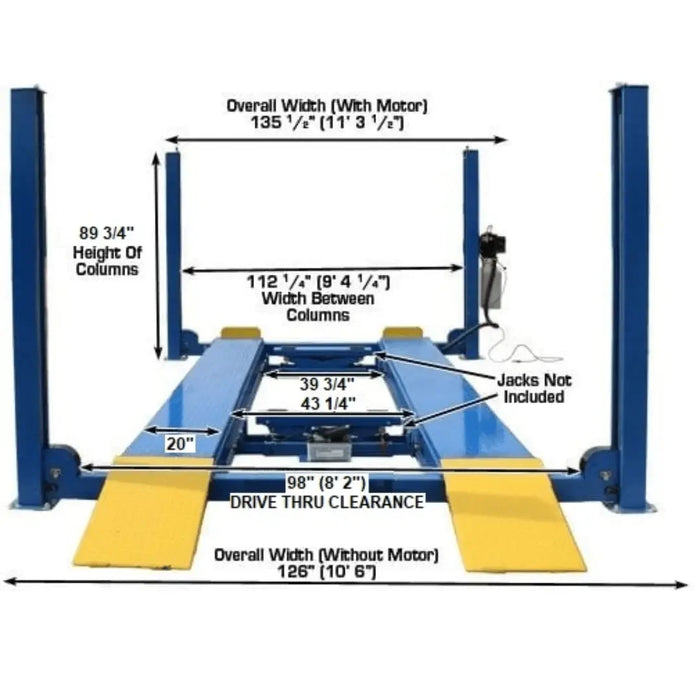

Overall Width Of Columns (Without Motor)	126 1/4" (10' 6 1/4")
Overall Width Of Columns (With Motor)	135 1/4" (11' 3 1/4")

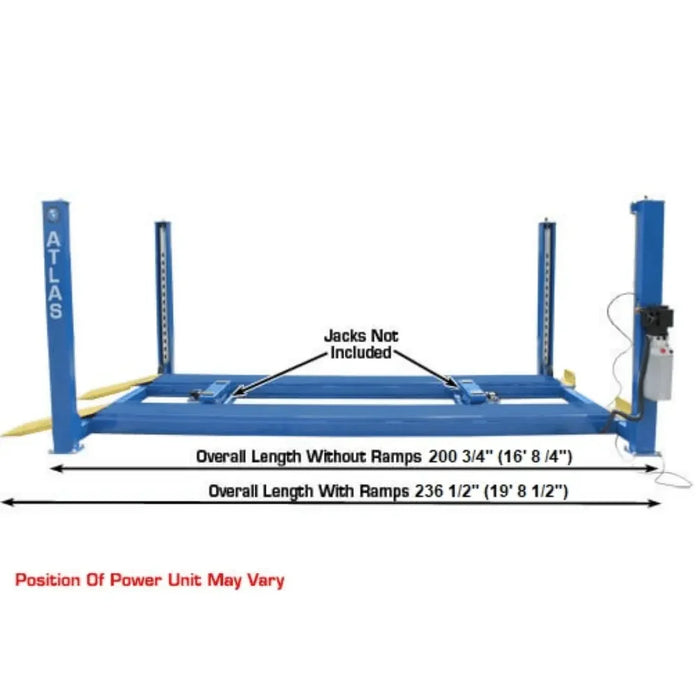

Overall Length With Approach Ramp	236 1/2" (19' 8 1/2")
Length Between Columns	183 1/4" (15' 3 1/4")
Runway Width	20"
Runway Length	194 1/2" (16' 2 1/2")
Runway Thickness	7 1/2"
Width Between Runways	43 1/4" (w/ Rail 39 3/4")
Outside Runway To Outside Runway	83 1/4" (6' 11 1/4")
Clearance Between Columns	112 5/8" (9' 4 5/8")
Maximum Wheel Base	185" (15' 5")
Drive Thru	98" (8' 2")
Air Requirement	85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED)
Motor/Electrical Requirement	220 volt single (1) phase.(A 30 amp breaker is recommended)
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Requires a minimum of	6" of concrete with a 3000 psi. rating
Shipping Weight	2,800 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru width	8 ft
Drive thru between carriage	98"
Inside columns	112"
Lifting capacity	12000 lbs
Lifting height top of runway	6.5 ft
Lifting height top of runway	77"
Max rise under runway	5.75 ft
Max rise under runway	70"
Outside edge of runways	7 ft
Outside edge of runways	83"
Overall length	19.5 ft
Overall width	11.25 ft
Overall heights	89"
Overall length	183"236"
Overall width	135"183"236"
Runway length	16 ft
Runway length	194"
Width between columns	9.25 ft
