Atlas APEX9 ALI Certified Hobbyist 9,000 lb. Capacity 4-Post Lift

Name: Atlas APEX9 ALI Certified Hobbyist 9,000 lb. Capacity 4-Post Lift
Brand: Atlas
Price: 6999.0 USD
Availability: InStock

Part #:ATEAPEX9

Brand: Atlas

$0.00 - $0.00

$0.00

$6,999.00

$6,999.00 - $6,999.00

$6,999.00

Call/Text Us: 866-774-7743 Call Us

Description

-

Atlas APEX9 ALI Certified Hobbyist 9,000 lb. Capacity 4-Post Lift

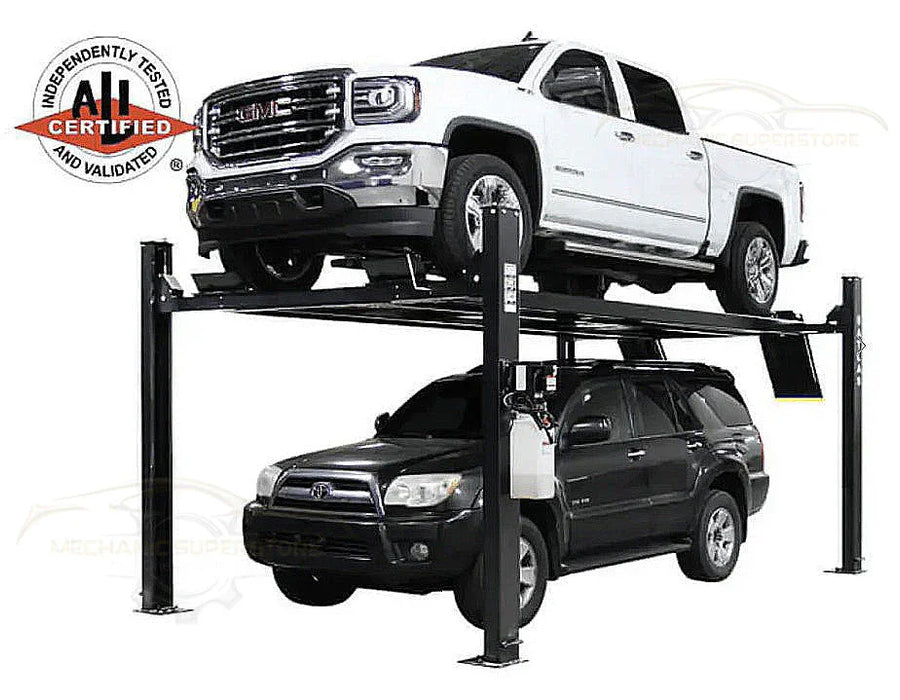

The Atlas® APEX9 ALI certified 4 post lift is a heavy duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra long and allows the lift to handle some of the longest wheel base vehicles out there. The APEX9 is also extra wide allowing even Diesel Duallys to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars® to a Dually can be parked both below and on the runways.

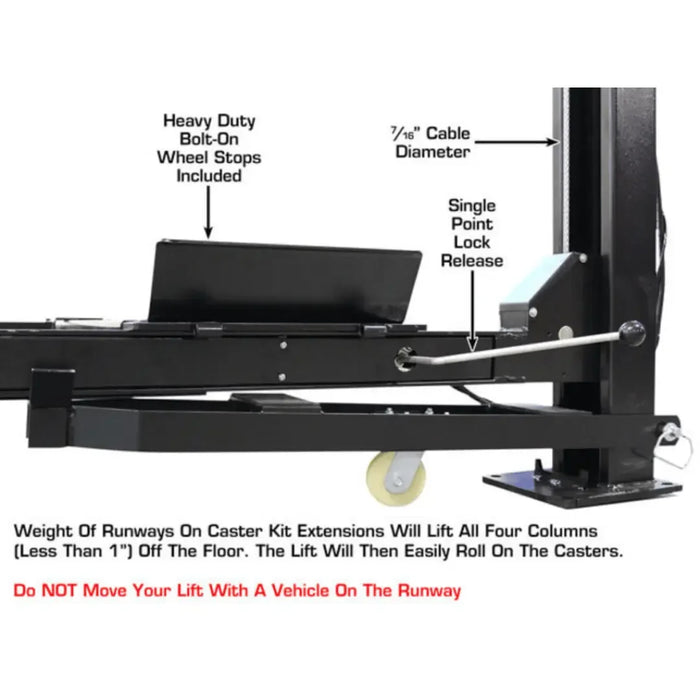

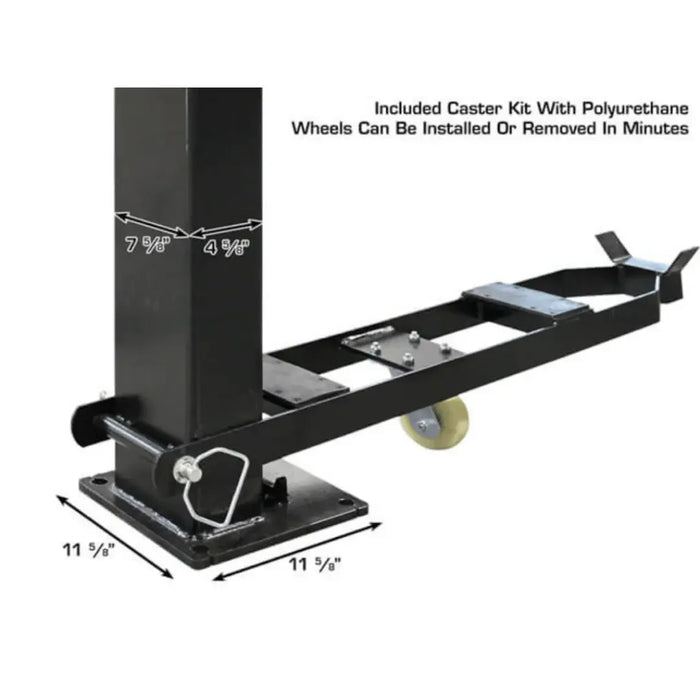

The Atlas® APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas® Garage PRO9000 lift including free plastic drip trays and a free steel jack tray. Also available for purchase with this lift is a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. Finally, the Atlas® APEX9 features "tracks" between the runways to allow the use of a rolling bridge jack (such as the Atlas® RJ6BK) on the lift.

The commercial grade features and ALI Certification of the Atlas® APEX9 make this lift the perfect choice for automotive service centers or the "Mr. Homeowner" that needs a PORTABLE professional four post lift.

Product Features

ALI Certified Lift
9,000 lb. Capacity
Free Standing/Portable Design
Heavy Duty
Extra Tall, Extra Wide & Extra Long
Powder Coat Finish
Diamond Plated Runways

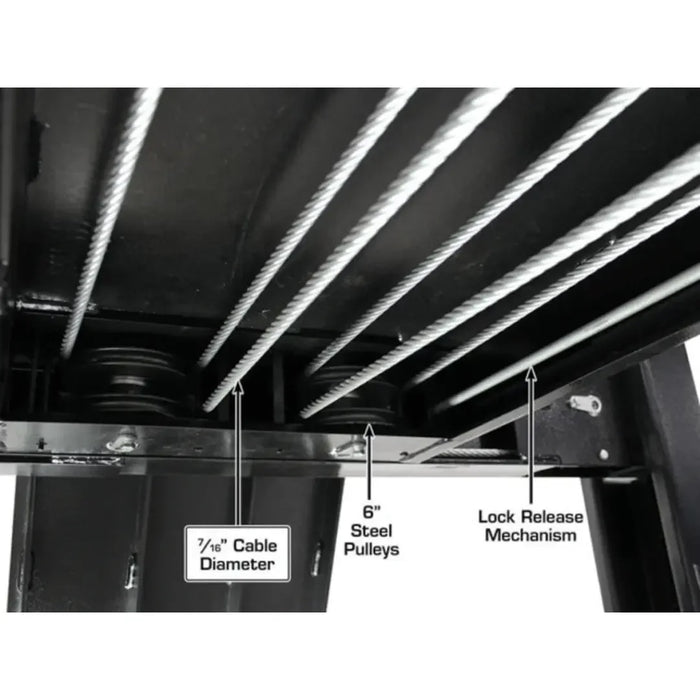

Single Point Lock Release

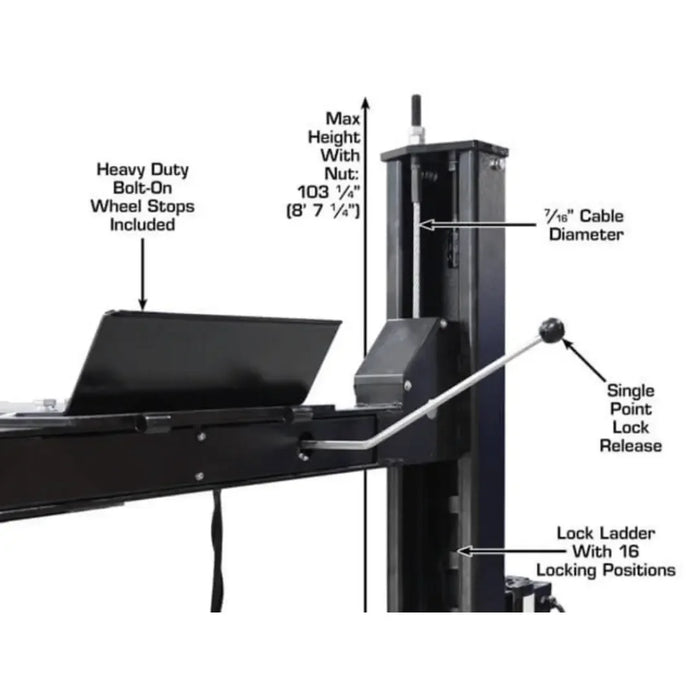

Lock Ladder Design
Double Lock Safety System

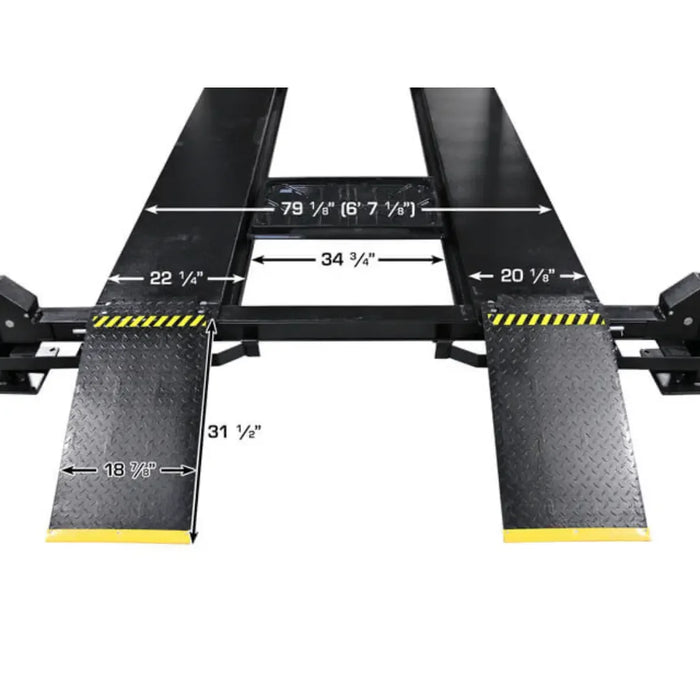

Steel Approach Ramps Included
Steel Jack Tray Included
Four Plastic Drip Trays Included

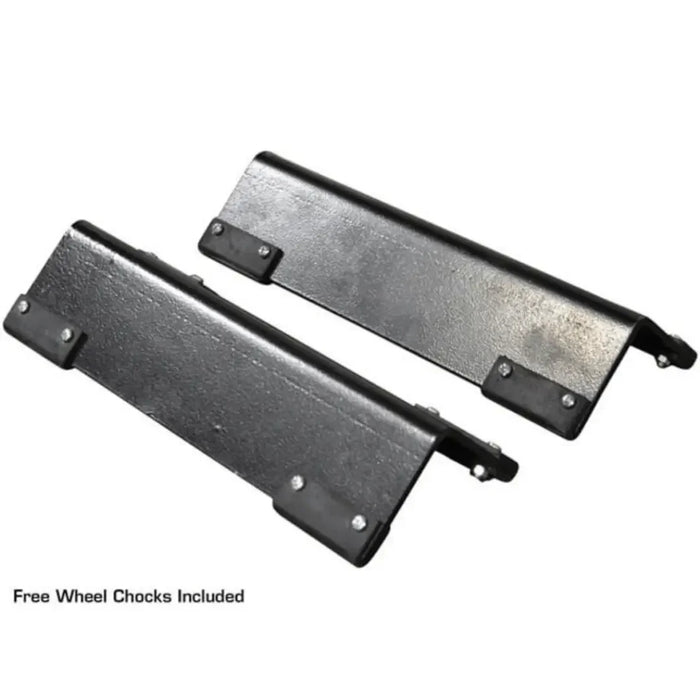

Two Rubber Wheel Chocks Included

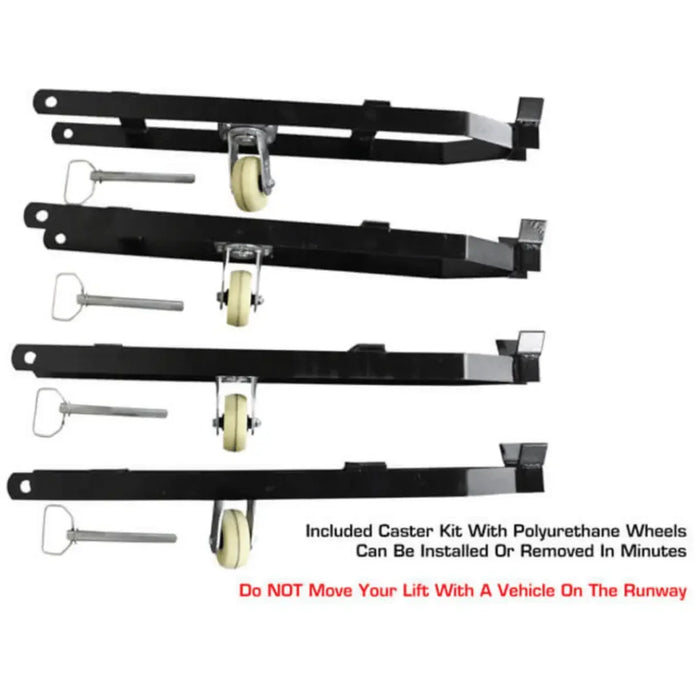

Caster Kit with Polyurethane wheels Available (Sold Separately)
Anchor Bolts Optional (Sold Separately)
Perfect for Storage or Working on Vehicles
110volt Electric Operation (Requires 30amp Breaker)
5 Year Structural/2 Year Hydraulic Warranty

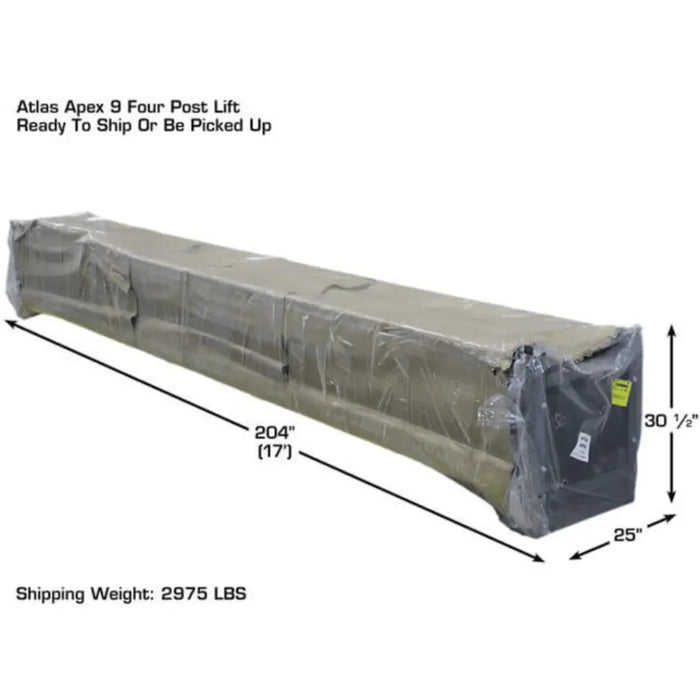

Shipping Weight: 2,975 lbs.

Product Specifications

Model	APEX9
Capacity	9,000 lbs.

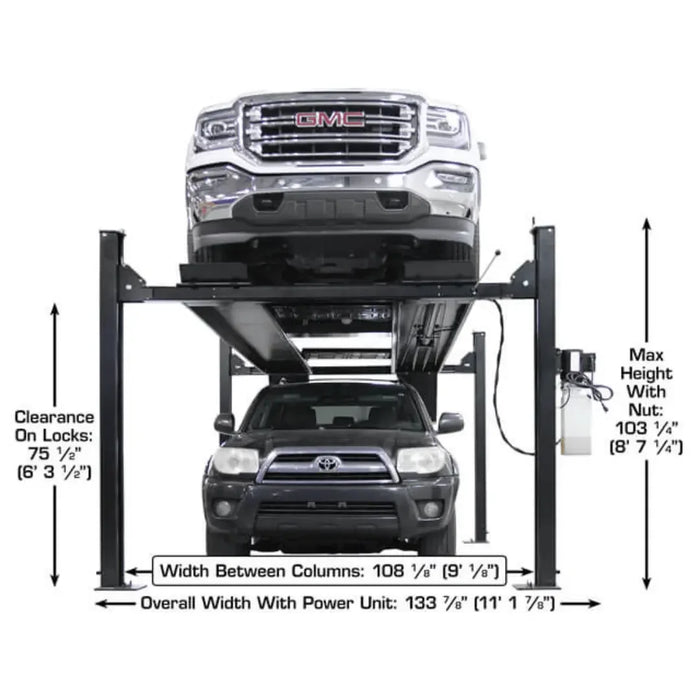

Lifting Height, Top of Runway	86" (7' 2")
Clearance Under Runways	81 1/4" (6' 9 1/4")
Height Of Columns	99" (8' 3")

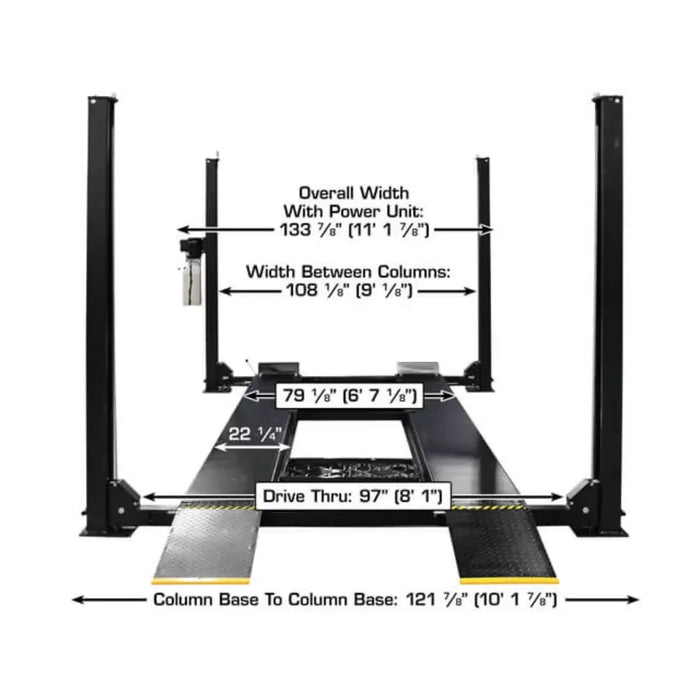

Overall Width (Without Motor)	121 7/8" (10' 1 7/8")
Overall Width (With Motor)	133 7/8" (11' 1 7/8")
Overall Length With Approach Ramp	227 1/2" (18' 11 1/2")

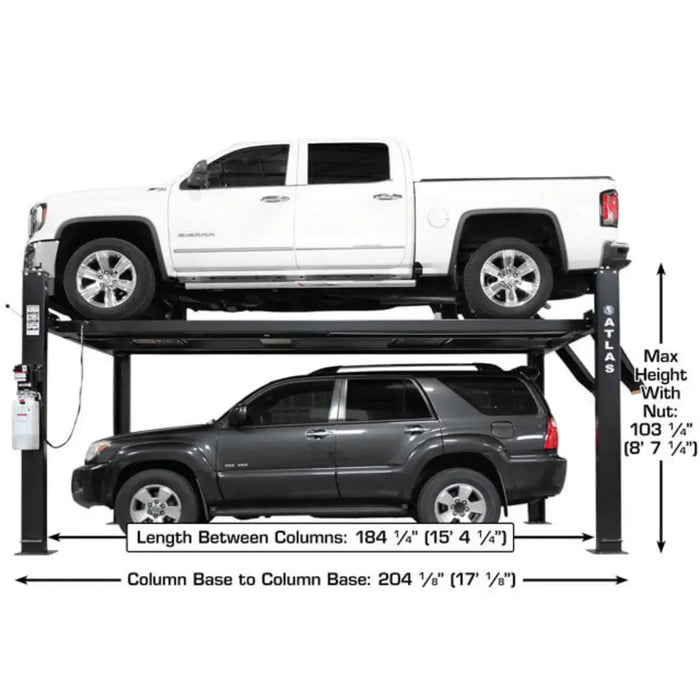

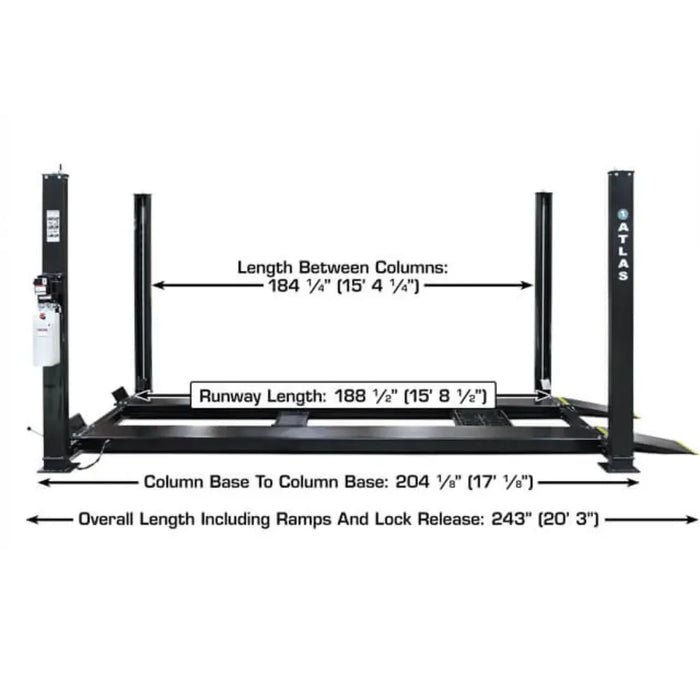

Length Between Columns	184 1/4" (15' 4 1/4")

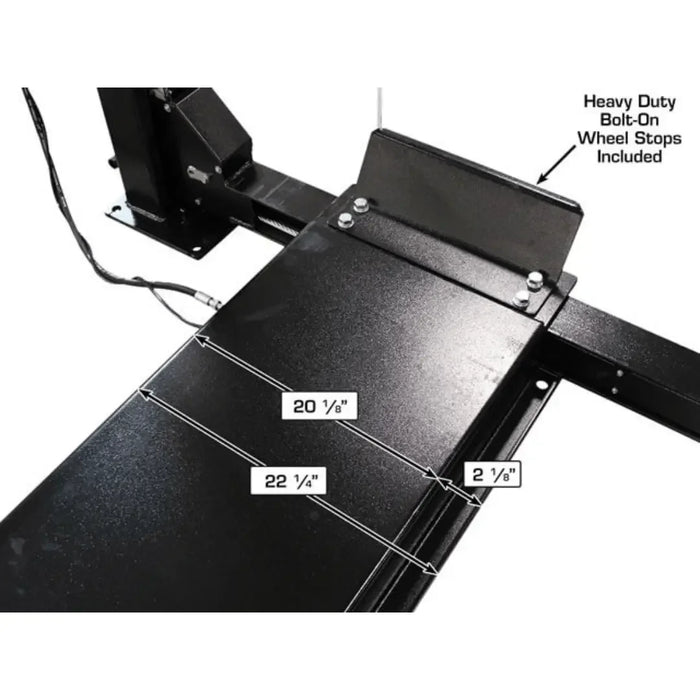

Runway Width	20 1/8"
Runway Length	196 1/2" (16' 4 1/2")
Runway Thickness	4 3/4"
Width Between Runways	38 7/8" w/ Rails 34 3/4"
Outside Runway To Outside Runway	79" (6' 7")
Clearance Between Columns	108 1/8" (9' 1/8")
Drive Thru	98 5/8" (8' 2 5/8")

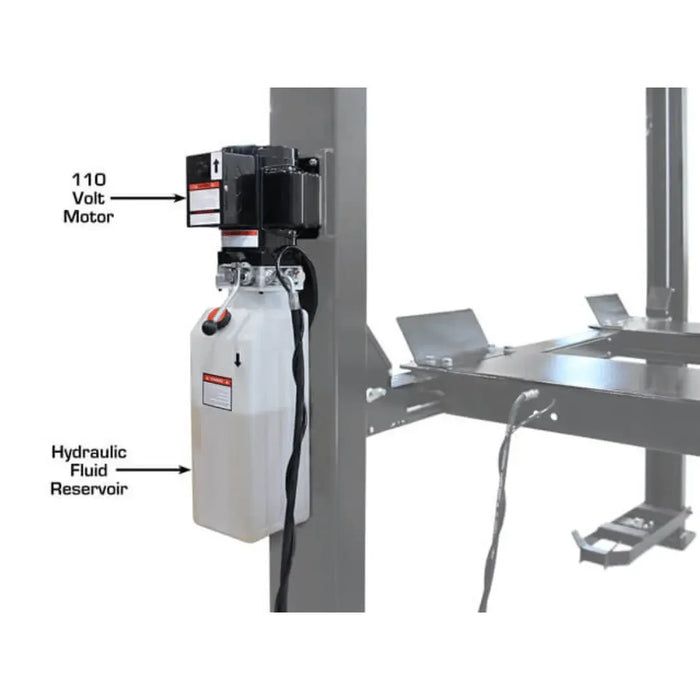

Motor/Electrical Requirement	110volt, 30 amp breaker required
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	2,975 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru width	8 ft
Drive thru between carriage	98"
Inside columns	108"
Lifting capacity	9000 lbs
Lifting height top of runway	7 ft
Lifting height top of runway	86"
Max rise under runway	6.75 ft
Max rise under runway	81"
Outside edge of runways	6.5 ft
Outside edge of runways	79"
Overall length	19 ft
Overall width	11 ft
Overall heights	99"
Overall length	184"227"
Overall width	121"133"
Runway length	16.25 ft
Runway length	196"
Width between columns	9 ft

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
