Atlas 9KOHX 9000 lb Overhead 2 Post Lift

Name: Atlas 9KOHX 9000 lb Overhead 2 Post Lift
Brand: Atlas
Price: 2599.0 USD
Availability: InStock
Rating: 4.0 (3 reviews)

Part #:ATEXH-9KOHX

Brand: Atlas

$0.00 - $0.00

$0.00

$2,599.00

$2,599.00 - $2,599.00

$2,599.00

Call/Text Us: 866-774-7743 Call Us

Description

-

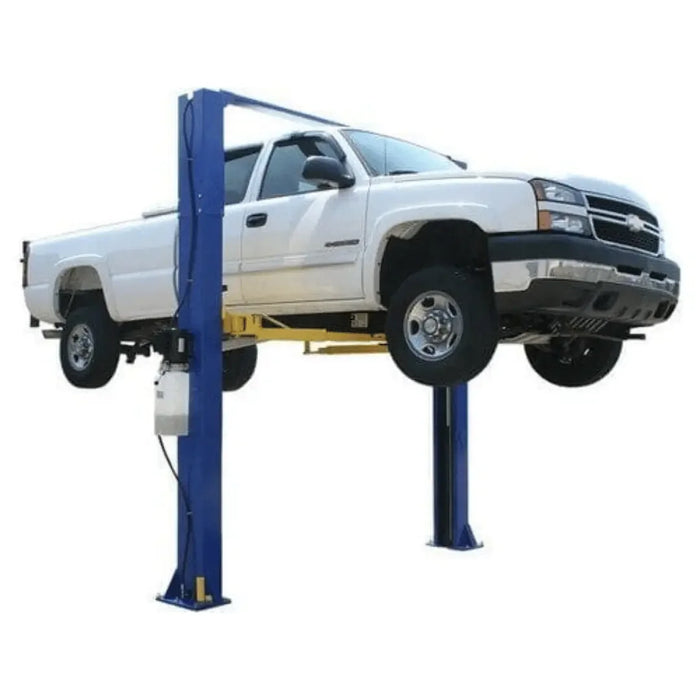

Atlas 9000 lb Overhead 2 Post Lift

The light duty Atlas® 9KOHX Overhead 2 Post Lift is an economy designed overhead, clear-floor 2-post lift. The reliable chain-drive cylinders and dual safety system make this the perfect choice for “Mr. Homeowner” or small commercial shops looking to service cars, SUV’s and light duty trucks. The 9KOHX can be adjusted to two different height settings, either 11′ 6″ or 11′ 10″, allowing it to fit in almost any standard garage.

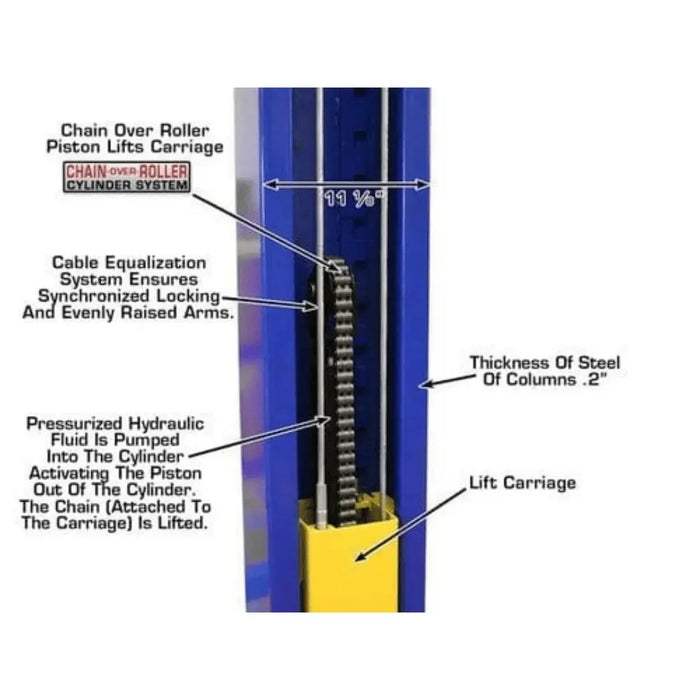

The Atlas® 9KOH has symmetric columns and specially designed arms that can be set in either the symmetric or asymmetric position. The asymmetric/symmetric arm design offers an extremely low lift pad position on the EZ-metric lift arm configuration. This low pad height will allow the operator to position the lift arms under most small cars (with low pick up points) and heavier pick up trucks. The Atlas® 9KOHX two post “chain over roller” lifts have a spring loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

The 9KOHX is the perfect choice for those who demand the most lifting capacity at the lowest possible price.

Product Features

9,000 lb. Capacity
Overhead, Open-Floor design
Overall Height: 138″ (11′ 6″) or 142″ (11′ 10″)

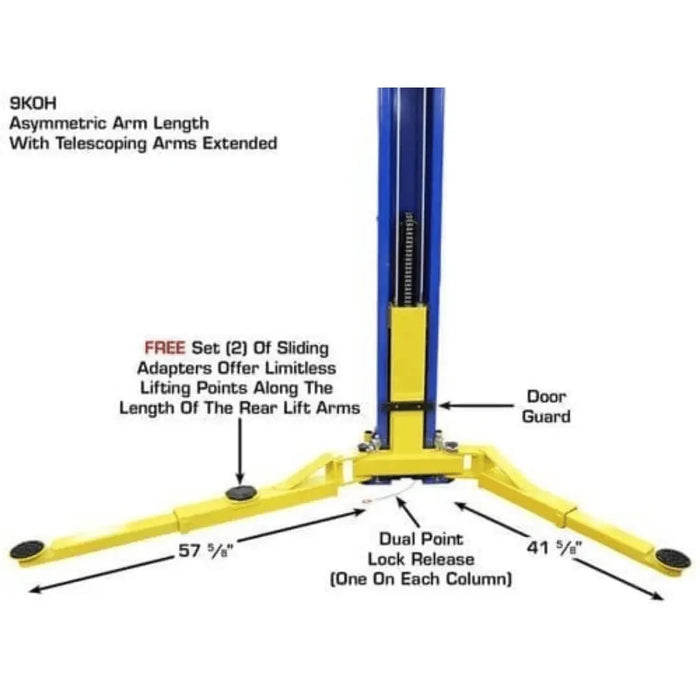

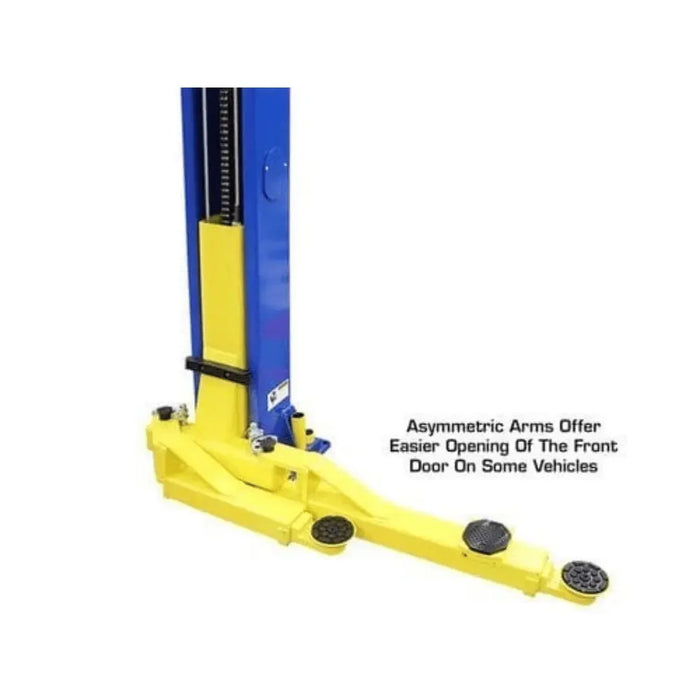

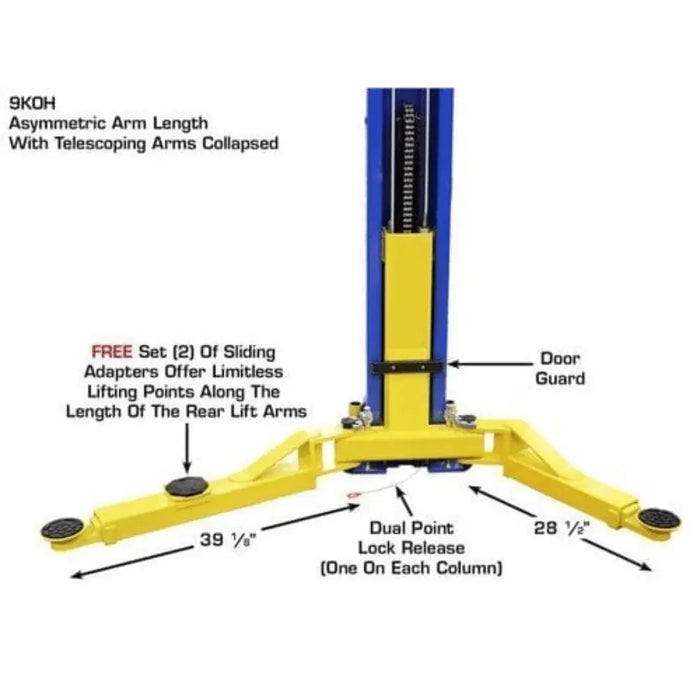

Asymmetric/Symmetric Arms

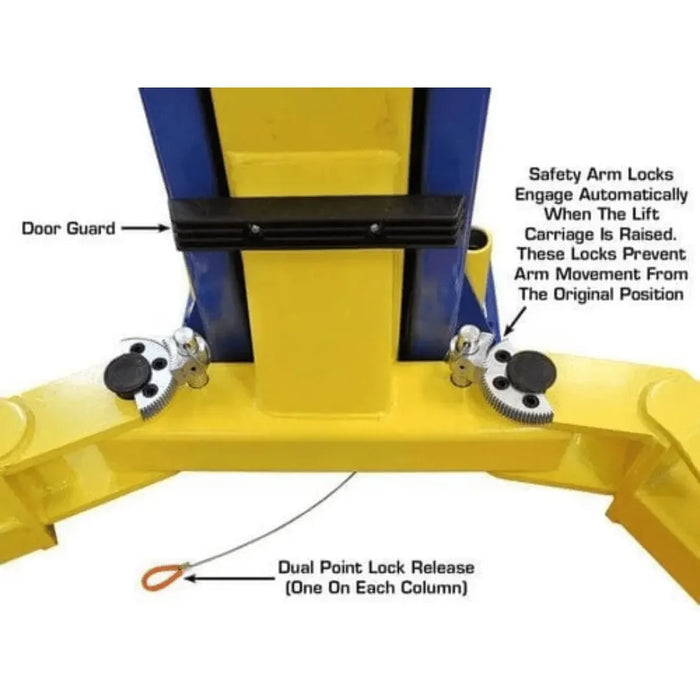

Automatic Arm Restraints
Dual-Point Lock Release
Rubber Guards on Carriages

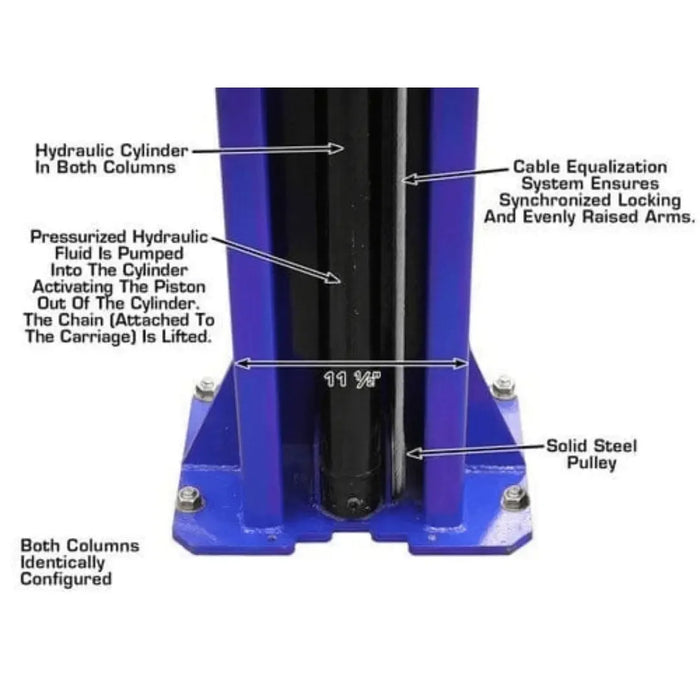

Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System

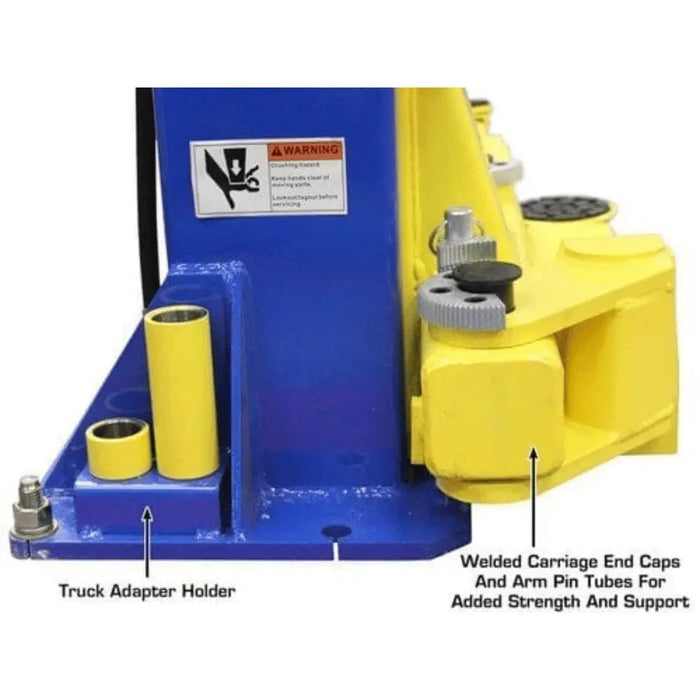

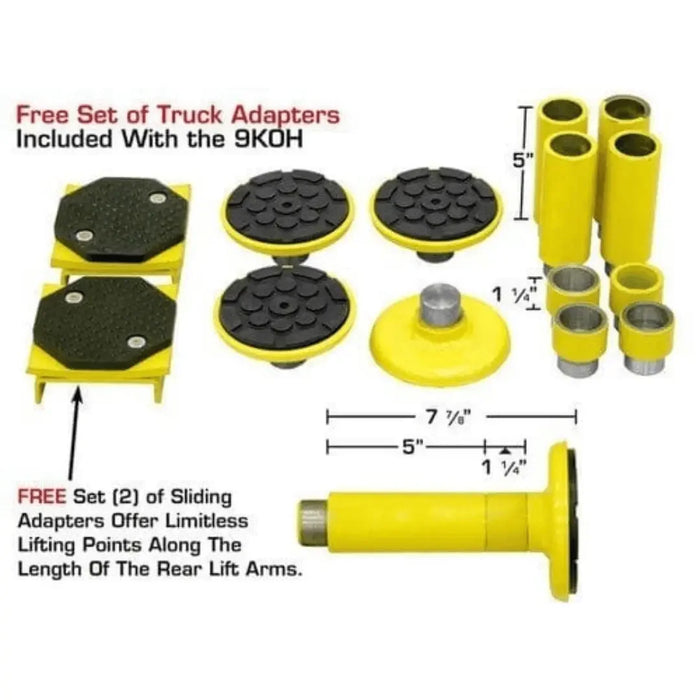

Free 8 Piece Truck Adapter Set
Free set of Sliding Arm Adapters

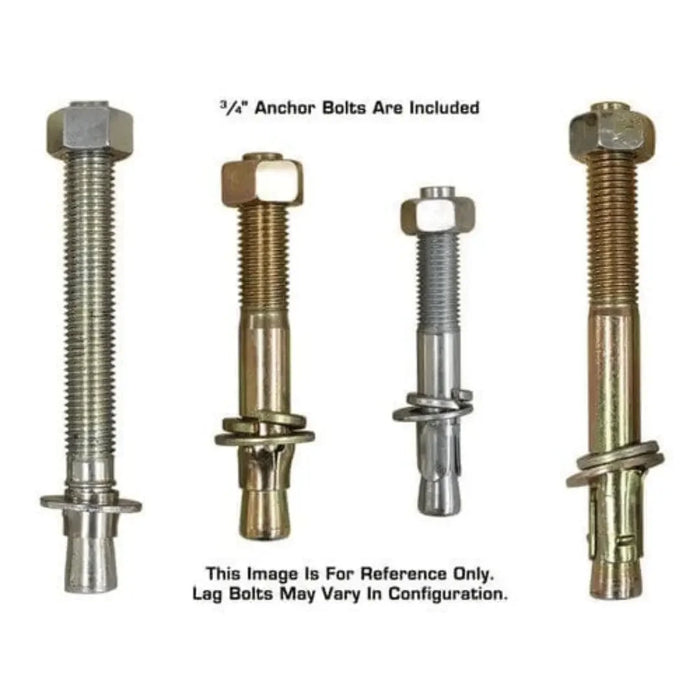

Mounting Hardware Included

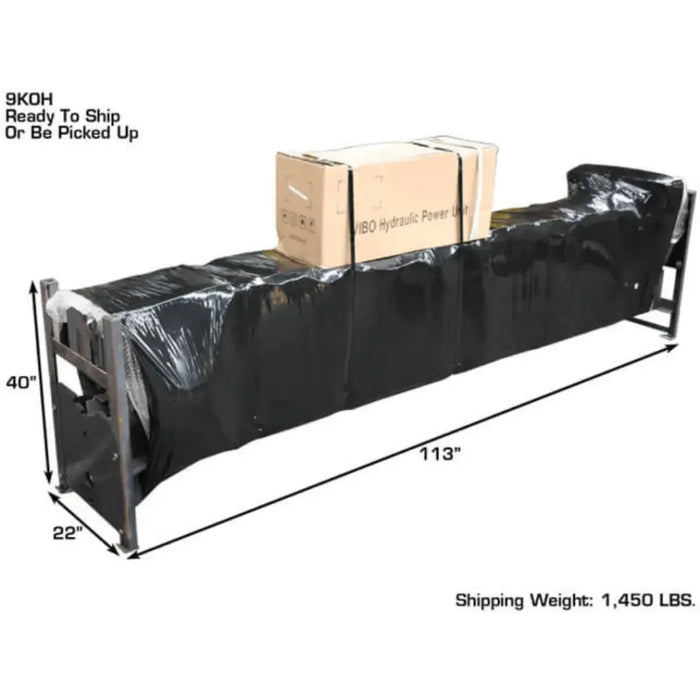

Shipping Weight: 1,450 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only
This part number FREIGHT PREPAID

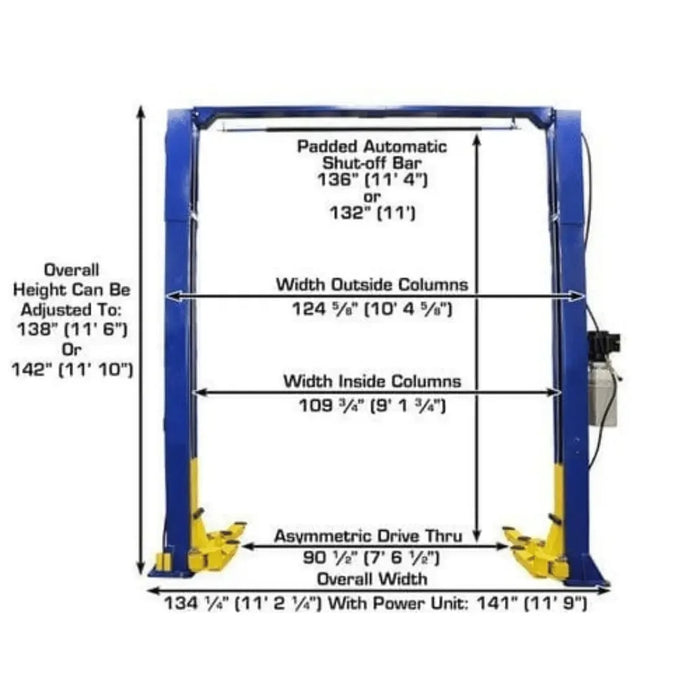

Product Specifications

Model	9KOHX
Capacity	9,000 lbs. (4,082 kg)

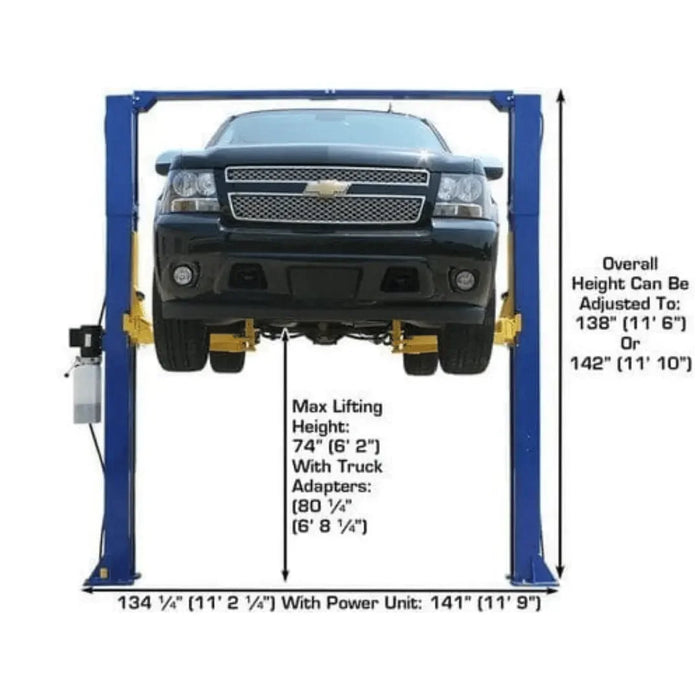

Overall Height	138" (11’ 6") or 142” (11’ 10”)
Overall Floor Width	134 1/2" (11’ 2 1/2")
Outside Column to Outside Column	124 7/8" (10’ 4 7/8")

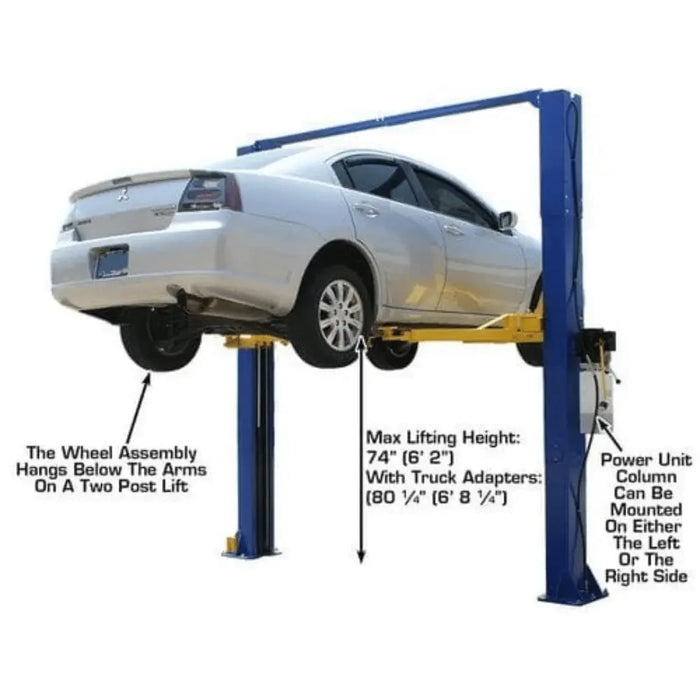

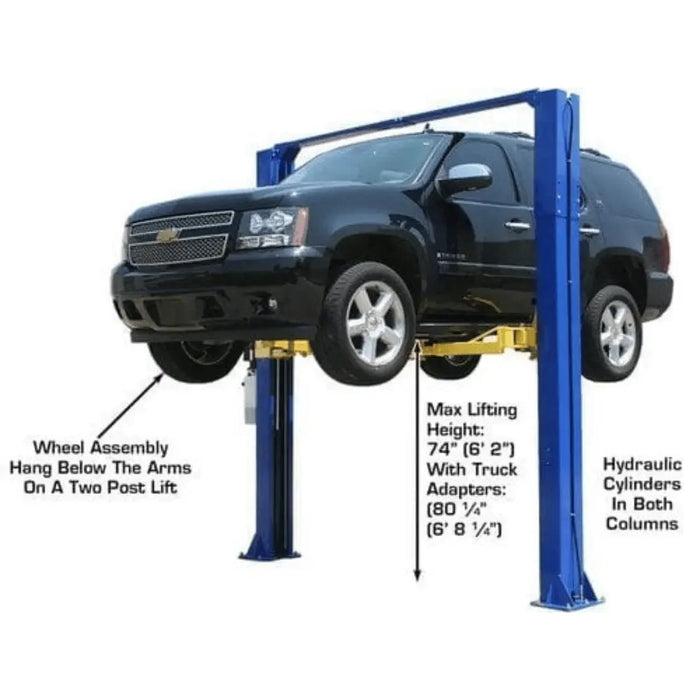

Maximum Lift Height (Without Adapters)	74 1/2"
Maximum Lift Height (With Adapters)	81"
Minimum Arm Height	4"
Inside Column	110” (9’ 2”)

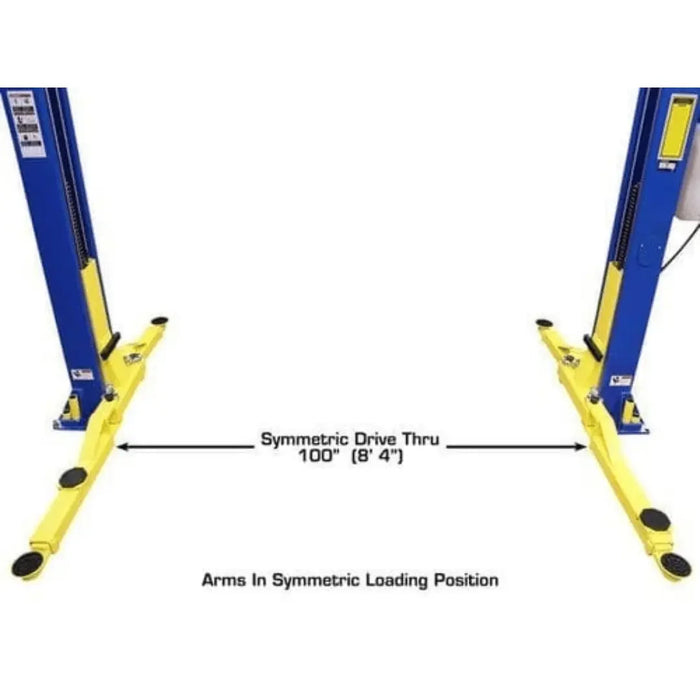

Drive Thru	100” (8’ 4”) Symmetric/ 90 1/2" (7’ 6 1/2”) Asymmetric

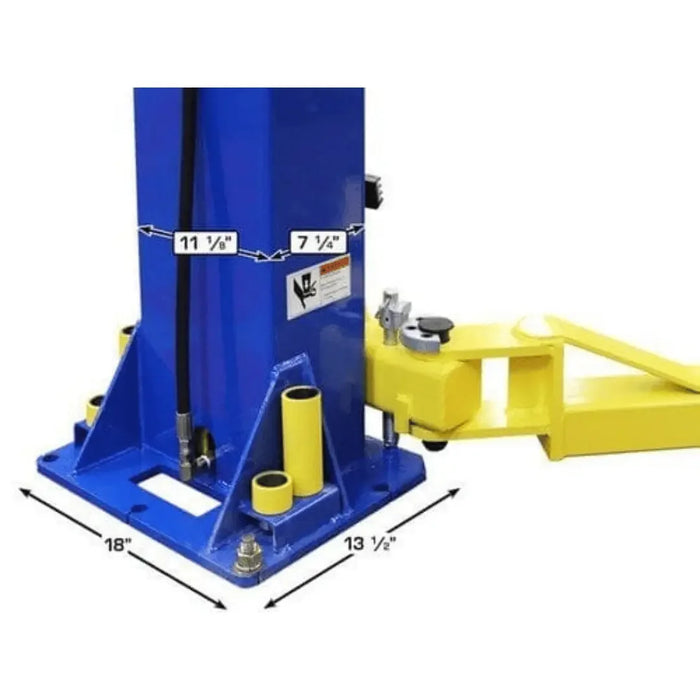

Column Size	7 1/4" x 11"
Column Thickness of Steel	5mm
Base Of Lift	14 1/4" x 18"

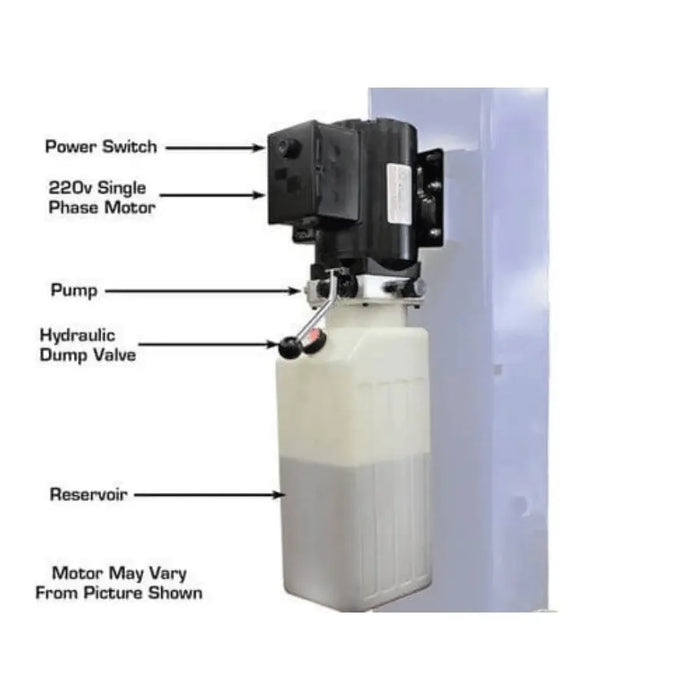

Motor/Electrical Requirement	220 volt single (1) phase. (A 30 amp breaker is recommended)
Oil Requirement	3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,450 Lbs

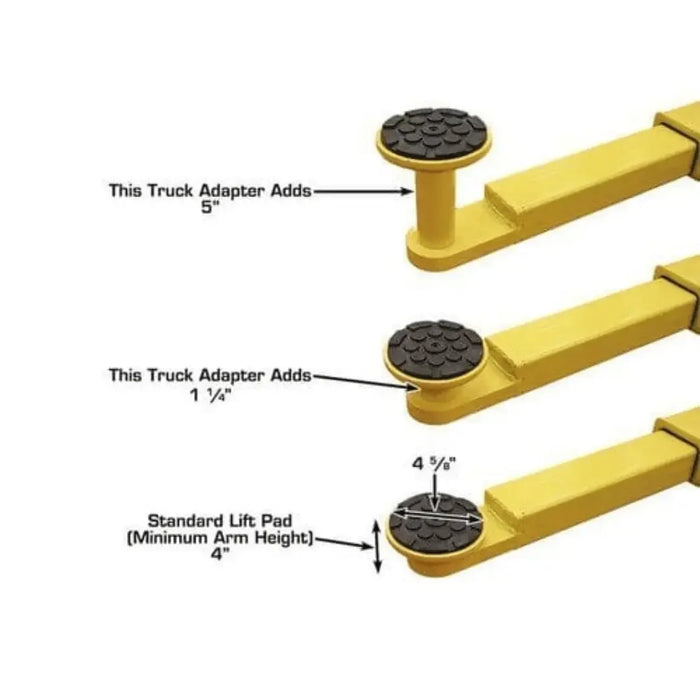

Adapter Heights	4 Each 1.5”, 5”
Arm Hole/Adapter Peg Size	1.5”
Requires a minimum of	4" of concrete with a 3000 psi. rating

Pick Up and Delivery

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru width	8.4 ft
Drive thru between carriage	90"100"
Inside columns	110"
Lifting capacity	9000 lbs
Lifting height top of arms	6.75 ft
Lifting height top of pad	74"81"
Max rise under arms	6 ft
Max rise under arms	74"
Min height lowered arm height	4"
Minimum pad height	4"
Motor	220V
Overall width	11.25 ft
Overall heights	138"142"
Overall width	134"
Upc	810524028318
Warehouses	Fresno California \| Tempe Arizona \| Arlington Texas \| Greenfield Indiana \| Buford Georgia \| Orlando Florida \| Somerset New Jersey
Width between columns	9.2 ft

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
