Atlas 9KBPX 9,000 lb Baseplate 2 Post Vehicle Lift

Name: Atlas 9KBPX 9,000 lb Baseplate 2 Post Vehicle Lift
Brand: Atlas
Price: 2499.0 USD
Availability: InStock
Rating: 5.0 (3 reviews)

Part #:ATEXH-9KBPX

Brand: Atlas

$0.00 - $0.00

$0.00

$2,499.00

$2,499.00 - $2,499.00

$2,499.00

Call/Text Us: 866-774-7743 Call Us

Description

-

Atlas 9000 lb Baseplate 2 Post Vechicle Lift

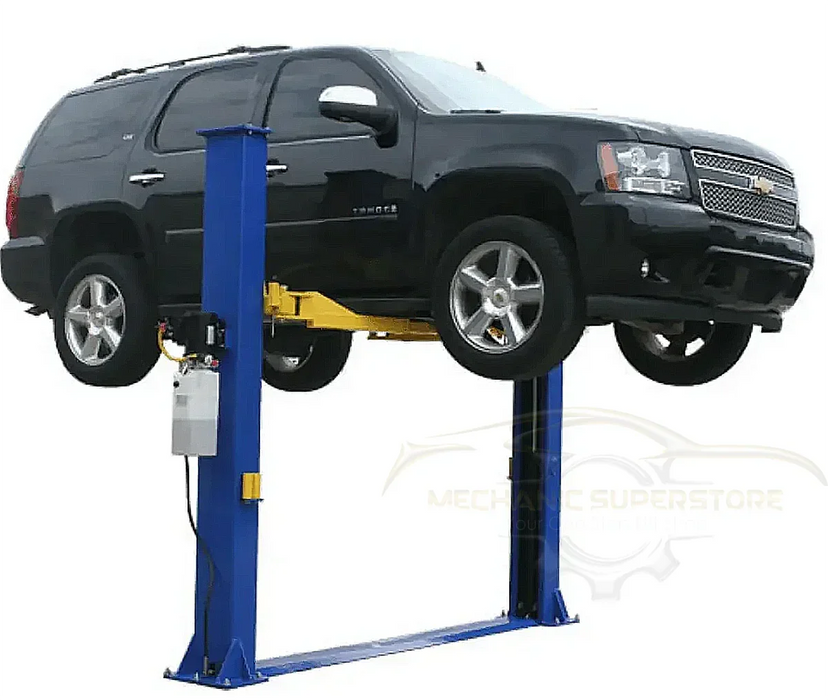

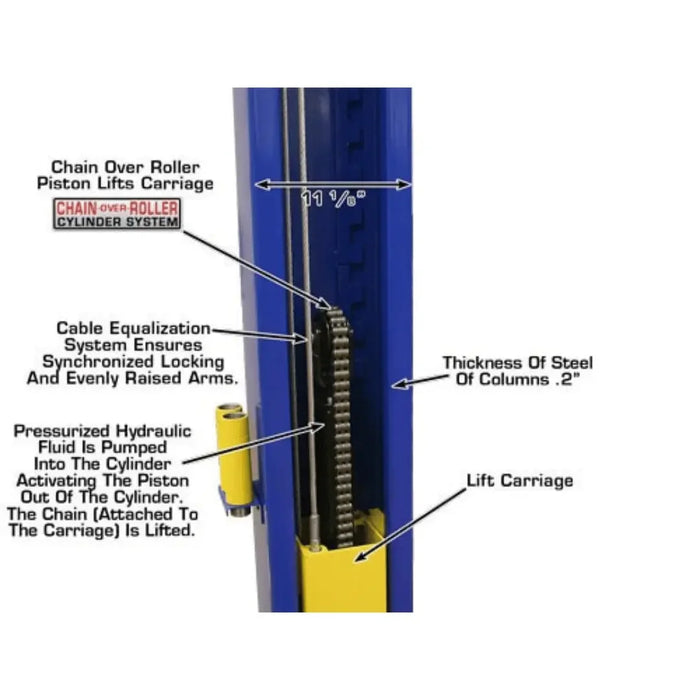

The Atlas® 9KBPX is an economically designed baseplate 2 post vehicle lift great for low ceiling garages. The total column height of 111 ½” (9' 3 ½") allows this lift to be installed in almost any professional or home garage with a ceiling as low as 9' 6". The Atlas® 9KBPX “chain over roller” lift features a spring-loaded Secondary Lock System (SLS) that automatically engages in the event of a slack or broken chain.

The reliable dual chain-drive cylinders, symmetric arms, and automatic arm restraints make this the perfect choice for “Mr. Homeowner” or small commercial shop looking to service cars, SUV’s, and light duty trucks (not recommended to lift Diesel Dually or other large trucks).

Product Features

9,000 lb. Capacity

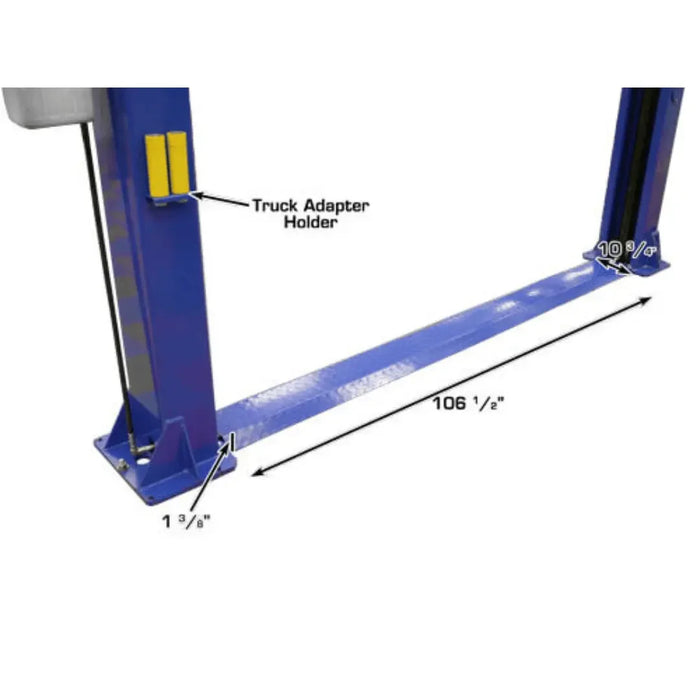

Baseplate, Open-Top Style Lift
Designed For Low Ceiling Clearance – 9′ 3 ½” Columns

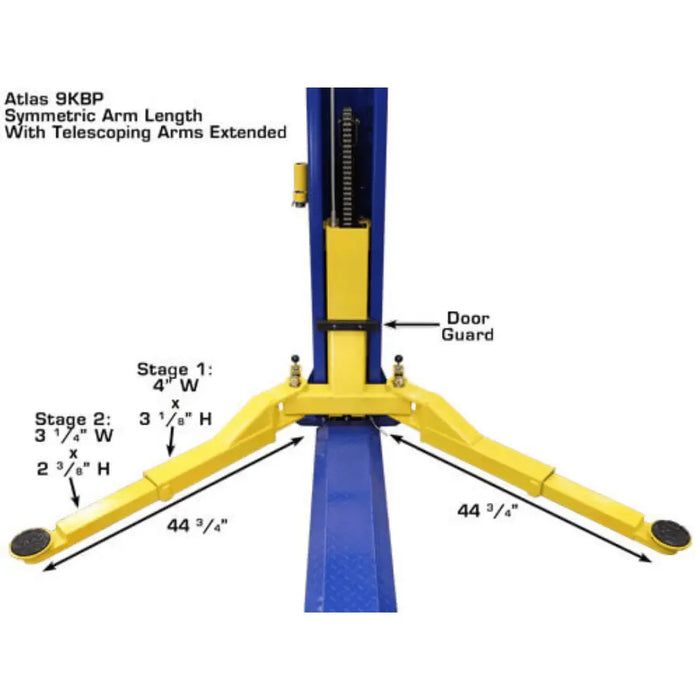

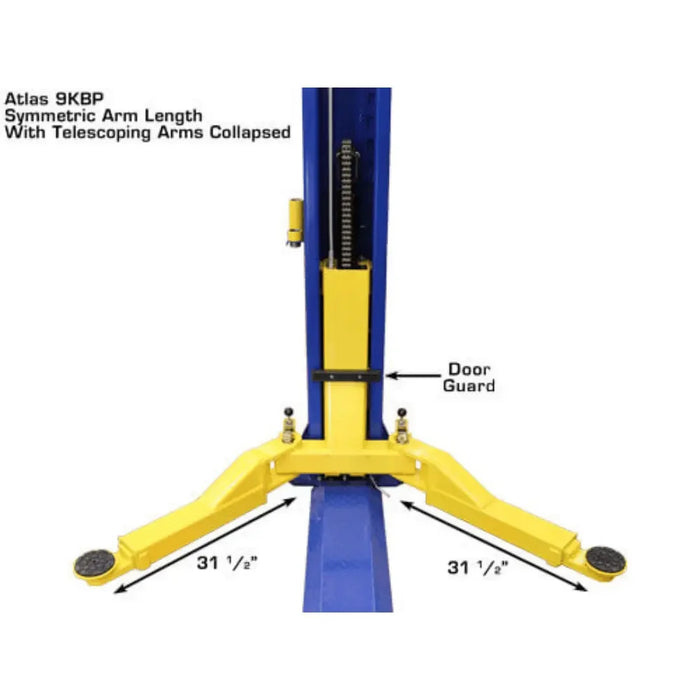

Symmetric Arms
Dual Hydraulic Chain-Drive Cylinders
Secondary Lock System (SLS)

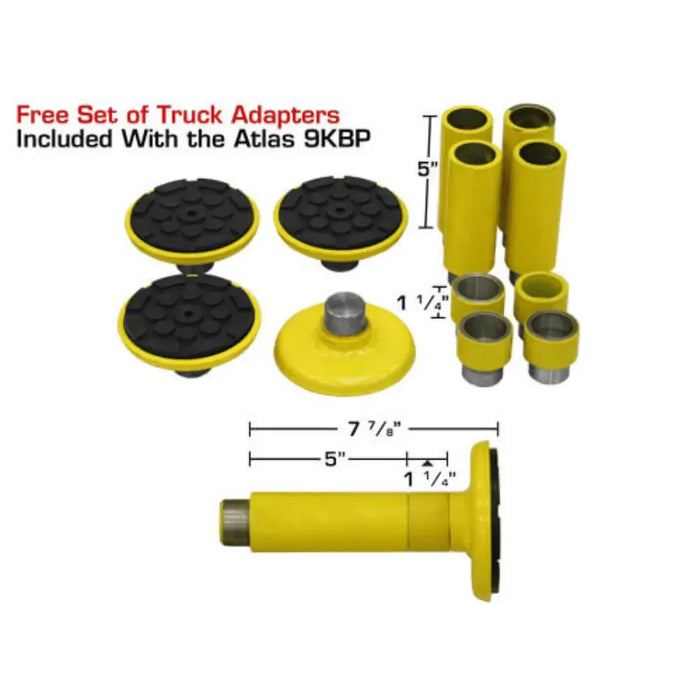

Free 8 Piece Truck Adapter Set

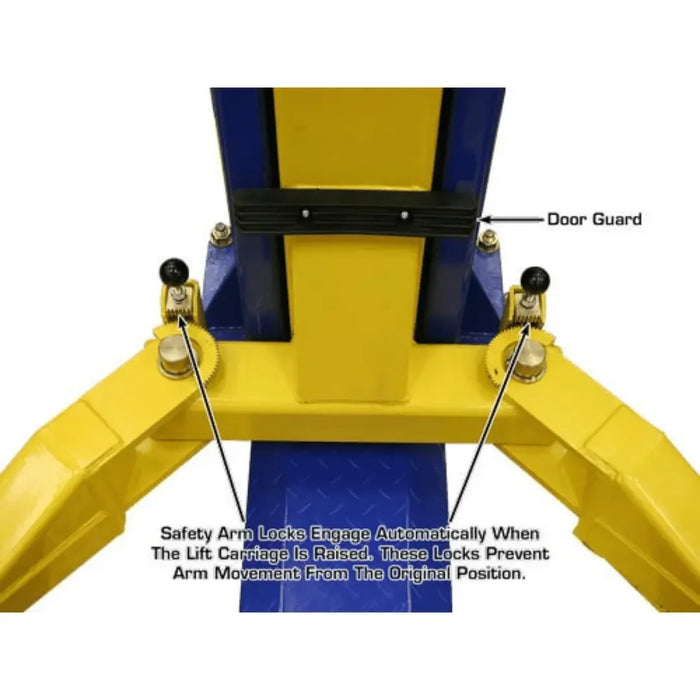

Automatic Arm Restraints

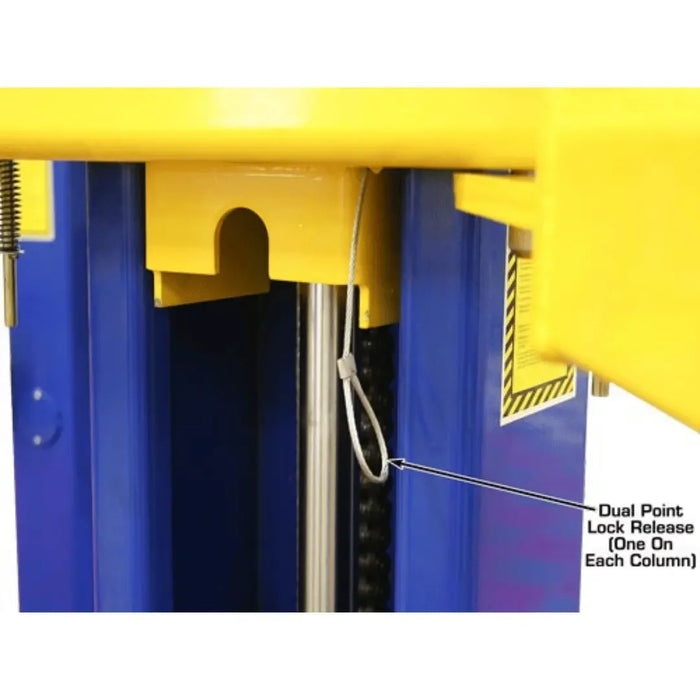

Dual Point Lock Release

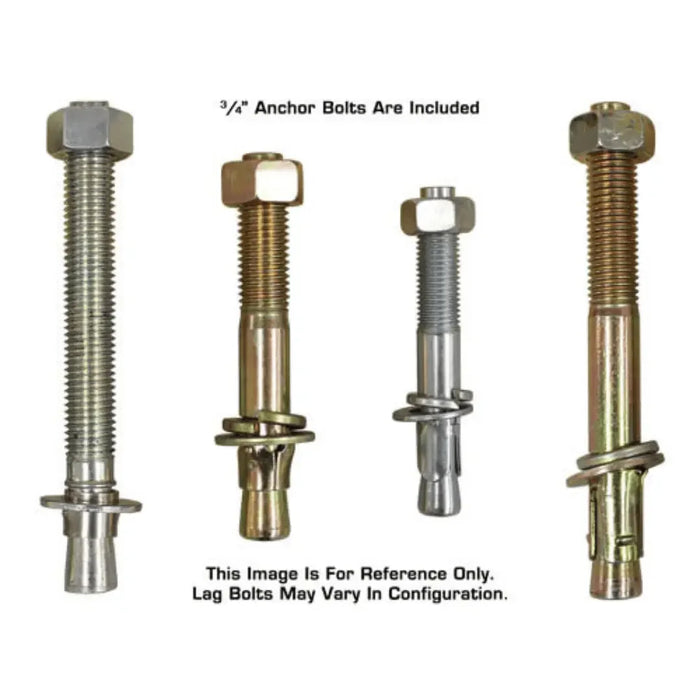

Mounting Hardware Included

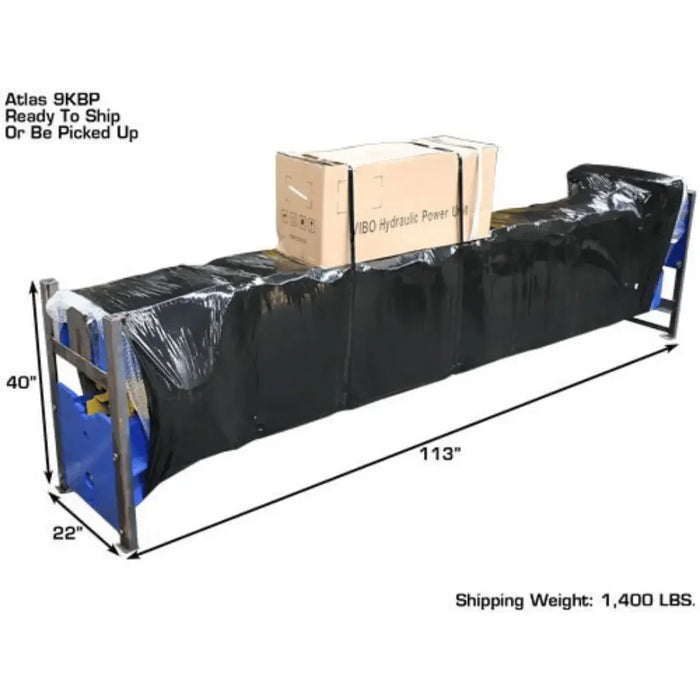

Shipping Weight: 1,400 lbs.
2 yr Structural – 1 yr Hydraulic Warranty – Parts Only

Product Specifications

Model	XH-9KBPX
Capacity	9,000 lbs.

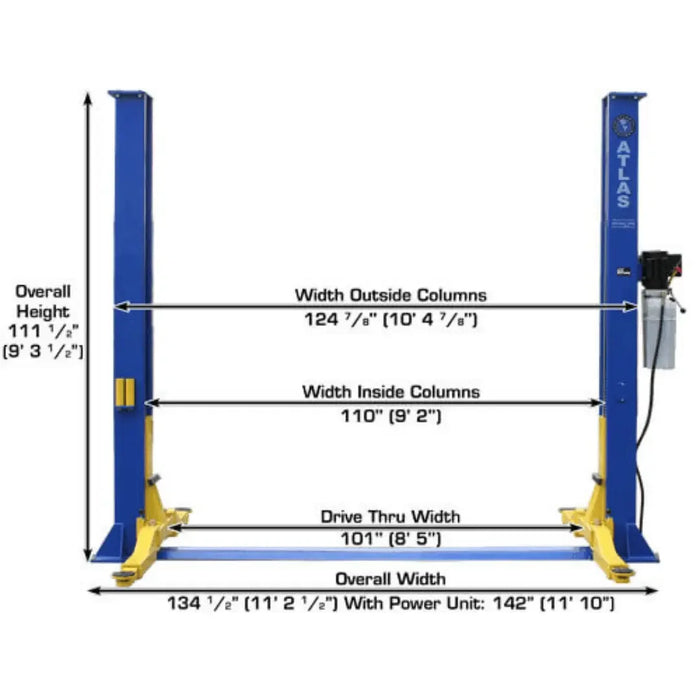

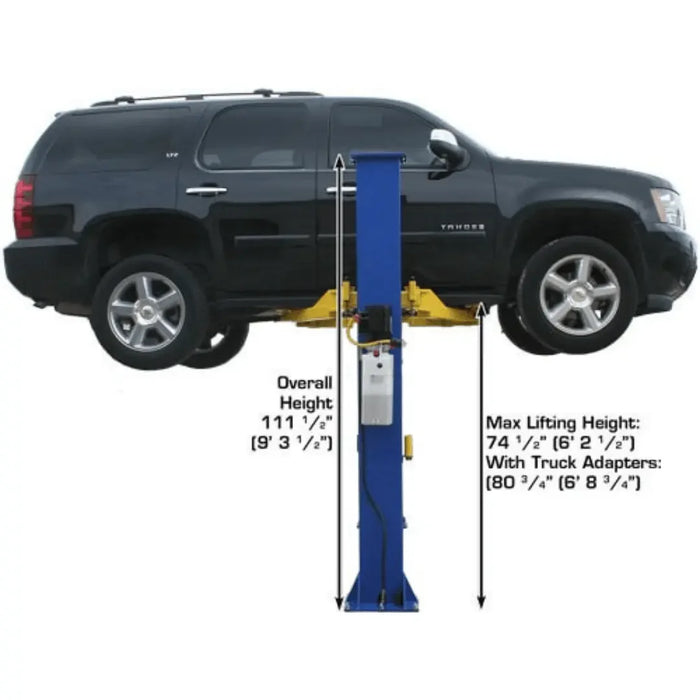

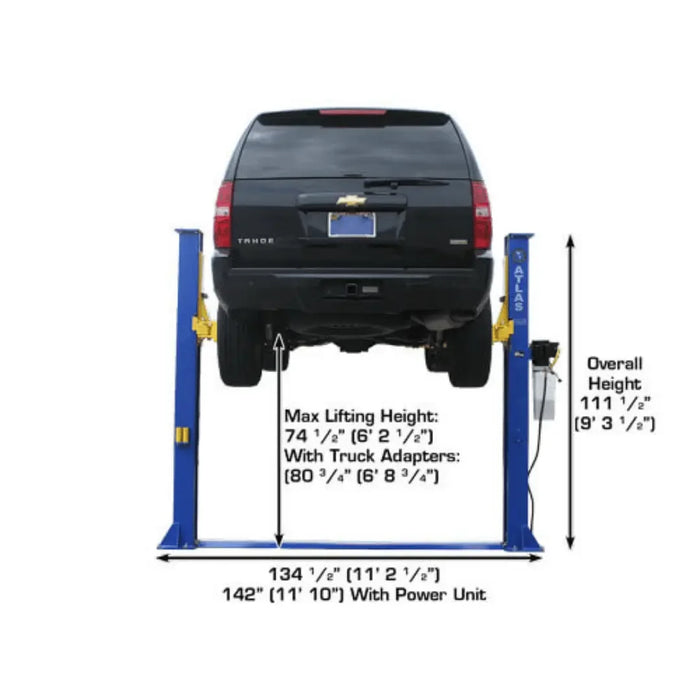

Overall Height	111 1/2" (9’ 3 1/2")

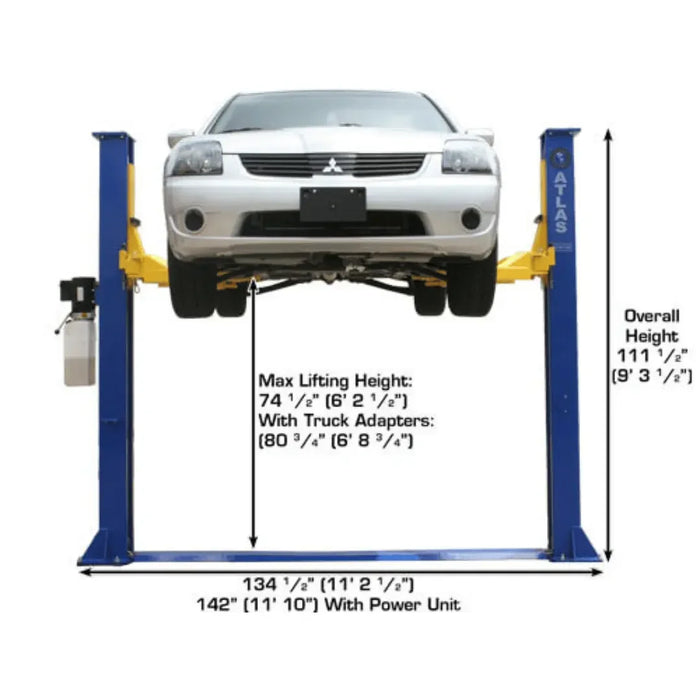

Overall Floor Width	134 1/2" (11’ 2 1/2")
Outside Column to Outside Column	124 7/8" (10’ 4 7/8")

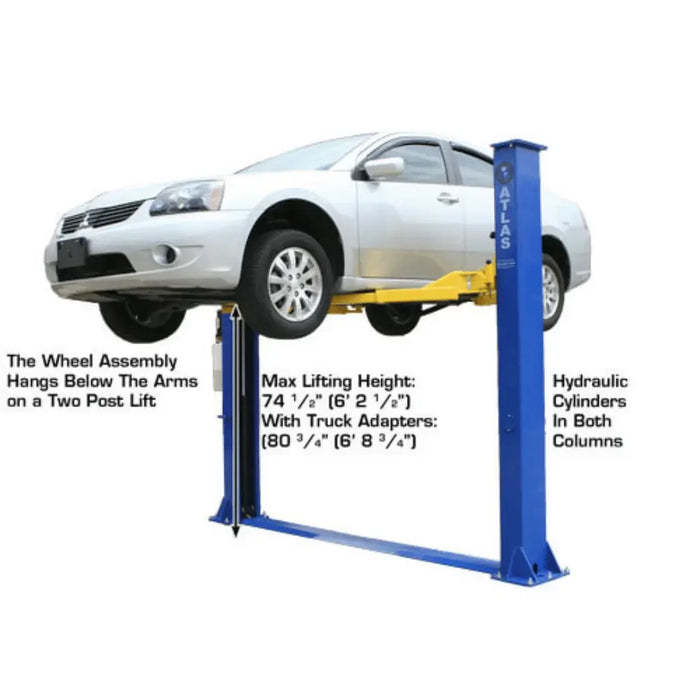

Max Lift Height (No Adapters)	74 1/2"
Max Lift Height (With Adapters)	81"
Minimum Arm Height	4"
Inside Column	110” (9’ 2”)
Drive Thru	101” (8’ 5”)

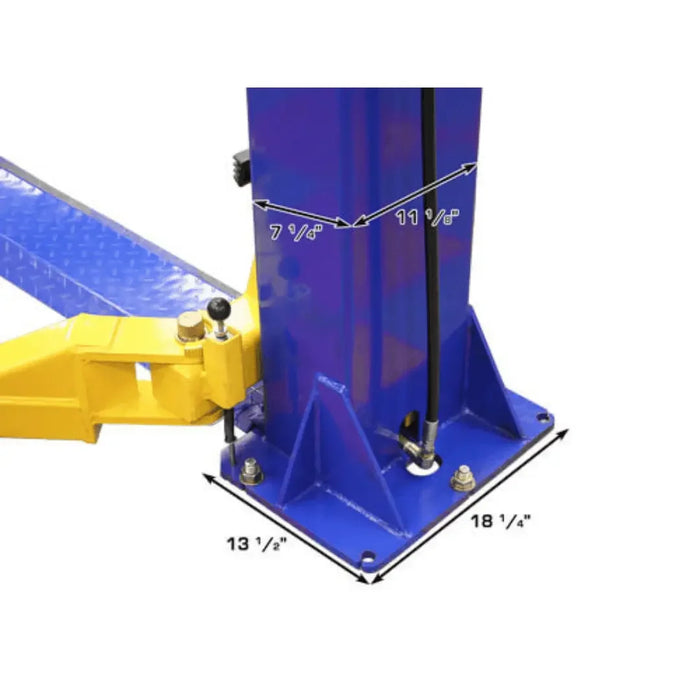

Column Size	7 1/4" x 11"
Steel Thickness	5mm
Base Size	14 1/4" x 18 1/4"

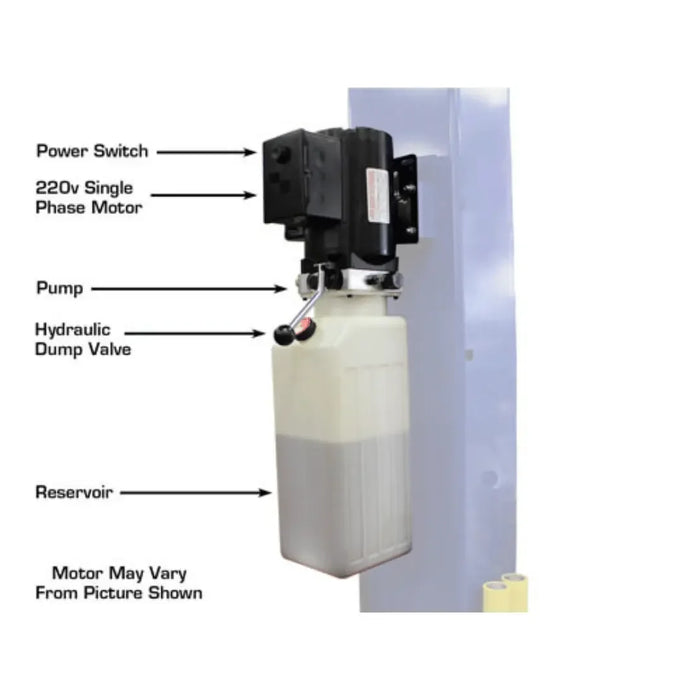

Electrical	220V single phase (30 amp breaker)
Oil Requirement	3-5 Gal AW32/AW46 (NOT INCLUDED)
Shipping Weight	1,400 lbs.

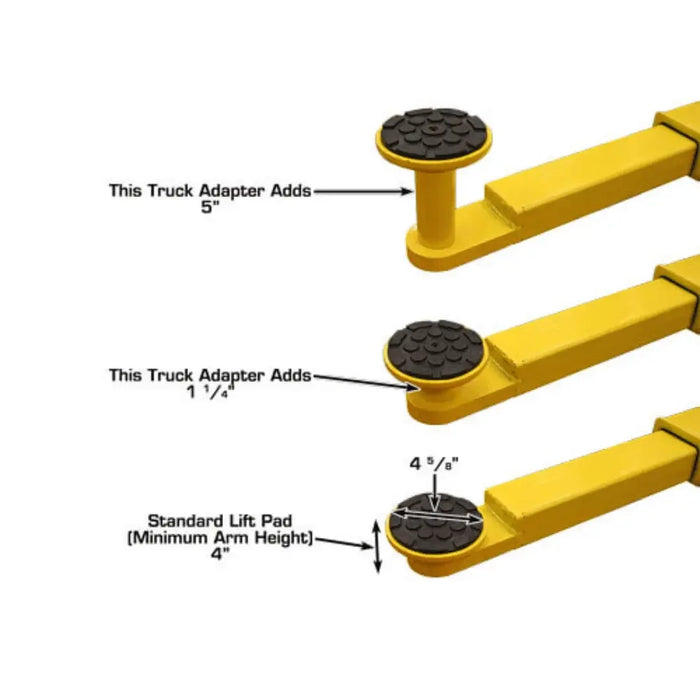

Adapter Heights	4 Each: 1.5”, 5”
Arm Hole / Peg Size	1.5”
Concrete Requirement	4" @ 3000 psi

Pick Up and Delivery

Call, text, or chat with us if you have questions. - 866-774-7743

Specifications

-

Drive thru width	8.5 ft
Drive thru between carriage	101"
Inside columns	110"
Lifting capacity	9000 lbs
Lifting height top of arms	8.6 ft
Lifting height top of pad	74"81"
Max rise under arms	6.20 ft
Max rise under arms	74"
Min height lowered arm height	4"
Minimum pad height	4"
Modal	XH-9KBPX

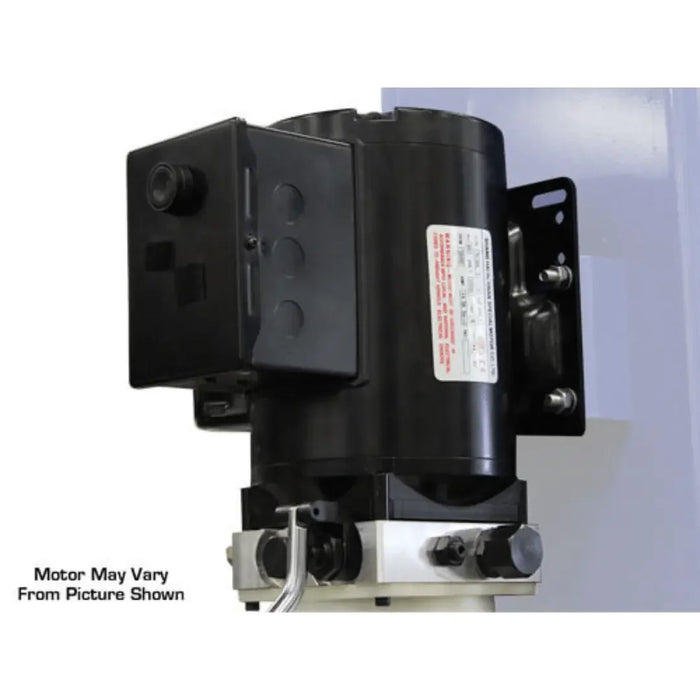

Motor	220V
Overall width	11.25 ft
Overall heights	111"
Overall weight	1,400 lbs.
Overall width	134"
Width between columns	9.2 ft

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
