Atlas 12AWFSL 12,000 lb Capacity Alignment Scissor Lift with Wheels Free Lifts

Name: Atlas 12AWFSL 12,000 lb Capacity Alignment Scissor Lift with Wheels Free Lifts
Brand: Atlas
Price: 14999.0 USD
Availability: InStock

Part #:ATEATTD-12AWFSL-N

Brand: Atlas

$0.00 - $0.00

$0.00

$14,999.00

$14,999.00 - $14,999.00

$14,999.00

Call/Text Us: 866-774-7743 Call Us

Description

-

Atlas 12AWFSL 12,000 lb Capacity Alignment Scissor Lift with Wheels Free Lifts

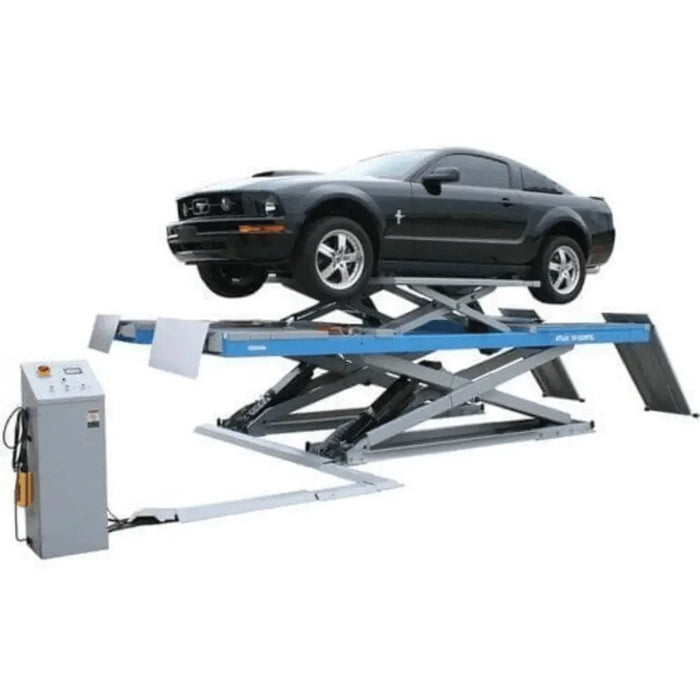

The Atlas® 12AWFSL is a heavy-duty, commercial-grade scissor lift designed for precision alignment and general service work. With a 12,000 lb. lifting capacity and integrated wheels-free lifting capability, this full-rise scissor lift supports a wide range of passenger vehicles, SUVs, and light-duty trucks.

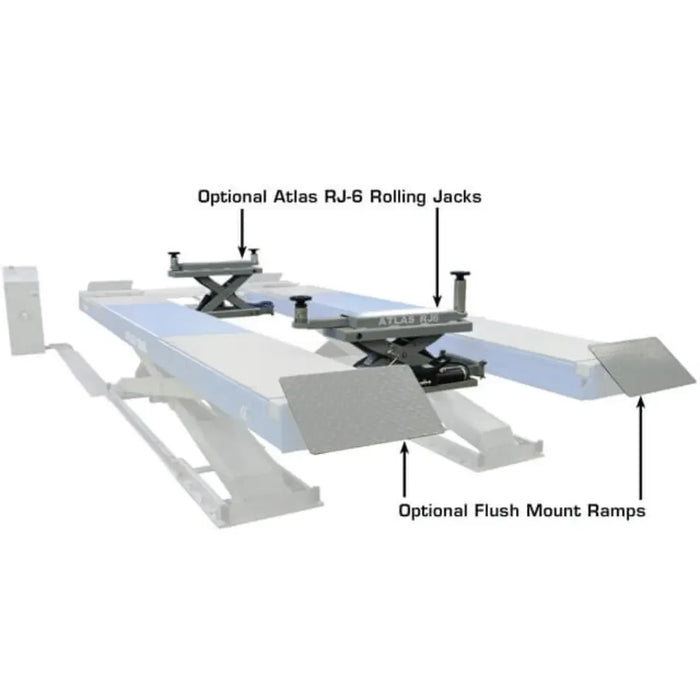

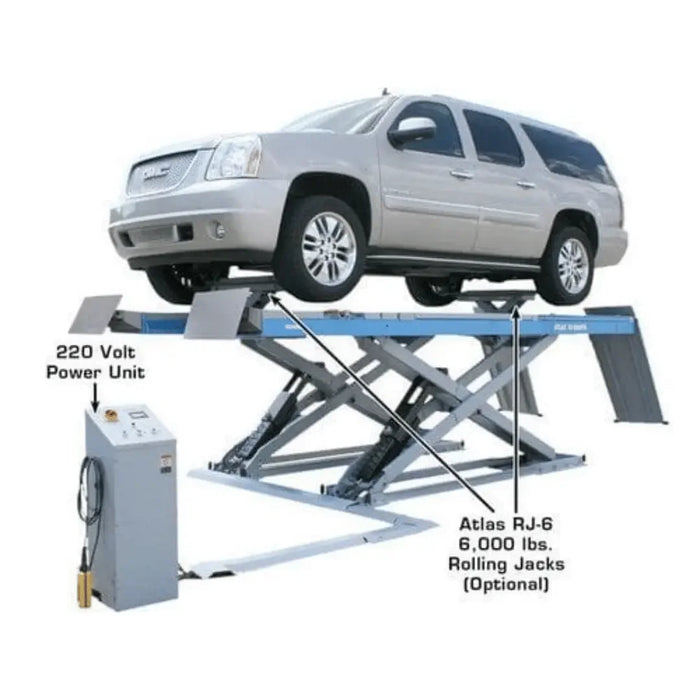

The full-length, flat-top runways provide stable support for alignment procedures, while the included rolling jacks allow operators to lift vehicles off the runways for wheel and suspension access. Dual hydraulic cylinders per platform ensure balanced lifting and smooth operation.

The lift is surface-mounted and features non-skid runways, a heavy-duty steel structure, and a compact footprint ideal for high-traffic service bays. Air-released safety locks and multiple locking positions enhance technician safety during operation.

Product Features

12,000 LB. Capacity
Commercial Grade
Scissor Alignment Lift

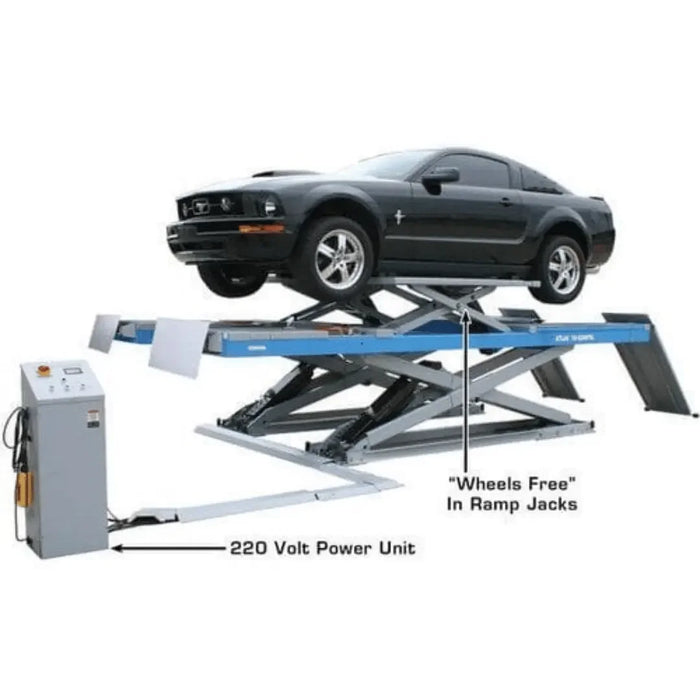

Built in “Wheels Free” Lifting System

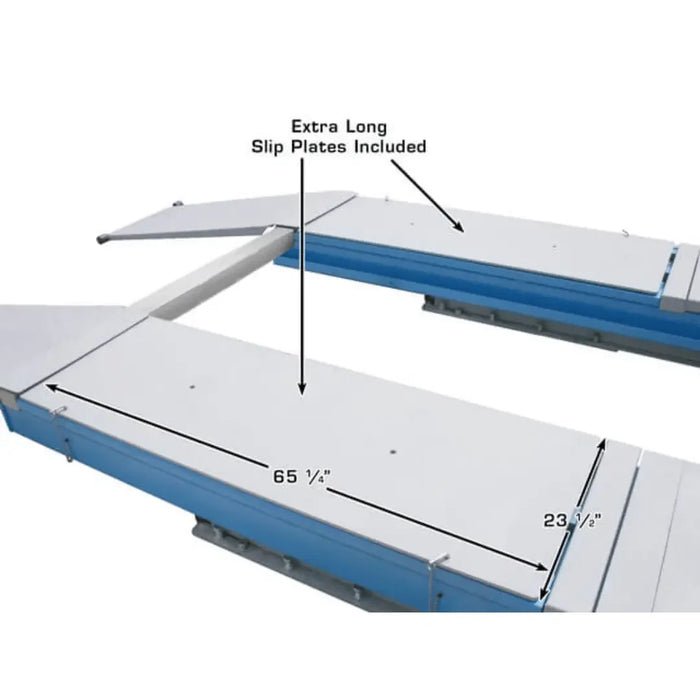

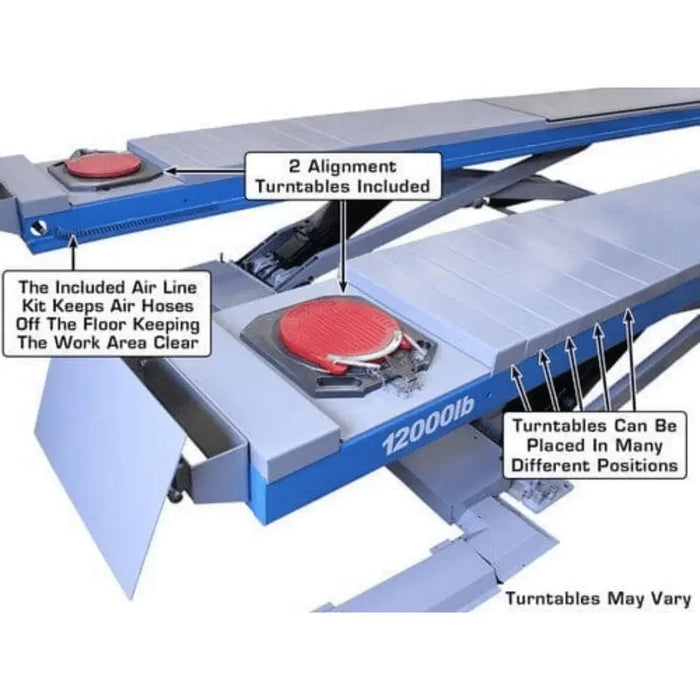

Built in Slip Plates and Alignment Turntables Included

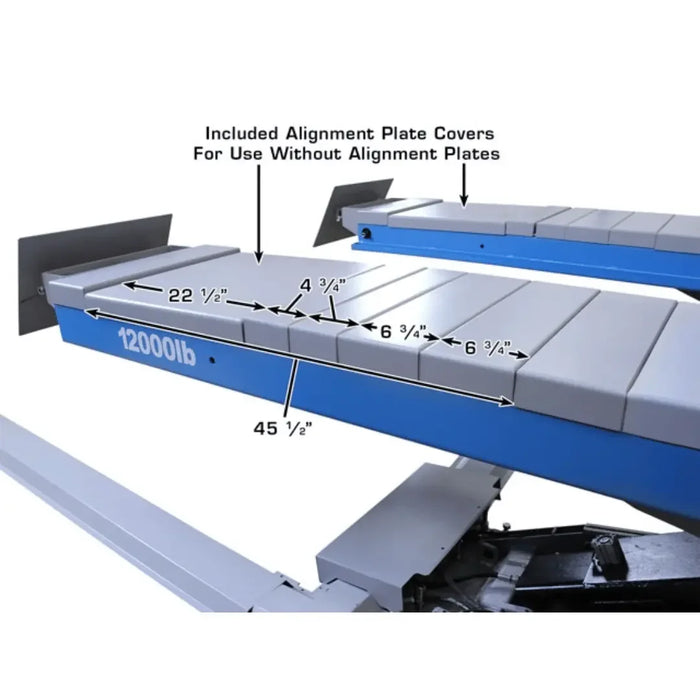

Turntable Covers Included
Open Center Design for Easy Access

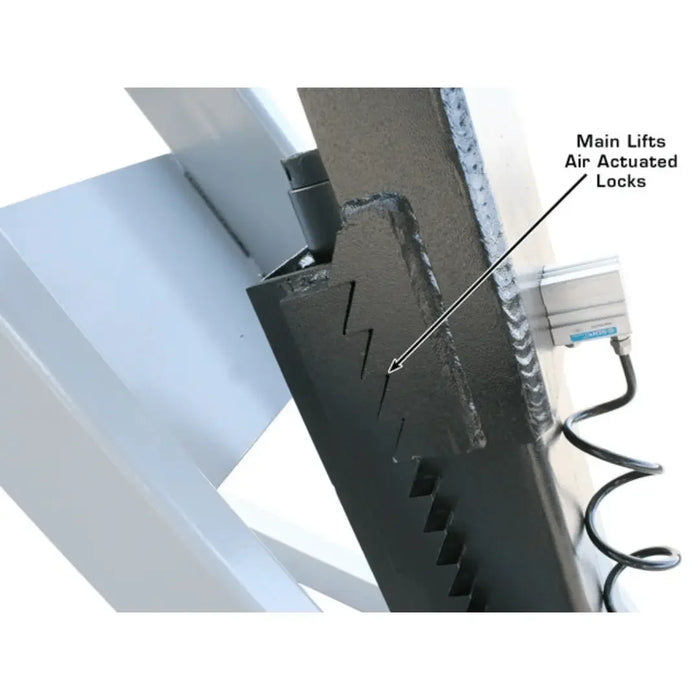

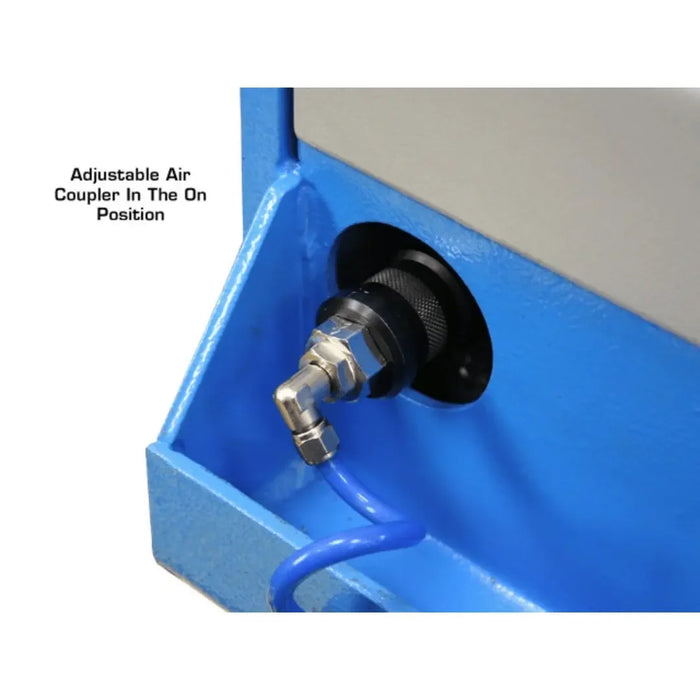

Air-Operated Single Point Lock Release
Airline Kit Included

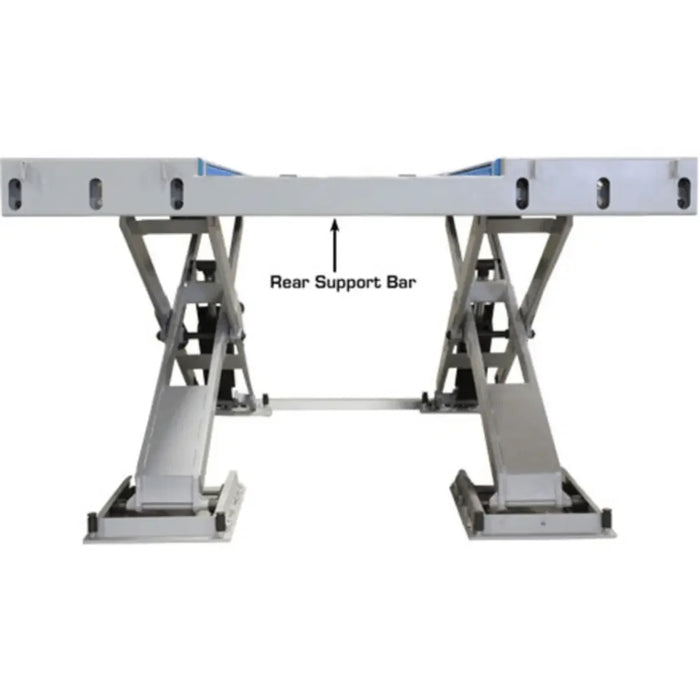

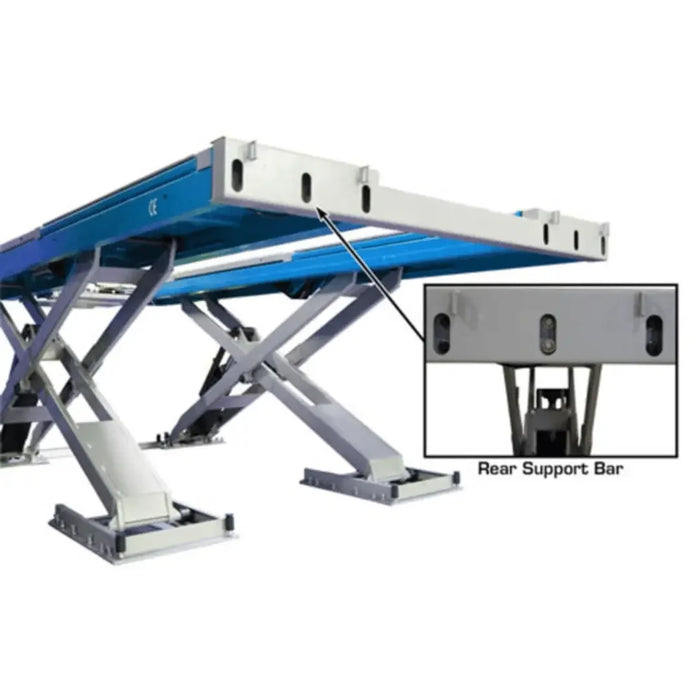

Rear Cross Beam for Extra Stability

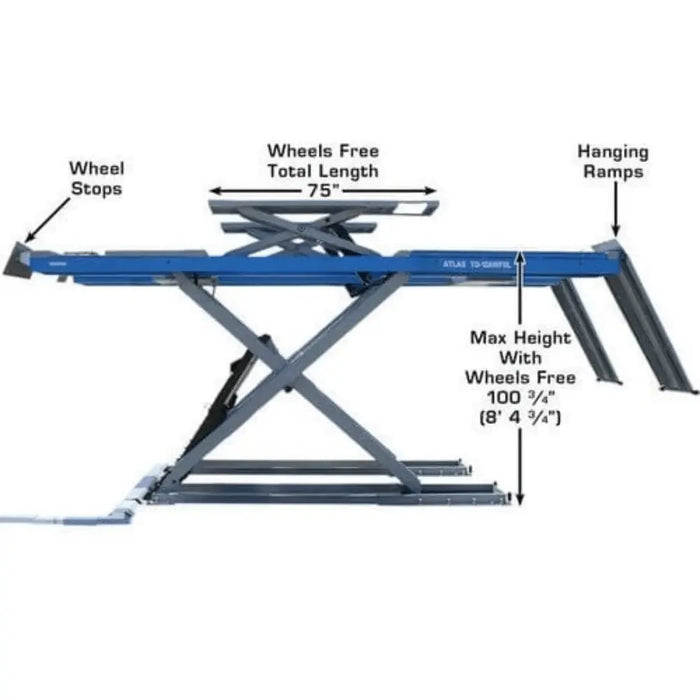

Extra Long 72″ Ramps
Precise Platform Leveling Accuracy

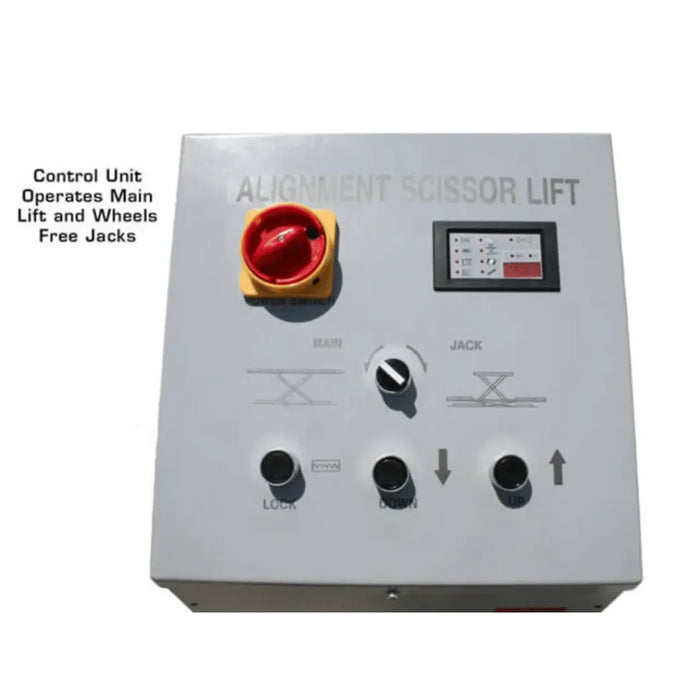

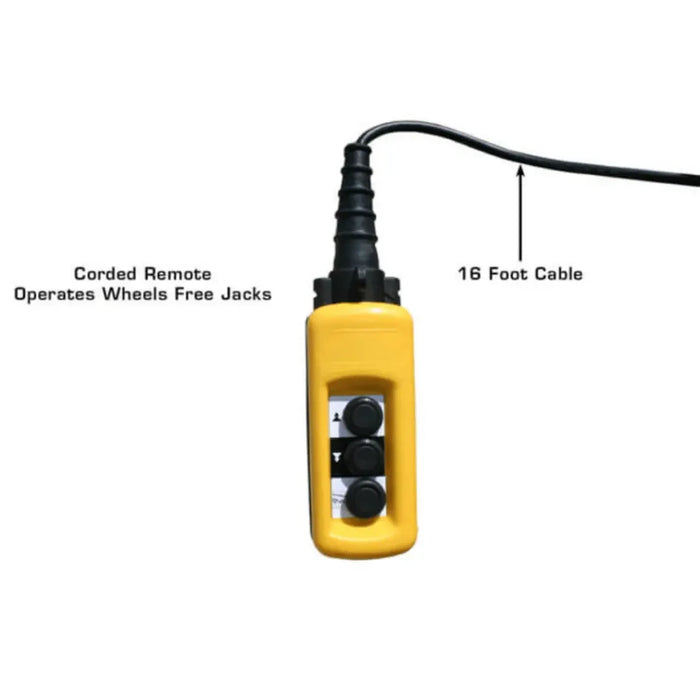

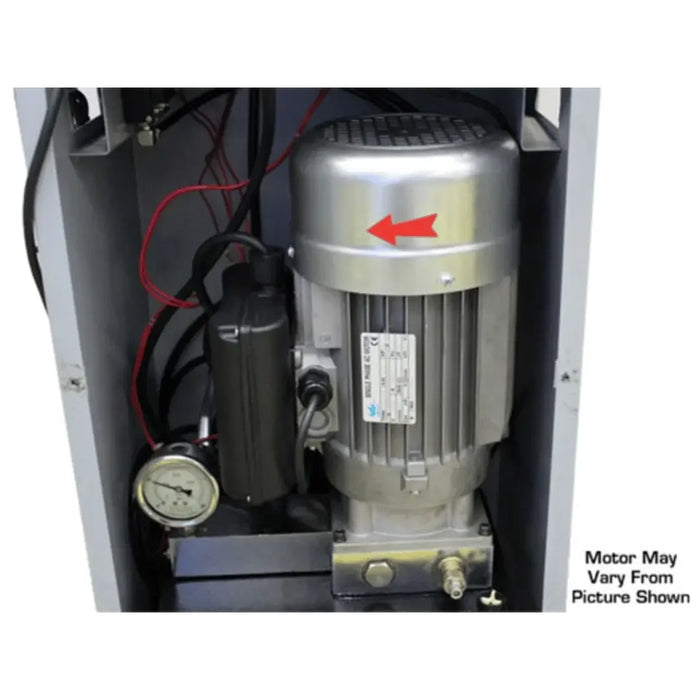

Separate Self-Contained Control Panel
Emergency Manual Pump for Lowering

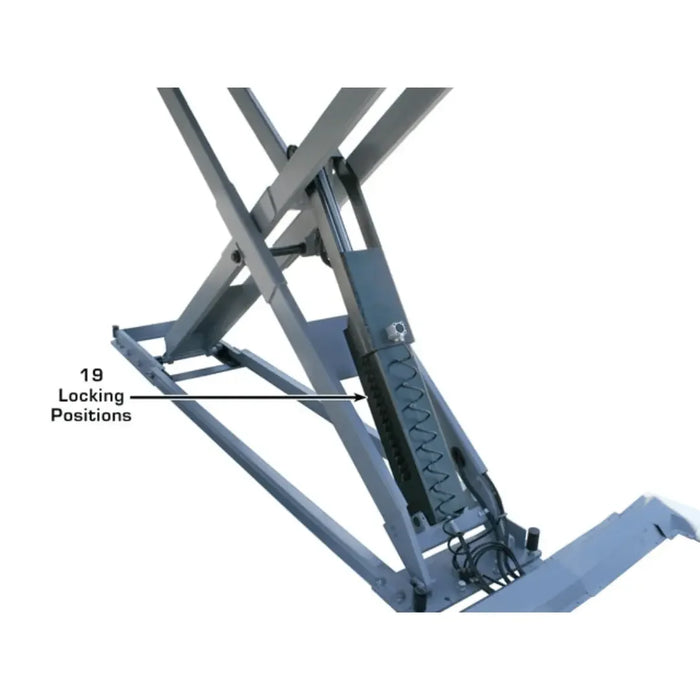

19 Locking Positions
CE Certified
Can be Surface or Flush Mounted

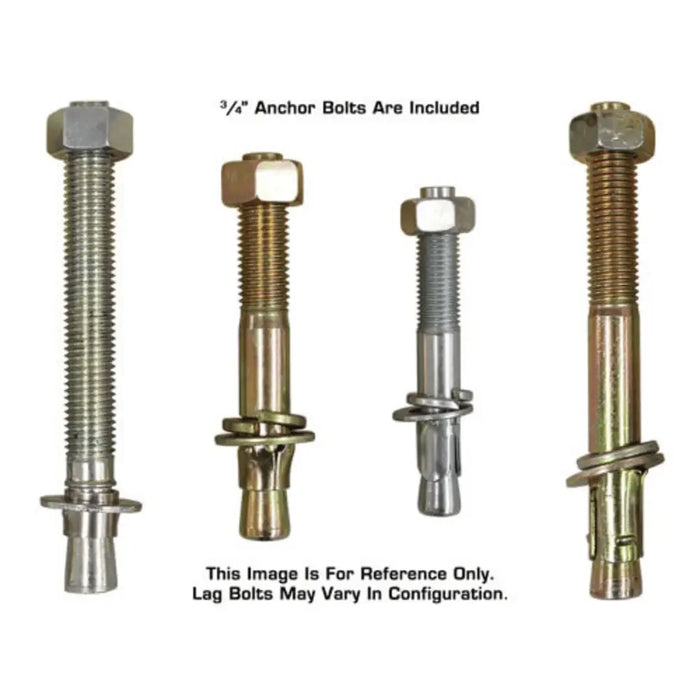

Mounting Hardware Included
220V/1ph Electric Operation (30amp Breaker)
Shipping Weight: 5,000 lb.
2 yr Structural / 1 yr Hydraulic Warranty – Parts Only

Product Specifications

Model	12AWFSL
Lifting Capacity	12,000 lbs.

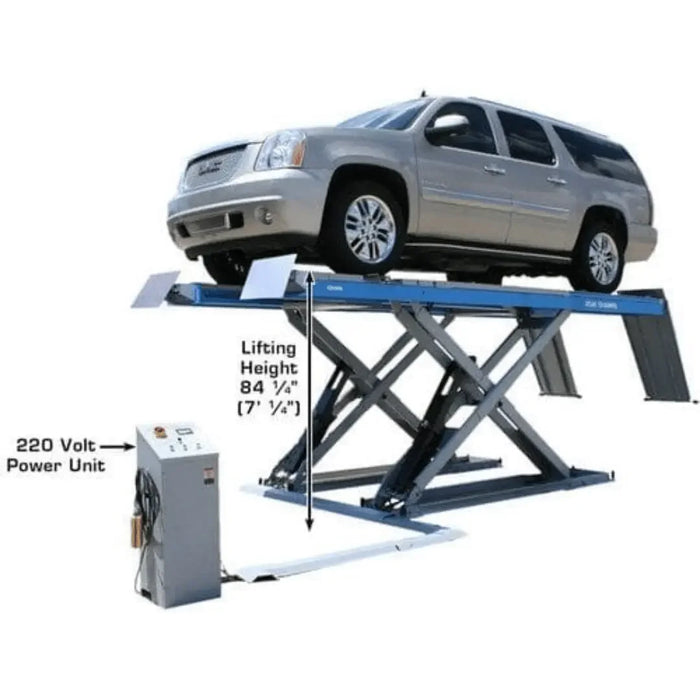

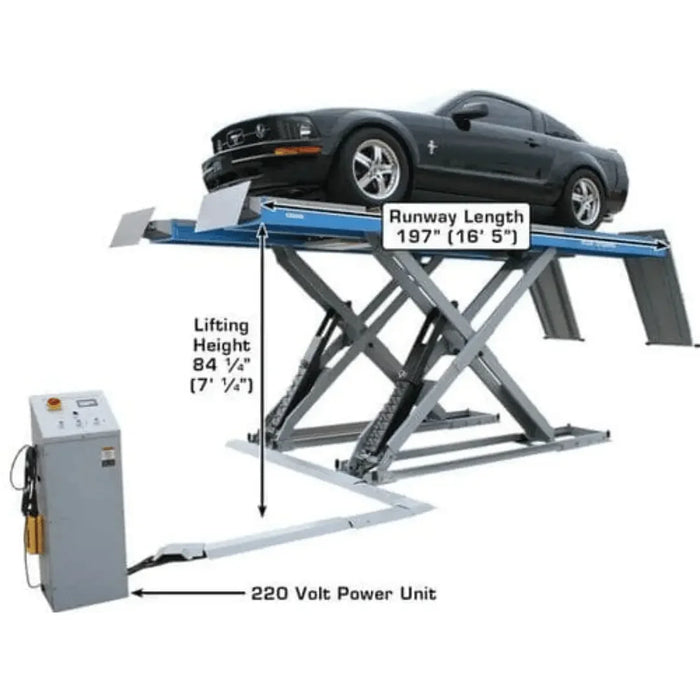

Lifting Height	84 1/4"
"Wheels Free" Lift Height	17"
Lowered Height	11 1/2"
Overall Width	86 3/8"

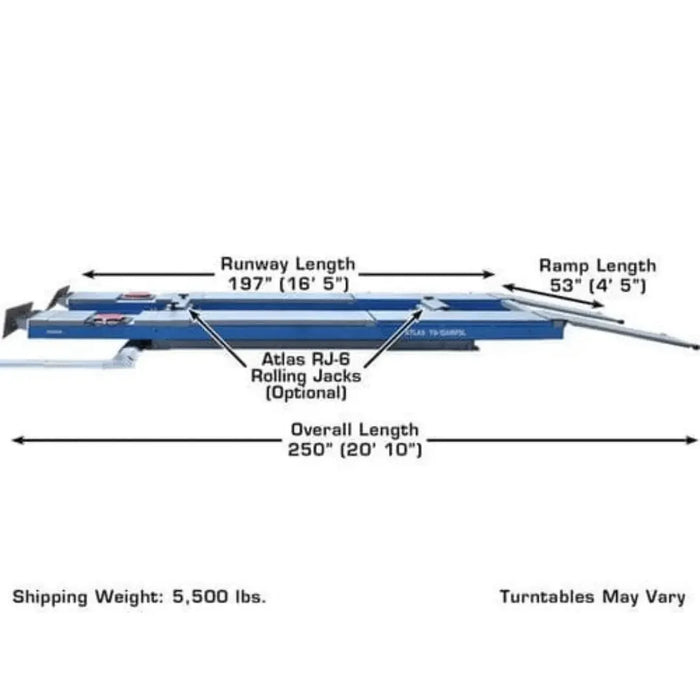

Length w/ Ramps	250"
Length w/o Ramps	197"
Ramp Length	72"
4-Wheel Alignment WB	90"–168"
2-Wheel Alignment WB	86"–172"
Runway Width w/ Rail	23 3/4"
Width Between Runways	39 1/4"
Width Between Rails	34 3/8"
Air Requirement	90-120 PSI
Electrical Requirement	220V ±5%, 1ph, 30A
Oil Requirement	3-5 Gal AW32/AW46
Concrete Requirement	6" @ 3000 PSI
Shipping Weight	5,000 lbs.

Pick Up and Delivery

Our Pick Up locations for Atlas are in Atlanta, GA • Fresno, CA • Phoenix, AZ • Indiana, IN • New Jersey, NJ.

Call, text, or chat with us if you have questions. – 866-774-7743

Specifications

-

Lifting height top of pad	84 1/4"
Modal	12AWFSL
Overall weight	5,000 lbs.

Resources

-

For more detailed information and guidance, you can download the following:

Download Manual (PDF)
