Amgo PRO-40E (Extra Length) 40,000 lb 4 Post Lift - Mechanic Super Store

Amgo PRO-40 40,000 lb 4 Post Lift

Name: Amgo PRO-40 40,000 lb 4 Post Lift
Brand: AMGO Hydraulics
Price: 23235.0 USD
Availability: InStock

Part #:PRO-40

Brand: AMGO Hydraulics

$0.00 - $0.00

$0.00

$23,235.00

$23,235.00 - $23,235.00

$23,235.00

Call/Text Us: 866-774-7743 Call Us

Description

-

Amgo PRO-40 40,000 lb 4 Post Lift

4 Post Lift - The AMGO PRO-40 40,000 lb chain-driven 4 post car lift is built for the most demanding commercial environments—tank trucks, buses, fire apparatus, and extra-large fleet vehicles alike. This 4 post vehicle lift delivers unmatched strength with its massive capacity and aircraft-grade cable-driven system, ensuring safe and stable performance under extreme loads.

Featuring mechanical self-locking safety devices with air-released lock, dual primary safety locks, and a cable-slack protection system, this 4 post auto lift prioritizes operator safety and reliability. Its non-skid diamond plate runways and rugged hydraulic cylinder with precision-engineered seals ensure smooth, consistent operation even under full load.

Designed for versatility and accessibility, the PRO-40 offers a generous 129 ⅞″ drive-through clearance, adjustable runway widths, and extended platform lengths—allowing easy access below wide or dual-rear vehicles. Its ETL-certified power unit and 2.0 HP, single-phase motor deliver consistent performance with minimal maintenance.

Whether you're running a heavy-duty truck shop, city fleet garage, or industrial maintenance facility, the AMGO PRO-40 offers rock-solid performance, safety, and durability at the highest level.

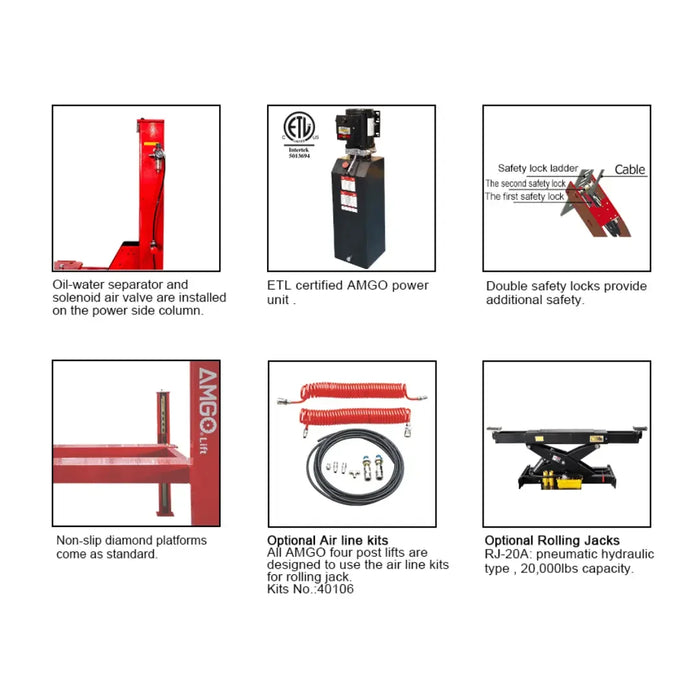

Product Features

40,000 lbs capacity.
AMGO ETL certified power unit comes as standard.
Mechanical self-locking safety device with air-driven lock release.
Both primary multiple safety locks and cable-slack protection system are equipped as standard.
Cable-driven, utilizing aircraft standard high quality cables.
Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
Non-skid diamond platforms.

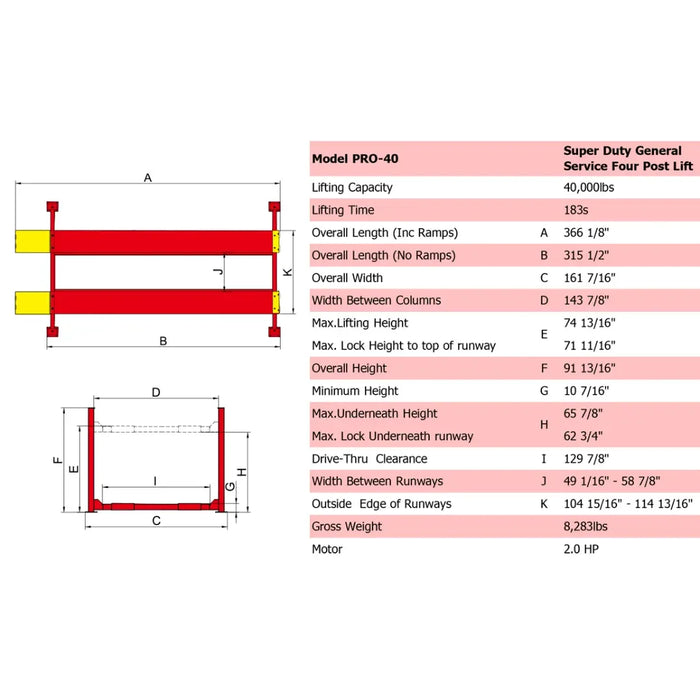

Product Specifications

Model	PRO-40
Lifting Capacity	40,000 lbs
Lifting Time	183S
A: Overall Length (Inc.Ramps)	366 1/8″
B: Overall Length (No.Ramps)	315 1/2″
C: Overall Width	161 7/16″
D: Width Between Columns	143 7/8″
E: Max. Lifting Height	74 13/16″
E: Max. Lock Height to Top of Runway	71 11/16″
F: Overall Height	91 13/16″
G: Minimum Height	10 7/16″
H: Max. Underneath Height	65 7/8″
H: Max. Lock Underneath Runway	62 3/4″
I: Drive-Thru Clearance	129 7/8″
J: Width Between Runways	49 1/16″ - 58 7/8″
K: Outside Edge of Runways	104 15/16″ - 114 13/16″
Gross Weight	8,283 lbs
Motor	2.0HP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.

Call, text, or chat with us if you have questions. 866-774-7743

Specifications

-

Drive thru width	10.75 ft
Drive thru between carriage	129"
Height	40
Inside columns	143"
Length	318
Lifting capacity	40000 lbs
Lifting height top of runway	6 ft
Lifting height top of pad	74 13/16″
Lifting height top of runway	71"
Max rise under runway	5.35 ft
Max rise under runway	65"
Modal	Amgo PRO-40
Outside edge of runways	9.5 ft
Outside edge of runways	104"114"
Overall length	30.5 ft
Overall width	13.45 ft
Overall heights	91"
Overall length	315"366"
Overall weight	8,283 lbs
Overall width	161"
Runway length	25.25 ft
Runway length	305"
Width	30
Width between columns	11.85 ft
